Canon LBP5000 Color Laser Printer Service Manual Repair Guide PDF

Description

Canon LBP5000 Color Laser Printer Service Manual Repair Guide 2006 – PDF DOWNLOAD

DESCRIPTION

Complete Canon LBP5000 Color Laser Printer Service & Repair Manual

This is the official OEM service manual issued by Canon Inc. for the LBP5000 series color laser printer, published January 19, 2006. This comprehensive 112-page professional workshop manual provides complete technical documentation for installation, troubleshooting, maintenance, and repair of Canon’s compact 4-drum color laser printing system featuring Electrostatic Transportation Belt (ETB) technology.

📋 File Details

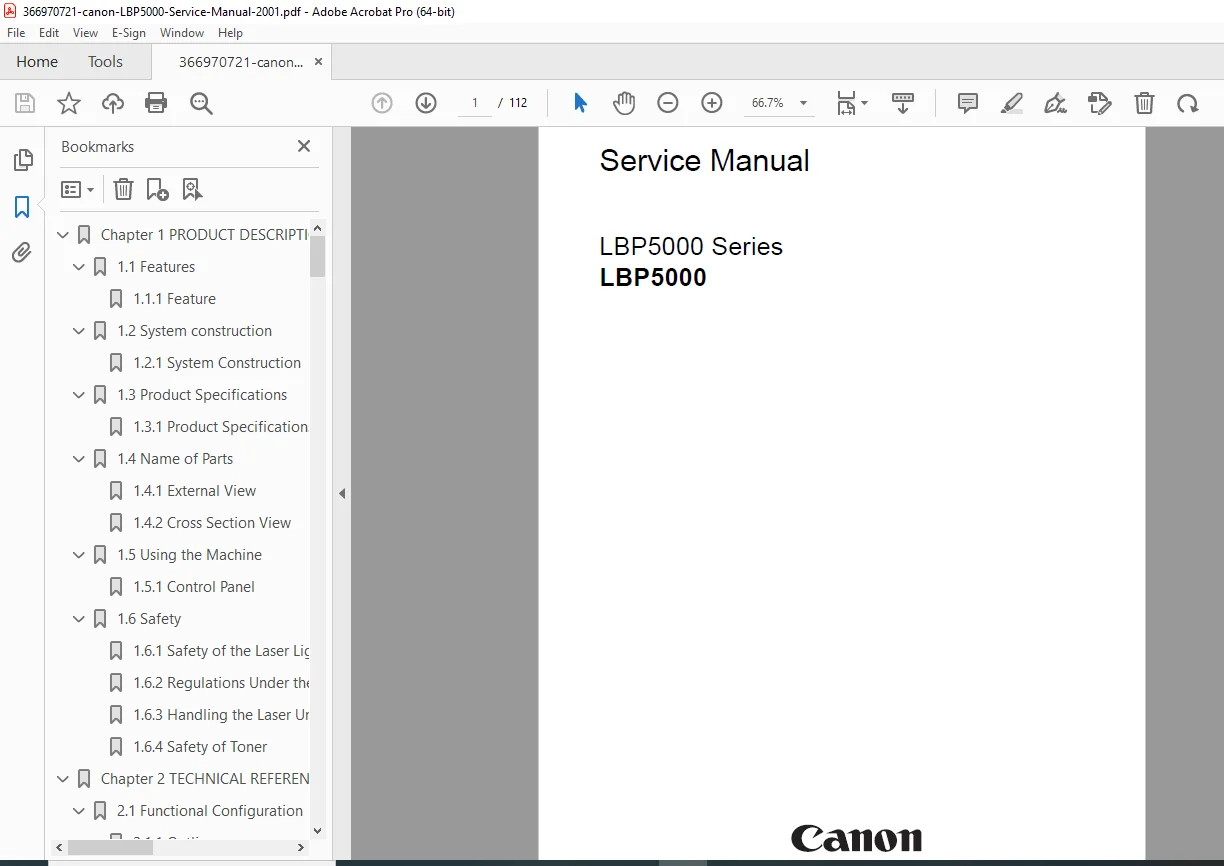

• Manual Name: Canon LBP5000 Series Service Manual
• Model Covered: LBP5000 Color Laser Printer
• Publication Date: January 19, 2006
• Pages: 112 pages
• File Quality: High-resolution PDF (A4 size)
• File Size: 9.2 MB
• Language: English
• Document Type: Official Canon service documentation

🖨️ LBP5000 Printer Specifications

Printing Technology:

• Type: Desktop color laser beam printer
• Method: 4-drum consecutive inline method (one-shot 4-color transfer)
• Photosensitive: OPC drum
• Resolution: 600 dpi × 600 dpi
• Gradations: 16 levels
• Transfer: Electrostatic Transportation Belt (ETB)

Performance:

• Print speed: 8 pages/min (both color and monochrome)
• First print time: 20 seconds or less
• Warm-up time: 195 seconds or less (at 20°C)
• Memory: 8 MB (non-expandable)

Paper Handling:

• Cassette capacity: 250 sheets (64 g/m²)
• Manual feeder: 1 sheet
• Output tray: 125 sheets
• Paper sizes: A4, B5, Legal, Letter, Executive, Index Card, Envelopes, Custom (76.2-215.9mm × 127.0-355.6mm)
• Media types: Plain paper (60-90 g/m²), Heavy paper (91-163 g/m²), Envelopes, Labels, Transparencies (B&W only)

Toner Cartridges:

• Type: Non-magnetic, 1-component dry toner
• Integrated cartridge: Toner + drum assembly
• Yield: Black ~2500 pages, CMY ~2000 pages each
• Colors: Cyan, Magenta, Yellow, Black

Physical Specifications:

• Dimensions: 407mm (W) × 367mm (D) × 376mm (H)
• Weight: 15.7 kg (without cartridges)
• Power: 110-127V or 220-240V, 50/60Hz
• Max power consumption: 638W

Operating Environment:

• Temperature: 10°C – 30°C
• Humidity: 10% – 80% RH
• Atmospheric pressure: 810.6 – 1013.3 hPa
• Noise: ≤25 dB (standby), ≤50 dB (printing)

📚 Comprehensive Manual Contents

CHAPTER 1: PRODUCT DESCRIPTION

1.1 Key Features:

• Smallest color LBP – Most compact Canon color laser printer
• ETB technology – Electrostatic Transportation Belt for direct transfer
• 4-drum inline method – Simultaneous 4-color transfer for faster printing
• Integrated laser scanner – 4-beam/2-mirror mechanism reduces color displacement
• On-demand fixing – Ceramic heater for quick warm-up and energy efficiency
• CAPT technology – Canon Advanced Printing Technology for high performance
• Easy maintenance – Front-access design, integrated toner/drum cartridges

1.2 System Construction:

• Compatible with Paper Feeder PF-92 (optional)
• Network Board NB-C1 support (optional)

1.3 Complete Product Specifications (detailed technical data)

1.4 Name of Parts:

• External view with component identification
• Cross-section view showing internal mechanisms

1.5 Control Panel Operations

1.6 Safety Information:

• Laser light safety protocols
• CDRH (Center for Devices and Radiological Health) regulations
• Laser unit handling procedures
• Toner safety guidelines

CHAPTER 2: TECHNICAL REFERENCE

2.1 Functional Configuration Overview

2.2 Basic Sequence:

• Operation sequence flowcharts
• Power-on initialization sequence

2.3 LASER EXPOSURE SYSTEM:

• System overview and configuration
• Laser control mechanisms:
  • Laser emission control
  • Automatic Power Control (APC)
  • Horizontal synchronous control
  • Image mask control
  • Fault detection
• Laser scanner motor control:
  • Speed control algorithms
  • Phase control
  • Fault detection methods

2.4 IMAGE FORMATION SYSTEM:

• Complete overview and configuration
• Image formation process:
  • Electrostatic latent image formation
  • Developing block operations
  • Transfer block mechanisms
  • Fixing block procedures
  • Drum cleaning block
• High-voltage control:
  • Primary charging bias generation
  • Developing bias generation
  • Transfer bias generation
  • Fixing bias generation
• Image stabilization control:
  • Environment corrective control
  • Image density corrective control (D-max)
  • Image halftone corrective control (D-half)
  • Image density detection
  • Color misregistration corrective control
  • Color misregistration detection
• Toner cartridge management:
  • Memory tag control
  • Cartridge presence/absence detection
  • End-of-life detection
  • Toner level detection
• Transfer unit (ETB):
  • ETB unit operation
  • ETB cleaning mechanisms

2.5 PICKUP/FEEDING/DELIVERY SYSTEM:

• System overview and configuration
• Paper handling control:
  • Cassette pickup procedures
  • Manual feeder pickup
  • Paper transport mechanisms
  • Transport speed control
  • Paper loop control
  • Automatic fixing pressure release
• Jam detection:
  • Comprehensive jam detection outline
  • Delay jam identification
  • Stationary jam detection
  • Other jam scenarios

2.6 FIXING UNIT SYSTEM:

• Overview and configuration
• Fixing temperature control (on-demand ceramic heater)
• Protective functions:
  • Temperature monitoring
  • Fault detection mechanisms

2.7 EXTERNAL AND CONTROLS SYSTEM:

• Power supply circuits
• Control functions

2.8 ENGINE CONTROL SYSTEM:

• DC Controller:
  • Individual block operations
  • Fan/motor control
  • Main motor fault detection
  • Fan motor fault detection
• Video Controller PCB:
  • Block overview
  • Signal processing

CHAPTER 3: DISASSEMBLY AND ASSEMBLY

3.1 Pre-Replacement Precautions

3.2 External and Controls System Disassembly:

• Rear cover removal
• Right cover / right cassette cover
• Left cover / left cassette cover
• Upper cover removal
• Front cover removal
• Step-by-step procedures with diagrams

3.3 Complete Component Removal Procedures:

• Control panel assembly
• Delivery unit
• Paper feeder mechanisms
• Fixing unit assembly
• Laser scanner unit
• Drum units (all 4 colors)
• Transfer belt (ETB) unit
• High-voltage PCB
• DC controller PCB
• Video controller PCB
• Power supply assembly
• Main motor
• All sensors and switches

CHAPTER 4: ADJUSTMENT AND MAINTENANCE

4.1 Adjustment Procedures:

• Image quality adjustments
• Color registration alignment
• Density calibration
• Environment sensor calibration

4.2 Maintenance Protocols:

• Periodic cleaning schedules
• Component inspection procedures
• Preventive maintenance tasks
• Lubrication points

CHAPTER 5: TROUBLESHOOTING

5.1 Systematic Troubleshooting Approach

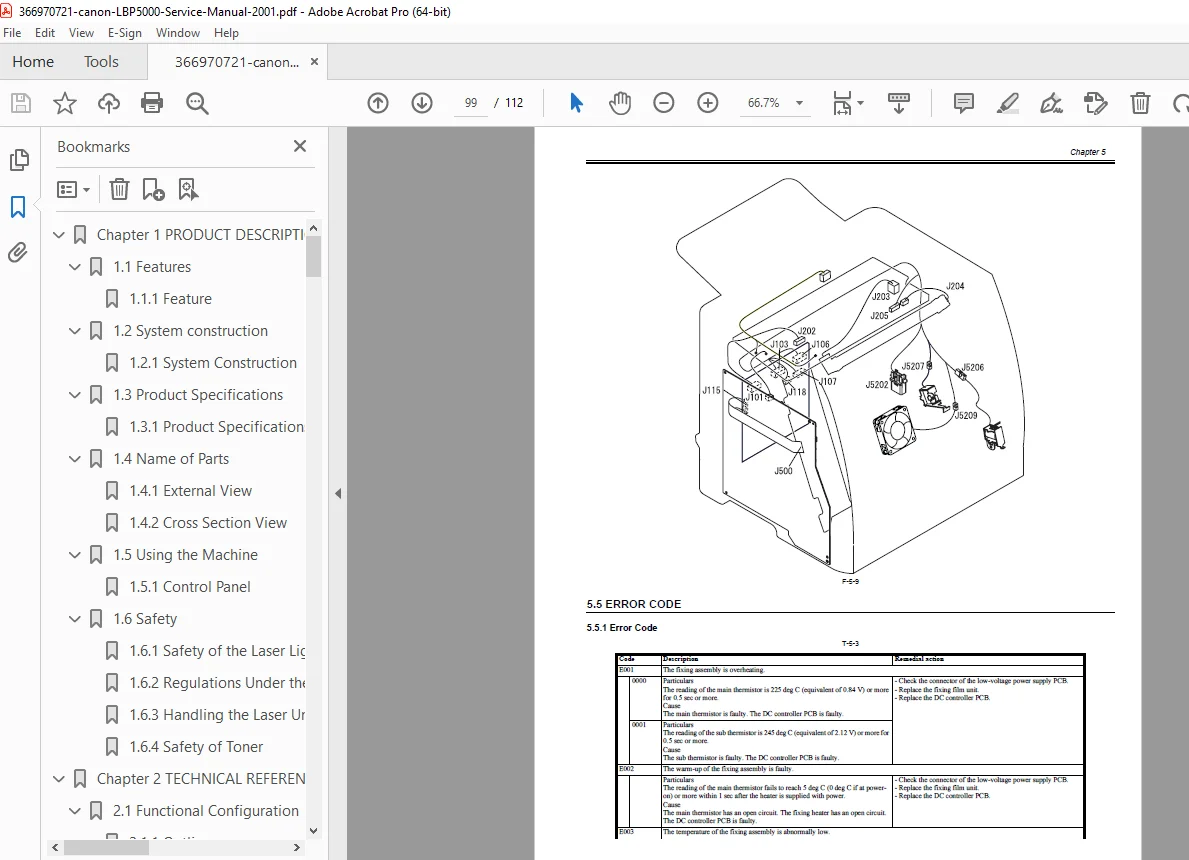

5.2 Complete Error Code Reference:

• E001 – Fixing system errors (main thermistor, sub thermistor, power supply faults)
• E004 – Fixing film unit faults
• E012 – Zero-cross signal detection errors
• E020 – Main motor faults (startup and operational)
• E024 – Density sensor errors
• E025-E028 – Toner level sensor faults (all 4 colors)
• E066 – Environment sensor errors
• E100-E103 – Scanner motor/laser unit faults (Y, M, C, K)
• E194 – Color displacement (CPR) sensor errors
• E197 – Engine communication errors
• E198 – DC controller memory faults

5.3 Error Code Details:

• Particulars – Specific fault conditions
• Cause – Root cause analysis
• Remedial action – Step-by-step repair procedures

5.4 Component-Level Troubleshooting:

• Power supply diagnostics
• Sensor testing procedures
• Motor fault isolation
• PCB fault identification
• High-voltage circuit testing

CHAPTER 6: ELECTRICAL SCHEMATICS

6.1 Complete Wiring Diagrams:

• DC controller PCB connections
• Video controller PCB wiring
• High-voltage PCB circuits
• Low-voltage power supply
• Motor drive circuits
• Sensor wiring harnesses
• Control panel connections

6.2 Block Diagrams:

• System architecture
• Signal flow diagrams
• Communication paths

CHAPTER 7: PARTS CATALOG

7.1 Exploded View Diagrams:

• Complete printer assembly views
• Sub-assembly breakdowns
• Component identification numbers

7.2 Parts Lists:

• Part numbers for all serviceable components
• Cross-reference tables
• Consumables identification

⚙️ Advanced Technical Features Documented

ETB (Electrostatic Transportation Belt) Technology:

• Direct image transfer from photosensitive drum to media
• Eliminates intermediate transfer step
• Enables faster color printing
• Detailed operational theory

4-Drum Inline System:

• Simultaneous CMYK image formation
• Single-pass color printing
• Reduced transfer time vs. rotary systems
• Precise color registration control

Integrated Laser Scanner:

• 4-beam/2-mirror polygon configuration
• Dual-color beams per mirror
• Compact design with minimal color displacement
• Comprehensive beam detection and control

On-Demand Ceramic Heater Fixing:

• Rapid warm-up technology
• Energy-efficient operation
• Temperature control algorithms
• Safety interlocks and monitoring

CAPT (Canon Advanced Printing Technology):

• PC-based data processing
• Reduced printer memory requirements
• Enhanced printing performance
• Windows optimization

🎯 Who Should Use This Manual?

• Printer technicians servicing Canon color laser printers
• Electronics repair specialists working on laser printing systems
• IT support professionals maintaining office printer fleets
• Copier/printer service centers performing warranty repairs
• Technical training programs teaching laser printer technology
• Refurbishment specialists restoring LBP5000 units
• Parts suppliers identifying correct replacement components

✅ Why This Manual is Essential

✔ Official Canon documentation – Authentic manufacturer specifications
✔ Complete technical theory – Understand how every system operates
✔ Detailed error codes – Diagnose and fix all fault conditions
✔ Step-by-step disassembly – Remove and replace any component safely
✔ Electrical schematics – Trace circuits and identify faults
✔ Parts identification – Order correct replacement parts
✔ ETB technology guide – Service unique transfer belt system
✔ 4-drum system expertise – Master inline color printing mechanisms
✔ Adjustment procedures – Calibrate for optimal print quality
✔ Safety protocols – Work safely with laser and high-voltage systems

📥 Instant Digital Download

Receive your PDF manual immediately after purchase. Compatible with all devices – desktop, laptop, tablet, smartphone. Print specific sections for bench use or keep digital for quick reference during repairs.
