Canon Pixma Pro9500 Printer Service Repair Manual – PDF Download

Description

Canon Pixma Pro9500 Printer Service Repair Manual

DESCRIPTION:

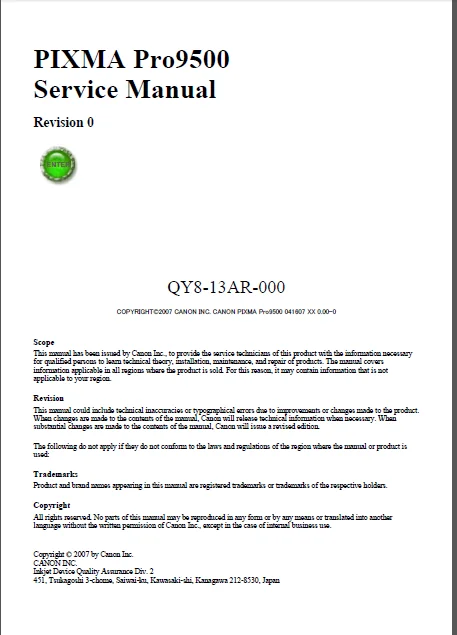

This manual has been issued by Canon Inc., to provide the service technicians of this product with the information necessary for qualified persons to learn technical theory, installation, maintenance, and repair of products. The manual covers information applicable in all regions where the product is sold. For this reason, it may contain information that is not applicable to your region. Revision This manual could include technical inaccuracies or typographical errors due to improvements or changes made to the product. When changes are made to the contents of the manual, Canon will release technical information when necessary. When substantial changes are made to the contents of the manual, Canon will issue a revised edition. The following do not apply if they do not conform to the laws and regulations of the region where the manual or product is used.

TABLE OF CONTENTS:

Part 1: MAINTENANCE
1. MAINTENANCE
1-1. Adjustment, Periodic Maintenance, Periodic Replacement Parts, and Replacement Consumables by Service Engineer
1-2. Customer Maintenance
1-3. Product Life
1-4. Special Tools
1-5. Serial Number Location
2. LIST OF ERROR DISPLAY / INDICATION
2-1. Operator Call Errors
2-2. Service Call Errors
2-3. Warnings
2-4. Troubleshooting by Symptom
3. REPAIR
3-1. Notes on Service Part Replacement (and Disassembling / Reassembling)
3-2. Special Notes on Repair Servicing

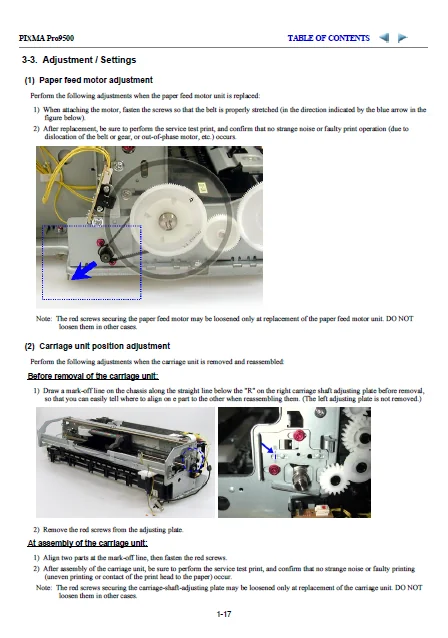

3-3. Adjustment / Settings
(1) Paper feed motor adjustment
(2) Carriage unit position adjustment

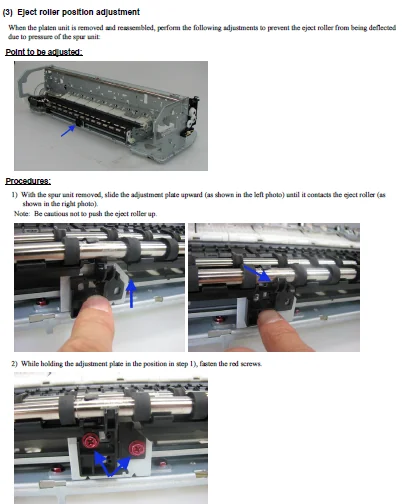

(3) Eject roller position adjustment
(4) Grease application
(5) Ink absorber counter / wetting liquid counter setting
(6) User mode
(7) Service mode
Service test print, EEPROM initialization, Ink absorber counter reset, Wetting liquid counter reset,
Destination settings, LF / Eject correction
3-4 Verification Items
(1) Service test print
(2) EEPROM information print
4. PRINTER TRANSPORTATION
Part 2: TECHNICAL REFERENCE
1. NEW TECHNOLOGIES
2. CLEANING MODE AND AMOUNT OF INK PURGED
3. INK AGITATION MODE AND TIME
4. PRINT MODE
4-1. Color Printing via Computer
4-2. Monochrome Printing via Computer
4-3. Camera Direct Printing (Color)
4-4. Camera Direct Printing (Monochrome)
5. FAQ (Problems Specific to the Pro9500 and Corrective Actions)
PIXMA Pro9500
Part 3: APPENDIX
1. BLOCK DIAGRAM
2. CONNECTOR LOCATION AND PIN LAYOUT
2-1 Logic Board Ass’y
2-2 Carriage Board (Print Head Connector)
PIXMA Pro9500 Specifications

IMAGES:

CANON PIXMA PRO9500 PRINTER SERVICE REPAIR MANUAL – PDF DOWNLOAD:
