Case 580 M & 580 Super M Backhoe Loader Parts Catalog PDF 87599554

Description

Case 580 M and 580 Super M Parts Catalog – Document 87599554

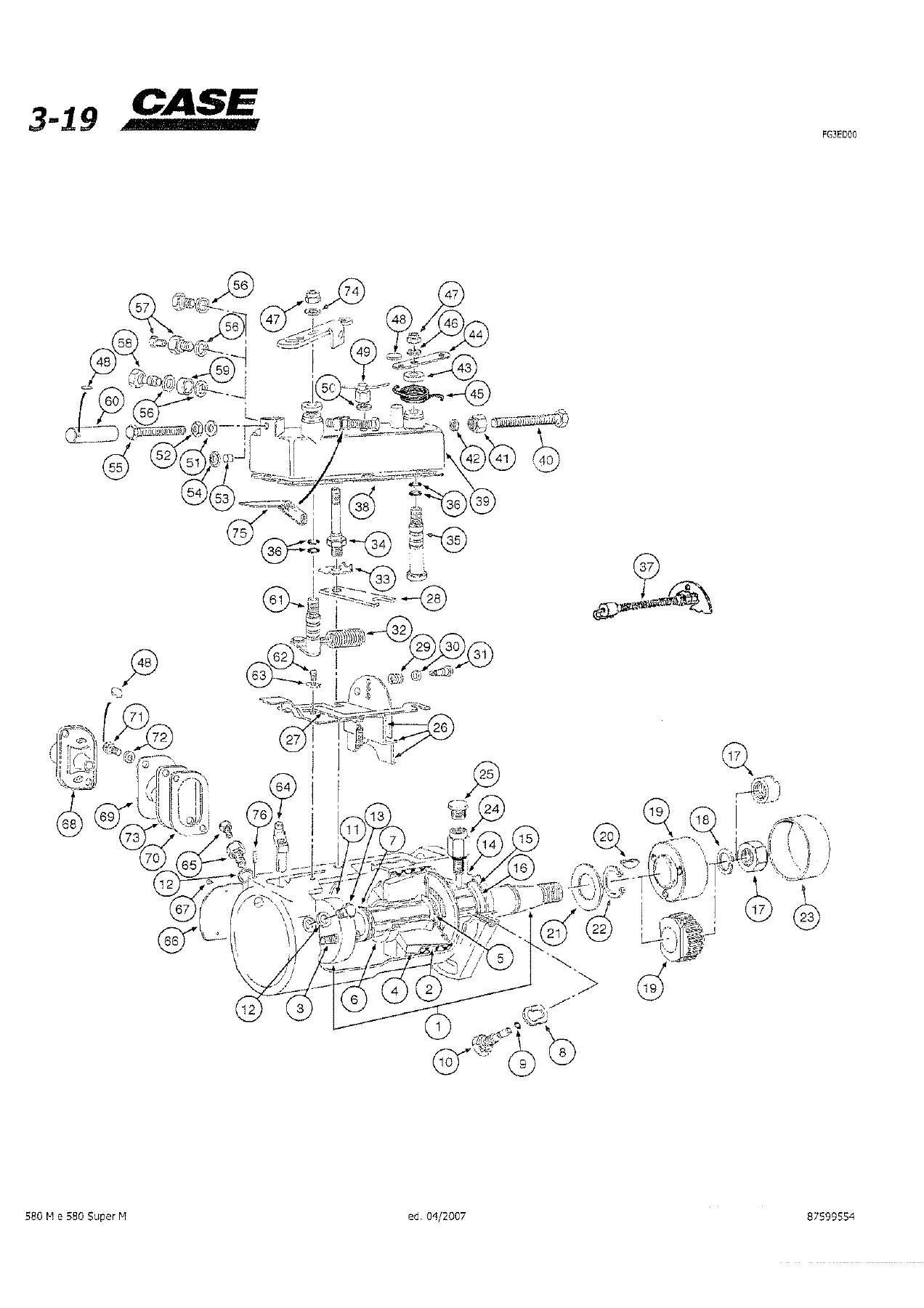

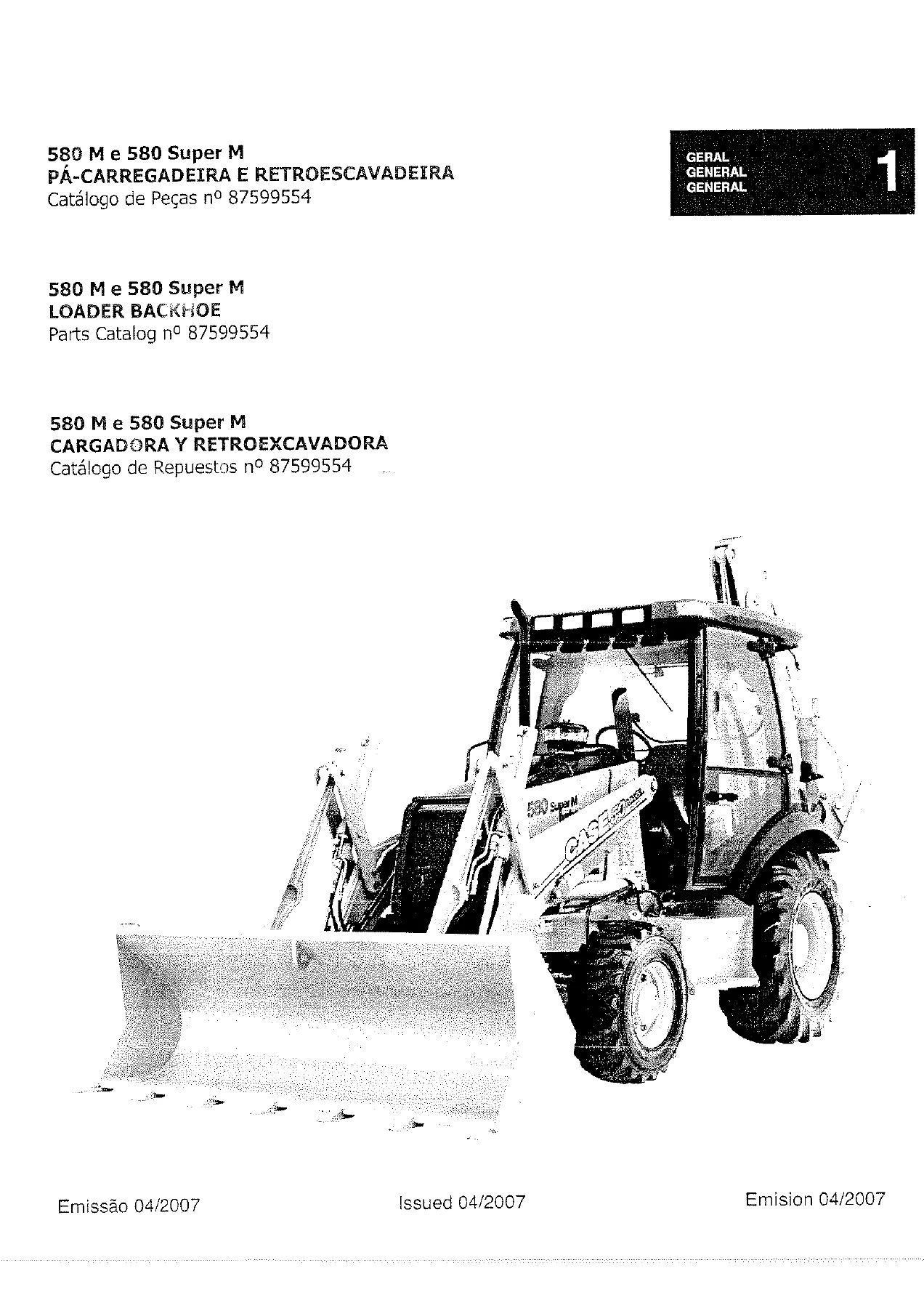

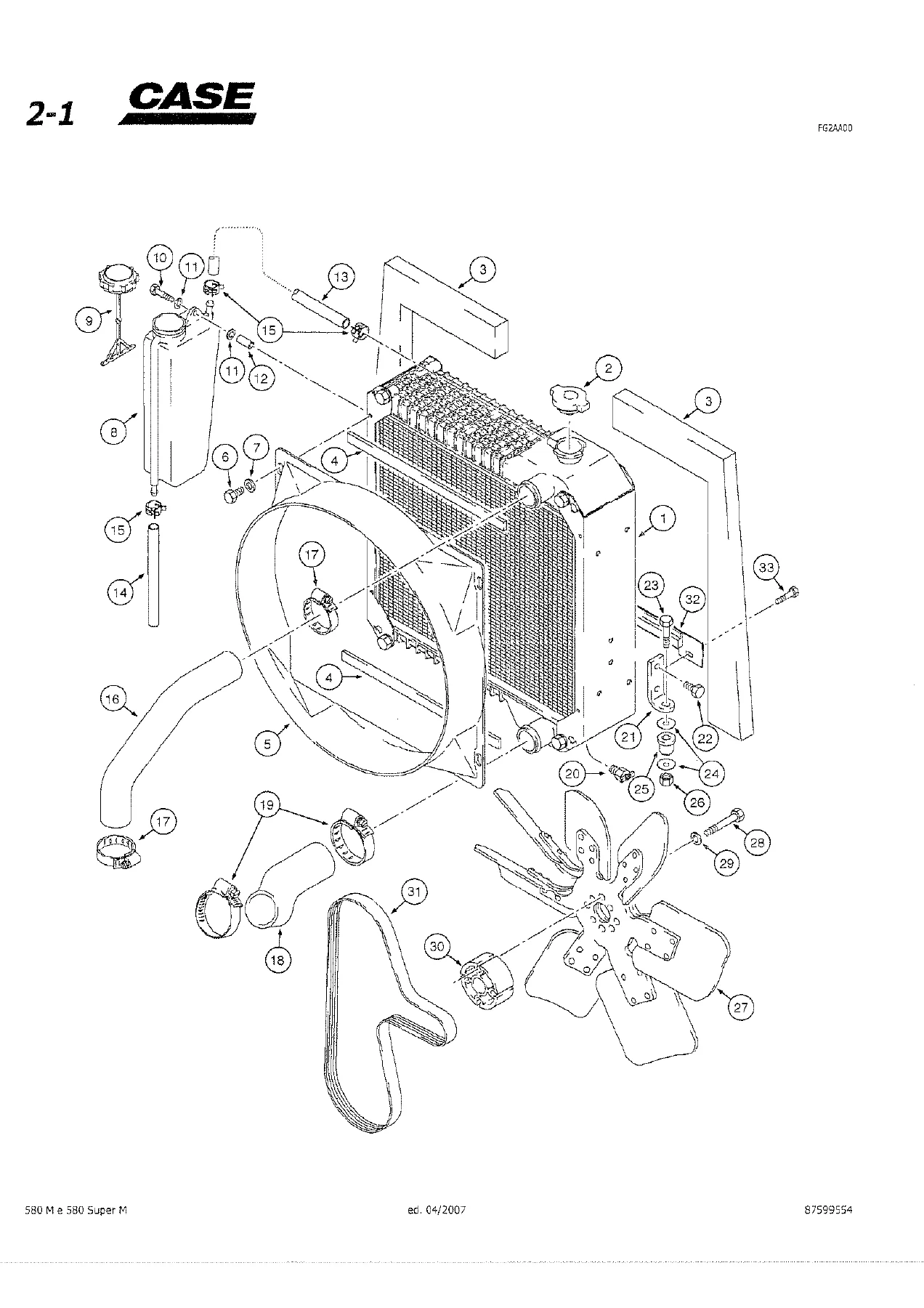

This is the illustrated parts catalogue released for the Case 580 M and 580 Super M loader backhoe under document number 87599554, edition 02/2007. It is not a repair manual. It is the identification and ordering tool used at the parts counter, in the workshop and by owners who need to pin down exactly which component is fitted to their machine before anything is pulled apart or bought. Each major group is drawn in exploded view with circled item numbers that lead directly into a numbered parts table, so a single seal, bolt, gear or complete assembly can be traced from the illustration to its part number, its description and the quantity used.

Every part description is printed in three languages side by side – Portuguese, English and Spanish – which makes the Case 580 M & 580 Super M Backhoe Loader Parts Catalog usable across Brazilian, North American and Latin American parts channels without a separate translation sheet.

File Details

• Manual type: Illustrated parts catalog (parts book)
• Brand: Case
• Models covered: 580 M, 580 Super M loader backhoe / backhoe loader
• Document number: 87599554
• Edition: 02/2007
• Languages: Portuguese, English, Spanish
• Extent: approximately 487 pages of parts listings and exploded illustrations
• Format: PDF

What the Catalogue Covers

• Engine cooling – standard, without air conditioner
• Engine cooling – optional, with air conditioner
• Radiator and components
• Air cleaner – assembly
• Muffler and exhaust system – standard (naturally aspirated engine)
• Muffler and exhaust system – option (turbo engine)
• Cold start system
• Engine – mounting
• Water pump
• Timing gear housing
• Intake and exhaust manifold
• Turbocharger – mounting
• Turbocharger – assembly
• Lubricating oil filter and cooler
• Lubricating oil pump and pan
• Cylinder head valves cover and thermostat
• Cylinder head assembly
• Camshaft
• Cylinder block
• Crankshaft
• Flywheel housing
• Pistons and connecting rods – standard (naturally aspirated engine)
• Pistons and connecting rods – option (turbo engine)
• Fuel tank
• Throttle and control linkage
• Fuel supply pump, fuel lines and fuel filter
• Injection pump – naturally aspirated engine
• Injection pump – turbo engine
• Injection pump assemblies and repair kits
• Injectors and nozzle shims
• Fuel separator filter
• Starter motor
• Alternator
• Alternator and starter mounting
• Main and engine harness
• Battery
• Fuses, relays and diodes
• Front console harness
• Side console harness and switches
• Steering column covers
• Console and cab trim
• Instrument cluster
• Headlights, work lights, rear lamps and harnesses
• Horn and backup alarm
• Rotating beacon
• Speakers and antenna
• Auxiliary hydraulic foot switch
• Steering wheel and steering column
• Hydraulic circuit – hydrostatic unit
• Hydrostatic unit – assembly
• Steering cylinder (4×2)
• Front axle (4×2) and spindles
• Front wheel hub and bearings (4×2)
• Front wheels and tyres
• Transmission and shift components
• Transmission control valve
• Transmission solenoid valve (4×4)
• Rear wheels and tyres
• Rear axle – mounting
• Rear axle – housing
• Rear axle – differential
• Rear propeller shaft – assembly

Read together, that list means the catalogue follows the machine from the cooling pack and the engine internals through the fuel and injection system, the complete electrical installation, the steering and front axle, and finally the transmission and rear axle group. Nothing in it is generic filler: every group is broken down to the level of individual nuts, washers, seals, O-rings, gaskets, bearings, studs and service kits, with the quantity the machine actually uses. For a technician rebuilding a differential, resealing a steering cylinder or simply replacing a worn injection pump, that level of breakdown is what stops the wrong part being ordered and the job being done twice.

How the Listings Are Structured

The tables follow a consistent layout across the whole catalogue. The ITEM column carries the reference number circled on the illustration, the PART NO column gives the number to order, QTY gives the quantity used on the machine, and the DESCRIPTION column names the part in Portuguese, English and Spanish. Indented descriptions identify sub-components that belong to the assembly listed immediately above them, so a roller or cylinder assembly can be read as a whole or stripped down to its individual seals and retainers.

Two shorthand notes appear throughout and both matter when ordering: NSS in the part number column means the item is not serviced separately, so the parent assembly has to be ordered instead, and UQN (or its English equivalent UAR) in the description means use as required – typically for sealant, adhesive, strap or shim quantities. Right hand and left hand references follow the definitions given in the operator’s manual, which the catalogue points to directly.

Several groups are shown in more than one version so the correct configuration can be matched to the machine. Engine cooling is split into a standard non-air-conditioned layout and an optional air-conditioned layout, and the radiator itself is listed in two forms – a standard four-row core and an optional five-row core, each with its own upper tank, lower tank, core, gasket, brackets and 15 psi cap. The exhaust group is likewise split between the naturally aspirated engine and the turbocharged engine, and the pistons and connecting rods, the cylinder head gaskets, the manifold and the injection pump each carry separate standard and turbo listings.

Models, Engines and Configurations

The catalogue is written for the Case 580 M and 580 Super M loader backhoe. It covers both the naturally aspirated diesel engine supplied as standard and the turbocharged diesel offered as an option, and the engine internals shown – four cylinder positions on the injection line diagram, four-cylinder head and piston groups, standard and oversize piston kits and bearing sets – confirm a four-cylinder diesel. Wear and repair sizes are listed alongside the standard parts, including piston and ring kits in standard, 0.5 mm and 1.0 mm oversizes, and connecting rod and main bearing kits in standard, 0.25 mm, 0.50 mm, 0.75 mm and 1.00 mm undersizes.

Driveline coverage spans both the 4×2 and 4×4 build. The steering cylinder, front axle and front wheel hub groups carry the 4×2 designation, while the front propeller shaft, transmission housing and solenoid valve groups carry 4×4 listings, so the correct variant can be identified from the table rather than assumed. Front tyres are listed in standard and optional sizes, and rear tyres appear in several sizes including 14×24, 16.9Lx24, 17.5×25, 19.5Lx24 and 19.5Lx24 Goodyear options, each matched to its wheel rim and flange nut.

Order the Case 580 M / 580 Super M Parts Book as an Instant PDF

A parts catalogue pays for itself the first time it prevents a wrong-order return or a machine sitting idle waiting on a component that does not fit. With the Case 580 M & 580 Super M Backhoe Loader Parts Catalog PDF 87599554 open on a bench tablet or printed for the workshop wall, the exploded views and numbered tables let you identify a part visually, confirm its position in the assembly, check the quantity and hand the counter an exact number – whether the job is a routine filter and seal replacement or a full differential, transmission or injection pump rebuild.

Correct identification matters more on a backhoe loader than on most equipment, because so many parts look alike across build variants and option packages. The standard and turbo listings, the 4×2 and 4×4 groups and the oversize and undersize repair kits in this catalogue are exactly what separates the right component from a near miss. Keep it beside the service manual and you have both halves of the job: what to do, and what to fit.

IMAGES PREVIEW

Delivery is instant. The file is a downloadable PDF, no shipping and no waiting on a paper copy, and it opens on any computer, tablet or phone and prints cleanly for the workshop. Buy once and the 580 M and 580 Super M parts catalog stays on hand for every repair the machine needs.
