Grove Manitowoc TMS760E Crane Parts Catalog – Serial 222341 – Rev 001 PDF

Description

Grove Manitowoc TMS760E Crane Parts Catalog — Serial 222341, Rev 001

This Grove Manitowoc TMS760E Crane Parts Catalog is the complete illustrated parts reference for crane serial number 222341, published November 25, 2014 under Revision 001. Spanning 1,315 pages, this TMS760E parts catalog delivers exploded-view illustrations, assembly breakdowns, and precise part numbers for every major system on the TMS760E — from the 110 ft boom assembly and hydraulic telescope cylinders to the carrier frame, outriggers, axles, engine, transmission, and operator cab. Whether you are ordering replacement components, identifying a part from a damaged assembly, or rebuilding a sub-component, this Grove TMS760E parts catalog provides the exact part numbers and visual references needed to get the right part the first time.

File Details

• Manual Type: Illustrated Parts Catalog
• Brand: Grove / Manitowoc Cranes
• Model: TMS760E
• Serial Number: 222341
• Revision: 001
• Date: November 25, 2014
• Language: English
• File Format: PDF
• Page Count: 1,315 pages

Chapters Covered

• Boom Assembly — 110 FT (base, inner mid, outer mid, fly and nose sections; 6″ telescope and 6″ telescopic cylinder assemblies; boom pivot shaft installation; sheave installations and assemblies; wear pads, shims, and cables)
• Folding Offsetable Jib Boom (extension assembly, alignment installation, boom fly extension, LMI boom extension insert kits)
• Auxiliary Boom Nose and Mast (nose installation, mast assembly, sheave assemblies, LMI auxiliary boom nose kit)
• Superstructure and Turntable (turntable section, turntable assembly center, swing box assembly, hydraulic swing motor, swing lock installation and assembly)
• Counterweight Installation — 16,500 lbs (counterweight removal cylinder 3 1/2″, pin assemblies)
• Swivel and Slip Ring (electric water and hydraulic swivel, 5-port swivel, 2-port water swivel, 44-conductor slip ring assembly)
• Lift Cylinder and Holding Valves (12″ lift cylinder assembly, holding valve assembly, valve cover and binder installations)
• Hydraulic Systems (supply, pressure and return lines; telescope, swing, lift, main and auxiliary hoist lines; counterweight removal lines; LMI lines; control valve installations; directional control, pressure reducing, counterweight 2-section, residual check, sequence, and high speed boost valves; oil cooler installation and assembly)
• Hoist Assembly — Main and Auxiliary (HO30G-16G complete hoist assembly; right hand and left hand group assemblies; center group; hydraulic vane type motor assembly; brake assembly; valves and plumbing installation; control valve assembly; flower and idler; kicker installation; hoist rotation indicator and central processing unit; hoist mirror)
• Superstructure Cab (cab assembly and installation; rear and right hand windows; cable assembly; skylight assembly; 12-volt cab fan; valve assembly with treadle pedal; seat installation with auxiliary hoist control; seat assembly with auxiliary hoist; single axis controller; handle with solenoid; superstructure seat harness; instruments and lights; superstructure switch panel; console assembly; front console harness; potentiometer modified; acoustics installation and kit; bottom cover installation)
• Air Conditioning and Heater (air conditioner/heater installation; air conditioner and heater assembly; air conditioner switch installation; condenser installation and 12V assembly; compressor installation; compressor and motor assembly; motor assembly; air lines installation)
• Operator Controls and Pedals (360 swing lock pin installation; pedal installation — 360 swing lock; foot pedal assembly; boom telescope pedal; rocker pedal — single function; sunscreen installation)
• Electrical System — Superstructure (electrical system installation; superstructure harness assembly; auxiliary hoist cable; bearing bolt installation)
• Lowerworks/Carrier Frame (frame assembly; weld stud installation; outrigger installation and assembly; 4 1/2″ outrigger jack cylinder; outrigger extension cylinder; 2 1/2″ O/R extension cylinder; fifth outrigger jack installation; 3 1/2″ outrigger jack cylinder; outrigger float stowage; fender and decking installation; fender assemblies; mud flap installation; engine hood installation and assembly; weatherstrip installation — engine hood; tire inflation kit; outrigger float assembly; exterior lights and back-up alarm installation; headlight assembly; park and turn signal light assembly; back-up alarm installation; stowage installation; decal hardware kit; rear view mirror installation; mirror head and loop assembly; boom rest installation; ladder installation; clutch rod installation; air valve and tank installation; spring brake valve assembly; supply dump valve assembly; carrier air lines installation; carrier electrical systems installation; carrier harness assembly; battery installation; battery cable kit; hydraulic tank installation; hydraulic reservoir assembly; filter assembly; inspection manhole cover assembly; hydraulic valve installation; outrigger control valve 4-section and 5-section; outrigger selector valve; outrigger hydraulic lines installation; supply, pressure and return hydraulic lines; front steer hydraulic lines; oil cooler installation and assembly)
• Axles, Suspension and Drivetrain (front axle installation; front tandem assembly; front axle assembly; front suspension kit; 2″ steer cylinder assembly; torque rod assembly; 60″ walking beam assembly; power steering gear assembly; drag link assemblies; rear axle installation without differential lock; rear axle assembly with differential lock; forward rear axle with inter-axle differential lock; brake chamber; rear rear axle without cross axle differential lock; 72N slip driveline assembly; driveline installation; drive line assemblies; tire and wheel installation and assemblies — Goodyear 445/65 R22.5 and 315/80R22.5)
• Engine and Transmission (engine installation — reference; Cummins ISM400 engine assembly; transmission assembly; valve assembly; transmission hoses; slave valve; air filter/regulator; shift bar housing; case assembly; mainshaft; countershaft; input shaft and drive gear; integral pump; reverse idler; auxiliary case; range cylinder; slave unit assembly; pump installation; pump assembly; drive assembly — pump with disconnect; drive line assembly; 3-way solenoid valve assembly; clutch installation; clutch release assembly; Cummins ISM400 electrical system installation; engine harness assembly; battery cable kit; 2-section gear pump assembly with priority flow divider; engine components assembly — Cummins ISM400; fan clutch solenoid assembly and kit; oil cooler installation and mounting kit; heater lines installation; quick start installation; radiator/charge air cooler installation and assembly; fuel tank installation; fuel/water separator installation; air cleaner and exhaust installation; air cleaner assembly; flex coupler; engine block heater installation)
• Carrier Cab (cab installation; cab assembly 12V; ventilator assembly; cab door installation; dual brake valve assembly; right hand and rear window assemblies; steering column assembly; wiper motor assembly and harness; dome light assembly 12V; 12-volt cab fan assembly; seat and seat belt installation; seat assembly; front console installation; front console panel assembly; HA front console carrier cab; acoustical installation; carrier cab acoustics kit; bottom cover installation; heater and defroster installation; hot water 12-volt heater assembly; air conditioning installation; air conditioner kit; clutch pedal installation; switch assembly; rubber control rod boot; cab air line installation; console air line installation; electrical system installation; power distribution panel assembly; carrier fuse panel harness assembly; carrier cab harness assembly; right hand console installation; right hand carrier cab console assembly; washer bottle installation; engine brake switch installation; tire inflation valve installation; throttle pedal installation; suspended electronic pedal assembly; service engine light installation; transmission shift installation; master control unit modification)
• Decals and Documentation (miscellaneous decals; decal installation; model decal; decal installation no drawing)
• Appendices (Appendix A: Alphabetical Index; Appendix B: Numerical Index; Appendix C: Recommended Spare Parts List; Appendix D: Belt and Filter Maintenance List; Appendix E: Foot Note Index)

This Grove Manitowoc TMS760E parts catalog is more than a simple parts list. Every major assembly is documented with exploded-view illustrations that show how components fit together, followed by detailed breakdown tables listing item numbers, factory part numbers, quantities, and descriptions. The alphabetical and numerical indexes at the back let you look up any part number instantly and jump to the exact page where it appears. For a crane as complex as the TMS760E — with its telescoping boom, hydraulic outriggers, twin hoists, and Cummins ISM400 engine — having the right parts catalog is the difference between ordering the correct factory part and wasting time with wrong components. This TMS760E crane parts manual covers the entire machine from boom tip to axle, including all hydraulic valves, cylinders, hoses, electrical harnesses, cab components, and structural assemblies.

Why This Parts Catalog Matters

When a crane goes down, every hour of downtime costs money. The Grove TMS760E parts catalog for serial number 222341 eliminates guesswork from the parts-ordering process. Instead of trying to describe a broken component over the phone or matching by sight, you can reference the exact exploded diagram, identify the item number, and order the correct factory part number with confidence. This is especially critical for the TMS760E, where many hydraulic and structural components are specific to this model and serial range. The catalog also serves as a valuable reference during disassembly and reassembly, showing the order of components, the quantity of each fastener, and how sub-assemblies relate to one another. The recommended spare parts list in Appendix C helps fleet managers stock the right critical spares before a failure occurs.

How to Use This Grove TMS760E Parts Catalog

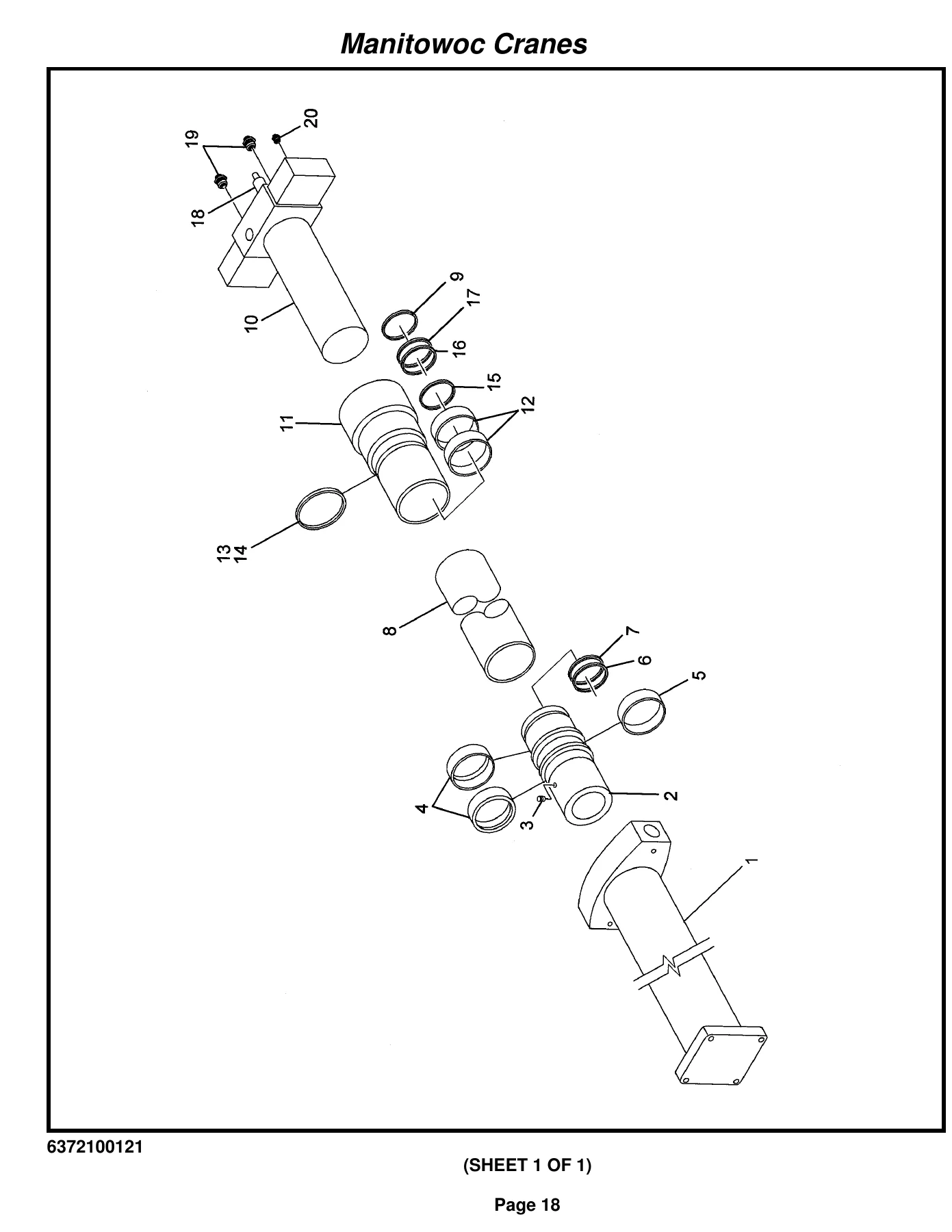

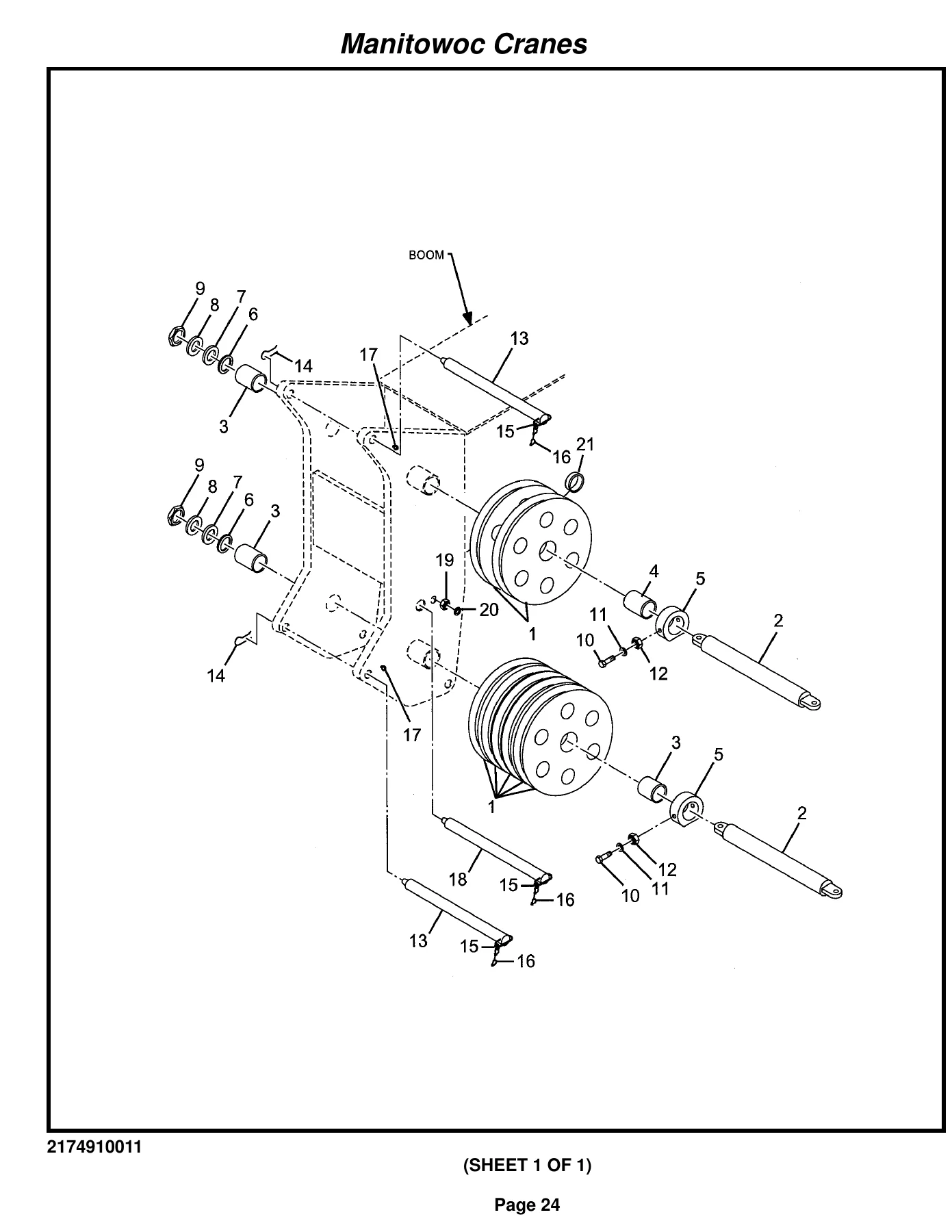

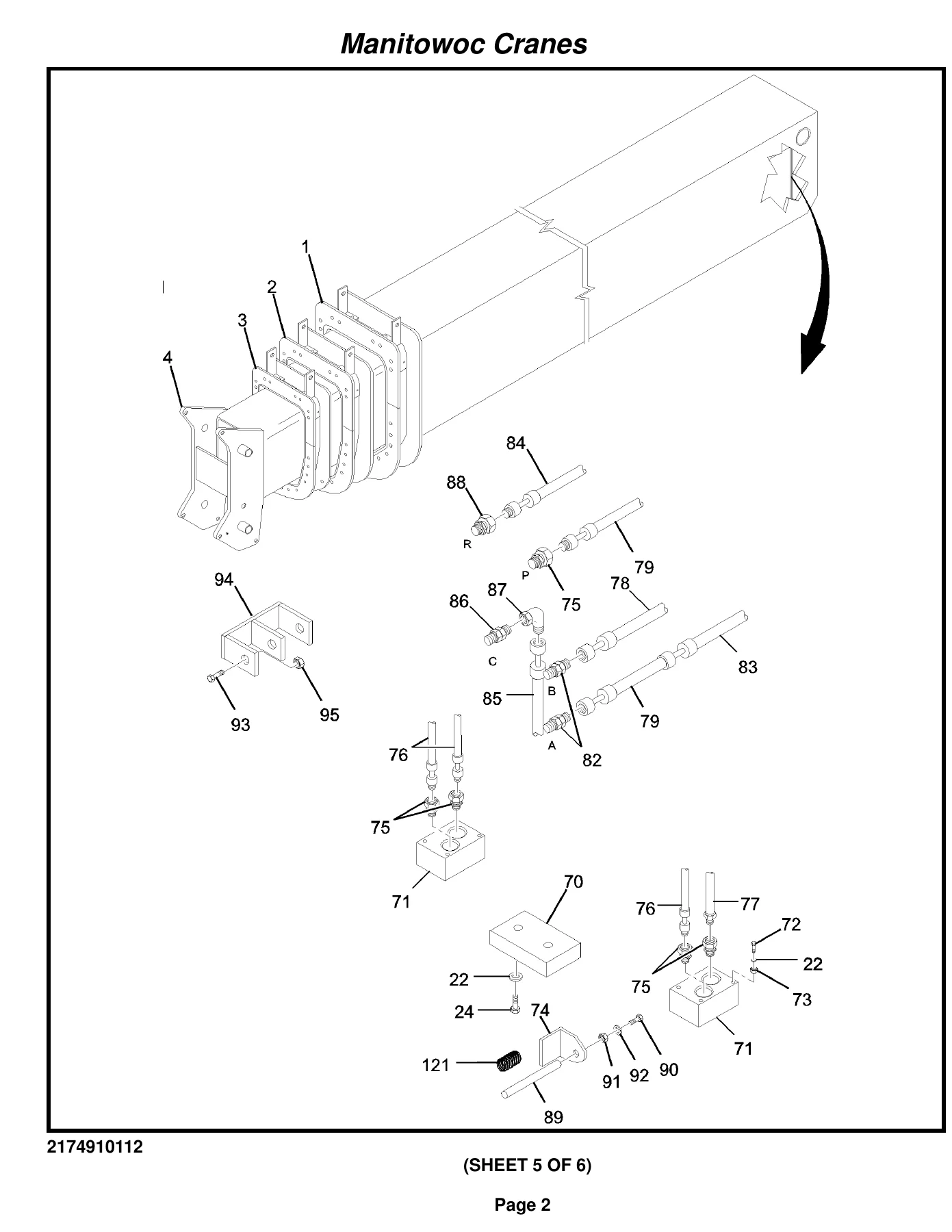

The catalog is organized by major assembly group, following the same structure used by Grove Manitowoc in the original publication. Each section opens with an exploded-view illustration labeled with item numbers, followed by a parts list table that maps each item number to its part number, quantity, and description. The main table of contents at the front lists every assembly with its corresponding page number. If you know the part number but not the assembly, use the Numerical Index in Appendix B. If you know the description but not the part number, use the Alphabetical Index in Appendix A. Appendix D provides a belt and filter maintenance list with recommended replacement intervals. Appendix E explains the foot note symbols used throughout the catalog.

What You Can Do With This Manual

• Identify and order the correct factory part for any system on the TMS760E crane
• Reference exploded-view diagrams during disassembly and reassembly of boom, hoist, swing, outrigger, axle, and engine assemblies
• Look up part numbers by description or part number using the alphabetical and numerical indexes
• Verify fastener sizes, quantities, and part numbers before starting a repair
• Plan preventive maintenance using the recommended spare parts list and belt/filter maintenance schedule
• Understand how sub-assemblies and components fit together across the entire machine

IMAGES PREVIEW

Instant PDF Delivery — No Shipping, No Waiting

This Grove Manitowoc TMS760E crane parts catalog is delivered as an instant PDF download immediately after payment. There is no physical book to ship, no waiting for delivery, and no risk of a damaged or lost package. The PDF works on any device — desktop computer, laptop, tablet, or smartphone — and can be printed in full or by section for use in the shop or at the jobsite. Whether you are a crane owner, fleet manager, mechanic, or parts professional, having this TMS760E parts catalog on hand means faster parts identification, more accurate ordering, and less downtime for your Grove Manitowoc TMS760E crane.
