Komatsu HD785-7 Dump Truck Parts Book PDF – SAA12V140E-3B-02 Engine S/N 500001-UP

Description

Komatsu HD785-7 Dump Truck Parts Book

This Komatsu HD785-7 Dump Truck Parts Book is a comprehensive illustrated parts catalog covering the SAA12V140E-3B-02 engine and the complete HD785-7 chassis. Whether you are rebuilding an engine, replacing a hydraulic component, or sourcing a specific bracket or seal, this parts book provides the exploded-view diagrams and part numbers needed to identify and order the correct components for your machine.

File Details

• Manual Type: Illustrated Parts Catalog / Parts Book
• Brand: Komatsu
• Model: HD785-7 Dump Truck
• Engine Model: SAA12V140E-3B-02
• Engine Serial Number Range: 500001-UP
• Chassis Serial Number Range: HD785-7-W S/N 7001-UP
• Language: English (diagrams include some Japanese component labels)
• Page Count: 830 pages
• File Format: PDF

Chapters Covered

The parts book is organized by major assembly groups, each presented with exploded-view illustrations and detailed part number tables. Coverage includes:

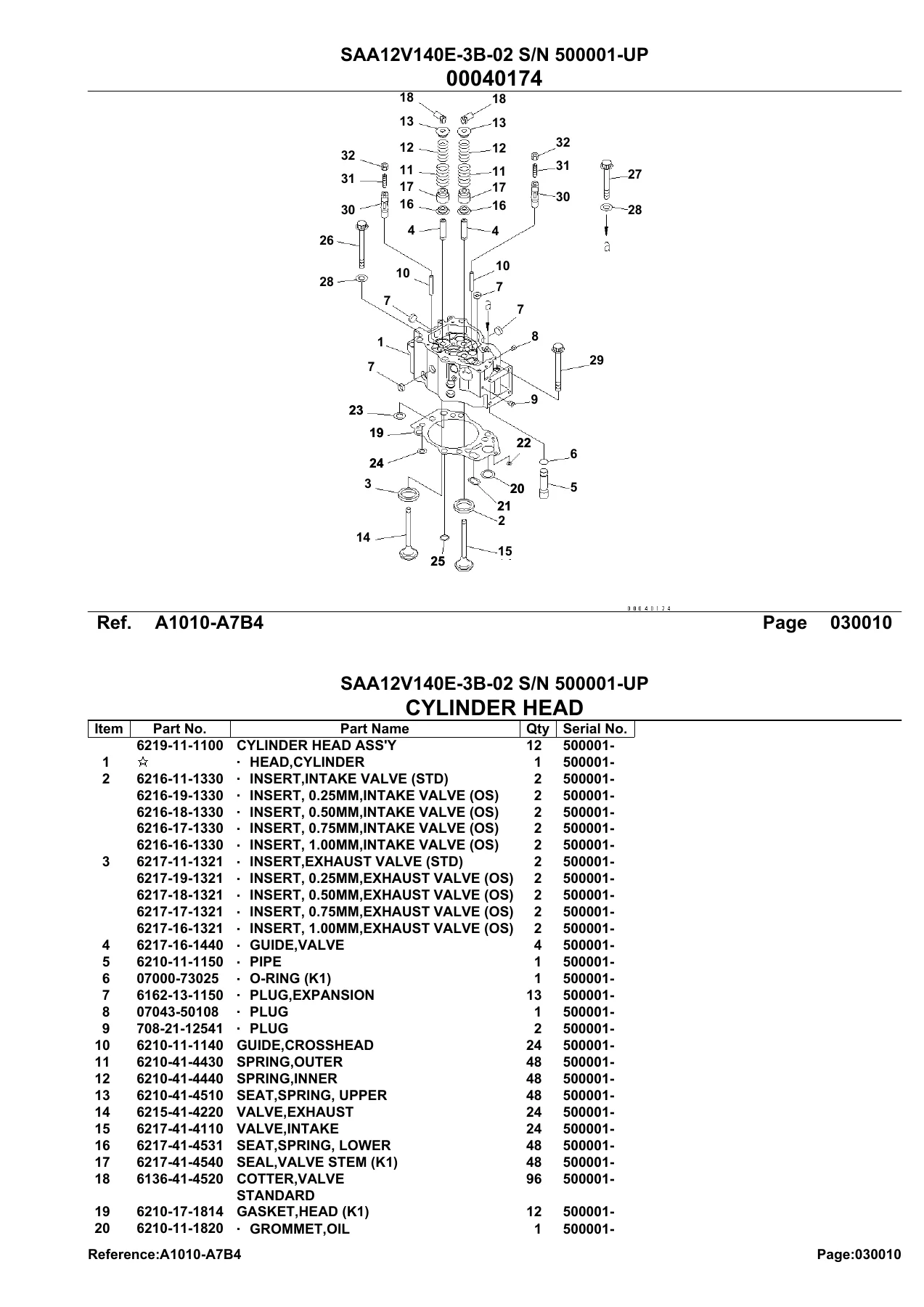

• Cylinder Head — head assembly, valve inserts, valve guides, springs, valves, seals, cotter, head gasket
• Head Cover — cover assemblies, gaskets, bolts
• Air Intake Manifold — manifold, gaskets, bolts, O-rings, connector, heater, bracket
• Exhaust Manifold — center manifolds (L.H. and R.H.), gaskets, spacers, studs, exhaust temperature sensors, clamps, brackets

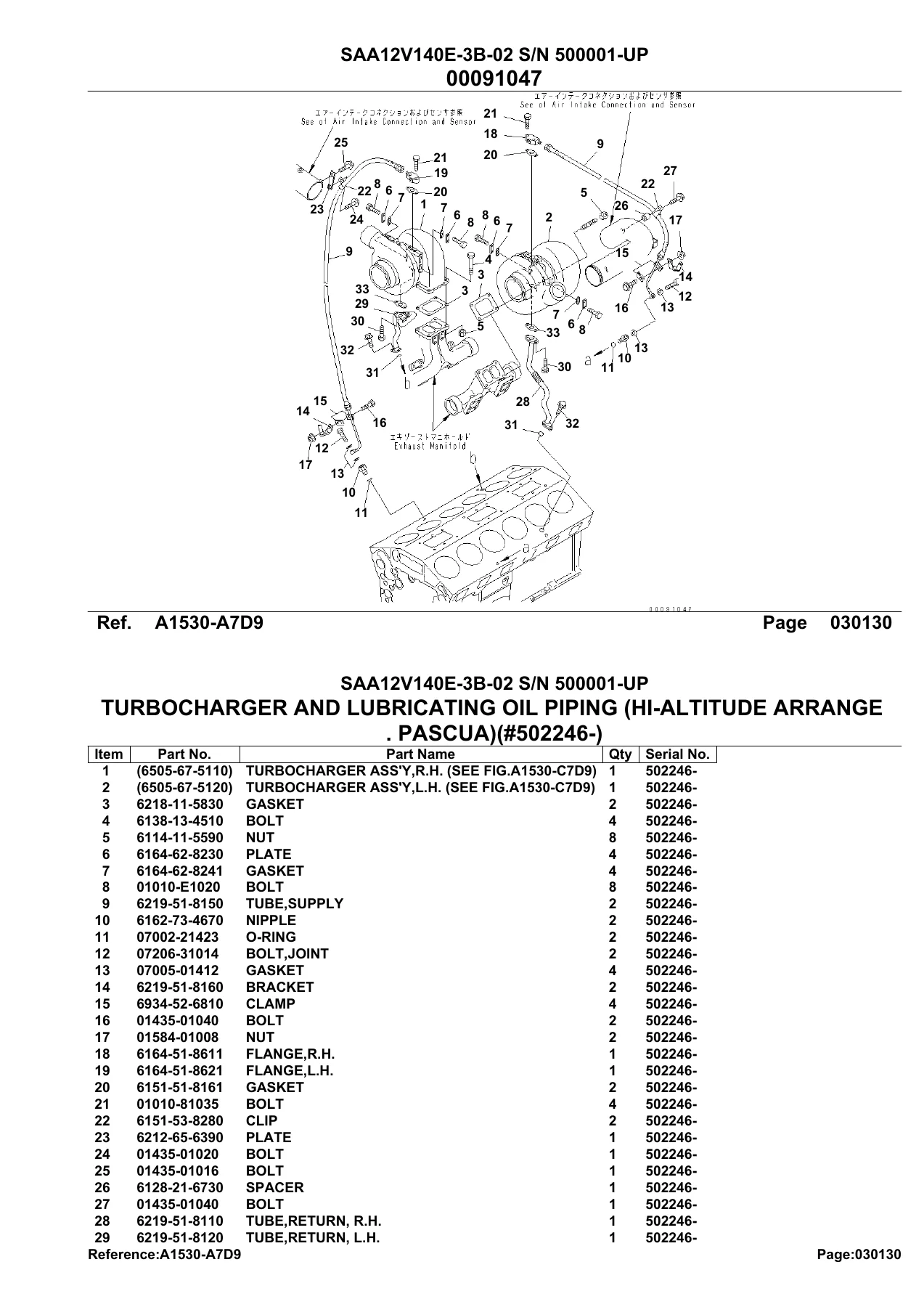

• Turbocharger — turbocharger assemblies (KTR110L-F85PW), turbine rotor, thrust plate, bearings, seals, housings, V-band
• Heat Shield — covers, turbine covers, plates, spacers
• Exhaust Brake — exhaust brake assemblies, brackets, bolts, connectors, gaskets
• Cylinder Block — block assembly, main metal caps, dowel pins, main cap bolts, bushings, plugs, liner, seals, O-rings
• Cylinder Block Accessory — blind covers, oil pressure sensor, oil temperature sensor, heater, gaskets, O-rings
• Front Cover — gear case covers, gaskets, plugs, bolts, pins, oil seals
• Gear Case and Front Cover Accessory — covers, gaskets, pointers, seals, O-rings, gear case
• Breather and Blowby Sensor Wiring — breather, spacers, hoses, tubes, clips, blowby sensor, connectors
• Camfollower Cover — covers, gaskets, bolts
• Oil Pan and Suction Tube — oil pan, plates, gaskets, bolts, valve assemblies, suction tubes, O-rings, heaters
• Oil Level Sensor — level sensors, cases, O-rings, brackets, hoses, nipples, joints, gaskets, elbows, tubes
• Oil Level Gauge — clips, bolts, washers, O-rings, nuts, gauges, guides
• Flywheel Housing — housings, gaskets, bolts, plugs, oil seals, revolution sensors, barring device assembly
• Flywheel — flywheel, ring gear, bolts, washers, dowel pin
• Front Support and Rear Bracket — front supports, rear brackets, dowel pins, bolts, washers
• Crankshaft — crankshaft assembly, main metal assemblies (standard and undersizes), thrust metal assemblies
• Damper — damper assembly, bolts, washers, dowel pin
• Piston — pistons, piston pins, snap rings, piston rings, connecting rod assemblies, bearings
• Camshaft — camshaft assemblies (R.H. and L.H.), gears, thrust plates, keys, bolts
• Camfollower — lever assemblies, rollers, shafts, bolts, dowel pins, push rods
• Rocker Arm — rocker arm assemblies (intake and exhaust), arms, bushings, rivets, balls, screws, nuts, shafts, brackets, collars, bolts
• Oil Pump — oil pump assembly, bolts, O-rings, valve assemblies, body, plug, valve, spring, gaskets
• Oil Adapter — valve assembly, body, cover, valve, springs, plug, bolts, O-rings, shims, connector, gasket
• Oil Cooler — covers, elements, O-rings, nuts, gaskets, bolts, plugs, water heater, bands, spacers, clips
• Fuel Injection Pump Mounting — fuel pump assemblies, keys, couplings, nuts, tubes, bolts, washers, spacers, rails, brackets
• Common Rail (L.H. and R.H.) — rail assemblies, limiters (fuel flow and fuel pressure), pressure sensors, Picco rings, bolt joints, gaskets
• Fuel Supply Pump (L.H. and R.H.) — pump assemblies, body assemblies, housing assemblies, PCV element assemblies, O-rings, gaskets, valve assemblies, washers, nuts, seats, springs, tappet assemblies, camshafts, bearings, covers, seals, shims, sensors
• Fuel Injection Pump Drive — housing assemblies, shafts, plugs, O-rings, gears, couplings, nuts, plates, washers, bolts, keys, gaskets
• Fuel Piping (R.H. and L.H. Banks) — joints, unions, O-rings, collars, bolts, washers, tubes, clamps, brackets, hoses
• Fuel Connection — blocks, bolts, washers, unions, joints, elbows, O-rings, plugs, seals
• Fuel Filter — hoses, bolt joints, gaskets, brackets, bolts, washers, clamps, cushions, bosses, cartridges
• Fuel Air Vent (R.H. and L.H. Banks) — brackets, bolts, washers, blocks, clamps, nipples, O-rings, valves, tubes, bolt joints, seals, spacers, clips, plates
• Fuel Priming Pump — pump assemblies, brackets, bolts, washers, blocks, plates, spacers, clips, hoses, bolt joints, seals, gaskets
• Fuel Priming Pump Cover — covers, bolts, washers, brackets, collars, spacers
• Fuel Injection Nozzle and Spill Pipe — tubes, bolt joints, gaskets, wiring harness, O-rings, plates, bolts, clamps, spacers, holders, injectors, washers
• Fuel Return — tubes, gaskets, bolt joints, seals, blocks, bolts, washers, joints, sensors, plugs, gaskets
• Fuel Controller — controller assemblies (L.H. and R.H.), bolts, coolers, cushions, unions, elbows, O-rings, hoses, brackets, bars, covers
• Water Pump — water pump assemblies, bodies, impellers, shafts, gears, seals, bearings, housings, O-rings, plugs, connectors, tubes, plates, gaskets, valves, brackets, spacers, bolts, washers
• Water Pump Bypass Piping — water inlet tubes, plugs, gaskets, bolts, bypass tubes, brackets, O-rings, bolts, washers, clips, couplings, seats, nuts
• Air Vent Piping and Water Outlet — outlet tubes (L.H. and R.H.), gaskets, bolts, bolt joints, air vent tubes, hoses, clamps, spacers
• Cooling Fan — cooling fans, bolts, washers
• Fan Pulley and Drive Belt — pulleys, bolts, V-belt sets
• Fan Drive — fan hub assemblies, shafts, cases, bearings, spacers, holders, bolts, oil seals, plugs, grease fittings, valves, gaskets
• Tension Pulley — tension pulley assemblies, levers, plugs, pulleys, bearings, spacers, snap rings, covers, bolts, oil seals, O-rings, valves, grease fittings, springs, bearing assemblies, races, dust seals, plates, shafts, yokes, washers, brackets
• Corrosion Resistor — resistor assemblies, head assemblies, O-rings, covers, handles, plates, nuts, washers, valves, cartridges, bolts
• Alternator Mounting — alternator assemblies (90A), bolts, washers, nuts, rods, plates, pins, spacers, brackets, wires, gaskets, covers, V-belts
• Alternator (90A) — alternator assemblies, rotor assemblies, collars, bearings, retainers, packings, stators, bolts, pulleys, fans, washers, nuts, field coils, brackets, rectifiers, bushings, regulators, keys
• Starting Motor Mounting — starting motor assemblies (7.5KW and 11KW), gaskets, bolts, brackets, caps, spacers, nuts, washers, cables, hoses, clips, bands
• Electrical Wiring — injector harness groups (L.H. and R.H.), brackets, bolts, washers, plates, covers, clips, spacers, wiring harnesses, sensors (intake air temperature, ambient air pressure), bands, cushions, plates
• Cylinder Head Gasket Kit — complete gasket kit for HD785-7, with O-rings, gaskets, seals for cylinder head applications
• Cylinder Block Gasket Kit — complete gasket kit for HD785-7, with O-rings, gaskets, seals for cylinder block applications
• Water Pump Gasket Kit — complete gasket kit for HD785-7 water pump applications
• Pre Lubrication Piping — connectors, bolts, washers, O-rings, elbows, hoses, plugs, bands, valves, joints, nipples, switches
• Name Plate and Caution — screws, plates (warning, name, caution) for EPA 2nd regulation, English, EU safety regulation
• PM-CLINIC Accessory — nipples, quick couplers, O-rings
• Fuel Filter (1-5/8) — head assemblies, heads, plugs, gaskets, cartridges
• Fuel Pre-Filter (1-1/4) — heads, filter cartridges, caps, seals
• Joint (Poor Fuel Arrangement) — joints
• Switch and Plate — switches, plates
• Water Separator and Sensor — water separator assemblies, heads, screens, cases, O-rings, rings, plugs, gaskets, sensors
• Engine Mounting — brackets, bolts, washers, cushions, plates, pins
• Exhaust Bracket — brackets, bolts, washers
• Engine Cooling Tube — tubes, O-rings, bolts, washers, hoses, clamps
• Damper — damper assembly, shafts, body assemblies, bodies, spacers, caps, rings, rubbers, bolts, washers, bearings, seals, O-rings, rings, breathers, flanges, pins, covers, plugs
• Radiator — radiator assemblies, air conditioner radiator, supports, brackets, after coolers, spacers, isolators, washers, bolts, shrouds, tanks, stays, cores, packings, O-rings, gaskets, tubes, hoses, clamps, hydraulic oil coolers, condensers
• Coolant Line — tubes, O-rings, bolts, washers, hoses, clamps, valves, brackets, clips, nuts, cushions, adapters, plugs, nipples
• Coolant Level Sensor — sensors, O-rings, bands
• Fuel Tank — fuel tank assemblies, fuel tanks, elbows, valves, nipples, O-rings, hoses, clamps, sensors, transmitters, gaskets, washers, bolts, covers, caps, strainers, vents, plugs
• Fuel Line — hoses, O-rings, blocks, bolts, washers, unions, brackets, clips, plates, cushions, collars, spacers, tubes, clamps
• Battery Box — batteries, terminals, cables, caps, boots, clips, insulators, bolts, washers, wiring harnesses, bands, brackets, boxes, covers, catches, pins, angles, rods, cushions, grommets, sheets, relays, switches, fuses, circuit breakers, breakers, holders, fuse assemblies
• Rear Hood — hoods, bolts, washers, caps, catches, pins, brackets, plates, seals, studs, nuts, clips
• Brake Line — covers, bolts, washers, brackets, valve assemblies, connectors, O-rings, elbows, blocks, plugs, unions, bleeders, caps, tubes, hoses, clamps, clips, spacers, cushions, plates, slacks
• Breather — joints, bolts, washers, breathers, adapters, plugs
• Rear Hood Related Parts — seals, studs, washers, nuts, clips, bolts
• Electrical System — main harnesses, clips, bolts, washers, bands, brackets, plates, cushions, insulators, spacers, cables, caps, fuses, horns, wiring harnesses
• Rear Lamp — brackets, cushions, washers, nuts, bolts, lamps, lenses, bulbs, back-up alarms, connectors, holders, terminals, grommets, plugs, screws, wiring harnesses, clips, bands, LED lamps
• Side Lamp — covers, bolts, washers, lamp assemblies, lenses, bulbs, nuts, connectors, wiring harnesses, clips
• Fog Lamp — brackets, bolts, washers, lamps, bulbs, connectors, caps, grommets, clips
• Payload Meter Lamp — lamp assemblies, brackets, lamps (green, amber, red), bulbs, grommets, cushions, washers, bolts, wiring harnesses, clips, bands
• Front Propeller Shaft — propeller shafts, yokes, spiders, bolts
• Rear Propeller Shaft — propeller shafts, spider assemblies, yoke assemblies, screws, bolts
• Torque Converter — torque converter assemblies, pumps, plugs, retainers, guides, bolts, washers, stators, races, bushings, wheels, balls, snap rings, shafts, bearings, nuts, turbines, bosses, shafts, bearings, seal rings, retainers, oil seals, dust seals, O-rings, couplings, housings, pistons, discs, plates, valves, springs, covers, tubes, flanges, gaskets, clips, charge pumps, gears, valve assemblies, solenoids, brackets, sensors, bands
• Transmission — transmission assemblies, housings, pistons, seal rings, bearings, dowel pins, pins, springs, sleeves, plates, bolts, washers, drums, covers, collars, gears, retainers, shafts, washers, bearings, balls, cages, carriers, hubs, rings, seals, cases, plugs, O-rings, tubes, gaskets, clips, magnets, valves, sensors, wiring harnesses
• Transmission Control Valve — valve assemblies, ECMV assemblies, bodies, solenoids, valves, balls, O-rings, spools, springs, shims, plugs, switches, sheets, pins, brackets, plates, bands, seats, filters, elements, bolts, washers
• Transmission Lubrication Valve — valve assemblies, bodies, spools, pistons, springs, covers, O-rings, bolts, washers, plugs, valves, balls, solenoids, sensors, tubes, unions, gaskets
• Transmission Oil Pan — oil pan assemblies, tanks, plates, bolts, washers, covers, O-rings, magnets, springs, valve assemblies, bodies, valves, plugs, pins, blocks, gaskets
• Transmission Sensor — wiring harnesses, clips, bolts, washers, collars, covers, sensors, elbows, O-rings, bands
• Transmission Mounting Parts — trunnions, fittings, heads, brackets, bolts, washers, pins, cushions, plates, shims
• Rear Axle — axle assemblies, differential assemblies, case assemblies, cases, bolts, washers, pins, caps, locks, nuts, cages, bearings, O-rings, shim assemblies, seals, couplings, holders, pinion gear assemblies, pinions, gears, pinion assemblies, sleeves, nuts, shafts, washers, final drive assemblies, hubs, holders, carriers, retainers, buttons, tubes, plates, covers, studs, pins, seals, rings, discs, plates, dampers, floating seal assemblies, gears, spacers, brake cylinders, pistons, springs, plugs, O-rings, seals, rings, flanges, bolts, washers, housings, bushings, tubes, seats, bosses, handles, brackets, brake piping, slack adjusters, sensors, collars, plates, clips, nuts
• Rear Axle Support — pins, bushings, bolts, washers, spacers, rods, O-rings, boots
• Front Axle — hubs, retainers, bearings, shim assemblies, covers, bolts, washers, pins, caps, O-rings, plugs, nuts, brake cylinders, pistons, springs, seals, rings, floating seal assemblies, gears, spacers, discs, plates, dampers, cylinders, front suspension assemblies, rods, stoppers, flanges, plugs, retainers, O-rings, rings, bushings, wear rings, U-packings, seals, rings, tubes, bolts, washers, valve assemblies, valves, cores, caps, packings, plates, springs, levers, arms, keys, boots, pins, bushings, O-rings, rings, holders, locks, bolts, washers, final brake lines, hoses, spiral tubes, plates, bolts, washers, adjusters, tubes, O-rings, elbows, clamps, cushions, brackets, clips, nuts, brake cooling lines, tubes, O-rings, plugs, flanges, bolts, washers, brackets, clips, cushions, nuts, hoses, sleeves, tapes, bands, sensor
• Auto Suspension Piping — valve assemblies, bands, blocks, bolts, washers, tees, O-rings, elbows, plugs, brackets, hoses, plates, clips, cushions, collars, nuts, unions
• Hydraulic Tank — hydraulic tank assemblies, tanks, strainers, elements, valves, springs, O-rings, covers, bolts, washers, caps, bleeders, plugs, breathers, bodies, nuts, gauges, brackets, flanges, filters, cases, cushions, spacers, tubes, hoses, clamps, O-rings, elbows, couplings, plates, brackets, clips, nuts, coolers, sensors
• Brake Control Valve — valve assemblies, flanges, O-rings, bolts, washers, bands
• Brake Cooling Valve — valve assemblies, bodies, valves, springs, holders, seats, poppets, spacers, retainers, screws, covers, O-rings, nuts, rings, plugs, bolts, washers
• Hydraulic Main Pump — pump assemblies, O-rings, bolts, washers
• Transmission Piping — tubes, bolts, washers, O-rings, couplings, plugs, hoses, clamps, brackets, clips, nuts, cushions, collars, spacers, blocks, adapters, breathers, connectors, sleeves, valves
• Steering and Hoist Piping — cylinders, valve assemblies, bolts, washers, brackets, spacer, O-rings, hoses, flanges, bolts, washers, filters, U-bolts, nuts, plates, blocks, tubes, clips, cushions, clamps, couplings, elbows, unions, tees, cross over valves, dump control, piping
• Crossover Relief Valve — valve assemblies, bodies, valve assemblies, sleeves, seats, valves, pistons, springs, screws, O-rings, rings, nuts
• Brake Cooling Oil Line — flanges, O-rings, hoses, bolts, washers, brackets, clips, nuts, clamps, cushions, tubes, couplings, plates, valves
• Accumulator Box — brackets, covers, bolts, washers, accumulator assemblies, bands, nuts, tees, O-rings, plugs, elbows, valves, cushions, washers, blocks, tubes, hoses, clamps, plates, unions
• Accumulator Charge Valve — valve assemblies, bodies, spools, valve seats, pistons, orifices, plugs, retainers, screws, nuts, shims, O-rings, balls, springs, filters, rings, bushings
• Brake Piping — brackets, bolts, washers, filter assemblies, nipples, O-rings, elbows, hoses, blocks, unions, tees, tubes, clamps, cushions, plates, clips, nuts, valves, switches, proportional valves, parking brake valves, slack adjusters, brake sub tanks, gauges, covers, strainers, caps, sheets
• Emergency Steering — motor assemblies, brackets, bolts, washers, pumps, tubes, O-rings, flanges, elbows, O-rings, hoses, plates, clips, cushions, battery cables, caps, insulators, valves, flow switches
• Main Frame — frame sub assemblies, brackets, bolts, washers, pins, holders, locks, axle supports, rods, bushings, boots, O-rings, pins, spacers, rear supports, supports, brackets, viscous mounts, nuts, washers, bolts, front supports, covers, caps, cushions, washers, spacers, lamps, bulbs, clips, wiring harnesses, steps, grips, guards, plates, steering valves, cushions, collars, plates, brackets, seals, hoses, nipples, O-rings, clamps, plates, spacers
• Engine Fuel Filter and Related Parts — filter assemblies, covers, bolts, washers, head assemblies, heads, plugs, gaskets, cartridges, joints, bolts, gaskets, filter assemblies, elbows, O-rings, unions, bolts, washers, grips, brackets
• Positioner — sensors, levers, keys, bolts, washers, rods, nuts, ends, spacers, brackets, clips
• Exhaust Piping — tubes, brackets, bands, nuts, washers, V-band assemblies, V-clamps, bolts, washers, clamps, plugs
• Exhaust Brake (Cylinder) — cylinders, bolts, washers, brackets, elbows, O-rings, hoses, clips, cushions, bolts, washers, joints, yokes, pins, arms, fittings, bearings, seals, washers, nuts, cables, rods, plates, collars, bolts, washers
• Exhaust Brake (Exhaust Brake Hose) — O-rings, hoses, clips, cushions, bolts, washers
• Exhaust Brake (Auto Suspension Piping) — hoses, clips, cushions, bolts, washers, blocks, elbows, tees, unions, O-rings, plates, clips, nuts, cushions, washers, bolts, washers
• Exhaust Brake (Bracket) — brackets, plates, bolts, washers
• Exhaust Brake (Auto Suspension Less) — plugs
• Engine Control — wiring harnesses, caps, clips, bolts, washers, collars, bosses, spacers, cushions, bands
• Engine Earth — cables, bolts, washers, brackets, switches
• Transmission Control — wiring harnesses, brackets, bolts, washers, clips, cushions, spacers
• Steering Link — levers, bushings, seals, rods, bushings, O-rings, rings, boots, pins, bolts, washers, spacers, plates, rings, clips, joints, tubes, fittings, nipples, elbows, connectors
• Emergency Steering Control — motor assemblies, brackets, bolts, washers, pumps, tubes, O-rings, flanges, elbows, O-rings, hoses, plates, clips, cushions, bolts, washers, battery cables, caps, cables, insulators, bolts, washers, caps
• Lubrication Piping — elbows, connectors, tubes, bolts, washers, clips, fittings, plugs
• Tire Stopper — brackets, stoppers, bolts, washers
• Operator’s Cab — cab body assemblies, doors (L.H. and R.H.), seals, regulators, washers, nuts, screws, holders, sheets, bars, glass, weather strips, wiring harnesses, grommets, bodies, holders, clips, handles, locks, brackets, rods, knobs, hooks, covers, screws, links, levers, plates, pockets, grilles, shutters, rubbers, stoppers, covers, sheets, sashes, frames, channels, rails, caps, strikers, shims, switches, cushions, gas springs, pins, washers, spacers, glass, dams, antenna cables, caps, wipers, motors, arms, blades, nozzles, hoses, sun visors, hangers, lamps, speakers, plates, covers, wiring harnesses, finishers, stays, holders, pads, covers, buttons, marks, plates, mirrors, under mirrors, side mirrors, stays, covers, clips, seats, nuts, washers, radio, cassette players, brackets, screws, bolts, monitors, harnesses, shields, covers, plates, seals, screws, cables, bands, grommets, air conditioners, coolers, blowers, intake assemblies, control panels, tubes, hoses, seals, boxes, locks, filters, covers, grilles, ducts, brackets, sheets
• Floor — plates, seals, bolts, washers, caps, accelerator pedals, screws, rollers, pins, sensors, clamps, wiring harnesses, covers, washers, plates, brake controls, valves, nipples, O-rings, elbows, unions, hoses, plates, clamps, blocks, bolts, washers, sensors, switches, clips, bands, air conditioner piping, coolers, blowers, intake assemblies, control panels, tubes, hoses, seals, boxes, locks, filters, covers, grilles, ducts, brackets, sheets, dashboards, finishers, brackets, covers, grilles, radio, cassette players, brackets, screws, bolts, monitors, harnesses, shields, covers, plates, seals, screws, cables, bands, grommets, steering columns, switches, levers, connectors, sensors, wheels, brackets, bodies, bearings, washers, rings, plates, bolts, washers, caps, horn button kits, brushes, cables, buttons, monitor decals, operator’s seats, seat assemblies, bolts, brackets, washers, grommets, belts, clips, bands, cushions, arm rests, lifters, covers, caps, knobs, suspensions, springs, compressors, dampers, switches, harnesses, relays, adjusters, head rests, dump controls, brackets, bolts, washers, grommets, covers, screws, sheets, levers, plungers, plates, knobs, nuts, wiring harnesses, console boxes, covers, finishers, bolts, washers, hinges, plates, screws, nuts, washers, sheets, seals, catches, seats, screws, levers, switches, decals, caps, converters, sockets, harnesses, clips, bands, rear covers, finishers, bolts, washers, screws, covers, seals, screws, auxiliary seats, seats, brackets, boxes, seals, plates, covers, finishers, screws, washers, clips, belts, connector plugs, plates, sheets, washers, nuts, floor mats
• Cab Guard — front steps, steps, guards, clamps, bolts, washers, side steps, toe guards, side mirror, radio antenna, caps, mud guards, cab under cover, covers, seals
• Platform Sub Assembly — platform assemblies (L.H. and R.H.), platforms, grommets, finishers, air cleaner assemblies, caps, band assemblies, bolts, brackets, bolts, washers, guards, plates, handrails, clamps, bolts, washers, nuts, spacers, toe guards, plugs, covers, platform related parts, washers, bolts, clips, nuts, air cleaners, elements, O-rings, covers, valves
• Coolant Reserve Tank — tank assemblies, tanks, elbows, tubes, balls, caps, bolts, washers
• Under Mirror — under mirror assemblies, mirrors, stays, clips, seats, nuts, washers
• Side Mirror — mirror and rail assemblies, stays, covers, bolts, washers, nuts, mirrors, clips
• Radiator Guard — guards, bolts, washers, shims, caps, covers, plates, grilles
• Hood — hood assemblies, hoods, grommets, covers, bolts, washers, stays, seals, shims, caps
• Engine Side Cover (R.H. and L.H.) — covers (R.H. and L.H.), bolts, washers
• Fire Protection — brackets, bolts, washers, covers, clips, washers, nuts, rubber, plates, spacers, clamps, cushions, pipes
• Fender — fenders (L.H. and R.H.), bolts, washers, caps, guards, plates
• Fuel Tank Ladder — ladders, steps, bolts, washers
• Engine Under Guard — guards, bolts, washers, collars, nuts, clips
• Transmission Under Guard — guard assemblies, brackets, plates, bolts, washers, collars, nuts
• Rim — rim assemblies, rim bases, rings, bands, locks, valves, valve stems, cores, caps, seats, extensions, hoses, nuts, clips, cushions, bolts, washers
• Tire — tires (various brands: Bridgestone, Toyo, Michelin), O-rings
• Rear Suspension — rear suspension assemblies, cylinders, rods, retainers, flanges, bushings, bolts, washers, O-rings, rings, U-packings, seals, rings, valve assemblies, valves, cores, caps, packings, guards, clamps, bolts, washers, bushings, rings, O-rings, valve assemblies, valves, cores, sensors, clips
• Rear Suspension Pressure Sensor — sensors, clips
• Body — body assemblies, plates, tubes, bolts, washers, nuts, body liners, plates (welded), bars (welded), spill guards, supports, brackets, pads, shims, pins, spacers, guards, plates, bolts, washers, covers, hoist cylinders, exhaust boxes, flanges, rings, tubes, springs, nuts
• Name Plate Unit — plates, arrows, rubbers, marks, stripes, decals, oil charts, safety plates, operating plates, caution plates, instruction plates, tags, rivets, name plates, handling marks
• Spare Parts — cartridges, elements, O-rings, cartridges (1-5/8), filter assemblies, V-belts, V-belt sets, valves, valve stem kits, cores, caps, seats, valve assemblies, stems, extensions, gaskets, elements, O-rings
• Spare Parts Unit (Large Bore Valve) — cartridges, elements, O-rings, cartridges (1-5/8), filter assemblies, V-belts, V-belt sets, valve assemblies, valve seats, valve adapters, cores, housings, valve assemblies, valve seats, valve adapters, cores, hoses, nuts, gaskets, elements, O-rings
• General Tool Unit — hose assemblies, nipples, clips, hoses, cartridges, nozzles, grease pump assemblies, pumps, nozzles, wrenches, drivers, pliers, hammers, wrenches, gauges, bars, wrench sets, socket wrench sets, handles, gauges, bags, hoses, sockets
• Tool Box Unit — tool box assemblies, covers, springs, washers, bolts, nuts, pins
• Jack Unit — jacks (30 ton, 50 ton)
• Air Conditioner Related Parts — brackets, pins, bolts, washers, nuts, ends, spacers, shims, rods, blocks, bushings, spacers, compressors, hose assemblies, connectors, hoses, bolts, washers, clips, bands, V-belts, valves, receiver kits, receiver dryers, brackets, hoses, bolts, washers, hose assemblies, clamps, brackets, bolts, washers, plates, clips, cushions, collars, bolts, washers
• Fire Extinguisher — fire extinguishers, bolts
• Front Propeller Shaft Guard — brackets, bolts, washers, guards, pins
• Rear Propeller Shaft Guard — guards, bolts, washers
• ABS/ASR Chassis — brackets, bolts, washers, clips, sensors, valves, valve sub assemblies, hoses, wiring harnesses, clips, bolts, washers, spacers, collars, tubes, clamps, cushions, switches, elbows, unions, O-rings, valve assemblies, solenoids, valve seats, valve adapters, cores, housings, valves, bolts, washers, elbows, switches, O-rings, bands
• Rear Monitor — brackets, bolts, washers, seals, camera assemblies, bolts, washers, glass, plates, bolts, washers, clips, bosses, bolts, washers, grommets, bands, spacers, clips, bolts, washers
• Vehicle Health Monitoring System — sensors, covers, bolts, washers, clips, cables, clips, cushions, bolts, washers, clips, collars, bolts, washers, bands, box assemblies, bolts, washers, grommets, clips, bolts, washers
• Vehicle Health Monitoring System Less — connectors, clips, connectors
• Vehicle Health Monitoring System (Antenna) — antennas, cables, poles, bolts, washers, plates, clips, clips, nuts, washers, clips, bolts, washers, bands, bands
• Service Kit — service kit torque converter, O-rings, oil seals, rings, rings, O-rings, service kit torque converter control valve, O-rings, gaskets, service kit transmission, O-rings, gaskets, seals, rings, service kit transmission control valve, O-rings
• Hydraulic Pump (Steering and Hoist) — pump assemblies, brackets, bushings, cases, carriers, gears, plates, seals, O-rings, pins, bolts, washers, seals, plates, rings, seals, rings, couplings, O-rings
• Hydraulic Pump — pump assemblies, brackets, bushings, cases, gears, plates, seals, O-rings, pins, bolts, washers, seals, plates, rings, seals, rings, couplings, O-rings
• Hoist Cylinder — cylinder assemblies, cylinders, heads, seals, packings, bushings, rings, O-rings, plates, bolts, washers, rods, pistons, rings, studs, nuts, grease fittings, service kits
• Steering Cylinder (L.H. and R.H.) — cylinder groups, cylinder assemblies, cylinders, rods, bushings, rings, O-rings, heads, rings, seals, rings, bushings, packings, pistons, rings, nuts, O-rings, tubes, elbows, O-rings, plates, clips, nuts, washers, service kits
• Accumulator (Brake Control) — accumulator assemblies, cylinders, pistons, seals, covers, valves, rings, O-rings, covers, screws, plates
• Hoist Valve — control valves, housing assemblies, housings, valve assemblies, relief valves, sleeves, O-rings, rings, O-rings, orifices, sleeves, poppets, pistons, seals, springs, seats, springs, seals, springs, poppets, plugs, nuts, screws, spacers, O-rings, plugs, O-rings, valve sub assemblies, bodies, spools, pins, cases, springs, retainers, O-rings, springs, retainers, springs, flanges, O-rings, bolts, washers
• Demand Valve — valves, bodies, spools, plugs, O-rings, covers, springs, bolts, washers, O-rings, poppets, springs, plugs, O-rings, rings, plates, bolts, washers, plugs, O-rings, rings, heads, O-rings, flanges, O-rings, orifices, orifices, plugs, O-rings, blocks, plugs, O-rings, O-rings, plugs, O-rings, relief valves, valves, springs, seats, O-rings, rings, poppets, springs, retainers, holders, O-rings, nuts, screws, nuts, O-rings
• Check Valve — valve assemblies, bodies, plates, poppets, springs, O-rings, bolts

This parts book is structured for efficient component identification. Each assembly group includes a clear exploded-view diagram with numbered callouts, followed by a detailed parts table listing the item number, part number, part name, quantity required, and serial number applicability. This layout allows a technician or parts counter professional to quickly locate the exact part needed for a specific machine serial number, confirm the quantity required for a complete repair, and cross-reference superseded or alternative part numbers where applicable.

Why This Parts Book Matters

Ordering the wrong part for a Komatsu HD785-7 is expensive and time-consuming. A 830-page illustrated parts catalog eliminates guesswork by providing the exact part numbers for every component on the machine, from the smallest O-ring to complete assembly groups. Whether you are maintaining a fleet of haul trucks, performing a scheduled rebuild, or repairing a sudden failure, having the correct parts information at your fingertips keeps the machine productive and avoids costly downtime waiting for the wrong part to be returned and replaced.

This Komatsu HD785-7 Dump Truck Parts Book covers the SAA12V140E-3B-02 engine and the complete HD785-7 chassis for machines with engine serial number 500001-UP and chassis serial number 7001-UP. The exploded diagrams and part tables provide a complete visual reference for disassembly, assembly, and component identification across all major systems: engine, fuel, cooling, electrical, transmission, torque converter, axles, brakes, suspension, hydraulic, steering, hoist, operator’s cab, body, and chassis.

IMAGES PREVIEW

Instant PDF Delivery

This HD785-7 parts catalog is delivered as an instant PDF download. There is no shipping, no waiting for a physical book, and no risk of a lost or damaged package. The file can be viewed on any device — laptop, tablet, or smartphone — and specific pages can be printed for use in the workshop. Whether you are working in the field or at the bench, the parts information you need is always accessible.

With 830 pages of detailed exploded views and part number tables, this Komatsu HD785-7 Parts Book PDF is an essential resource for anyone responsible for maintaining, repairing, or rebuilding the HD785-7 dump truck. Keep your machine running with the right parts, ordered correctly the first time.
