Case 580M Series 2 Loader Backhoe Parts Catalog 2006 – 7-9033 NA Illustrated Parts Manual PDF

Description

Case 580M Series 2 Parts Catalog – 7-9033 NA

This is the illustrated parts catalog for the Case 580M Series 2 loader backhoe, published under document number 7-9033 NA, Revision 3, dated 12/2006. It is a component-level parts identification reference covering the complete machine – from the radiator and engine assembly through the transmission, axles, hydraulics and every loader and backhoe attachment option.

The catalog uses exploded-view illustrations with numbered call-outs cross-referenced to part-number tables, so a part can be identified visually on the machine and then confirmed by its reference number, description, quantity and applicable serial number range. This is the reference to keep on the shop computer when you need the right number for a replacement before ordering.

File Details

• Manual type: Illustrated Parts Catalog
• Brand: Case
• Model: 580M Series 2 Loader Backhoe
• Document number: 7-9033 NA
• Revision: Revision 3
• Date: 12/2006
• Language: English
• Format: PDF
• First unit availability: 02-2004

Chapters Covered

The catalog is organized into numbered groups, each with its own sequence of figure pages:

IMAGES PREVIEW

• General Information and Catalog Usage Notes

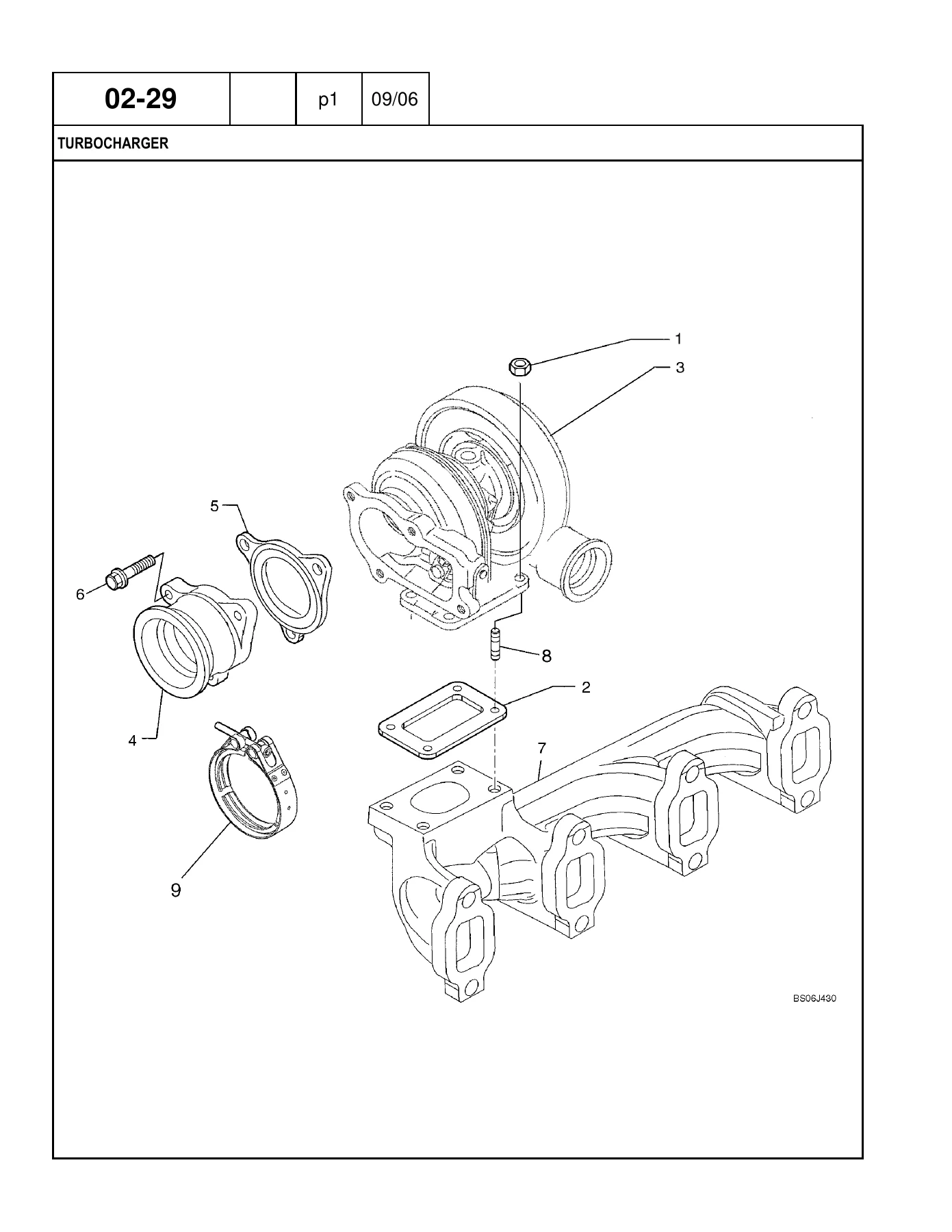

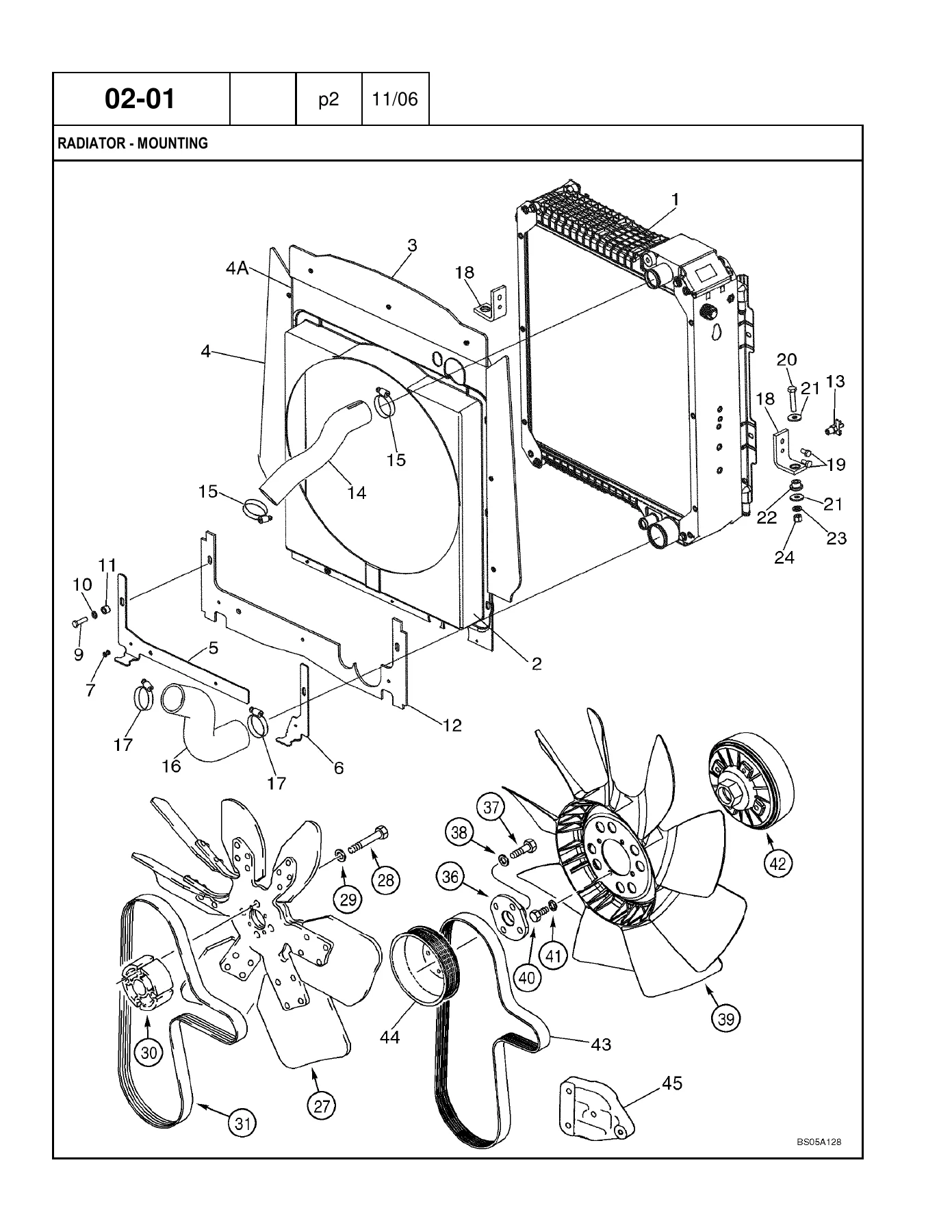

• Section 2 – Engine: radiator and mounting, deaeration system, air cleaner and intake, muffler and exhaust, engine mounting and block heater, cylinder block, cylinder head, manifolds, crankshaft, pistons and connecting rods, flywheel, pulleys, dynamic balancer, camshaft, turbocharger, oil pump and filters, water pump, cooling system, thermostat, fan drive, power take-off and lift hook
• Section 3 – Fuel System: fuel lines and reservoir, hand and foot throttle controls, fuel injection pump, fuel injection system, fuel filter and fuel pump
• Section 4 – Electrical System: starter, alternator, starter and alternator mounting, engine harness and connections, battery cables, dual battery cold start, cold start grid heater, front and side console harnesses and switches, instrument panel covers, instrument cluster, ROPS canopy and cab lamps, horn and backup alarm, rotating beacon, radio antenna and harness, backhoe auxiliary hydraulic electrical (uni-directional and pilot control)
• Section 5 – Tracks / Steering: steering wheel and column, steering hydraulics, front axle mounting, housing, swivel housing, steering cylinder, hub and bearings, front wheels and tires
• Section 6 – Power Train: front drive axle (mounting, housing, swivel, steering cylinder, axle shafts, planetary, differential, ring and pinion), front axle drive shaft, transmission cooling system, transmission mounting, oil filter, 2WD and 4WD housings, oil pump, shifter mechanism, idler and primary shaft, input shaft, secondary shaft, 4WD output shaft, control valves (multiple part numbers), 4WD solenoid valve, rear wheels and tires, rear axle mounting, differential lock, housing, differential (2-spider and 4-spider), ring and pinion, rear axle planetary and drive shaft
• Section 7 – Brakes: rear drive axle differential brake, parking brake, brake pedals, brake master cylinder hydraulics, master cylinder assembly, parking brake controls
• Section 8 – Hydraulics: pump, filter and loader valve; loader valve and filter to backhoe valve; cooler, return lines and filter; loader lift, bucket and clam cylinders; backhoe stabilizer, swing, boom, dipper, bucket and extendable dipper cylinders; pilot control valves and joysticks (6, 7 and 8 spool configurations with and without auxiliary hydraulics, with and without pilot controls); backhoe auxiliary hydraulics; ride control; loader tool quick coupler; equipment hydraulic pump; loader control valve (2 and 3 spool); backhoe control valve assemblies and individual valve sections; pressure reducing valves; joystick valves; swing cushion; boom lock solenoid; ride control accumulator; oil filter; and every cylinder assembly broken down
• Section 9 – Chassis / Attachments: loader lift and bucket controls, loader clam and self-leveling controls, loader lift frame and linkage, loader buckets (82 in, 93 in and clam), loader valve guard, tool quick coupler, backhoe control tower covers and supports (with and without pilot controls), tower boots and seals, boom latch, backhoe controls (foot swing, hand swing, excavator pattern), backhoe auxiliary hydraulic controls, stabilizers, plates and pads, swing tower and cylinders, boom and swing tower, dipper and bucket, extendable dipper, universal and backhoe buckets (12 in through 36 in), frost point assembly, front counterweight, chassis and pod mounts, air inlet screen, oil tank, battery and tool box, radiator wrapper, hood panels and grille, floor plates and floormats, fender covers, rear closure panel, fender extensions, mud guard, seat mounting and seat assemblies, cab glass, frame and covers, doors, windows, windshield washer and wipers, headliner, air filter, blower housing and ventilation ducts, heater, air conditioning lines and evaporator, condenser and receiver-drier, air conditioning compressor, ROPS canopy frame and covers, canopy glass, canopy wiper and washer, rear view mirror, slow moving vehicle emblem and decals in English, Latin American Spanish and Canadian French
• Index

Working through the catalog, a technician can identify nearly any serviceable component on the 580M Series 2 by its figure number, reference number and part number. Assemblies are shown in exploded view with included items and non-serviced items clearly marked, and where a part changed during production the catalog gives the serial number break so the correct version is ordered. The reference tables also list the quantity per machine and the technical notes stamped on hoses, seals and fittings.

Why This Parts Catalog Matters

Getting the wrong part on a loader backhoe wastes shop time and freight. This catalog removes the guesswork: every exploded view shows how the assembly is built, which fasteners and seals belong with it, and which service kits replace individual components that are no longer sold separately. Parts that are superseded are flagged with the new part number, and the serial number columns tell you which version fits the machine in front of you.

Because the catalog covers the full 580M Series 2 range – 2WD and 4WD, turbocharged and naturally aspirated, cab and canopy, foot swing and hand swing, with and without extendable dipper, with and without auxiliary hydraulics and with and without pilot controls – it is a single reference for machines that came off the line with very different equipment.

Instant PDF Delivery

The file is delivered as a downloadable PDF immediately after purchase. There is nothing to ship and nothing to wait for – the parts catalog opens on a laptop, tablet or phone in the workshop and any figure page can be printed for the bench. Keep it on the shop computer and look up the correct part number before the order goes out.
