Case 680 CK Loader Backhoe Service Manual 9-73072R0 – PDF DOWNLOAD

Description

Case 680 CK Loader Backhoe Service Manual

CASE 680 CK LOADER BACKHOE SERVICE MANUAL 9-73072R0 – PDF DOWNLOAD:

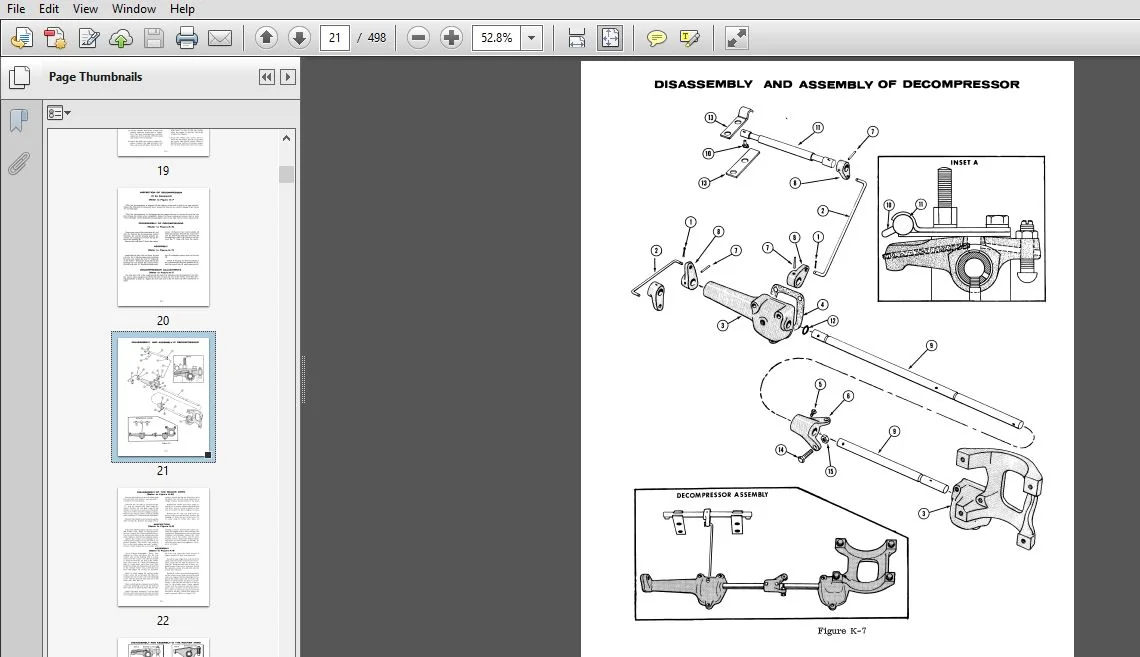

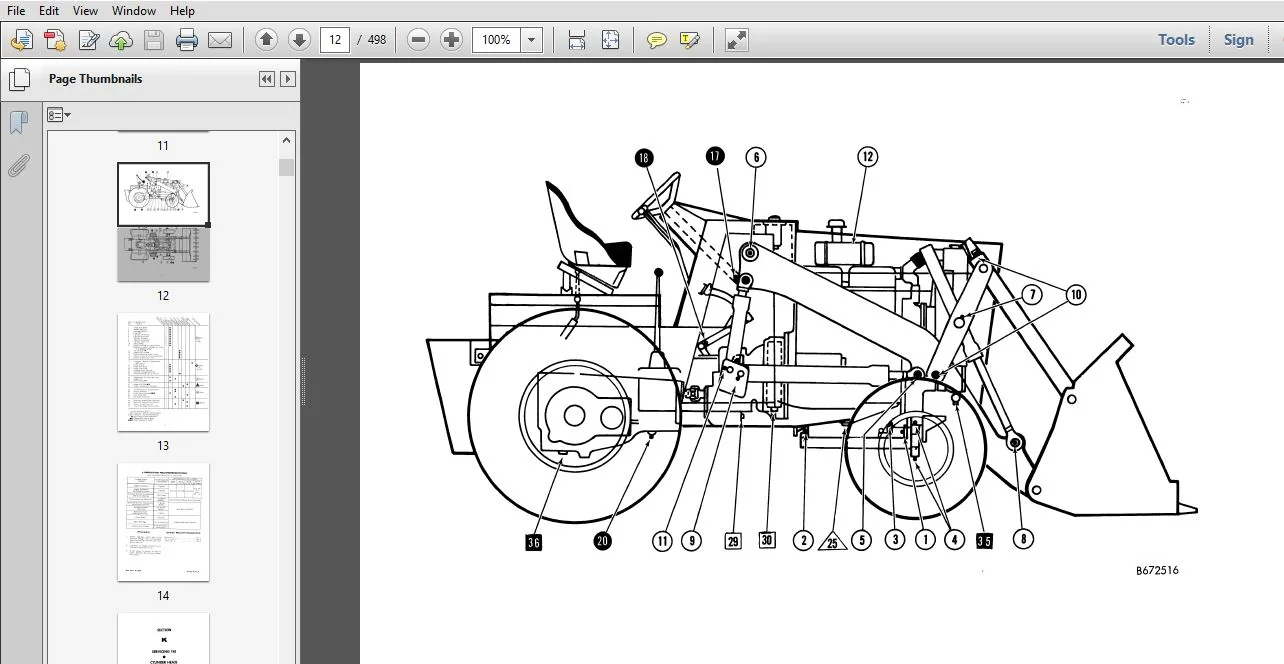

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Case 680 CK Loader Backhoe Service Manual

SAMPLE PAGES:

Removal:
1.Disconnect the air cleaner from the turbo—charger.
2.Disconnect the turbo and intake elbow hose clamps (1) and remove with hose(2) .
3.Disconnect the turbo oil supplyline(3) and remove. Discounect hose clamps (4) and remove the oil drain tube hose (5). Remove the oil drain tube (6) with gasket (7). Discard gasket.
4.Remove the intake elbow (8) with gasket
5.Remove the turbo-charger (10), gasket (11) and Coupler (12).Discard gasket (11).
6. Remove the bolts from the manifold brace (17). Remove the exhaust elbow (13) and spacers (18).
7. Remove the turbo adapter base (14) with gasket (15). Discard gasket.
8.Remove the oil drain tube elbow (16).

Inspection

• Clean the intake and exhaust elbows, coupler and turbo adapter thoroughly and check for cracks or other damage. Replace if necessary.
• Flush and clean the oil supply line, oil drain tube and elbow. Check for any damage and replace if necessary.

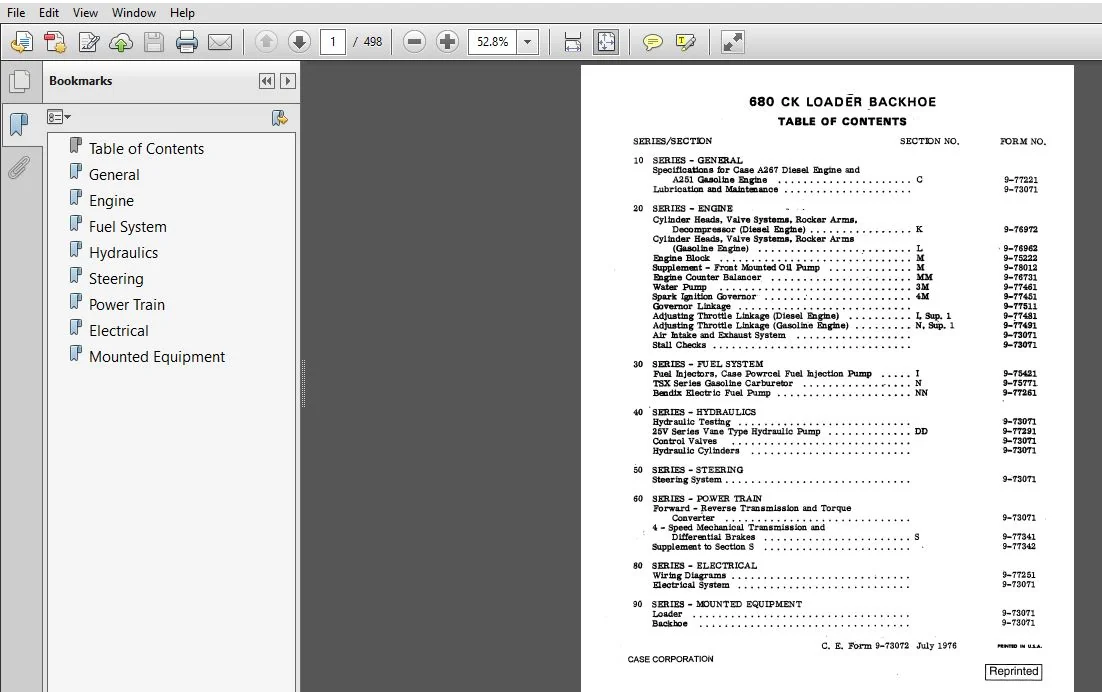

TABLE OF CONTENTS:

Case 680 CK Loader Backhoe Service Manual

• Table Of Contents
• General
• Engine
• Fuel System
• Hydraulics
• Steering
• Power Train
• Electrical
• Mounted Equipment
