Case IH A8010 A8810 Sugarcane Harvester Parts Catalog PDF – C9 Tire and Track

This Case IH A8010 A8810 Sugarcane Harvester Parts Catalog PDF – C9 Tire and Track is a figure-and-list catalogue for identifying serviceable components on Case IH sugar cane harvesters built as the A8010 tyre machine and the A8810 track family. Each illustrated plate is paired with a parts list that records reference number, figure number, part number, quantity, and description so a technician can match a worn hose, seal kit, roller, knife, or cab item to the number printed in the book.

File Details

• Manual type: Parts catalog
• Brand / models: Case IH A8010, A8810, A8810 DA, A8810 MR sugar cane harvesters
• Engine shown: C9 (engine assembly 47933968)
• Language: English (selected figure notes also appear in Portuguese)
• Page count: 833
• File format: PDF
• Copyright notice: CNH Industrial, 2016
• Section dates shown on plates: 4/2018 (legend example dated 10/2014)
• Market note printed on model lines: Tier 3 and no emissions (LAR)

Machines Listed in the Catalogue

Model lines printed at the foot of the parts lists identify four configurations:

• A8010 — sugar cane harvester tyre machine, Tier 3 and no emissions (LAR)
• A8810 — sugar cane harvester track machine, Tier 3 and no emissions (LAR)
• A8810 DA — sugar cane harvester double alternated track machine, Tier 3 (LAR)
• A8810 MR — sugar cane harvester multi-row track machine, Tier 3 (LAR)

Individual figures call out only the variants that use that assembly. Tyre-machine plates such as wheels and some chassis frames list A8010 alone; track-adjust hydraulics and certain frames list A8810, A8810 DA, or A8810 MR. Cab complete assemblies use separate part numbers by configuration (47950135 / 47950134 for A8010, 47932266 for A8810, 47923431 for A8810 DA and A8810 MR).

How the Plates Are Organized

A keyed sample plate near the front of the Case IH A8010 A8810 Sugarcane Harvester Parts Catalog PDF – C9 Tire and Track explains the layout used throughout: model number and description, figure call-outs, kit symbols, variation call-outs that send the reader to another figure number, footnotes, orientation arrows that mark the front of the machine, sequence code, page number within that sequence, and the month-year printed on the plate. Part lists mark NSS items that are not serviced separately, alternate kit numbers shown in parentheses, and notes such as “1 = FOR ITALY ONLY” where a country restriction applies. Quantity may be a fixed count or AR (as required). A numeric parts index at the end maps part numbers back to figure sequence and reference.

Chapters Covered

• 05.100.01 / 05.100.02 — Dealer Initial Stocking List (ISL) List A and List B
• 10.001.010 / 10.001.020 — Engine (C9)
• 10.210 — Fuel line, fuel filter, fuel tank and mounting parts
• 10.310 — Aftercooler line and air cleaner connections
• 10.400 — Radiator box, condenser, oil cooler, intercooler, water cooler, fan shroud, cooler guards, air filter, radiator grille and cover
• 21.900.AA — Gearbox, gearbox assembly, oil line and drain
• 25.108.AB — Planetary hub
• 29.100 / 29.300 — Control valve, hydraulic motor and brake, traction motor, transmission pump, transmission hoses and oil filter, basecutter lift / stability kit circuit, differential lock, track adjust
• 33.202 / 33.240 — Hydraulic brakes, brake controls and lines, safety brake circuit (8810)
• 35.000 — Fan motor, oil cooler line, chopper circuit, roller circuits (RH/LH), connectors, lift arm, elevator, 6-bank valve block, hydraulic lift, base cutter circuit, fan drive, electronic base-cutter controller, auto tracker, primary extractor, topper line, crop divider, sidetrim valve, standard topper, power knockdown roller
• 35.000.AB — Hydraulic motors for float rollers A/C1/C2/D, bottom rollers E/F/I, feed roller, primary extractor (including Char-Lynn 22.6 cu.in. listing)
• 35.100 / 35.102 / 35.104 — Cylinders (auto tracker, lift arm, crop divider, height indicator, sidetrim, cabin tilt), flow divider, hydraulic pumps and suction lines
• 35.300 / 35.310 — Suction/return pipework, basecutter hydraulics, primary extractor hose, oil filters, section valves, radiator valve, sidetrim valve, manifold and solenoid valves (differential lock, brake, roller, topper)
• 39.100 — Standard frame, chassis, access covers, boom protectors, visual scale, cover assemblies, stabilizer
• 41.101 / 41.200 — Steering column and steering priority valve
• 44.530 — Wheels
• 48.130 / 48.134 — Chain and track-adjust hydraulic circuit
• 50.100 / 50.200 — Air conditioner (cold/heat), lines, condenser, compressor
• 55.000–55.911 — Senders and switches, valve and machine wire harnesses, fuse panels, cab/roof/traction-pump/frontal/engine harnesses, battery box and cables, rotating beacon, work and indicator lights, elevator wiring, upper switches, horn kit, electronic control units, consoles, washer and wiper, display, GPS antenna
• 60.101 / 60.105 — Feed roller slat and roller support
• 60.340 — Standard topper, shredder topper, standard cutter
• 60.350 — Remote greasing lines, rotary-cone crop dividers LH/RH, crop divider arms, side trim knives
• 60.360 — Power knockdown roller (adjustable)
• 60.370 — Basecutter gearbox and mount
• 60.390 — Float rollers A/C1/C2/D, bottom rollers E/F/I, feed roller

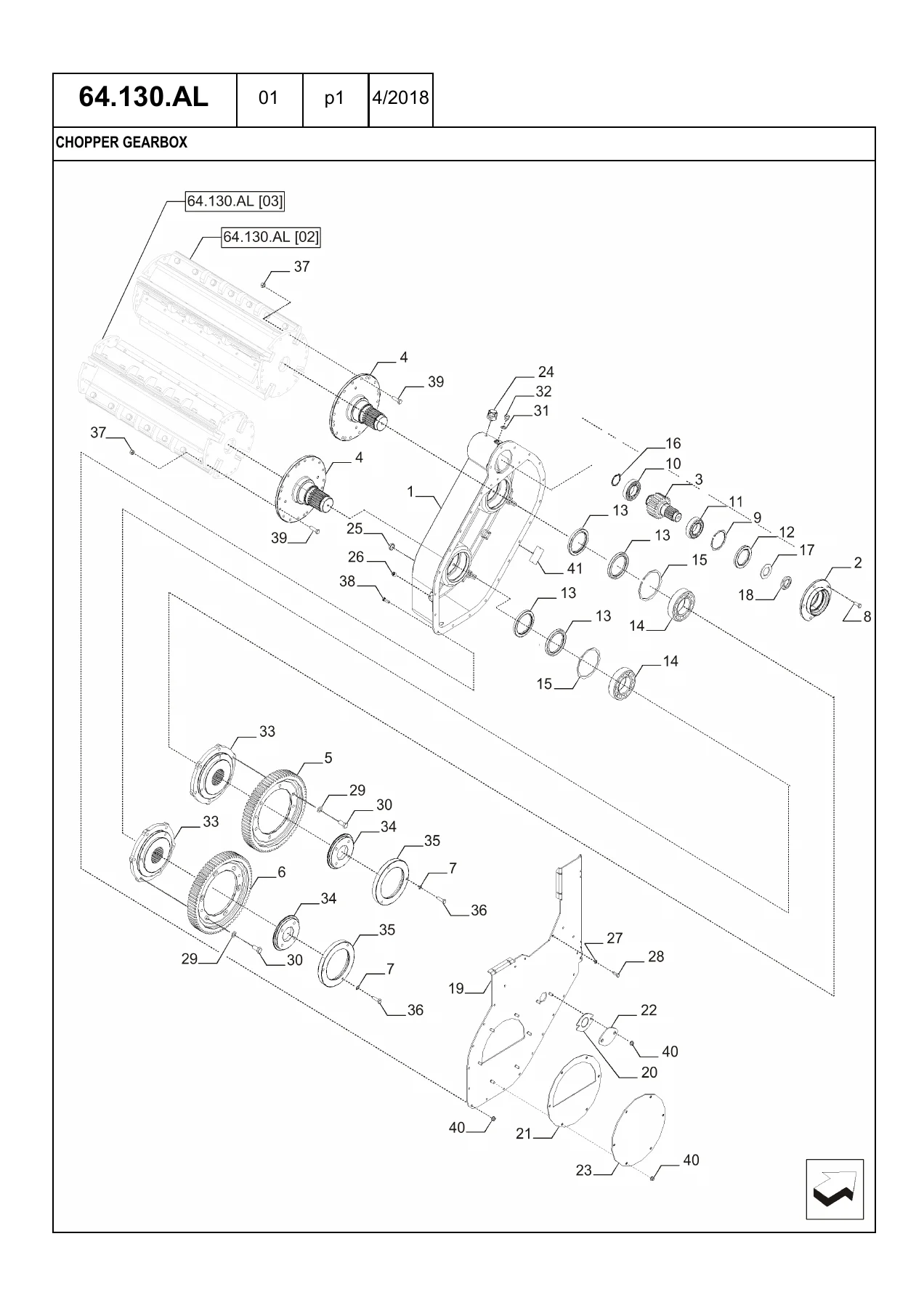

• 64.130 / 64.160 — Chopper gearbox and chopper flywheel with covers
• 74.130 / 74.200 / 74.204 — Oil cooler manifold, elevator bin-flap cylinder, extractor hood, primary extractor, support, motor and fan
• 80.420 — Elevator slewing/swing, elevator lift cylinders, elevator and extension
• 88.100 — Hand washing, beam kit, bag with tool kit
• 90.100–90.160 — Complete cab, engine box and support, identity plate and decals, protection plate, windscreen guard, grate, rail guard, mirrors, footrest, cooler, operator seat, armrest, cab hydraulic lines, cabin tilt pump and system, roof and lights, headliner, curtain, instructor seat, rear column console, cab doors LH/RH, cab guard and covers

Taken together, the plates give a technician a complete map of serviceable hardware from the C9 power unit through cooling, propulsion hydraulics, harvesting front-end, chopper, extractor, elevator, electrics, and cab. The catalogue does not replace a workshop manual; it is the source for part numbers, kit contents, and which variant uses which assembly.

Dealer Initial Stocking Lists

Section 05.100.01 (List A) groups consumable filters and elements that shops typically keep on the shelf: fuel filters 84597064 and 84283691, engine oil filter 84346773 (110 mm OD x 212 mm L, M30 x 2), hydraulic oil filter 84226258 (97 mm OD x 240 mm L, 1" 3/8-12UNF), air filters 84607214, 84428273 and 84428272, plus related elements and mounting parts. Section 05.100.02 (List B) extends the stocking set into harvest wear items and service kits — blades and knives (including 47890459), slats, sprockets, chains, wear strips with printed dimensions such as 40 mm W x 803 mm L, pillow blocks, seal kits, sensors, belts, flaps, bronze bushing 87220477, and water separator 504063255. Those two lists sit at the front so a dealer can stock the filters and cutting/wear parts that the rest of the book identifies in exploded form.

Engine, Fuel, and Cooling Hardware

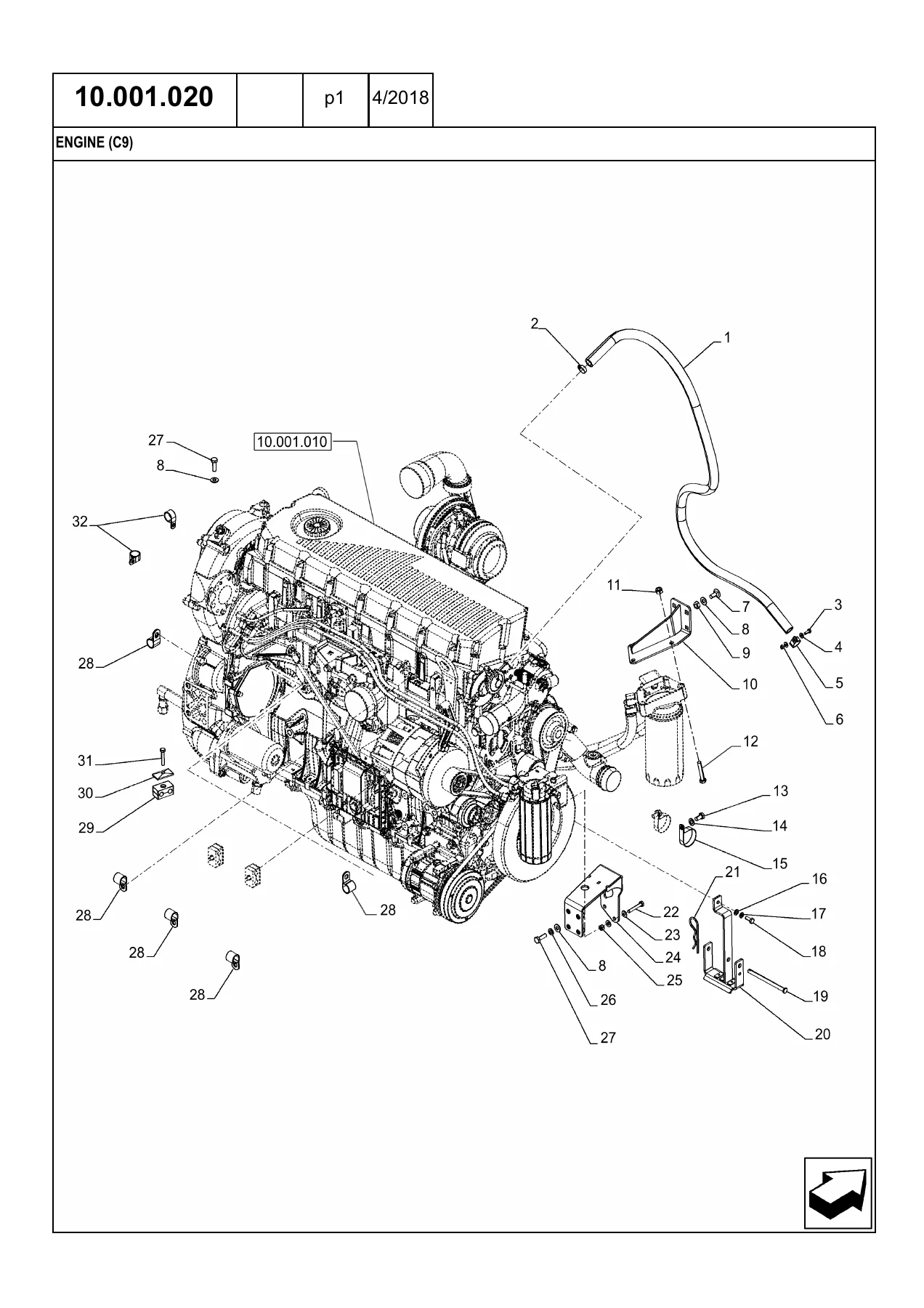

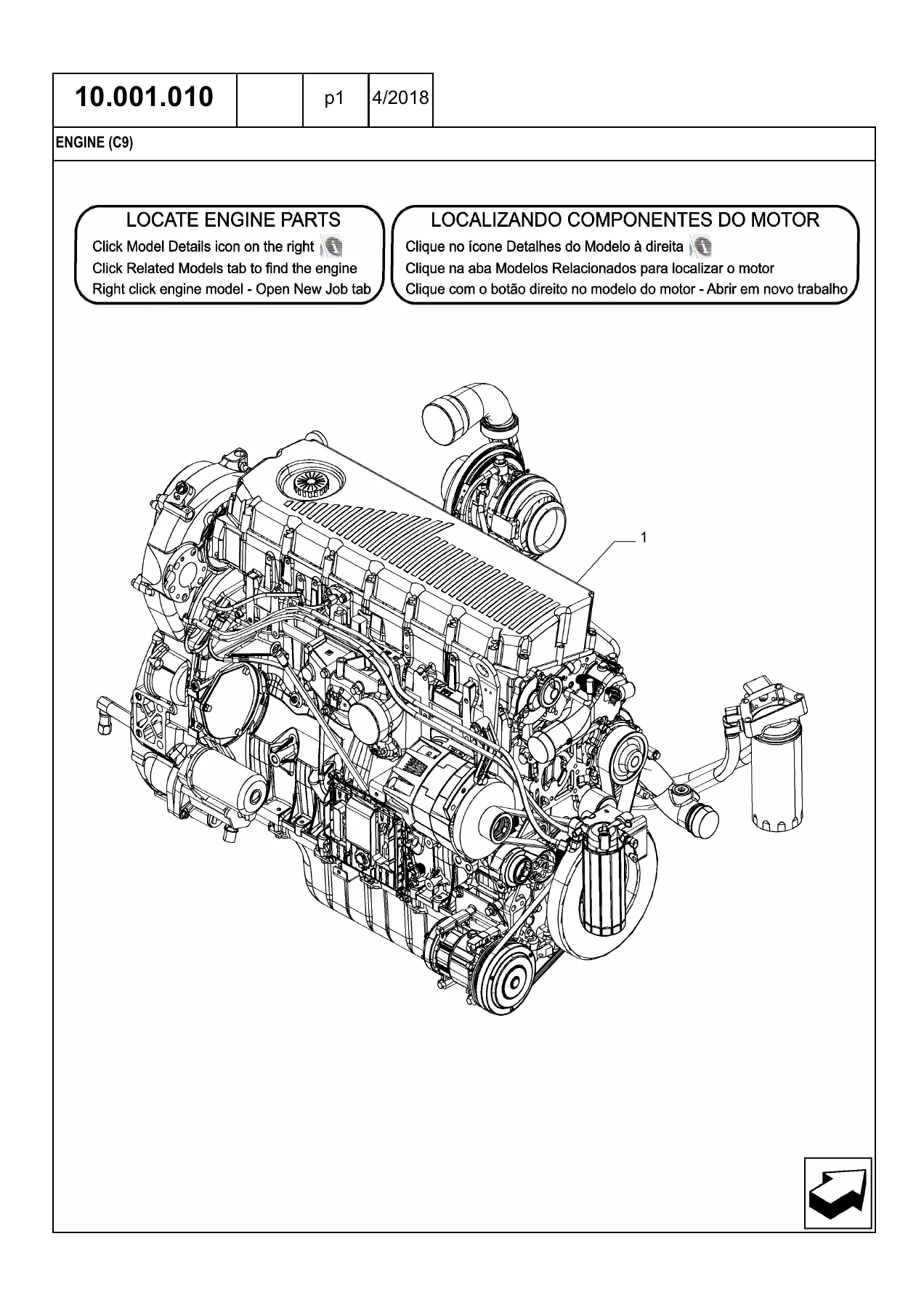

Figure 10.001.010 presents the complete C9 engine as assembly 47933968. The following plate, 10.001.020, breaks out mounting hardware around that engine: hose 48029284, P-type clamps in several diameters, supports 47779736 and 47888118, axle pin 84392611, and the fasteners used on those brackets. Fuel figures continue with lines, a water separator, fuel pump components, tank filler neck 47922408, and filter 87544353. Cooling plates cover the radiator box, condenser, combined radiator and oil cooler, intercooler and water cooler, fan shroud, cooler guards, the round paper air filter 84428273 (231.4 mm ID x 259.6 mm OD x 571.8 mm L), and the grille/cover group.

Propulsion, Brakes, and Machine Hydraulics

Gearbox plates 21.900.AA open the housing, assembly, and drain line. Planetary hub 25.108.AB sits with the traction circuit. Hydraulic motor and brake figures, the traction motor, and the transmission pump feed hose and filter plates for the travel circuit. Separate circuits are drawn for basecutter lift and the 8800 stability kit, differential lock, and track adjust (also repeated under 48.134.AJ). Brake hydraulics include control valves and lines plus a dedicated safety-brake circuit titled for the 8810. Implement hydraulics occupy the long 35.000 series: fan drive, chopper, left and right rollers, lift arms, elevator, a six-bank / bloco 6 cilindros valve, auto tracker, primary extractor, crop divider, sidetrim, standard topper, and power knockdown roller. Motor plates name float rollers A, C1, C2 and D, bottom rollers E, F and I, the feed roller, and a primary-extractor motor listed as Char-Lynn 22.6 cu.in. Cylinder plates give auto-tracker, lift-arm, crop-divider, height-indicator, sidetrim, cabin-tilt and lift cylinders, including a double-acting unit called out with a 22.23 mm rod. Pump, suction-line, filter, and multi-section valve figures finish the hydraulic block, with solenoid manifolds for differential lock, brake, roller, and topper.

Harvesting Front-End, Chopper, Extractor, and Elevator

Crop work is catalogued from the topper down. Standard and shredder toppers, side-trim knives, rotary-cone crop dividers on both sides, remote greasing lines, and the adjustable power knockdown roller all have their own sequences. Basecutter gearbox and mount plates sit ahead of the float and bottom roller group that feeds cane into the machine. Chopper coverage includes multiple gearbox breakdowns plus the flywheel and its covers. Primary extractor figures separate hood, support, motor and fan; elevator figures cover slewing/swing, lift cylinders, the elevator structure, and the extension. Wear strips, sprockets, slats, and knives from the stocking list reappear on these plates with quantities and mating hardware.
