Case IH JX60 JX70 JX80 JX90 JX95 Tractor Repair Manual – Complete PDF Workshop Manual

Description

This is the complete Case IH repair manual for the JX Series tractors, published under document number 6-62720 and dated August 2005. The Case IH JX60 JX70 JX80 JX90 JX95 Tractor Repair Manual covers every major system on all five models in the range and is written as a workshop-level service guide for technicians, mechanics and owners who need the correct procedures and specifications at hand.

File Details

• Manual type: Repair / Service Manual
• Brand: Case IH (CNH ITALIA S.p.A.)
• Models covered: JX60, JX70, JX80, JX90, JX95
• Language: English
• File format: PDF
• Document number: 6-62720
• Edition / date: 08-2005
• Page count: Approximately 608 pages

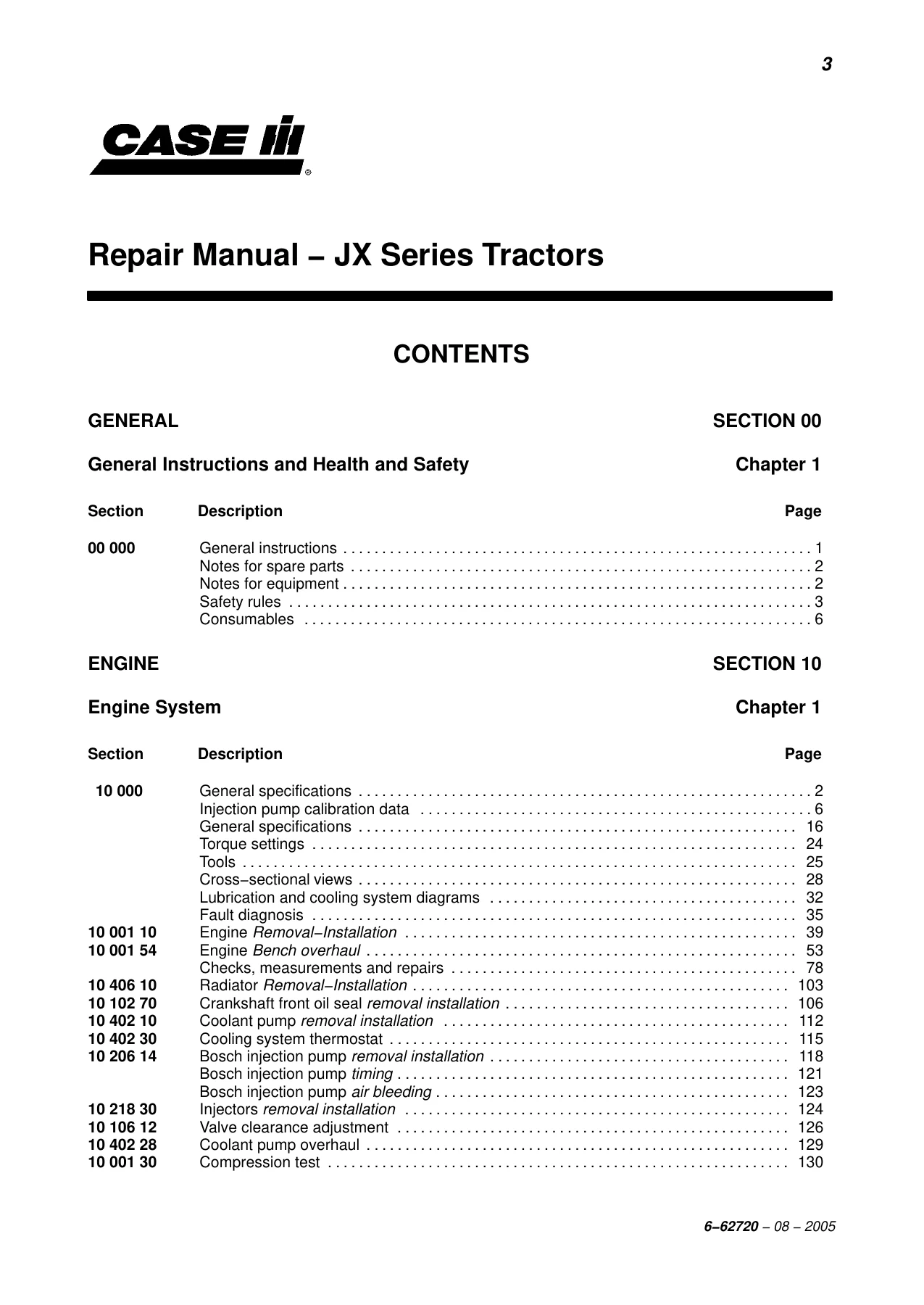

Chapters Covered

• Section 00 – General Instructions and Health and Safety
• Section 10 – Engine System: specifications, injection pump calibration, removal and installation, bench overhaul, checks, radiator, coolant pump, thermostat, Bosch injection pump, injectors, valve clearance, compression test
• Section 18 – Clutch: specifications, cross-sections, removal, overhaul, refacing limits, main and PTO clutch control linkage
• Section 21 – Transmissions: 12×4 mechanical transmission, synchro reverser (12×12), reverser and creeper unit (20×12)
• Section 23 – Drive Lines: transmission shafts and guard, drive gear housing

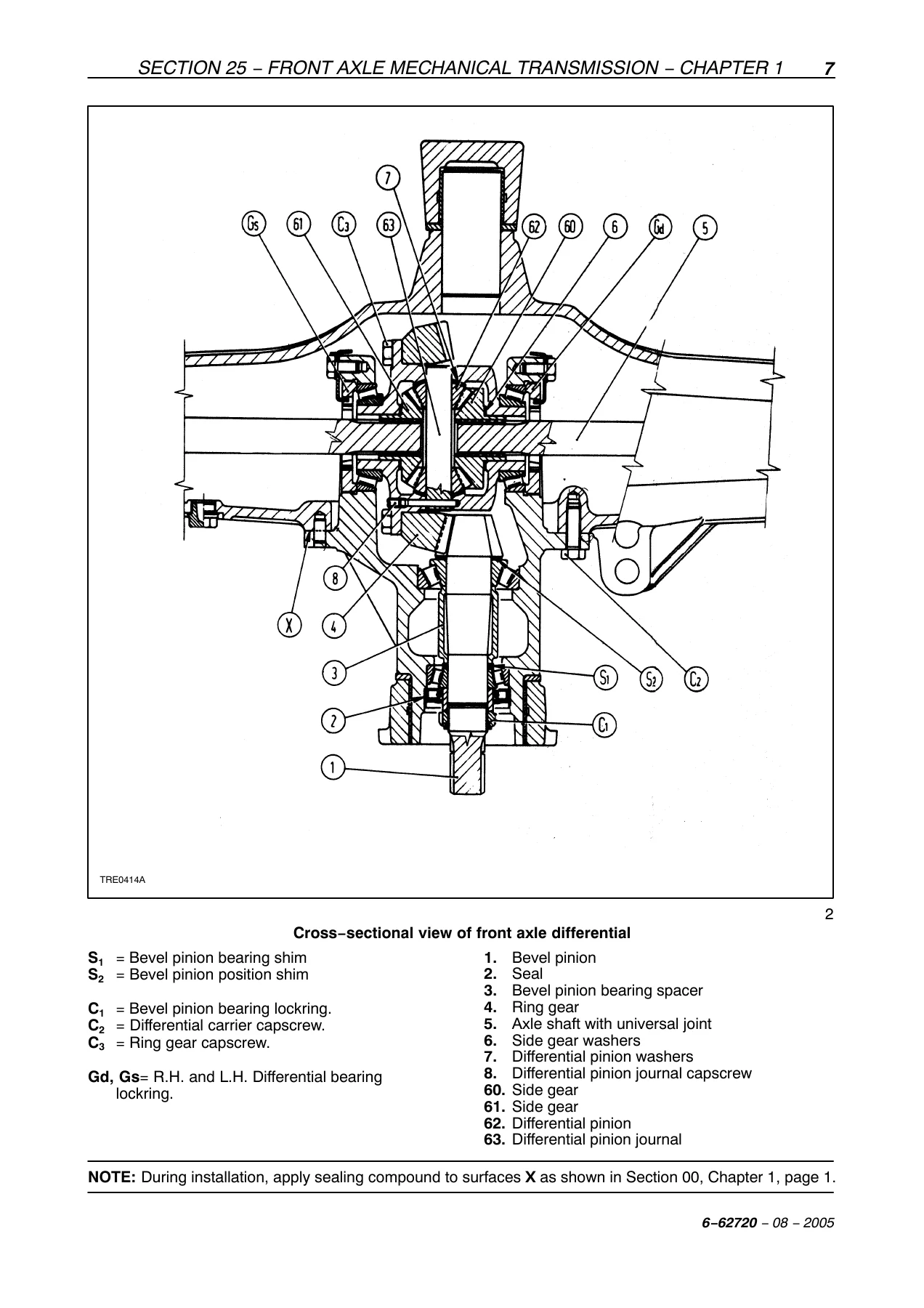

• Section 25 – Front Axle Mechanical Transmission: specifications, removal, steering knuckle, stub axle, wheel hub, bevel drive adjustment, differential (LIM-SLIP and NO SPIN)
• Section 27 – Rear Axle and Transmission: gearbox casing, bevel gear pair, differential, final drives
• Section 31 – Mechanical Power Take-Off: 540, 540/750 and 540/1000 versions
• Section 33 – Braking System: service brake, parking brake, front brake (JX60/JX70 and JX80/JX90/JX95), hydraulic front brake pump, bleeding
• Section 35 – Hydraulic System: rear mechanical lift, auxiliary control valves, trailer brake valve, lift pump
• Section 41 – Steering: hydrostatic control valve, pump, steering cylinders
• Section 44 – Front Axle and Wheels: wheel hub, stub axle, wheel alignment
• Section 50 – Cab Air Conditioning System: Sanden SD 7H15 compressor, R134a, charging and testing
• Section 55 – Electrical System: instruments, components, starting system, charging system, battery, electrical circuits with wire colour coding
• Section 90 – Cab: control levers, seat, windows, wiper motor, doors

The Case IH JX60 JX70 JX80 JX90 JX95 Tractor Repair Manual follows the original dealer workshop structure, with each section independently numbered and dedicated to a single major assembly. Every section opens with general specifications and tightening torques, then moves through removal, refitting, bench overhaul and adjustment procedures. Cross-sectional illustrations, exploded views, hydraulic and electrical schematics, fault diagnosis tables and torque charts appear throughout, making this the same reference a Case IH technician would use in the workshop.

What This Repair Manual Covers in Detail

Engine – Section 10

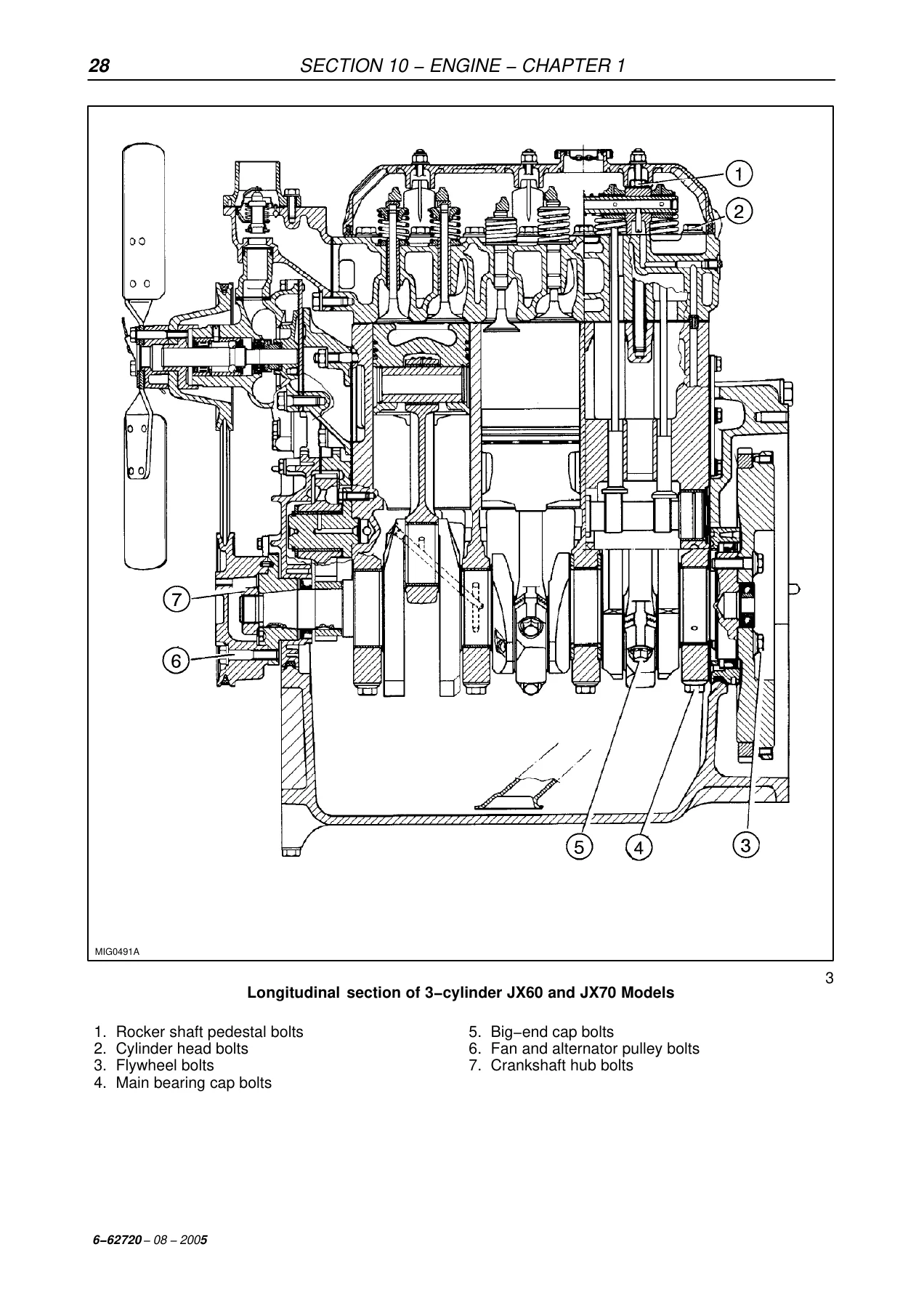

Complete coverage of the three- and four-cylinder engines fitted to the JX range: the naturally aspirated 8035.05D.939 (JX60), turbocharged 8035.25C.939 (JX70), naturally aspirated 8045.05R.939 (JX80), and turbocharged 8045.25.939 (JX90) and 8045.25L.939 (JX95). Includes Bosch VE injection pump calibration data for each model, general specifications, torque settings, special tools, lubrication and cooling diagrams, fault diagnosis tables, engine removal and installation, complete bench overhaul, cylinder head checks, crankshaft and main bearing measurements, camshaft and valve gear data, piston and liner measurements, coolant pump and thermostat service, injection pump timing, injector removal, valve clearance adjustment and compression testing.

Clutch, Transmissions and Drive Lines – Sections 18, 21, 23

Dual clutch 11″/11″ and 12″/12″ overhaul and adjustment, the 12×4 mechanical transmission, the synchro reverser (12×12), the reverser and creeper unit (20×12), transmission shafts and guard, and the transfer box. Sectional views, tightening torques and adjustment procedures for each variant are included.

Axles – Sections 25, 27, 44

Front axle mechanical transmission with bevel drive adjustment, differential overhaul for the standard, LIM-SLIP and NO SPIN versions, steering knuckle and stub axle service, wheel hub bearing adjustment, and rear axle and final drive overhaul including bevel gear pair adjustment and differential backlash settings.

Brakes, Hydraulics and Steering – Sections 33, 35, 41

Service brake and parking brake removal and overhaul, hydraulic front brake pump, bleeding procedures, the rear mechanical hydraulic lift with Lift-O-Matic and draft control, auxiliary control valves, trailer brake auxiliary control valve, hydrostatic steering control valve overhaul, and steering cylinder service.

Electrical and Cab – Sections 50, 55, 90

Cab air conditioning system (Sanden SD 7H15 compressor, HFC-134a refrigerant, charging and leak testing), electrical system covering instruments, starting system, charging system, battery and full electrical circuits with wire colour coding and connector diagrams, plus cab removal and disassembly procedures for windows, doors, wiper motor, seat and control levers.

Why This Manual Matters

Every procedure in the Case IH JX Series repair manual is built around the exact torque values, clearances, adjustment settings and service limits for these specific tractors. That matters because the JX60, JX70, JX80, JX90 and JX95 use different engines, different injection pump calibration data and different adjustment procedures between the three-cylinder and four-cylinder models. Guessing a torque value or injection pump timing on a JX70 will not give the same result as on a JX80. This manual removes that guesswork.

Whether you are servicing a clutch on a JX60, timing a Bosch injection pump on a JX90, adjusting bevel drive backlash on a JX95 four-wheel-drive front axle, or diagnosing a hydraulic lift fault on any model in the range, the correct specification and step-by-step procedure is laid out with the same technical drawings and tolerances used in the workshop.

Get Instant Access

IMAGES PREVIEW

This Case IH JX60 JX70 JX80 JX90 JX95 Tractor Repair Manual is delivered as an instant PDF download, no shipping and no waiting. It opens on any device – laptop, tablet or smartphone – and every page can be printed for use in the workshop. Whether you run a single JX70 on a smallholding or maintain a fleet of JX Series tractors, having this manual on hand means every job starts with the right information.
