Case IH MXM120 MXM130 MXM140 MXM155 MXM175 MXM190 Tractor Parts Catalog

Description

File Details

• Manual Type: Illustrated Parts Catalog
• Brand: Case IH
• Models Covered: MXM120, MXM130, MXM140, MXM155, MXM175, MXM190
• Language: English
• Page Count: 2098
• File Format: PDF
• Document Number: 597718030

Chapters Covered

• SEC. 01 – ENGINE: Engine Assembly, Cylinder Block & Related Parts, Oil Sump, Engine Covers & Gaskets, Cylinder Head, Rocker Arms & Valves, Suction and Exhaust Duct, Crankshaft, Piston & Connecting Rod, Damper and Flywheel, Drive-Gearing Tappets and Pushrods, Fuel System, Turbocharger, Engine Oil Pump & Filter, Crankcase Oil Cooler, Water Pump / Fan, Starter Motor, Alternator, Electronic Control Unit
• SEC. 02 – ENGINE EQUIP.: Fuel Tank, Fuel Lines, Fuel Tank Support, Fire Shield, Silencer (Muffler), Radiator & Related Parts, Air Conditioning Pipes, Condenser and Dehydrating Filter, Compressor, Cooling & Expansion Tank, Engine Coolant Heater, Heat Exchanger, Dry Air Filter, Aircleaner w/Precleaner, Heat Exchanger Air-Air, Engine Guard
• SEC. 03 – TRANSMISSION: Housing Gears, Transmission Oil Heater, Hi-Lo 24×12 Transmission, Full Power-Shift Transmission, Support for 2WD/4WD Front Axle, Side Rails, Lift and Front PTO, 4WD Front Axle with Suspensions and Terralock, Weight Carrier, Clutch PTO, Transmission Gears, Clutch Engagement, Internal Shifting Controls, Oil Pump Lubrication System, Hydraulic Gearbox Control, Gearbox Lubrication Piping, Servo-Control, Transmission Covers and Supports, Central Reduction Gears, Differential Gears, Differential Locks, Pumps for Hydraulic System and Lift
• SEC. 04 – FRONT AXLE: Start Hydraulic Clutch, Front Axle Propeller Shaft, 4WD Front Axle Box, Steering Axles and Hubs, Link, Support, Bevel Gear Pair, Differential Locking, Hydraulic Differential Lock, Differential Gears and Shaft, Hydraulic Cylinder, Class 3 Front Axle with Brake, 4WD Front Axle with Suspensions and Terralock, 4WD Front Axle with Brakes for Terralock, 2WD Front Axle Steering Cylinder, Power Steering Hydraulic Control
• SEC. 05 – REAR AXLE: Side Reduction Unit (Final Drive) Housing and Covers, Final Drive Gears and Shafts, 112″ and 98″ Long Axles for Cast and Steel Discs, External Hub for Twin Wheels, Rear Ballast for Sheet Steel Discs, Transmission Brakes, Parking Brakes, Brake Oil Tank, Brake Piping, Trailer Air Brake UK / Germany / Italy / Universal
• SEC. 06 – ELECTRICAL: Battery & Battery Mounting, Electric System, Horn & Horn Mounting, Battery Cables, Electrical System Cables, Headlamp – Reflector
• SEC. 07 – HYDRAULICS: Power Take-Off 540/750/1000 RPM, PTO 540/1000 RPM, Lift and Front PTO CCLS, PTO Clutch, Synchro Power Take Off, Guard for Electronic Lift, Lifter Housing and Covers, Lifter Lines, Mechanically Controlled Hydraulic Lift, Lifter Piston and Cylinder, Lift Assist Cylinder, Extra External Control Valves and Pipes, Central Housing Breakdown, Remote Control Valve Breakdown, Control Valves with Joystick, Trailer Brake Valve, Lifter Rock Shaft and Associates
• SEC. 08 – SHEET METAL: Hood, Dynamic Front Fenders (4WD)
• SEC. 09 – LINKAGE: Drawbar for Sliding Support, Tow-Bar with Rollers, Sway-Bar, Sliding Hitch Without Drawbar, Pull Hook, Automatic Hitch, Trailer Brake Lever Support, Rotary Hitch Support on Piton Skids, Tooling Connection Unit, Implement Carrier (Telescopic Arms), Hydraulic Adjustment of Right Tie-Rod, Front Hydraulic Lift for CCLS, Lateral Stabilizers
• SEC. 10 – DRIVER’S COMPARTMENT: Instrument Cluster, Switch, Radar Unit, Worklamps, Cables and Fuse Box, Front Windshield Wiper, Radio Installation & Clock, Lighting, Auxiliary Lights Kit, Cab Frame, Doors, Hinged Windshield, Cab Glass and Relevant Parts, Rear Fenders, Cab Supports, Rotary Beacon, Controls Cover, Soundproofing, Mats, Seat, Air Seat with Seat Belt, Deluxe Air Seat, Passenger Seat, Front Console Trim, Rear Mirror & Sun Screen, Telescopic Rear View Mirror, Roof, Air Conditioner, Brake Pedals, Handbrake Control, Clutch Pedal, Accelerator Control Linkage, Hydrostatic Steering Wheel, Gearbox Control, Lift Control, Control Valves, P.T.O. Control, Miscellaneous Caps, Electronic Unit Control, License Plate & Lamp, Double Chock, Set of Tools, Slow Moving Vehicle Sign
• SEC. 11 – TRACTION: 2WD Front Wheels, 4WD Driving Wheels, Drive Wheels
• SEC. 13 – DECALS: Decals, Model Identification Decals
• VERSION LIST & OPTIONAL EQUIPMENT: Complete variant and optional equipment listings for all MXM models

What This Parts Catalog Provides

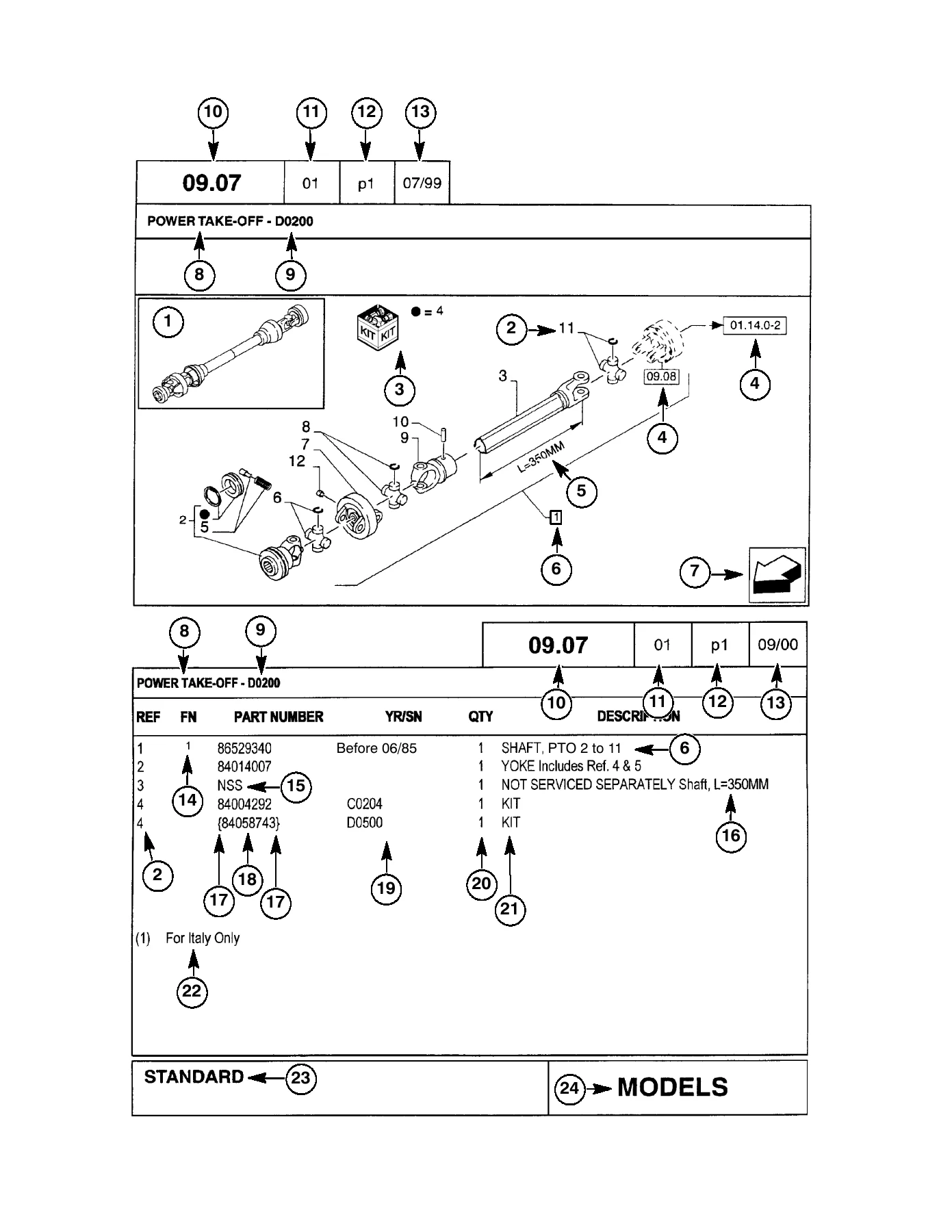

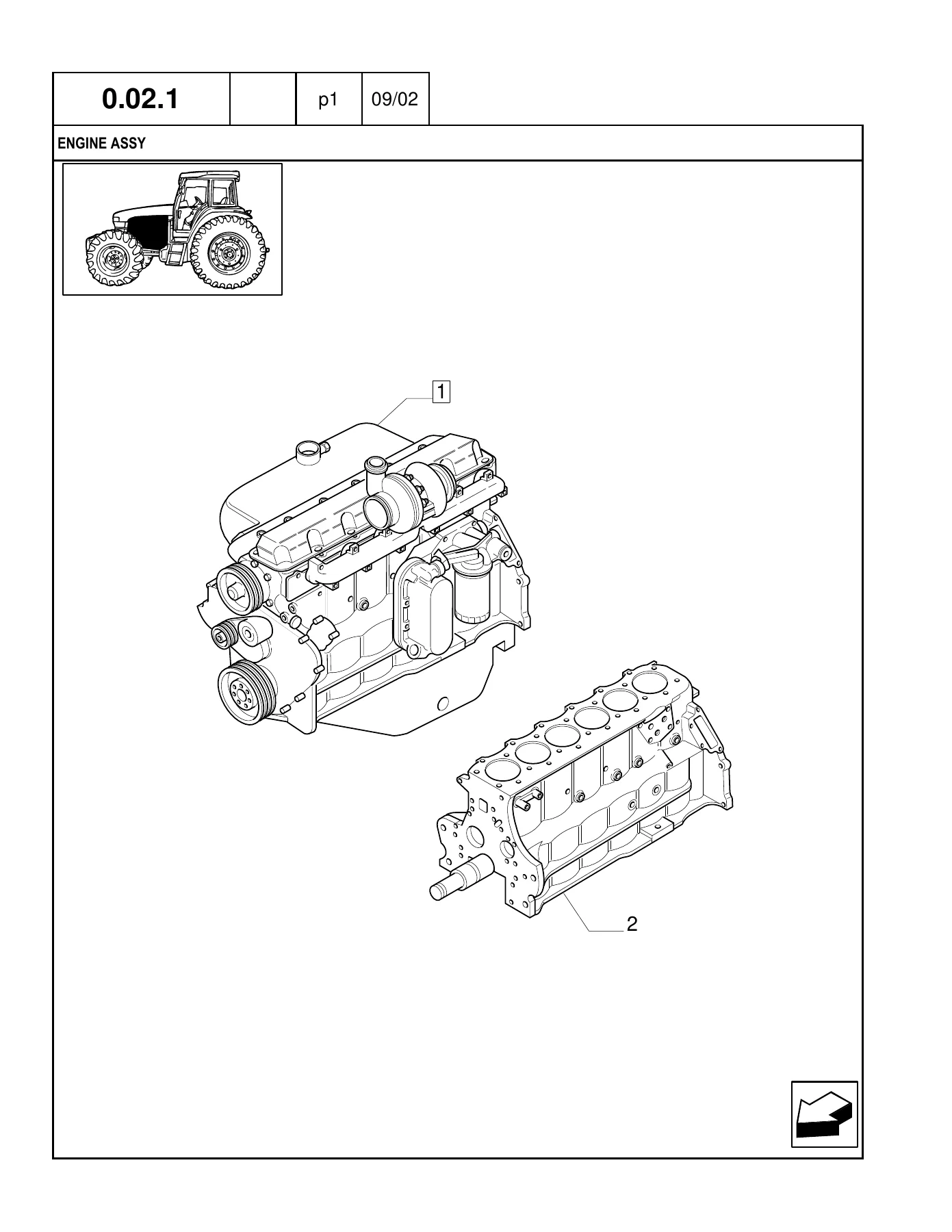

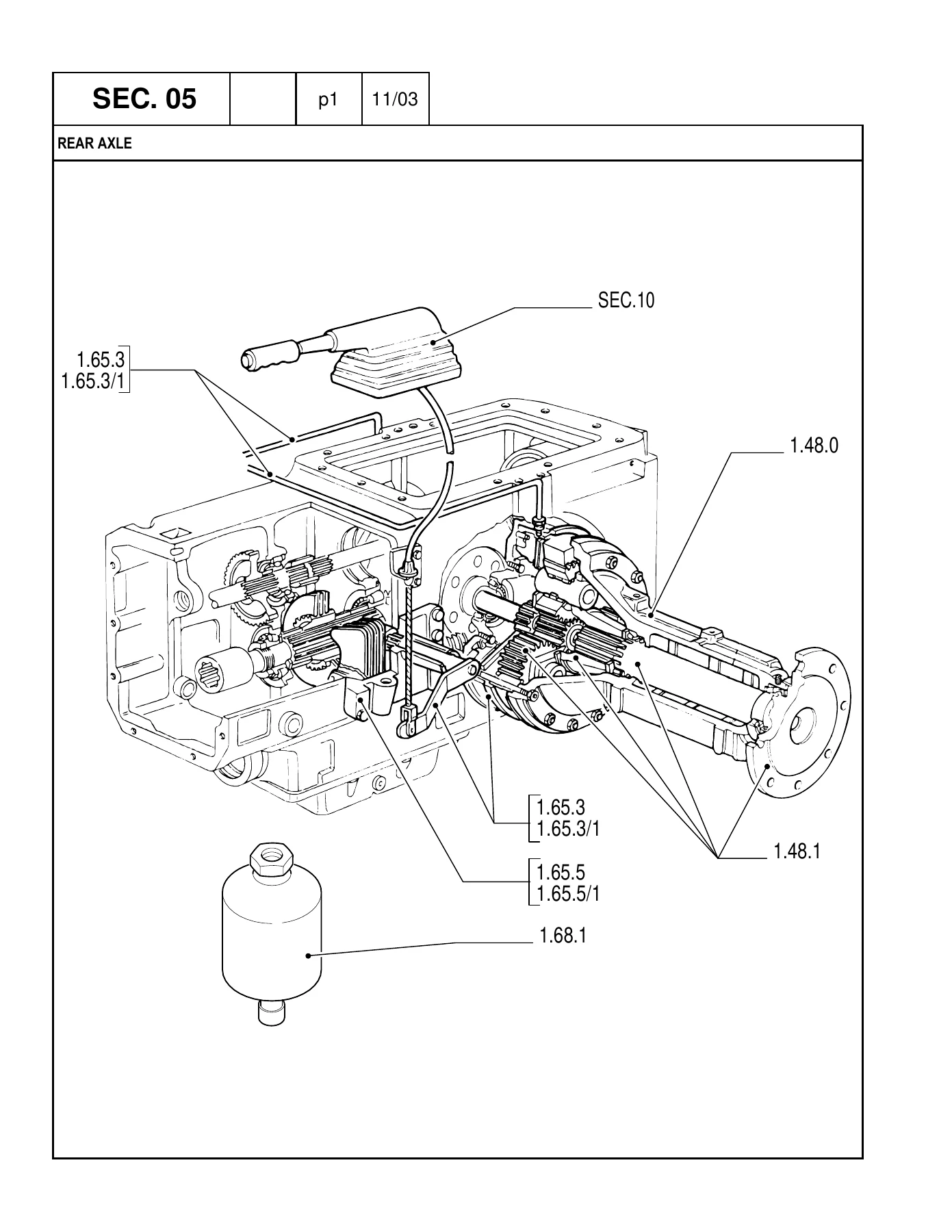

This is a complete illustrated parts catalog for Case IH MXM series tractors. Every major assembly, sub-assembly, and individual component is documented with exploded-view illustrations, reference numbers, part numbers, and descriptions. The catalog enables you to identify and order the correct parts for your specific MXM model, whether you are performing routine maintenance, repairing a failed component, or restoring a machine.

The catalog is structured by major sections that follow the machine’s systems: Engine, Engine Equipment, Transmission, Front Axle, Rear Axle, Electrical, Hydraulics, Sheet Metal, Linkage, Driver’s Compartment, Traction, and Decals. Each section contains numerous figures with detailed breakdowns showing how components fit together, along with part numbers that can be cross-referenced for ordering. Serial number break information is included where applicable, so you can determine which parts fit your specific tractor based on its serial number.

Who This Catalog Is For

This parts catalog is an essential reference for anyone who owns, maintains, or repairs a Case IH MXM120, MXM130, MXM140, MXM155, MXM175, or MXM190 tractor. It is equally valuable for professional mechanics, dealership parts departments, and owners who prefer to handle their own repairs and parts sourcing. If you need to identify a part number before ordering, verify the correct component for your model and serial range, or understand how a system is assembled before disassembly, this catalog provides the information you need.

How to Use This Catalog

Each section begins with a section index that lists all figures within that section. Figures are numbered and referenced throughout the catalog. To find a part, locate the system or assembly you are working on, find the relevant figure, and identify the reference number for the part you need. The corresponding parts list provides the part number, year/serial number applicability, quantity, and description. Where multiple models are covered, the parts list indicates which model or serial number range each part applies to. This system makes it straightforward to find the exact part for your machine, even when there are variations across models or production changes.

Why This Catalog Matters

Using the correct part number is critical for ensuring proper fit and function. Aftermarket parts or incorrect part numbers can lead to fitment issues, premature failure, or damage to related components. This catalog provides the exact part numbers and illustrations you need to get the right part the first time. For professionals, having the complete parts breakdown for every system on the MXM series means faster diagnosis, more accurate estimates, and fewer ordering errors. For owners, it means the confidence to tackle repairs and maintenance with the same information the dealership uses.

IMAGES PREVIEW

Instant PDF Delivery

The catalog is delivered as a PDF file that you can download immediately after purchase. No shipping, no waiting for a physical book to arrive. You can access it on any device, print the pages you need for the workshop, and keep the complete catalog on your computer or tablet for quick reference. Whether you are ordering parts for a single repair or maintaining a fleet of MXM tractors, this parts catalog gives you the information you need, when you need it.
