Case IH Tractor Replacement Parts Catalog – Sparex North American Models

This Sparex replacement parts catalog covers Case IH tractors built for the North American market, spanning models from the 1954 Farmall through the late 1990s MX and MXM series. It is a comprehensive parts reference containing thousands of Sparex part numbers with corresponding OEM reference numbers and application listings, organised into fourteen major sections covering cooling, front axle, engine, clutch, transmission and PTO, brakes, hydraulic pumps, rear axle, rear linkage, electrics and instruments, tractor cabin and cab glass, body panels and decals, Poclain 580 industrial models, and compact tractor parts.

File Details

• Manual Type: Replacement Parts Catalog
• Brand: Case IH (Sparex replacement parts)
• Coverage: North American Models
• Language: English
• Page Count: 204
• File Format: PDF
• Publication Number: S.73932

Chapters Covered

The catalog is divided into numbered sections, each covering a major assembly or system. Every section lists Sparex part numbers alongside the original equipment reference numbers and the tractor models each part fits.

IH01 – Cooling

Water pumps (with and without pulley, 10mm and 12mm groove options), water pump repair kits and related components, radiators and radiator caps, thermostats and fan blades, top and bottom hoses, and fan belts. Applications span B250 through the 4200 series, with belt sizes listed in millimetres and descriptions covering dynamo, alternator, water pump and compressor drives.

IH02 – Front Axle

Spindles (LH and RH, low and high, standard and heavy duty), hub components, bearings, seals, studs, nuts, axle spindle repair kits, and 4WD universal joint cross references. Includes Carraro and ZF axle applications with detailed exploded views and part numbering.

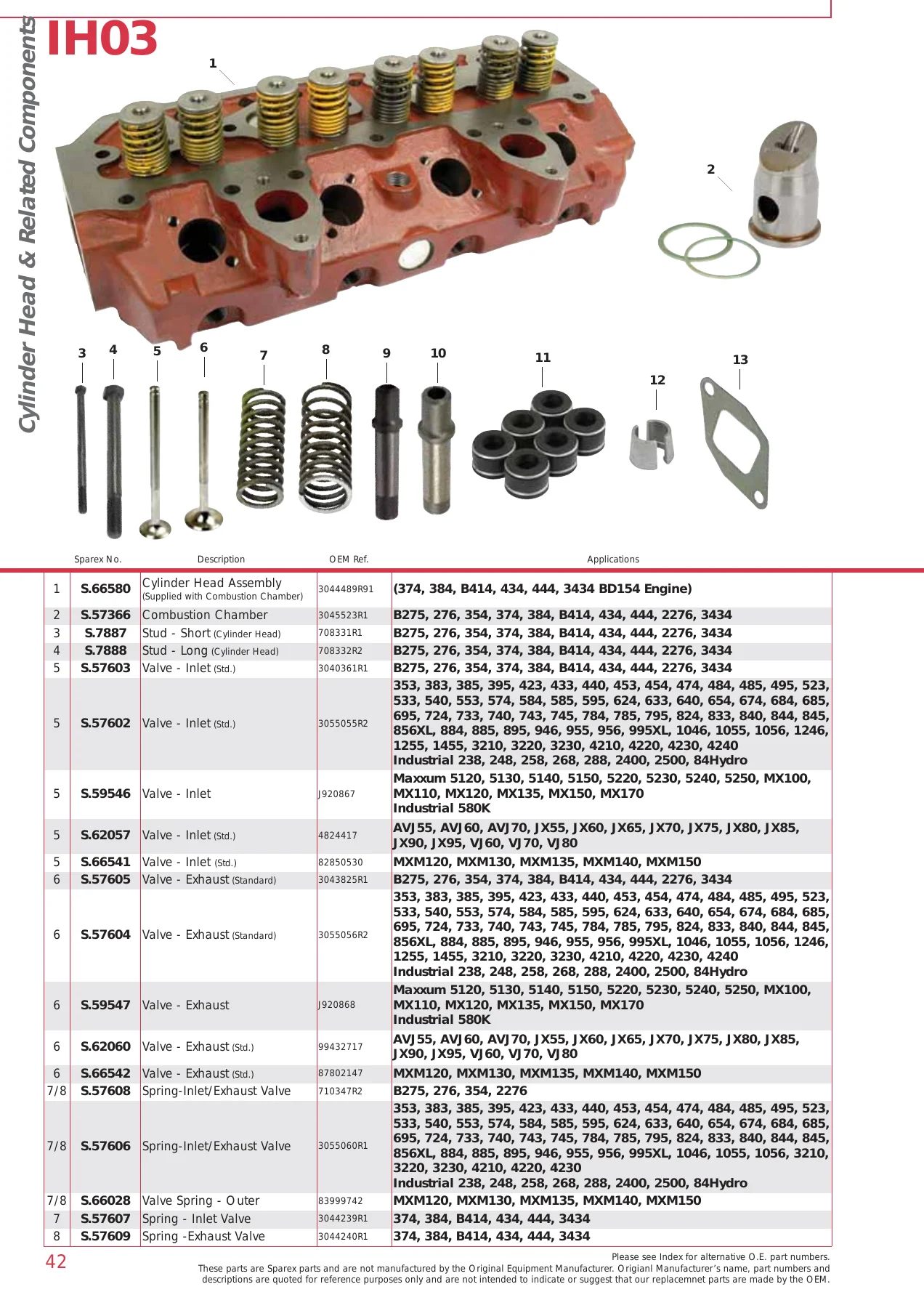

IH03 – Engine

Cylinder head assemblies and related components including valves, springs, guides and seats. Camshafts, bushes, rocker arms, push rods and tappets. Piston, ring and liner sets with AL-FIN ring groove options, liner seals and complete piston, ring and liner kits. Head gaskets, head sets, lower sets, rocker cover gaskets, sump gaskets, front and rear crankshaft seals. Crankshafts, main bearing sets (standard and oversizes), ring gears, flywheel locks and bolts. Connecting rods, bearing sets and small end bushes. Fuel system components including filter heads, fuel bowls, solenoids and carburettor repair kits. Oil, fuel, air, coolant, hydraulic, transmission and steering filters. Exhaust manifolds, elbows, gaskets and silencers.

IH04 – Clutch

Clutch covers and drive/PTO plates for single and dual clutch configurations. Release bearings, pilot bearings, carrier housings, clutch plates (friction and steel), PTO clutch pack kits, torque amplifier kits, and hydraulic pump gaskets. Applications cover B250 through the 4200 series and CX, MX and MXM models.

IH05 – Transmission & P.T.O.

IPTO shaft seals, O-rings, bearings and shafts. Torque amplifier and clutch kit components including washers, clutch plates and seal kits for the PTO clutch pack.

IH06 – Brakes

Brake actuators, brake discs and intermediate discs, brake disc lining kits, boots, master cylinders, seal kits, bushes and springs. Hand brake bands, cables and pads. Applications from the B275 through to Maxxum and MX series.

IH07 – Hydraulic Pumps

Single and tandem hydraulic pumps, pump gears, O-rings, seal kits, hydraulic couplings and related components.

IH08 – Rear Axle

Rear axle seals, sleeves, bearings, gaskets, studs, washers and nuts for two-wheel drive and four-wheel drive configurations.

IH09 – Rear Linkage

Top links (standard and heavy duty, Cat 1, 2 and 3), top link pins, levelling yokes and boxes, lift rods, stabiliser assemblies, clevis ends and lower link pins. Applications cover the full range of models including Maxxum and MX series.

IH10 – Electrics & Instruments

Starter motors, solenoids, armatures, field coils, pinions and brush sets. Dynamos and alternators from 11 amp through 80 amp. Pre-heat resistors, ignition switches, light switches, horn switches, brake light switches and control switches. Panel switches, relays, flasher units, 3-pin sockets and plugs. Front and rear lights, lenses, brackets and bulbs. Battery applications listing standard and high power battery options by model and year.

IH11 – Tractor Cabin & Cab Glass

Cab glass panels for windscreens, doors, side windows, rear windows and corners, with tinted options and hole configurations. Glazing rubbers (H-type, S-type and U-type), locking beads, draught excluders and direct glazing repair sets. Gas struts for front windows, rear windows, roofs, doors and bonnets. Interior trim panels and side panel trims.

IH12 – Body Panels, Decals & Paint

Paint colours for Case-David Brown, Case IH, McCormick and Industrial models, available in 5L, 1L and 400ml sizes. Also includes tractor manuals available from Sparex.

IH13 – Industrial Models – Poclain 580

Engine block components, seals, gaskets, pistons, rings, liners, crankshafts, connecting rods, bearings, oil pumps, fuel pumps, heater plugs, thermostats, exhaust manifolds, silencers, starters and alternators for Poclain 580F, 580G, 580K, 580L, 580SE, 580SK, 580SL, 590SL and 680L models.

IH15 – Compact Tractor Parts

Steering box assemblies, steering shafts, sector gears, bearings, nuts, shim packs, ball and tube kits, steering wheel caps, glow plugs, pressure plates and clutch components for compact tractors including 234, 235, 244, 245, 254, 255, 265, 274, 275, 284, D25 through D45 and DX series. Compact tractor filters covering oil, fuel, air and hydraulic applications.

IH16 – Index

A cross-reference index listing OEM part numbers against the corresponding Sparex part numbers and page numbers, making it straightforward to locate a part from an original equipment number.

How to Use This Catalog

Each section presents parts in tables with four columns: the Sparex part number, a description, the OEM reference number, and the applications. To find a part, start with the model index at the front of the catalog to identify the section covering the assembly you need, then locate the component within that section. If you have an OEM part number, the index at the back provides a direct cross-reference to the Sparex number.

Exploded views and assembly diagrams appear throughout the catalog to help identify components visually. These are particularly useful when a part number has been superseded or when multiple variants exist for the same tractor model.

Why This Parts Catalog Matters

Finding the right replacement part for a Case IH tractor often means cross-referencing multiple sources. This Sparex catalog puts thousands of part numbers, applications and cross-references in one place, covering everything from a water pump gasket to a complete engine overhaul kit. The OEM reference numbers let you confirm compatibility before ordering, and the model application listings ensure the part fits your specific tractor.

Whether you are maintaining a single tractor on a farm or running a repair shop, having this catalog on hand saves time and reduces the risk of ordering the wrong component. The illustrations help identify parts that may be difficult to describe, and the index makes it quick to look up a part from an OEM number.
