Case SR200 Skid Steer Loader Parts Catalog – Illustrated Parts Manual PDF

Description

File Details

• Manual type: Illustrated parts catalog (parts manual)
• Brand: Case
• Model covered: SR200 skid steer loader
• Language: English
• Page count: 613 pages
• File format: PDF
• Organisation: Numbered figure groups (for example 10.001.02, 35.359.01, 90.154.01) with REF / FN / PART NUMBER / YR-SN / QTY / DESCRIPTION columns

The Case SR200 Skid Steer Loader Parts Catalog is a figure-driven parts manual: every assembly is drawn as a numbered exploded view, and each callout on the drawing points to a row in the parts table underneath it. The front of the catalog carries the Initial Stocking List for the SR200, and a filters and capacities page gives the service fill volumes and filter part numbers before the illustrated sections begin.

What You Can Look Up in This Case SR200 Parts Catalog

This is not a general brochure or a specification sheet. It is a working reference for identifying the exact component on an SR200 by its position in the machine rather than by guesswork. The engine section is covered down to individual castings and fasteners, with the cylinder block, cylinder head, rocker shaft, head covers, breather, oil sump, front cover, flywheel case, crankshaft, flywheel, belt pulley drive, crankshaft pulley, pistons, connecting rods and camshaft each drawn separately and listed separately.

The drivetrain and hydraulic side of the SR200 is where the catalog is deepest. Travel speed variants, Rexroth drive motors in one-speed and two-speed form, brake valves, the hydrostatic tandem 46CC MDC pumps in both front and rear positions, and the electronically controlled 46CC A20VG ET pump all have their own figure groups with internal components broken out – bearings, split rings, shaft seals, cylinder blocks, cam plates, distributors, brake pistons, springs and circlips. Chassis hydraulics, ride control, the manual and hydraulic couplers, standard and high flow auxiliary hydraulics, the loader valve plumbing, supply and return plumbing, two-speed plumbing and brake plumbing are all laid out the same way.

Around the machine, the catalog also covers the loader arm and its pins, the lift and bucket cylinders, the hydraulic tank, the counterweight, chassis hoods and covers, the power train, HD axle assembly, wheels and rims, cab climate control (open cab, heater and HVAC variants, heater plumbing and AC plumbing), the full electrical set including chassis and cab harnesses, battery disconnect, engine electrical, alternator mounting, diagnostic sensors, instruments, lighting, ignition and display, plus cab glass, doors, windows, washer bottles, interior trim and headliners. Decal groups and the accessory DIA kit sections close out the file.

Chapters Covered

• 00.100.01 – Initial Stocking List (ISL) SR200
• 05.100.01 – Filters and Capacities (SR200)

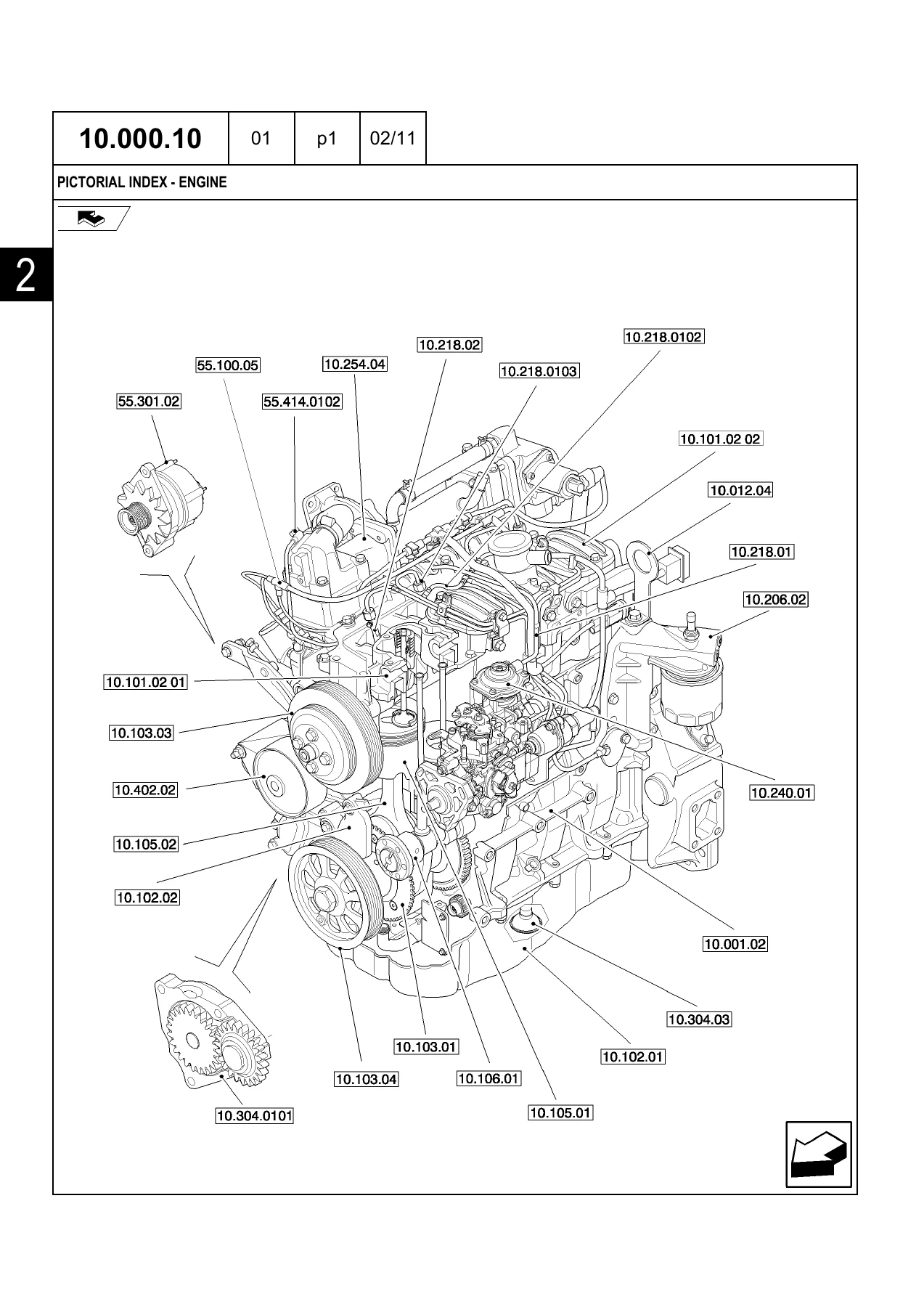

• 10.000.10 – Pictorial Index, Engine
• 10.001.01 – Engine Assy (504387946)

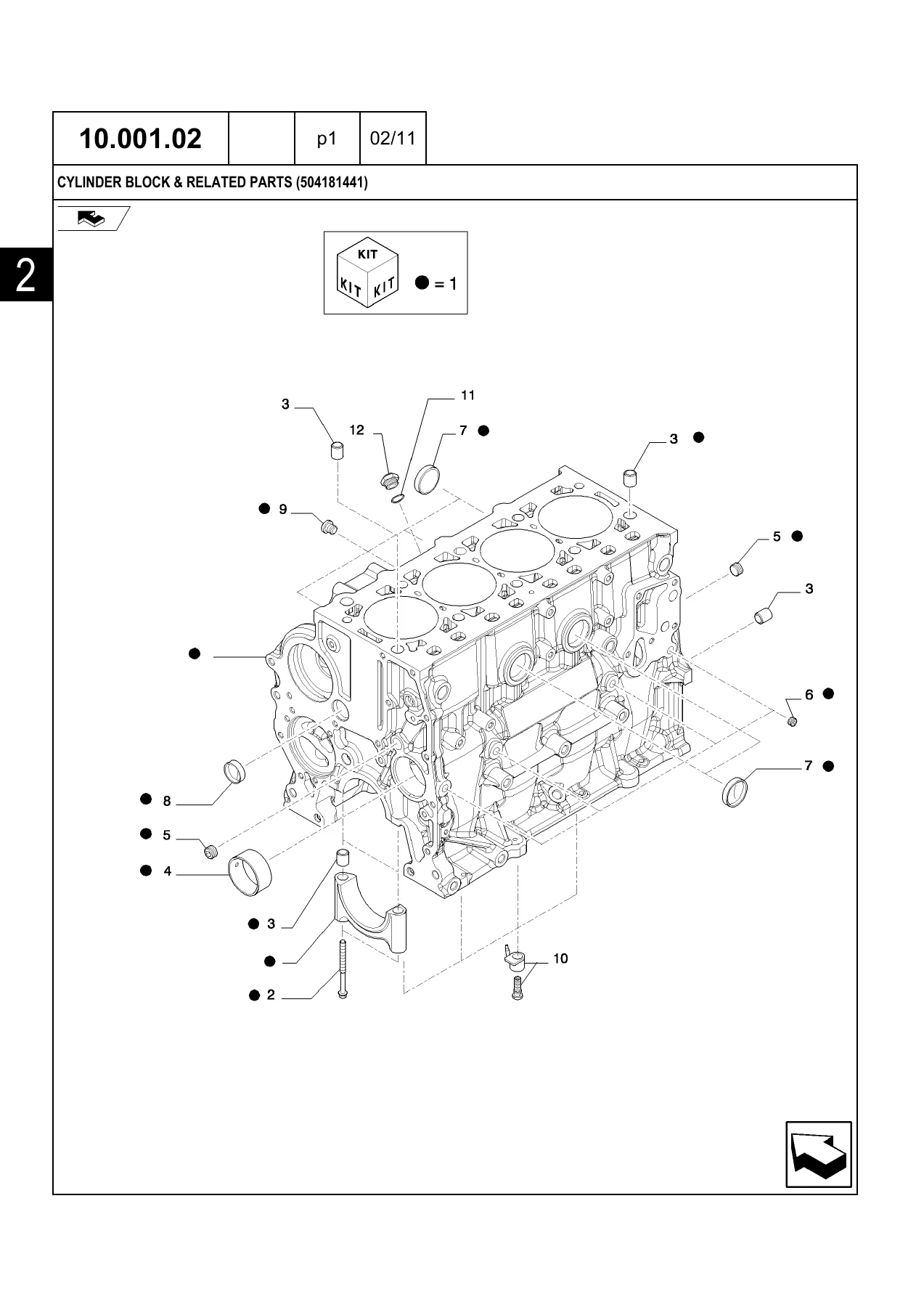

• 10.001.02 – Cylinder Block and Related Parts (504181441)
• 10.012.01 – Engine Mounting, Remote Dipstick, Remote Oil Drain
• 10.012.04 – Hooks, Engine (504154713)
• 10.101.01 – Cylinder Head and Related Parts (504385845)
• 10.101.02 – Rocker Shaft (504335547), Cylinder Head Covers
• 10.101.03 – Engine Breathers (504245734)
• 10.102.01 – Oil Sump and Related Parts (504179441)
• 10.102.02 – Engine Block Front Cover (5801361473)
• 10.102.03 – Flywheel Case (504380467)
• 10.103.01 – Crankshaft (504178873)
• 10.103.02 – Engine, Flywheel (504221728)
• 10.103.03 – Belt Pulley Drive and Cover (504388092)
• 10.103.04 – Pulley, Crankshaft (504388089)
• 10.105.01 – Piston, Engine (504254748)
• 10.105.02 – Connecting Rod (504245120)
• 10.106.01 – Camshaft, Timing Control (504228067)
• 10.202.01 – Air Cleaner Assy NA 8IN
• 10.206.02 – Filter Engine Oil (504245481 – 504332922)
• 10.216.01 – Fuel System F5C
• 10.218.01 – Injection Equipment, Piping
• 10.218.02 – Injection Equipment, Injector
• 10.220.01 / 10.220.02 – Throttle Hand Foot Mechanical and EH
• 10.240.01 – Injection Pump (504385876)
• 10.250.02 – Turbocharging (504183274)
• 10.254.01 / 10.254.02 – Block Heater and Block Heater EU
• 10.254.03 – Engine Exhaust
• 10.254.04 – Intake Manifold
• 10.254.05 – Exhaust Manifold (504183273)
• 10.304.01 – Pump, Engine Oil and Related Parts
• 10.400.01 – Cooling Components
• 10.402.01 – Temperature Control (Thermostat)
• 10.402.02 – Water Pump and Related Parts
• 10.402.03 – Piping, Engine Cooling System
• 10.408.01 – Heat Exchanger, Engine, EGR Group
• 10.408.02 – Heat Exchanger (504154694)
• 29.200.01 to 29.200.05 – Case Control Handles, Levels 100 through 350
• 29.212.01 to 29.212.03 – Travel Speed 1SPD, 2SPD and E-H
• 29.212.04 – Rexroth Drive Motor 1SPD and 2SPD
• 29.212.05 – Valve, Brake and Brake 2SPD / EH 2SPD

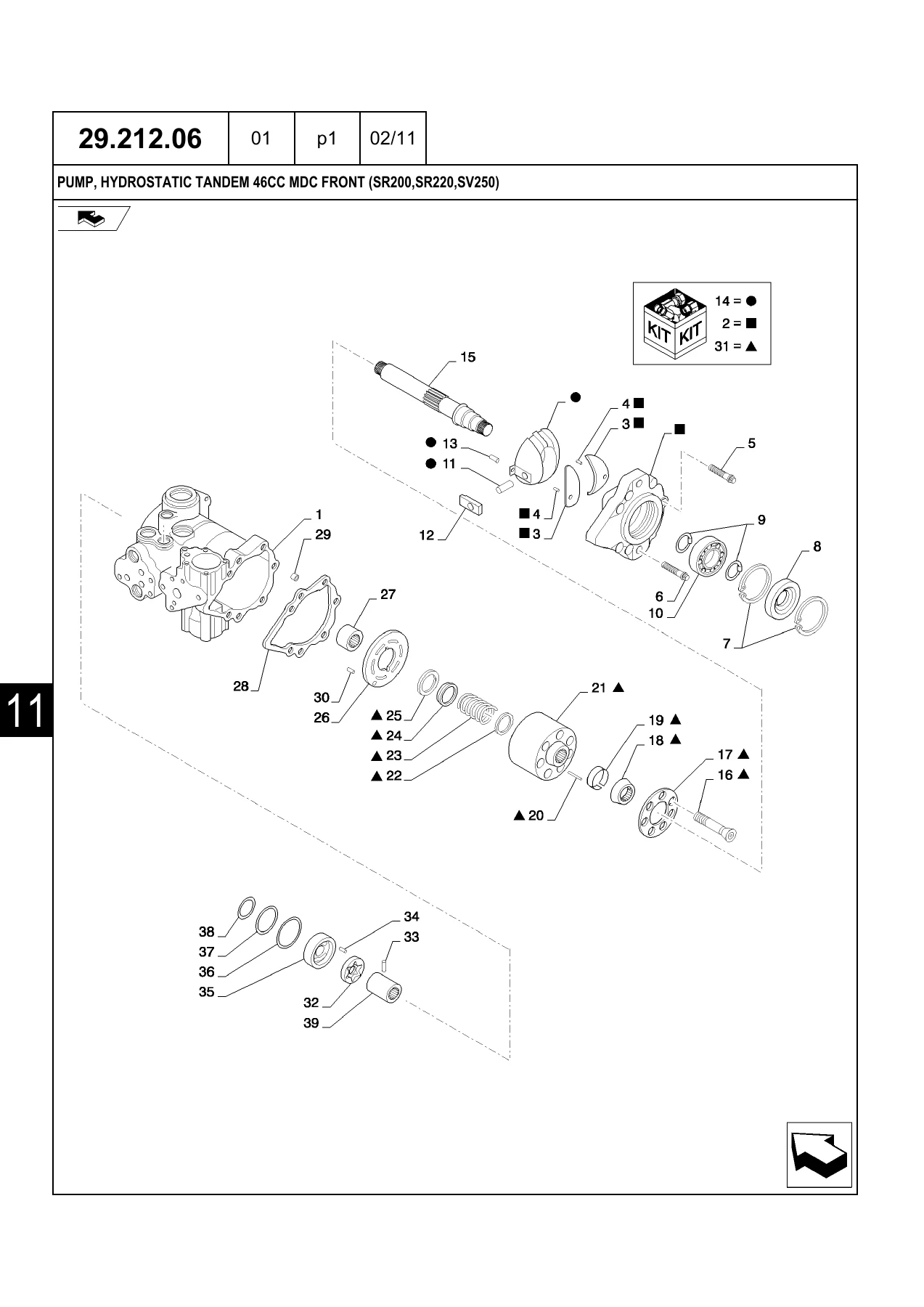

• 29.212.06 – Hydrostatic Tandem 46CC MDC Pump, Front and Rear
• 29.212.07 – Hydrostatic EH 46CC A20VG ET Pump
• 35.100.01 – Chassis Hydraulics
• 35.101.02 / 35.102.01 / 35.102.02 – Self Leveling and Ride Control
• 35.204.01 / 35.204.02 – Manual Coupler and Hydraulic Coupler
• 35.220.01 – Aux Hyd, Std Flow
• 35.220.02 – Aux Hyd, High Flow
• 35.359.01 to 35.359.04 – EH and Mechanical Pumps and Control Valves
• 35.701.01 to 35.701.06 – Loader, Supply, Return, 2SPD and Brake Plumbing
• 35.730.01 / 35.730.02 – Hydraulic Cylinder and Bucket Cylinder
• 35.750.01 – Tank, Hydraulic
• 37.140.01 – Counterweight
• 39.100.01 / 39.105.01 – Chassis Hoods and Covers, Loader Arm, Coupler
• 44.106.01 / 44.106.02 – Power Train and Axle Assy HD
• 44.511/520 – Wheels
• 50.200.01 to 50.200.06 – Cab Climate Control, Heater and HVAC
• 55.100.01 to 55.514.05 – Harnesses, Engine Electrical, Instruments, Lighting
• 82.100.01 to 82.100.04 – Buckets, Bolt-On Cutting Edge, Pallet Fork, Spill Guards
• 88.010.04 to 88.120.02 – Accessory DIA Kits
• 90.100.01 to 90.180.01 – Hoods, Hand Controls, Seats, Cab, Doors, Windows, Decals

Initial Stocking List and Service Capacities

The opening ISL page is a shop-ready shortlist: preventative maintenance items first, then the parts needed for preventative maintenance plus basic repair. It carries the engine oil filter, hydraulic filter element, main fuel filter, inline fuel filter, primary and secondary air filters and the V-ribbed belt, followed by water temperature senders, the air pressure and temperature sensor, oil pressure sender, air restriction switch, the auxiliary proportional hydraulic handle switches, park brake switch, ignition switch, brake and charge pressure switches, backup alarm, lap bar / door switch and the quick coupling fittings.

The filters and capacities page that follows lists the service fill data alongside the part numbers, so the correct filter and the correct volume are read from the same page. Engine crankcase capacity is given as 9.5 l (10.0 US qt) with filter change on 10W30 engine oil; cooling system capacity 17.1 l (4.4 US gal) on a 50/50 distilled water and ethylene glycol mix; hydraulic system capacity 32.1 l (8.5 US gal) with a hydraulic reservoir capacity of 15.0 l (3.96 US gal) on CNH MAT 350; and fuel tank capacity 75.5 l (20.0 US gal) of #2 diesel.

Why Buy the Case SR200 Parts Catalog PDF

Ordering the wrong part on a skid steer is an expensive way to lose a day. This Case SR200 parts catalog removes the guesswork by tying every part number to a picture of where it sits on the machine – the exploded view shows the item, the table under it gives the reference number, part number and quantity. That is the difference between describing a bracket over the phone and reading its number straight off the page.

It is equally useful when a machine has been apart for a while and something needs to go back together correctly: the figure groups show the order of assembly, the retaining rings, seals, shims and spacers, and the service-kit part numbers that bundle common wear items together rather than forcing you to buy them one at a time. The DIA kit section at the back does the same job for optional equipment, covering the aspirator, block heater kits, self-level, ride control, hydraulic coupler, high flow auxiliary, second front hydraulic auxiliary, foot controls, counterweight, HVAC and heat kits, beacon, strobe, multi-function electrical, road lights, side lamps, pallet fork tines, spill guards, bolt-on cutting edges, bucket teeth, lift hooks, radio, FOPS, mirror, drawbar, fire extinguisher and the cab door and window kits.

IMAGES PREVIEW

Delivery is instant. The file is a downloadable PDF – no shipping, no waiting on a courier, no physical book to keep clean in a workshop. Open it on a laptop, tablet or phone in the shop, search the figure groups, and print just the pages you need for the job in front of you. Whether you are running a single SR200 or looking after a mixed fleet, keeping the Case SR200 illustrated parts manual on hand means the right number is always one page away.
