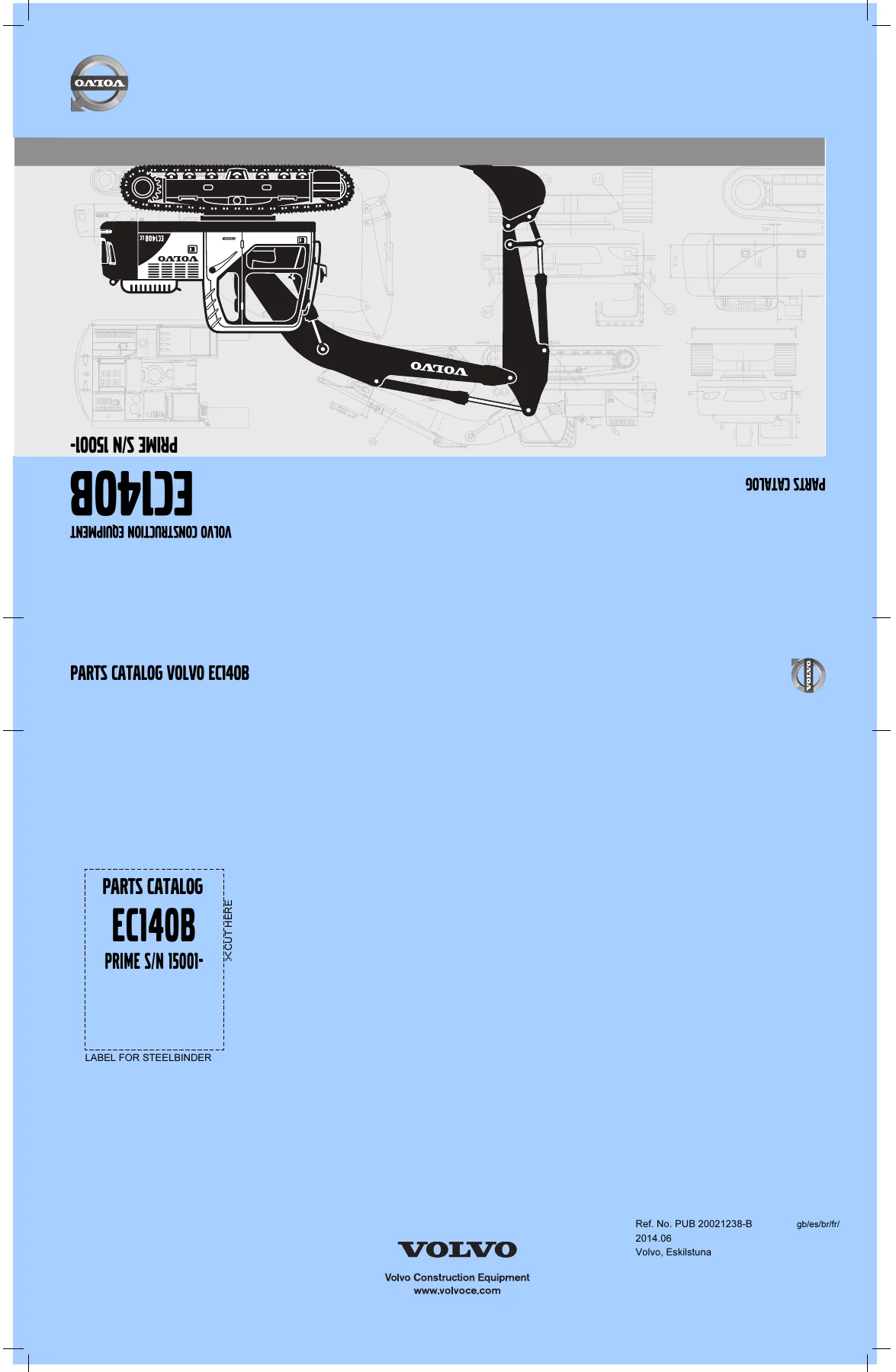

Volvo EC140B Excavator Parts Catalog PDF – S/N 15001- and Up (Pub 20021238-B)

Description

File Details

• Manual type: Illustrated parts catalog
• Brand: Volvo Construction Equipment
• Model: EC140B excavator
• Serial number coverage: PRIME S/N 15001-
• Basic machine product number: 8277787
• Catalogue ID: 20490
• Publication number: PUB 20021238-B
• Publication date: 2014.06
• Language: English, Spanish, Portuguese (Brazil), French
• Page count: 868
• File format: PDF
• Publisher: Volvo Construction Equipment, Eskilstuna

Chapters Covered

This Volvo EC140B parts catalog is divided into numbered groups. Every group, section and page is cross-referenced in the illustrations and the numerical index so a part number can be traced back to the correct drawing.

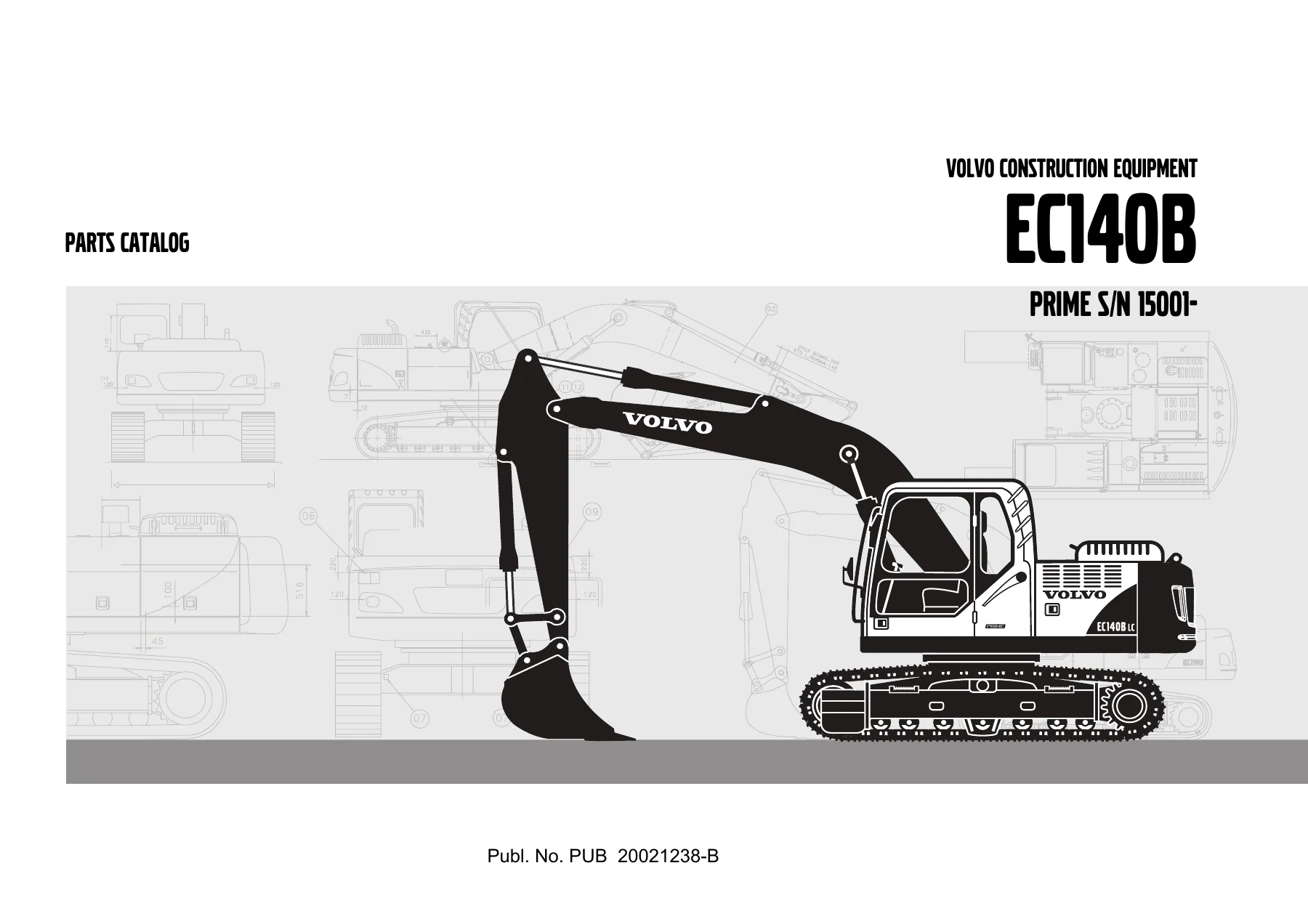

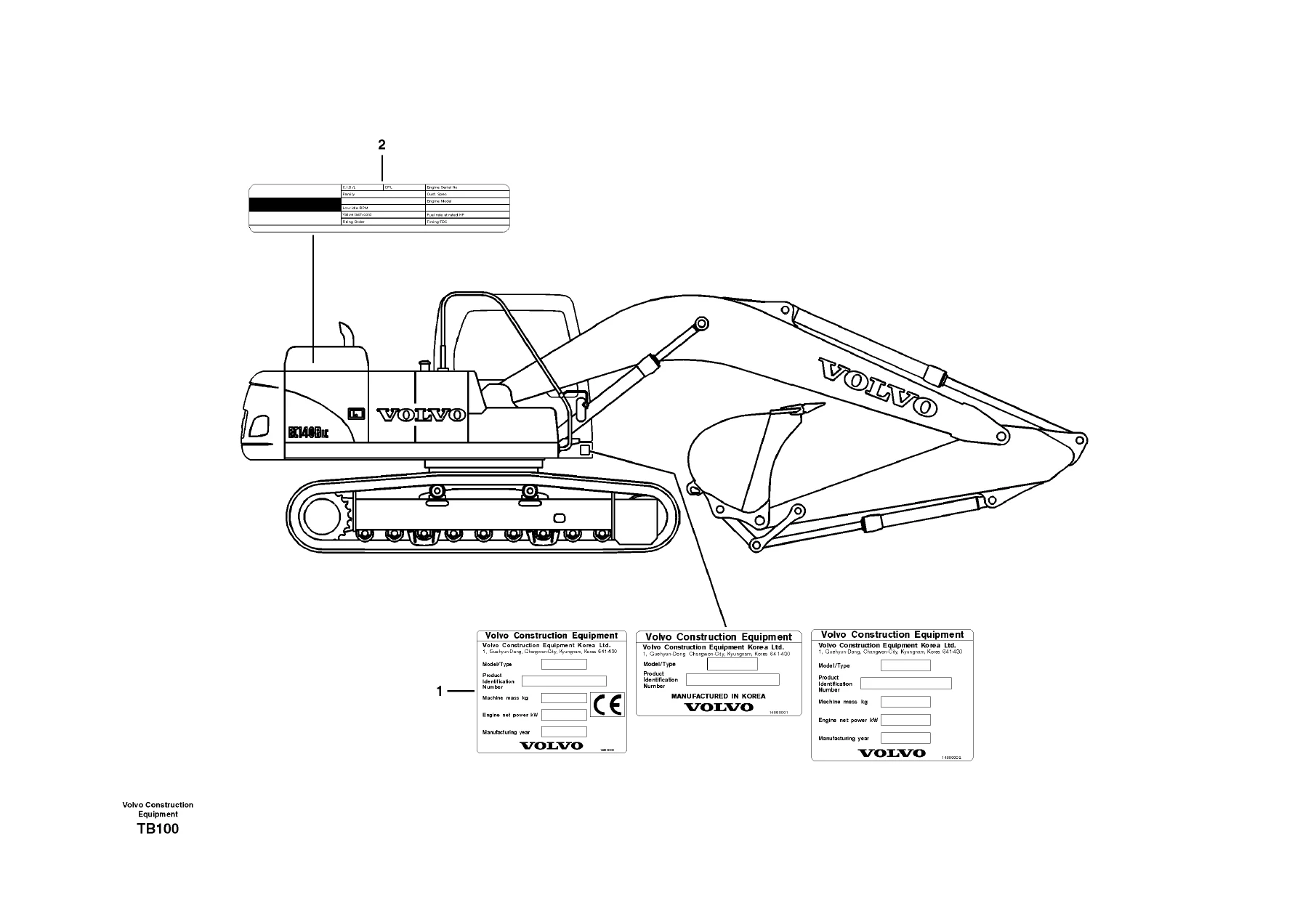

• Group 1 – Preface and Instructions: title page, group index, product signs, foreword, market-adapted equipment list, catalogue guide, abbreviation table
• Group 2 – Engine: 210 Engine, 211 Cylinder head, 212 Cylinder block, 213 Cylinder liner and piston, 214 Valve mechanism, 215 Timing gear casing and gears, 216 Crankshaft and related parts, 217 Flywheel housing and oil sump, 218 Engine mount and mounting, 221 Lubricating oil system, 223 Oil cooler, 233 Fuel pump, 234 Fuel tank and fuel filling pump, 235 Fuel pipe and water separator, 236 Fuel injection pump and regulator, 237 Fuel lines and injectors, 251 Inlet and exhaust manifold, 252 Exhaust system, 255 Turbocharger, 256 Inlet system, 261 Cooling system, 262 Water pump and thermostat housing, 263 Belt transmission and cooling fan mounting, 269 Engine block heater, 273 Shutdown device
• Group 3 – Electrical: 310 Battery, 321 Alternator, 330 Key system, 331 Starter motor, 352 Lighting front, 356 Working lamps on boom and extra work lights, 362 Rotating beacon, back-up warning and horn, 363 Windshield washer and lower wiper, 364 Electrical relays and switches, 367 Electronic unit, 369 Quickfit control switch and clamshell harness, 371 Battery cables and main harnesses, 372 Electrical relays, 386 Electrical sensor, 387 Instrument panel and warning unit, 393 Cassette radio recorder, 398 Telematics harnesses, GPS control unit and wireless communication system
• Group 4 – Power Transmission: 431 Travel gearbox and swing gearbox, 441 Travel motor and swing motor, 443 Turning joint, 492 Swing system
• Group 7 – Frame, Body, Crawler Unit: 715 Protecting plates, 716 Counterweights, 718 Undercarriage frame, upper frame and foot step, 775 Track chain, track guards, spring packages, front idler, top roller, bottom roller and sprocket
• Group 8 – Cab, Cowl, Interior: 810 Cab mount and operator’s cab, 821 Cowl frame, doors and covers, 827 Handrail and toolbox, 831 Operator’s cab door, 837 Cabin floor and hatches, 841 Rear view mirrors, 843 Windows and windshield, 852 Operator seat, 860 Windshield protection, falling object guards, FOPS and sun visors, 870 Air conditioning line and air duct, 874 Air conditioning unit lines and cooling unit, 875 Auxiliary heater, 881 Instrument panel and radio panel, 891 Anti-slip, 896 Tools, 897 Decals and cab decals
• Group 9 – Hydraulic System: 910 Nipple assemblies, 911 Hydraulic oil tank and turning joint lines, 912 Control valve, boom and dipper arm holding, rupture valves, dozer blade and adjustable boom control valves, 913 Pump installation, hydraulic pump, regulators and gear pump, 914 Servo system and remote control valves, 916 Working hydraulics for boom, dipper arm, bucket, hammer and shear, clamshell and dozer blade, 924 Attachment brackets, quickfit hydraulics, slope and rotator circuits, 925 Buckets and bucket linkages, 927 Undercarriage frame blade and dozer blade cylinders, 974 Links to boom and boom cylinder, 975 Links to dipper arm, dipper arm cylinder and bucket cylinder, 992 Antitheft system
• Group 10 – Replaced Parts and Numerical Index: full replaced-parts listing and complete numerical index of every part number in the catalog

Working through this Volvo EC140B parts catalog gives a technician, parts counter or workshop planner a single reference point for the entire machine. Each group has illustrated pages that call out a position number for every component, and the facing text pages give the part number, quantity per machine and a PS status code such as NS, OP, SE or SS. That means you can identify a part from the drawing, order the correct quantity and immediately see if the part has been replaced or superseded. The catalog also carries the engine designation plates for the three D4D EAE2, D4D EBE2 and D4D ECE2 variants, plus the bucket and track assembly descriptions, so it fits the specific configuration of the EC140B from serial number 15001- onwards.

What This Volvo EC140B Parts Catalog Covers

Because the EC140B sits across a wide spread of serial numbers and equipment variants, this catalog separates the base machine from market-adapted equipment. The foreword lists the basic machine product number 8277787 together with the engine part numbers, and the product-and-equipment variant tables list rotating beacons, operator seats, FOPS, tool kits, engine block heaters, extra lamps, anti-vandalism kits, quick fit equipment, hammer and shear circuits and slope rotator piping.

The crawler unit and frame group covers the undercarriage frame for LC, LCM and NLC configurations, the upper frame, bolted and welded step options, counterweights in 2.1 and 2.4 tonne sizes, track chains in 500 mm through 900 mm shoe widths, front idlers, top and bottom rollers, and the drive sprocket. Undercarriage spring package variants are separated by serial number so the correct recoil spring assembly is selected for early and later machines.

The hydraulic section is the deepest part of the book. The main control valve is broken into separate sections for the relief valve and boom holding, boom/bucket/travel RH, swing/option/dipper arm/travel LH, and relief valve with dipper arm holding. Travel motor, swing motor, turning joint, regulator and gear pump sections give exploded views down to O-rings, back-up rings, springs, plungers and housings. Working hydraulic circuits for hammer and shear are laid out per pump flow, and separate sections deal with boom rupture valves, dipper arm rupture valves, dozer blade circuits, clamshell hydraulic, slope and rotator circuits and quickfit hydraulics on the upper frame, boom, adjustable boom and dipper arm.

Why Technicians and Parts Buyers Use This Catalog

Volvo uses position numbers on illustrations that map directly to a text page. If you already have a part number, the group 10 numerical index sends you straight to the correct group, section and page. If you only have a drawing, the position number and illustration number get you to the same place. That two-way lookup is what makes a parts catalog faster than a service manual when the job is replacing a failed hose, a worn bushing or a cracked cover rather than diagnosing a fault.

For serial-number-sensitive items such as travel gearbox internals, front idlers, top and bottom rollers and the undercarriage spring package, the catalog splits the listings by S/N 15001-15215, S/N 15216- and later boundaries. That prevents the common mistake of ordering a part that physically looks similar but will not fit an early or late EC140B.

The replaced-parts list at the end of the book shows which part numbers have been superseded and what the current replacement is. When a parts counter or a workshop orders from an older job card, that list lets them convert an obsolete number to the number Volvo now supplies without guessing.

IMAGES PREVIEW

Instant PDF Delivery

This Volvo EC140B parts catalog PDF is delivered instantly after payment. There is no shipping, no waiting and no physical binder to store. The 868-page catalog opens on any laptop, tablet or phone with a PDF reader, and every page can be printed for the workshop, marked up on screen, or searched for a part number when you already know what you need. Whether you are rebuilding a D4D engine, replacing travel gearbox internals, chasing an electrical fault through the harness sections, or simply matching a bucket linkage to the correct bucket, this catalog puts the correct part number and quantity in front of you.
