Cat 311C U Track-Type Excavator Parts Manual – PDF DOWNLOAD

Description

Cat 311C U Track-Type Excavator Parts Manual – PDF DOWNLOAD

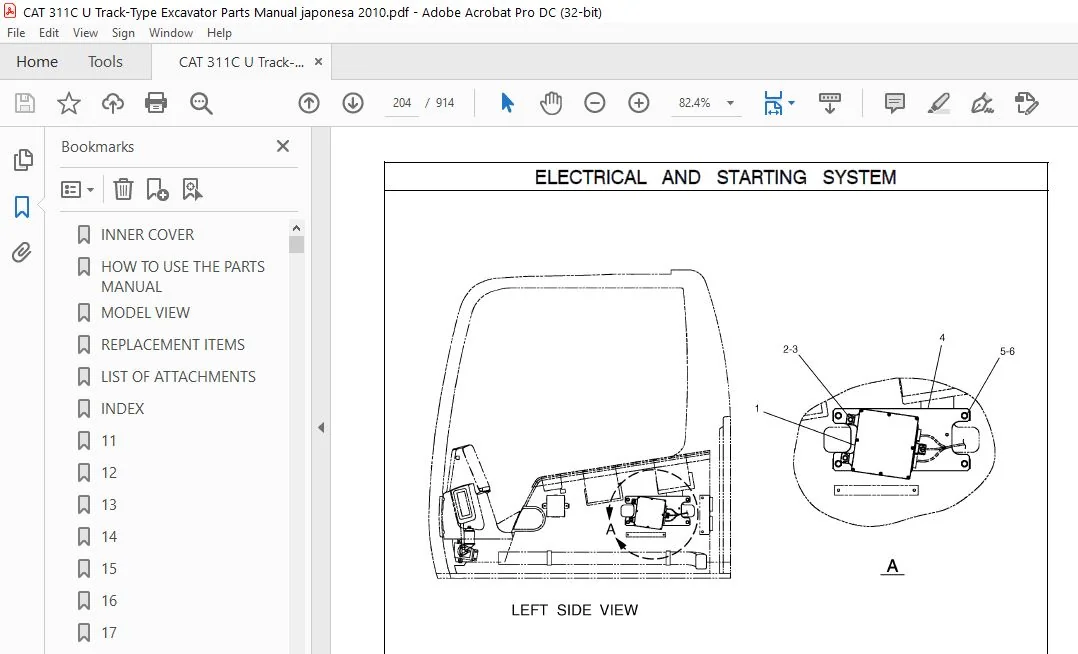

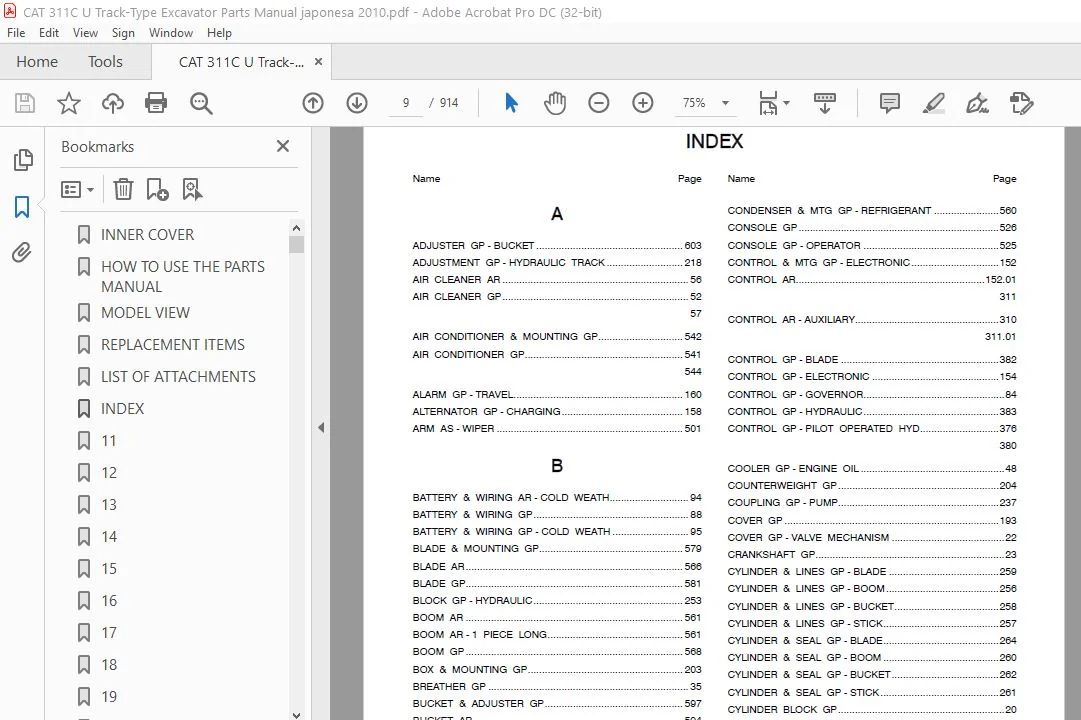

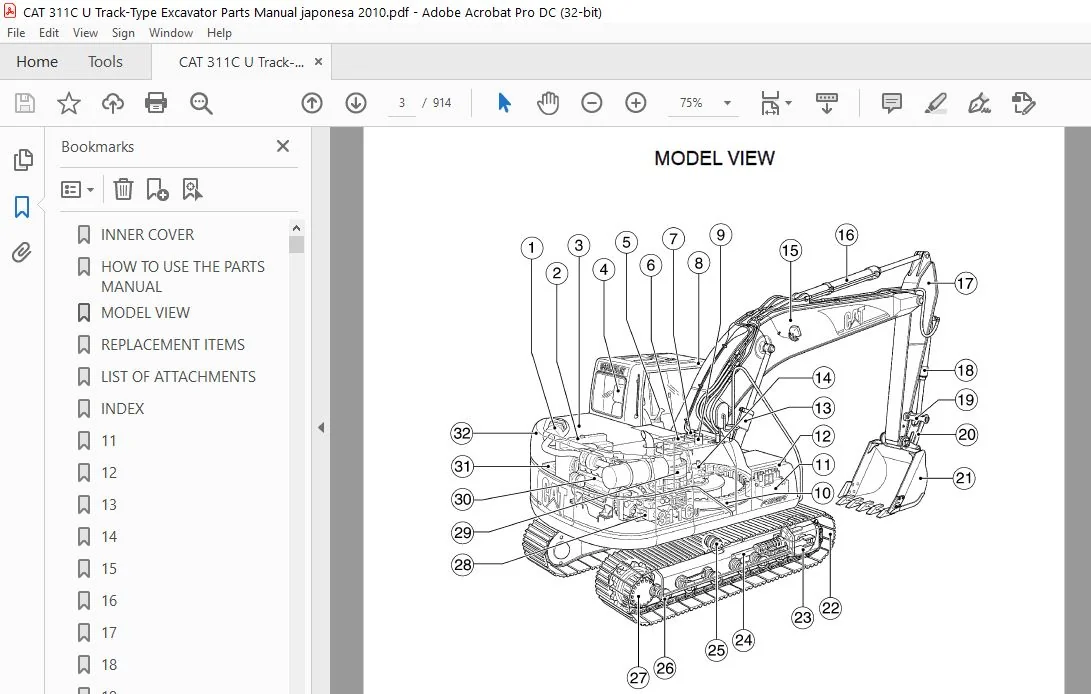

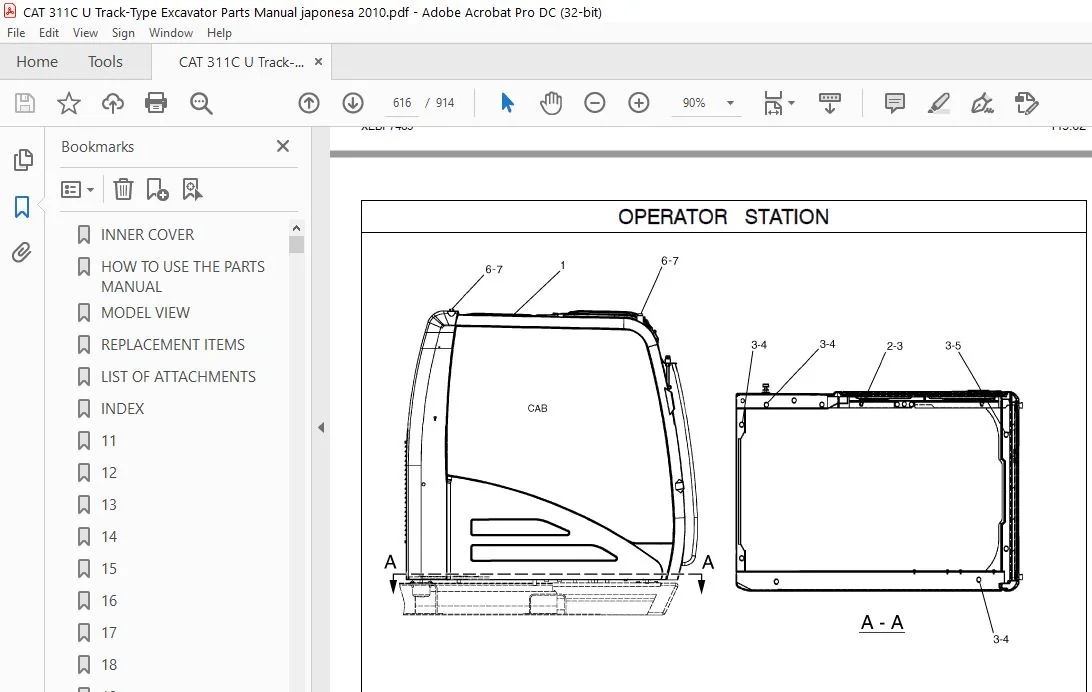

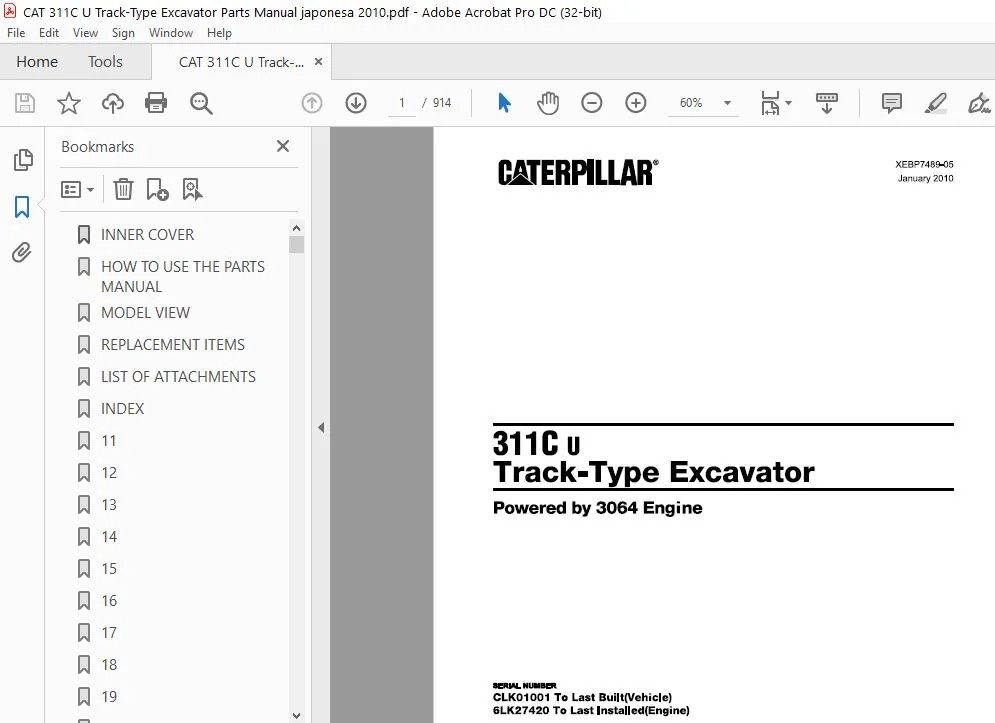

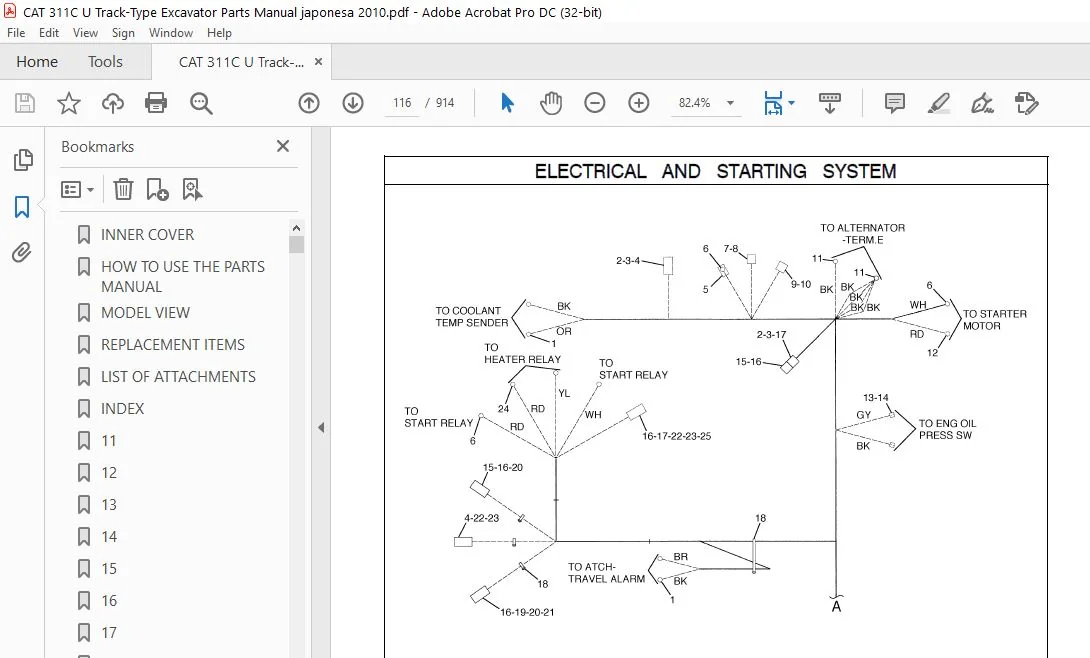

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat 311C U Track-Type Excavator Parts Manual – PDF DOWNLOAD

Powered Ьу 3064 Eng i ne
SERIAL NUMBER
CLK01001 То Last Built{Vehicle)
6LК27420 То Last lnstalled(Engine)

HOW TO USE THE PARTS MANUAL:

• Caterpillar Parts Manuals include illustrations of the groups or assemblies which make up the machine. These illustrations show the standard components plus many of the attachments available for the machine.
• The alphabetical index located in the front part of the book should be used to determine the page number on which specific illustrations are shown. Reference to those pages will identify each of the individual serviceable parts.

Captions :

The caption under each illustration identifies the part number and name of the group or assembly shown. If more than one illustration is included for any group, the caption identifies the specific machine serial numbers to which each illustration applies.

• In some cases it is not possible to determine the specific machine serial numbers to which different illustrations are applicable. In those cases the caption identifies the illustration as “First Type”, “Second Type”, etc. Reference to the actual group or assembly is necessary in those cases to determine which illustration should be used.
• Captions provide additional information such as page numbers where illustrations of sub assemblies are shown, information regarding quantities used and other information intended to assist the user in determining parts needs. This information indicates the effective serial number or effective date on which changes became effective.

Example :
D95.05- : Applicable on and after May 1995
D indicates the nineteen hundreds.
T00.05- : Applicable on and after May 2000
T indicates the two thousands.

TABLE OF CONTENTS:

Cat 311C U Track-Type Excavator Parts Manual – PDF DOWNLOAD

A
ADJUSTER GP – BUCKET 603
ADJUSTMENT GP – HYDRAULIC TRACK 218
AIR CLEANER AR 56
AIR CLEANER GP 52
57
AIR CONDITIONER & MOUNTING GP 542
AIR CONDITIONER GP 541
544
ALARM GP – TRAVEL 160
ALTERNATOR GP – CHARGING 158
ARM AS – WIPER 501
B
BATTERY & WIRING AR – COLD WEATH 94
BATTERY & WIRING GP 88
BATTERY & WIRING GP – COLD WEATH 95
BLADE & MOUNTING GP 579
BLADE AR 566
BLADE GP 581
BLOCK GP – HYDRAULIC 253
BOOM AR 561
BOOM AR – 1 PIECE LONG 561
BOOM GP 568
BOX & MOUNTING GP 203
BREATHER GP 35
BUCKET & ADJUSTER GP 597
BUCKET AR 594
BUCKET AS 600
BUMPER SET 211
C
CAB GP 450
CAB GP (BASIC) 453
CAB GP – EXTERIOR 480
CAB GP – INTERIOR 460
CABLE AS 102
CAMSHAFT GP 24
CARTRIDGE AS – TURBOCHARGER 66
COMPRESSOR GP – REFRIGERANT 558
CONDENSER & MTG GP – REFRIGERANT 560
CONSOLE GP 526
CONSOLE GP – OPERATOR 525
CONTROL & MTG GP – ELECTRONIC 152
CONTROL AR 152 01
311
CONTROL AR – AUXILIARY 310
311 01
CONTROL GP – BLADE 382
CONTROL GP – ELECTRONIC 154
CONTROL GP – GOVERNOR 84
CONTROL GP – HYDRAULIC 383
CONTROL GP – PILOT OPERATED HYD 376
380
COOLER GP – ENGINE OIL 48
COUNTERWEIGHT GP 204
COUPLING GP – PUMP 237
COVER GP 193
COVER GP – VALVE MECHANISM 22
CRANKSHAFT GP 23
CYLINDER & LINES GP – BLADE 259
CYLINDER & LINES GP – BOOM 256
CYLINDER & LINES GP – BUCKET 258
CYLINDER & LINES GP – STICK 257
CYLINDER & SEAL GP – BLADE 264
CYLINDER & SEAL GP – BOOM 260
CYLINDER & SEAL GP – BUCKET 262
CYLINDER & SEAL GP – STICK 261
CYLINDER BLOCK GP 20
CYLINDER GP – BLADE 272
CYLINDER GP – BOOM 266
CYLINDER GP – BUCKET 270
CYLINDER GP – STICK 268
CYLINDER HEAD GP 16
D
DOOR GP – CAB 482
DOOR GP – HOOD 190
DRIVE GP – SWING 362
DUCT GP – AIR 546
Name Page Name Page
INDEX
E
ELECTRONICS GP 153
ENGINE AR 12
F
FAN GP – SUCTION 51
FASTENER GP – SWING & FINAL DR 178
FENDER & MOUNTING GP 230
FILM GP 624
FILTER GP – ENGINE OIL 36
FILTER GP – FUEL 72
FILTER GP – HYDRAULIC 249
FINAL DRIVE GP 175
FLYWHEEL GP 29
FRAME AS – UNDERCARRIAGE 212
FRAME GP – UPPER 210
G
GAUGE AS 86
248
GEAR & BEARING GP – SWING 208
GEAR GP – FRONT 26
GUARD GP – BLADE CYLINDER 283
GUARD GP – BOTTOM 195
GUARD GP – BUCKET CYLINDER 282
GUARD GP – FRONT WINDOW 510
GUARD GP – OVERHEAD 509
GUARD GP – SNOW 202
GUARD GP – SWIVEL 200
GUARD GP – TRACK GUIDE 222
GUARD GP – TRAVEL MOTOR 224
H
HANDHOLD GP 201
HARNESS AS 96
HARNESS AS – CONSOLE 121
HARNESS AS – WIRING 134
150
HATCH AS 489
HATCH GP 488
490
HEAD GP – PUMP CONTROL 246
HEADREST AS 539
HEATER & MOUNTING GP 552
HEATER AR 550
HEATER GP 554
HOOD & GUARD GP 180
HOOD GP 189
HOOD GP – ENGINE 188
HORN GP – ELECTRIC 517
HOUSING GP – FILTER 254
HOUSING GP – FLYWHEEL 28
HOUSING GP – FRONT 27
I
IDLER GP – FRONT 214
INSTALLATION AR 312
K
KNOB AS 378
L
LAMP GP – FLOOD 169
LEVER GP 523
LIGHTER GP – CIGAR 508
LIGHTING GP – BOOM 164
LIGHTING GP – CAB 162
LIGHTING GP – CHASSIS 161
LINES AR – AUXILIARY HYDRAULIC 288
LINES GP – AIR 60
LINES GP – AIR CONDITIONER 548
LINES GP – AUXILIARY HYDRAULIC 290
LINES GP – BLADE CYL & VALVE 350
LINES GP – BLADE CYLINDER 280
LINES GP – BOOM 284
Name Page Name Page
INDEX
LINES GP – BOOM CYLINDER 274
LINES GP – BUCKET CYLINDER 278
LINES GP – DRAIN 62
LINES GP – ENGINE OIL 34
LINES GP – FRONT 336
LINES GP – FUEL 70
74
LINES GP – GREASE 583
LINES GP – HEATER 556
LINES GP – HYDRAULIC 360
LINES GP – OIL DRAIN 39
LINES GP – PILOT 314
LINES GP – PUMP 304
LINES GP – QUICK COUPLER 298
LINES GP – RETURN & FILTER 354
LINES GP – STICK 286
LINES GP – STICK CYLINDER 276
LINES GP – SWING MOTOR 356
LINES GP – TRAVEL MOTOR 300
LINES GP – TURBOCHARGER OIL 38
LINES GP – WATER 50
LINK AS 529
LINK AS – TRACK 229
LINKAGE AR – BUCKET 564
LINKAGE AR – FRONT 564 02
LINKAGE GP – BUCKET 585
LITERATURE GP 540
M
MANIFOLD GP – EXHAUST 64
MANIFOLD GP – INLET 63
MIRROR GP – REAR VIEW 518
MONITOR & MTG GP – OPERATOR 503
MOTOR AS – WINDOW WIPER 502
MOTOR GP – SWING 368
MOTOR GP – TRAVEL 412
MOUNTING GP 154 02
MOUNTING GP – ALTERNATOR 31
MOUNTING GP – ENGINE 32
MOUNTING GP – GREASE GUN 194
MOUNTING GP – STARTING MOTOR 155
MOUNTING GP – VALVE 386
MUFFLER GP 59
N
NOZZLE GP – UNIT INJECTOR 82
P
PAN GP – OIL 30
PANEL GP – CIRCUIT BREAKER 104
PISTON & ROD GP 25
PLATE & FILM GP 612
629
PLATFORM GP – OPERATOR 520
PULLEY GP 33
PUMP & MOUNTING GP 235
PUMP AS – WATER 49
PUMP GP – FUEL INJECTION 76
PUMP GP – MAIN HYDRAULIC 238
R
RADIATOR & HYD OIL COOLER GP 40
RADIO GP – AM 505
RADIO GP – AM/FM 506
ROLLER AR – TRACK & CARRIER 219
ROLLER GP – TRACK CARRIER 221
ROLLER GP – TRACK – SINGLE FLANGE 220
S
SCREEN GP 234
SEAT BELT GP 537
SEAT GP 531
SEPARATOR – WATER 71 02
SIDECUTTER GP 604
SPECIAL AR 11
SPRING GP – RECOIL 217
SPROCKET GP – NONSEGMENTED 174
STARTING MOTOR GP – ELECTRIC 156
STICK AR – HOE 562
STICK GP 575
Name Page Name Page
INDEX
STICK GP – HOE 574
576
578
SUPPORT GP – SEAT 530
SUSPENSION GP – SEAT 535
SWITCH AS 115 01
173
SWITCH AS – DISCONNECT 112
SWITCH AS – MAGNETIC 113
SWITCH AS – ROTARY 128
SWITCH GP – HEAT START 127
SWIVEL GP 370
T
TANK & FILTER GP – HYDRAULIC 232
TANK & MTG GP – FUEL 67
TANK & MTG GP – HYDRAULIC 231
TANK GP – FUEL 68
TIMER AS 116
TIP GP 608
TIP GP – ABRASION 607
TIP GP – LONG 605
606
TIP GP – PENETRATION 607
TIP GP – SHORT 606
TIP GP – WIDE 605
TOOL AR 609
TOOL GP 610
TRACK GP 226
TURBOCHARGER GP 65
V
VALVE & MOUNTING GP 408
VALVE AR 312
VALVE AS – BALL 447
VALVE AS – RELIEF 441
VALVE GP – CHECK 442
VALVE GP – CONTROL 398
VALVE GP – MAIN CONTROL 388
VALVE GP – MANIFOLD & REDUCING 444
VALVE GP – PILOT 372
VALVE GP – PILOT RELIEF 423
VALVE GP – PRESS REDUCING SOL 446
VALVE GP – PRESSURE REDUCING 417
VALVE GP – RELIEF 416
VALVE GP – SHUTTLE 424
VALVE GP – SOLENOID 426
VALVE GP – TRACTION CONTROL 414
VALVE MECHANISM GP 18
VISOR GP – PROTECTION – RAIN 515
VISOR GP – SUN 516
W
WASHER GP – WINDOW 504
WINDOW AS 496
WINDOW GP 492
WINDOW GP – CAB 497
WINDOW GP – DOOR 499
WIPER GP – WINDOW 500
WIRING GP 146 04
147
WIRING GP – CAB 130
WIRING GP – CONSOLE 117
