Cat 322C 322C L Track-Type Excavators Parts Manual – PDF DOWNLOAD

Description

Cat 322C 322C L Track-Type Excavators Parts Manual – PDF DOWNLOAD

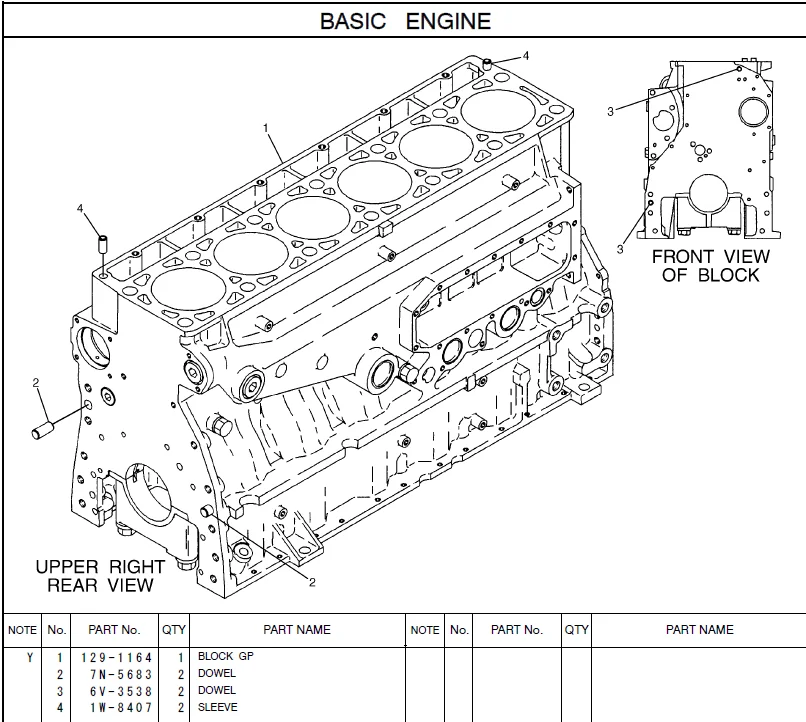

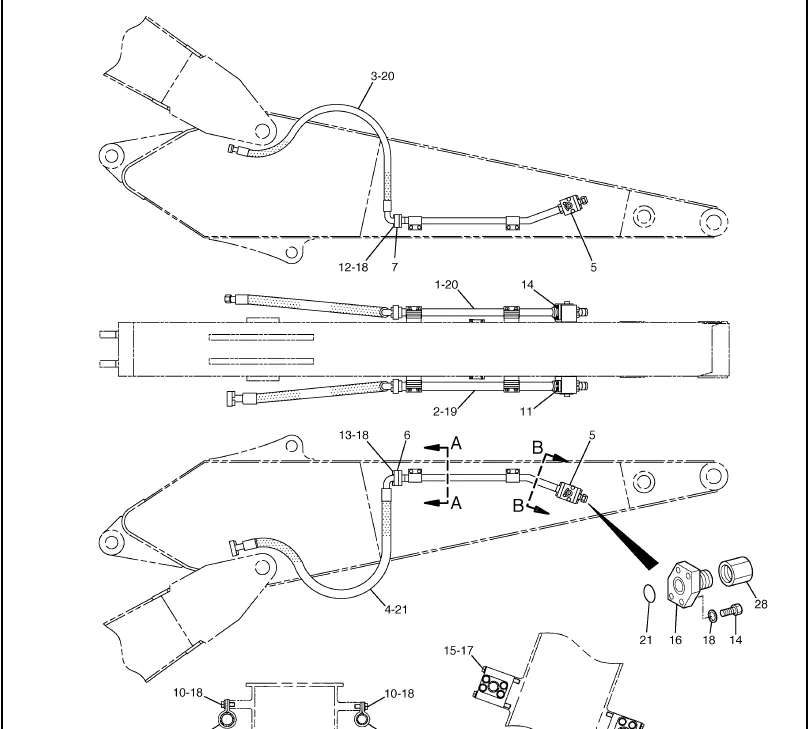

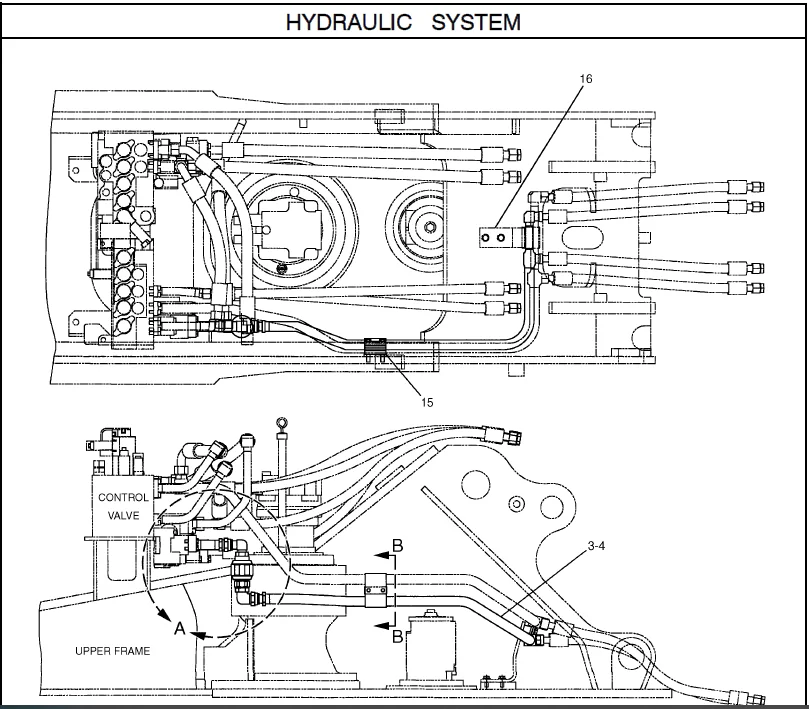

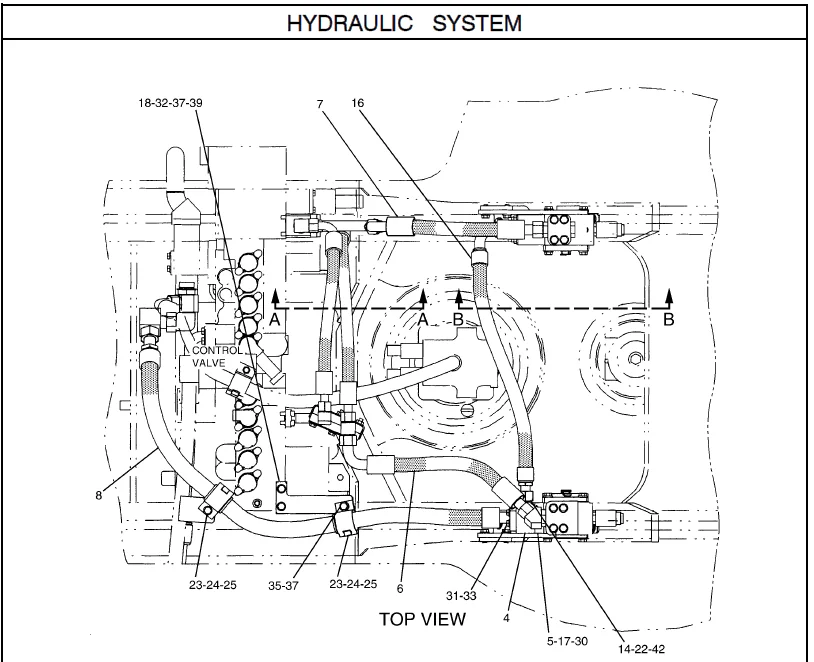

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Cat 322C 322C L Track-Type Excavators Parts Manual – PDF DOWNLOAD

Powered by 3126 Engine
SERIAL NUMBER
ADX1 -Up(Vehicle)
BTE 1-Up(Vehicle)
HBG1-Up(Vehicle)
KCF1 -Up(Vehicle)
5GG00218-Up(Engine)

HOW TO USE THE PARTS MANUAL:

• Caterpillar Parts Manuals include illustrations of the groups or assemblies which make up the machine. These illustrations show the standard components plus many of the attachments available for the machine.
• The alphabetical index located in the front part of the book should be used to determine the page number on which specific illustrations are shown. Reference to those pages will identify each of the individual serviceable parts.

Captions :

The caption under each illustration identifies the part number and name of the group or assembly shown. If more than one illustration is included for any group, the caption identifies the specific machine serial numbers to which each illustration applies.

• In some cases it is not possible to determine the specific machine serial numbers to which different illustrations are applicable. In those cases the caption identifies the illustration as “First Type”, “Second Type”, etc. Reference to the actual group or assembly is necessary in those cases to determine which illustration should be used.
• Captions provide additional information such as page numbers where illustrations of sub assemblies are shown, information regarding quantities used and other information intended to assist the user in determining parts needs. This information indicates the effective serial number or effective date on which changes became effective.

Example :
D95.05- : Applicable on and after May 1995
D indicates the nineteen hundreds.
T00.05- : Applicable on and after May 2000
T indicates the two thousands.

TABLE OF CONTENTS:

Cat 322C 322C L Track-Type Excavators Parts Manual – PDF DOWNLOAD

A
ADJUSTER GP – BUCKET 742
AIR CLEANER AR 91
AIR CLEANER GP 89
AIR CONDITIONER & MOUNTING GP 672
AIR CONDITIONER GP 671
ALARM GP 182
ALARM GP – TRAVEL 229
ALTERNATOR GP – CHARGING 216
ARM AS – WIPER 623
B
BATTERY & WIRING GP 122
BATTERY & WIRING GP – COLD WEATH 130
BLOCK GP – HYDRAULIC 362
BLOWER GP 678
BOOM AR 699
BOOM AR – 1 PIECE LONG 698
BOOM GP 708
BOX & MTG GP – STORAGE 277
BOX GP – STORAGE 278
BREATHER GP 60
BUCKET & ADJUSTER GP 734
BUCKET AR 730
BUCKET AS – DITCH CLEANING 741 02
BUCKET AS – EXCAVATION 738
BUCKET AS – GENERAL PURPOSE 741 01
BUCKET GP 741 01
BUMPER GP – SIDE 300
C
CAB GP 578
CAB GP (BASIC) 581
CAB GP – EXTERIOR 602
CAB GP – INTERIOR 590
CABLE AS 140
CAMSHAFT GP 30
CARRIER GP – SEAL 23
COMPRESSOR GP – REFRIGERANT 697
CONDENSER & MTG GP – REFRIGERANT 696
CONSOLE GP 655
CONSOLE GP – OPERATOR 654
CONTROL & MTG GP – ELECTRONIC 204
CONTROL AR – AUXILIARY 420
CONTROL GP – ELECTRONIC 203
CONTROL GP – HYDRAULIC 498
CONTROL GP – PILOT OPERATED HYD 491
COOLER & MOUNTING GP 77
COOLER GP – ENGINE OIL 83
COOLER GP – OIL 78
COUNTERWEIGHT GP 282
COUPLING GP – FLEXIBLE 345
COUPLING GP – PUMP 344
COVER GP 265
COVER GP – AIR INLET 96
COVER GP – CYLINDER BLOCK 24
COVER GP – FRONT HOUSING 48
COVER GP – STORAGE BOX 280
COVER GP – VALVE MECHANISM 43
CRANKSHAFT GP 26
CYLINDER & LINES GP – BOOM 363
CYLINDER & LINES GP – BUCKET 365
CYLINDER & LINES GP – STICK 364
CYLINDER & SEAL GP – BOOM 368
CYLINDER & SEAL GP – BUCKET 372
CYLINDER & SEAL GP – STICK 370
CYLINDER BLOCK AS 20
CYLINDER BLOCK GP 18
CYLINDER GP – BUCKET 378
CYLINDER GP – STICK 371 05
CYLINDER HEAD AS 40
CYLINDER HEAD GP 33
D
DAMPER & PULLEY GP 32
DOOR GP – CAB 605
DOOR GP – HOOD 266
DRIVE AS – WINDSHIELD – AUTO 616
DRIVE GP – FAN 54
Name Page Name Page
INDEX
DRIVE GP – PUMP 355
DRIVE GP – SWING 473
DUCT AS 682
DUCT GP – AIR 680
E
ELBOW GP – AIR INLET 97
ELECTRONICS GP 202
ENGINE AR 11
ENGINE AR – COMPLETE 12
ENGINE AR – CORE 16
F
FAN GP – SUCTION 82
FASTENER GP – FRONT HOUSING 50
FASTENER GP – LIFTING 29
FASTENER GP – SWING & FINAL DR 256
FENDER & COVER GP 281
FILM GP 774
FILTER GP 117
FILTER GP – ENGINE OIL 64
FILTER GP – FUEL 114
FILTER GP – HYDRAULIC 356
FINAL DRIVE GP 253
FLYWHEEL GP 56
FRAME AS – UNDERCARRIAGE 303
FRAME GP – UPPER 296
FUMES DISPOSAL GP 61
G
GAUGE GP – OIL LEVEL (DIPSTICK) 67
GEAR & BEARING GP – SWING 288
GEAR GP – FRONT 52
GUARD AR – BOTTOM 270
GUARD AR – OVERHEAD 640
GUARD GP – BOTTOM 271
GUARD GP – CYLINDER 386
GUARD GP – FRONT WINDOW 642
GUARD GP – OVERHEAD 641
GUARD GP – SWIVEL 274
GUARD GP – TRACK GUIDE 315
GUARD GP – TRAVEL MOTOR 325
H
HANDHOLD GP 275
HARNESS AS 132
HARNESS AS – CONSOLE 169
HARNESS AS – WIRING 183
HATCH AS 611
HATCH GP 609
HEAD GP – PUMP CONTROL 350
HEADREST AS 670
HEATER & MTG GP – CAB 688
HEATER AR – CAB 686
HEATER GP – AIR INLET 219
HEATER GP – CAB 690
HOOD & GUARD GP 258
HOOD GP 268
HOOD GP – ENGINE 264
HORN GP – ELECTRIC 649
HOUSING GP – FLYWHEEL 57
HOUSING GP – FRONT 47
I
IDLER GP – FRONT 307
K
KNOB AS 493
L
LAMP GP – FLOOD 246
LEVER GP 652
LIFTER GP – VALVE 46
LIFTING GP – ENGINE 28
Name Page Name Page
INDEX
LIGHTING GP – BOOM 240
LIGHTING GP – CAB 232
LIGHTING GP – CHASSIS 230
LINES GP – AIR 94
LINES GP – AIR CONDITIONER 684
LINES GP – AUXILIARY HYDRAULIC 396
LINES GP – BOOM 388
LINES GP – BOOM CYLINDER 380
LINES GP – BUCKET CYLINDER 383
LINES GP – COOLING 80
LINES GP – DRAIN 103
LINES GP – ENGINE OIL 62
LINES GP – FRONT 450
LINES GP – FUEL 110
LINES GP – GREASE 723
LINES GP – HEATER 694
LINES GP – MOTOR 418
LINES GP – OIL DRAIN 70
LINES GP – PILOT 424
LINES GP – PUMP 416
LINES GP – RETURN & FILTER 470
LINES GP – STICK 392
LINES GP – STICK CYLINDER 382
LINES GP – SWING MOTOR 472
LINES GP – TRAVEL MOTOR 412
LINES GP – TURBOCHARGER OIL 66
LINES GP – WATER 86
LINK AS 657
LINK AS – TRACK 330
LINKAGE AR – BUCKET 705
LINKAGE AR – FRONT 707
LINKAGE GP – BUCKET 726
LITERATURE GP 671
LOCK GP – TRANSPORT 725 02
M
MANIFOLD GP – EXHAUST 99
MIRROR GP – REAR VIEW 650
MONITOR & MTG GP – OPERATOR 628
MONITOR GP – OPERATOR 629
MOTOR & MTG GP – SWING 476
MOTOR & MTG GP – TRAVEL 481
MOTOR AS – WINDOW WIPER 624
MOTOR GP – FAN DRIVE 484
MOTOR GP – SWING 477
MOTOR GP – TRAVEL 482
MOUNTING GP – ENGINE 59
MOUNTING GP – ENGINE OIL FILTER 71
MOUNTING GP – GREASE GUN 269
MOUNTING GP – VALVE 502
MUFFLER GP 102
P
PAN GP – OIL 58
PANEL GP – CIRCUIT BREAKER 144
PISTON & ROD GP 31
PLATE & FILM GP 762
PLATFORM GP – OPERATOR 651
PLUG GP 520
534
577
PLUG GP – ENGINE 21
PULLEY GP 53
PUMP & MOUNTING GP 105
343
PUMP GP – ENGINE OIL 68
PUMP GP – FUEL PRIMING 116
PUMP GP – GEAR 354
PUMP GP – MAIN HYDRAULIC 346
PUMP GP – UNIT INJECTION 108
PUMP GP – UNIT INJECTOR HYD 106
PUMP GP – WATER 84
R
RADIATOR & AFTERCOOLER GP 72
RADIATOR GP 74
RADIO GP – AM 637
RADIO GP – AM/FM 638
ROLLER AR – TRACK & CARRIER 318
ROLLER GP – TRACK CARRIER 322
ROLLER GP – TRACK – DOUBLE FLANGE 324
ROLLER GP – TRACK – SINGLE FLANGE 323
ROTATING GP – PUMP 486
Name Page Name Page
INDEX
ROTOR GP – SWIVEL 488
S
SCREEN GP 342
SEAL GP – CRANKSHAFT 27
SEAL GP – FUEL INJECTOR 109
SEAT BELT GP 668
SEAT GP 659
SENSOR GP – ENGINE 222
SENSOR GP – PRESSURE 223
SENSOR GP – SPEED 228
SENSOR GP – TEMPERATURE 227
SIDECUTTER GP 745
SPROCKET GP – NONSEGMENTED 252
STARTING AR – COLD WEATHER 212
STARTING MOTOR GP – ELECTRIC 206
STICK AR 700
STICK AR – HOE 700
STICK GP 715
STICK GP – HOE 714
SUPPORT GP – SEAT 658
SUSPENSION GP – SEAT 665
SWITCH AS 251
SWITCH AS – DISCONNECT 160
SWITCH AS – MAGNETIC 162
SWITCH AS – ROLLER 251
SWITCH AS – ROTARY 178
SWITCH GP – START 177
SWIVEL GP 487
T
TANK & FILTER GP – HYDRAULIC 334
TANK & MTG GP – FUEL 119
TANK & MTG GP – HYDRAULIC 332
TANK AS – WINDOW WASHER 636
TANK GP – FUEL 120
TIMER AS 165
TIP GP 749
TIP GP – ABRASION 748
TIP GP – LONG 746
TIP GP – PENETRATION 748
TIP GP – SHORT 747
TIP GP – WIDE 747
TOOL AR 758
TOOL GP 759
TRACK ADJUSTER & RECOIL GP 311
TRACK GP 327
TURBOCHARGER GP 100
V
VALVE & MOUNTING GP 503
VALVE AR – 4 WAY 423
VALVE AS – BALL 574
VALVE GP 527
VALVE GP – CHECK 557
VALVE GP – CONTROL 508
VALVE GP – CUSHION CROSSOVER RLF 544
VALVE GP – FLOW CONTROL & RELIEF 535
VALVE GP – MAIN CONTROL 505 01
Name Page Name Page
INDEX
VALVE GP – PILOT 489
VALVE GP – PILOT RELIEF 523
VALVE GP – PRESS REDUCING SOL 554
VALVE GP – PRESSURE CONTROL 107
VALVE GP – PRESSURE REDUCING 553
VALVE GP – RELIEF 522
VALVE GP – SELECTOR 558
VALVE GP – SHUTTLE 572
VALVE GP – SOLENOID 555
VALVE GP – TRACTION CONTROL 546
VALVE MECHANISM GP 44
VISOR GP – PROTECTION – RAIN 647
VISOR GP – SUN 648
W
WASHER GP – WINDOW 634
WINDOW AS 619
WINDOW GP 612
WINDOW GP – DOOR 608
WIPER & WASHER GP – WINDOW 632
WIPER AR – WINDOW 631
WIPER GP – WINDOW 622
WIRING GP 191
WIRING GP – CAB 180
WIRING GP – CONSOLE 166
WIRING GP – ENGINE 220
WIRING GP – HEATER 218
WIRING GP – LOWER WIPER 194
