CAT Beamed Stageloader Power Unit with K-27 W Bevel Spur Gearbox Operation & Maintenance Manual – PDF DOWNLOAD

Description

CAT Beamed Stageloader Power Unit with K-27 W Bevel Spur Gearbox Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

CAT Beamed Stageloader Power Unit with K-27 W Bevel Spur Gearbox Operation & Maintenance Manual – PDF DOWNLOAD

Preface

• Safe and troublefree operation of the equipment can only be ensured if the operating personnel is fully acquainted with the instructions contained in this manual and if these instructions as well as any local regulations on accident prevention and environmental protection are observed.
• No liability is accepted and no warranty is given for damage that is caused by the non-compliance with the operating instructions or with recommended maintenance procedures. Neither is liability accepted for damage that is due to overloading, to wear, fatigue and/or ageing of the equipment or parts thereof (e.g. hoses).
• The operating manual contains important information on how to operate the machine/plant safely, properly and most efficiently.
• Observing these instructions helps to avoid danger, to reduce repair cost and downtimes and to increase the reliability and life of the machine/plant. The operating manual must always be available wherever the machine/plant is in use.

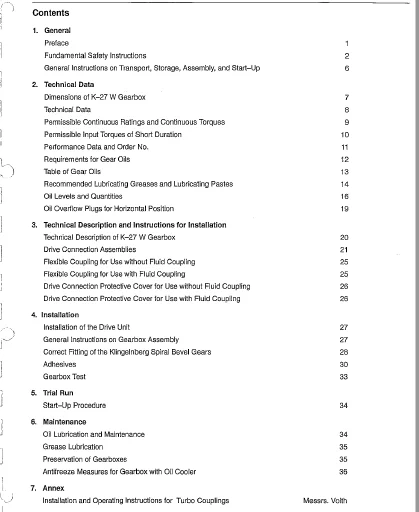

TABLE OF CONTENTS:

CAT Beamed Stageloader Power Unit with K-27 W Bevel Spur Gearbox Operation & Maintenance Manual – PDF DOWNLOAD

1. General
Preface 1
Fundamental Safety Instructions 2
General Instructions on Transport, Storage, Assembly, and Start-Up
2. Technical Data
Dimensions of K-27 W Gearbox 7
1 Technical Data 8
Permissible Continuous Ratings and Continuous Torques
Permissible Input Torques of Short Duration 10
Performance Data and Order No. 11
l Requirements for Gear Oils
Table of Gear Oils 13
Recommended Lubricating Greases and Lubricating Pastes 14 l Oil Levels and Quantities 16
Oil Overflow Plugs for Horizontal Position
3. Technical Description and Instructions for Installation
Technical Description of K-27 W Gearbox 20
Drive Connection Assemblies 21
Flexible Coupling for Use without Fluid Coupling 25
Flexible Coupling for Use with Fluid Coupling 25
Drive Connection Protective Cover for Use without Fluid Coupling 26
Drive Connection Protective Cover for Use with Fluid Coupling 26
4.Installation
Installation of the Drive Unit 27
General Instructions on Gearbox Assembly 27
Correct Fitting of the Klingelnberg Spiral Bevel Gears 28
Adhesives 30
Gearbox Test
5. Trial Run I
Start-Up Procedure
6.Maintenance
Oil Lubrication and Maintenance 34
Grease Lubrication 35
Preservation of Gearboxes 35
Antifreeze Measures for Gearbox with Oil Cooler 36
7. Annex
Installation and Operating Instructions for Turbo Couplings

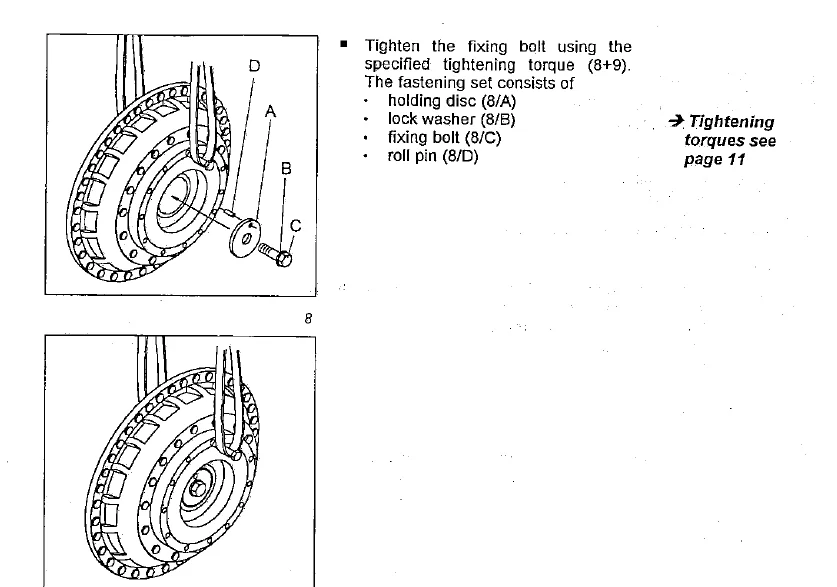

IMAGES PREVIEW OF THE MANUAL:
