CAT Beamed Stageloader SK1118 DBT Impact Roll Crusher Grassree Operation & Maintenance Manual – PDF DOWNLOAD

Description

CAT Beamed Stageloader SK1118 DBT Impact Roll Crusher Grassree Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

CAT Beamed Stageloader SK1118 DBT Impact Roll Crusher Grassree Operation & Maintenance Manual – PDF DOWNLOAD

About this manual

This chapter provides important information making it easier for you to use this manual. You will also be given information on the structure of the manual and the symbols and characters used

Before starting work

applicable operating manual

This operating manual is designed for the following crusher plant. It is only permitted to be used for this crusher plant (subject to change):

crusher type

DBT Mineral Processing crusher plant SK 1118
Object-No.: 55273900000000
Mach.-No.: 492

new operating manual

Send for a new manual immediately if the present manual is no longer complete or has become illegible

Who is this operating manual intended for?

This operating manual is intended for those persons who work with or on the crusher plant. It is the customer’s / operator’s responsibility that all persons, who work with this plant, know this operaring manual. It must be realized and accessible

This includes persons:
? are in charge of transport
? perform assembly/disassembly work
? operate the crusher plant
? eliminate faults
? perform daily routine work on site
? perform maintenance work
? perform repair work
Supervisory personnel who:
? initiate and/or
? supervise the activities just indicated

What is the purpose of this operating manual?

cost-effectiveness

This operating manual is intended to help you working efficiently and safely with our product. It contains important information on all the activities releated to the crusher plant

service

If any details are not clearly understood, please contact our service department. Our service address is given on the title and on the first side of this operating manual.

safety

Read the chapter “For your safety” with special attention. This chapter contains important information indicating possible hazards. Observe the information given and follow the procedural instructions

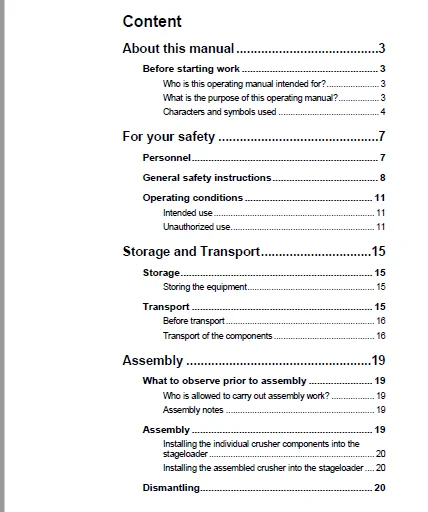

TABLE OF CONTENTS:

CAT Beamed Stageloader SK1118 DBT Impact Roll Crusher Grassree Operation & Maintenance Manual – PDF DOWNLOAD

About this manual 3
Before starting work 3
Who is this operating manual intended for? 3
What is the purpose of this operating manual? 3
Characters and symbols used 4
For your safety 7
Personnel 7
General safety instructions 8
Operating conditions 11
Intended use 11
Unauthorized use 11
Storage and Transport15
Storage 15
Storing the equipment 15
Transport 15
Before transport 16
Transport of the components 16
Assembly 19
What to observe prior to assembly 19
Who is allowed to carry out assembly work? 19
Assembly notes 19
Assembly 19
Installing the individual crusher components into the
stageloader 20
Installing the assembled crusher into the stageloader 20
Dismantling 20
BI619005
Technical data 23
Technical data sheet 23
Main components24
Components 25
Technical description 26
Crusher housing with substructure 26
Impact roll26
Turnable impact heads29
Hydraulic height adjustment 30
Central lubrication 31
Tightening torques32
Screws resp nuts with metric coarse thread DIN 1332
Permissible media33
Lubricating greases 33
Hydraulic fluids 33
Operation 37
Commissioning of the crusher plant 37
Before commissioning 37
Notes for electrics38
Test run and start up 38
Operation of the crusher plant39
General 39
Roll height adjustment40
Maintenance42
Maintenance acc to schedule43
Lubrication44
Changing resp turning the impact heads45
Safety device gearbox – crusher shaft46
Spare parts and special tools 46

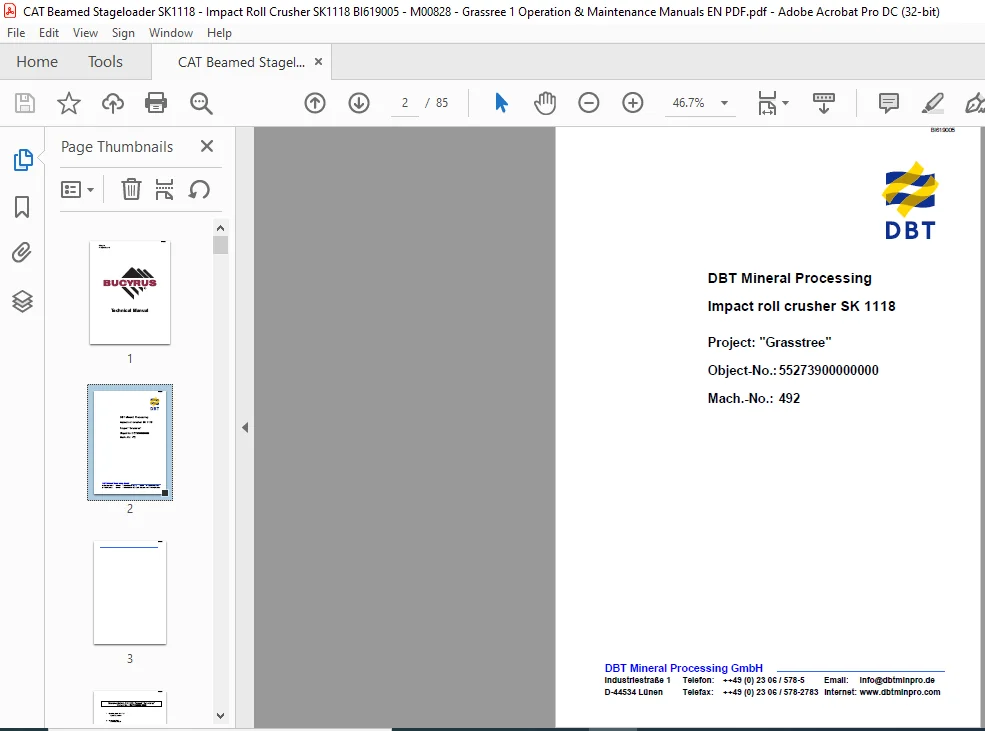

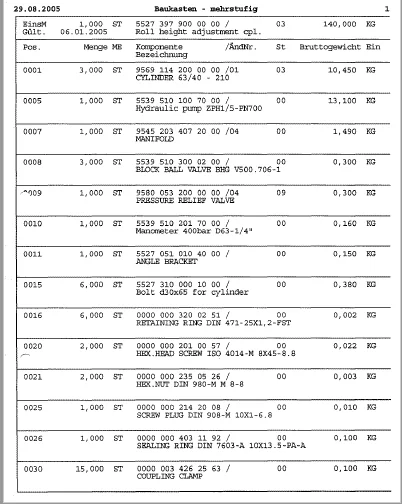

IMAGES PREVIEW OF THE MANUAL:
