CAT Bucyrus Unit Rig MT Series Trucks Equipped with AC Drive Systems & High Productivity Cab Operation Manual BI617275 – PDF DOWNLOAD

Description

CAT Bucyrus Unit Rig MT Series Trucks Equipped with AC Drive Systems & High Productivity Cab Operation Manual BI617275 – PDF DOWNLOAD

FILE DETAILS:

CAT Bucyrus Unit Rig MT Series Trucks Equipped with AC Drive Systems & High Productivity Cab Operation Manual BI617275 – PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF

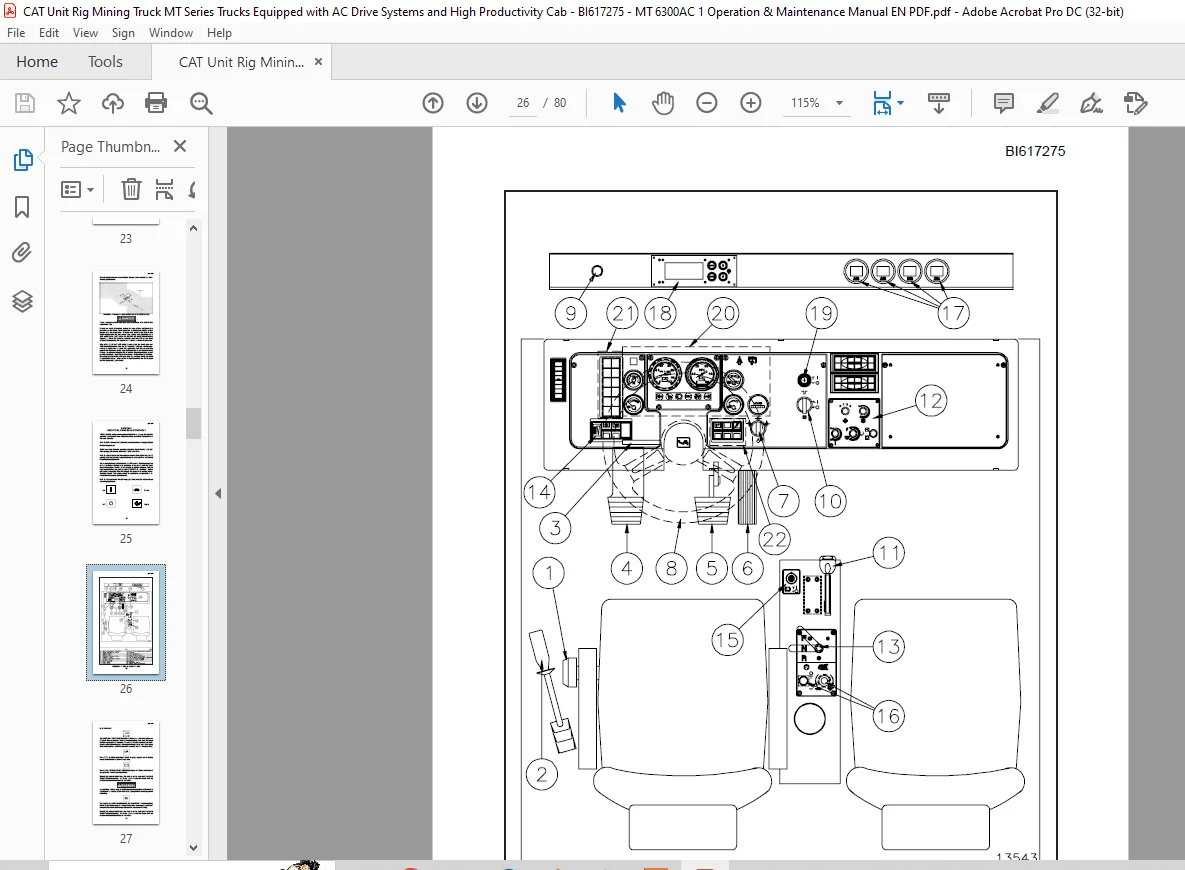

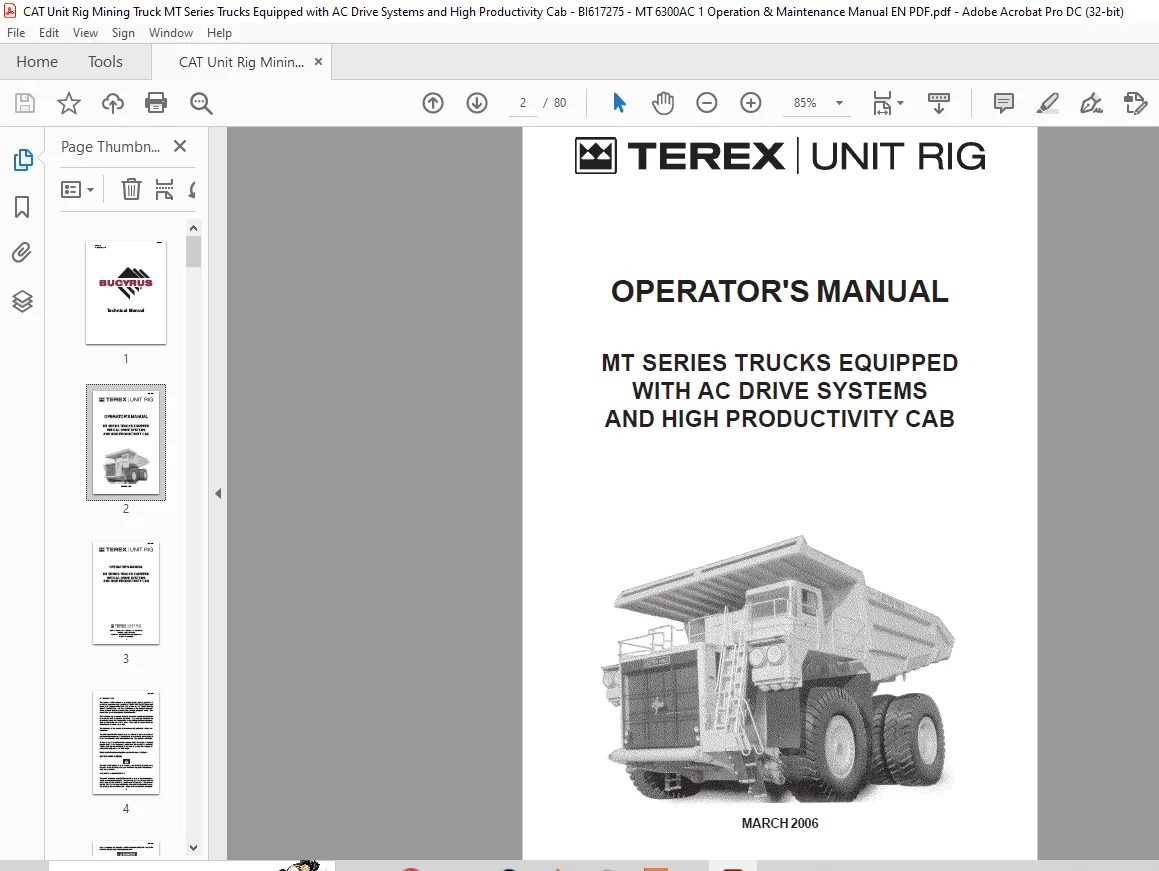

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Bucyrus Unit Rig MT Series Trucks Equipped with AC Drive Systems & High Productivity Cab Operation Manual BI617275 – PDF DOWNLOAD

INTRODUCTION:

• The purpose of this manual is to provide a safe, logical sequence of
  events for inspecting and operating a TEREX Unit Rig MT Series rear
  dump truck equipped with an AC drive system and the TEREX Unit Rig
  High Productivity Cab. For the convenience of the operators, information
  is provided for both standard and optionally equipped trucks. This
  information can be disregarded if not applicable.
• Before attempting to operate the truck, personnel must become familiar
  with systems and component operation. They must be trained in the
  proper operation of the truck and instructed on all guidelines and regulations
  in force in the area of the mine. Good safe practices should be
  followed in a common sense way.
• The drawings in this manual do not necessarily reflect all vehicle configurations.
• The information in this manual does not attempt to cover all details or
  variations in equipment nor to provide for every possible contingency to
  be met in connection with the inspection and safe operation of a truck.
• If there is any information in this manual that is not clear or that you
  believe needs to be addressed, please feel free to contact your local
  TEREX Unit Rig representative at any time or contact the company directly
  at the address on the back cover.

DESCRIPTION:

The TEREX Unit Rig MT Series is a heavy-duty, large-capacity haulage truck specifically designed
for the open pit mining industry. The large payloads that can be carried make this an efficient
means of transporting material from one point to another in a mine or similar off-highway haulage
operation.

• Propulsion for the truck is supplied by a “diesel-electric” power train. The operating principal
  is to supply a regulated source of voltage and current to the wheelmotors, which convert this
  energy into a mechanical form through a self contained traction motor and planetary gear drive
  system which is directly mounted to the rear dual tire assemblies.
• In the “diesel-electric” mode, an alternator, directly coupled to a turbo- charged diesel engine,
  supplies the basic electrical energy. A primarily solid state control system regulates the power
  output based on a number of operating factors (including such items as vehicle and engine speed,
  demand requirements, and engine power available).

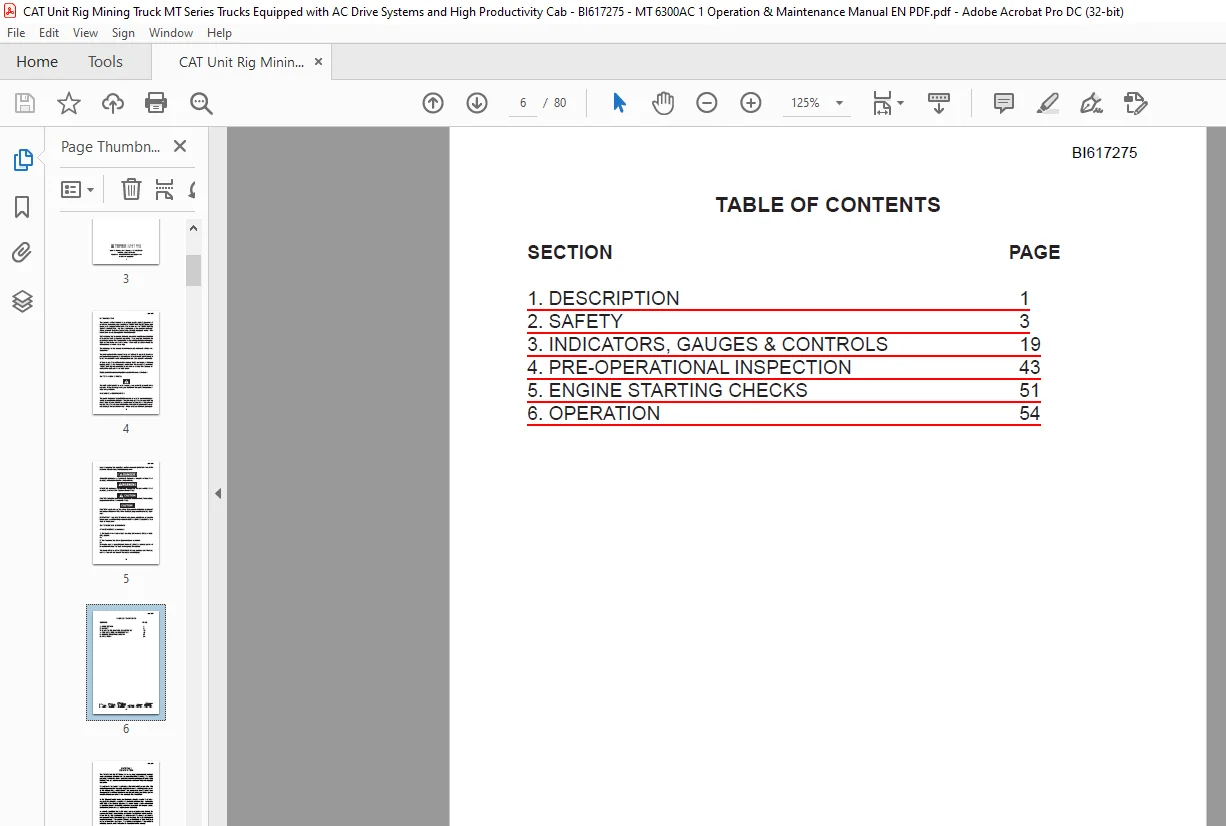

TABLE OF CONTENTS:

CAT Bucyrus Unit Rig MT Series Trucks Equipped with AC Drive Systems & High Productivity Cab Operation Manual BI617275 – PDF DOWNLOAD

1. DESCRIPTION 1
2. SAFETY 3
3. INDICATORS, GAUGES & CONTROLS 19
4. PRE-OPERATIONAL INSPECTION 43
5. ENGINE STARTING CHECKS 51
6. OPERATION 54
