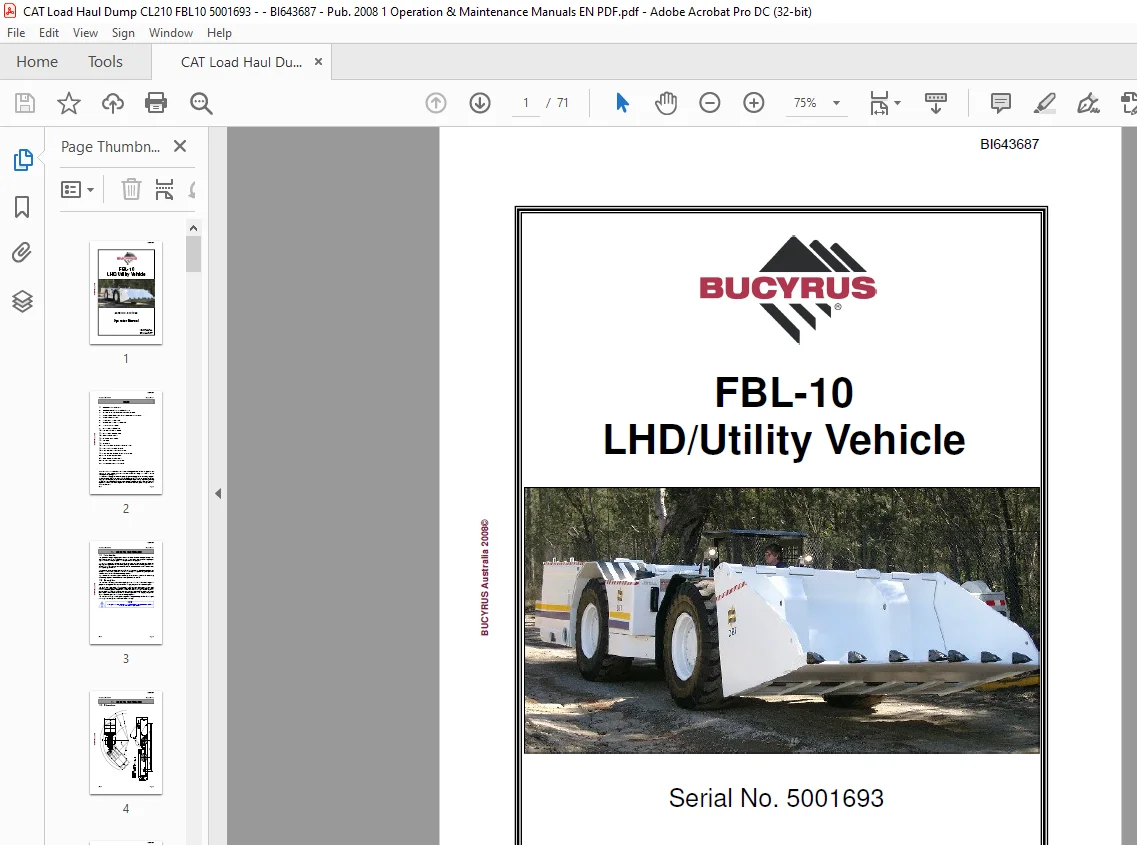

CAT FBL-10 LHD Utility Vehicle Operator Manual SN 5001693 – PDF DOWNLOAD

Description

CAT FBL-10 LHD Utility Vehicle Operator Manual SN 5001693 – PDF DOWNLOAD

FILE DETAILS:

CAT FBL-10 LHD Utility Vehicle Operator Manual SN 5001693 – PDF DOWNLOAD

Language : English
Pages : 71
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT FBL-10 LHD Utility Vehicle Operator Manual SN 5001693 – PDF DOWNLOAD

         Introduction

• The operation of heavy mining equipment can be hazardous. To ensure safe operation, operators and personnel must be alert, competent, correctly trained, tested and licensed in the principles, capabilities and correct operating and isolation procedures of the equipment.
• This manual is designed to provide the FBL-10 utility vehicle operator with the proper information regarding the equipment’s instrumentation, operating controls and safe working procedures. All operators of this machine must be conversant with the information contained within this manual before operating the machine.
• To ensure safe and efficient operation, the FBL-10 utility vehicle must be adequately maintained by the operators and service personnel. To achieve this, the operator’s pre-start inspection procedure contained in Section 5 of this manual must be performed.
• Any abnormalities should be reported immediately to maintenance personnel to avoid costly machine repairs, production down time and unsafe operation of the machine.
  Description
• The FBL-10 is a 10,000 kg Load Haul Dump/Utility vehicle. This allows it to be used for general purpose work through out the mine, which includes carrying heavy loads, materials and supplies.
• The motive force is provided by a 172 kW Caterpillar 3216 six cylinder turbocharged 4 Stroke inline 6 Cylinder FLAMEPROOF diesel engine package. Flame proofing of the system includes a “dry” exhaust conditioning system complete with exhaust and intake flame traps. The start system is pneumatic and the safety system is an intrinsically safe electronic monitoring system. The engine power output is connected to the constant 4 wheel drive system via a drive coupling through a four speed bi-directional power shift transmission to heavy duty axles.
• The FBL-10 utilises a dry exhaust system complete with a replaceable particulate filter, catalysed exhaust post treatment purifier and a exhaust outlet flame trap.

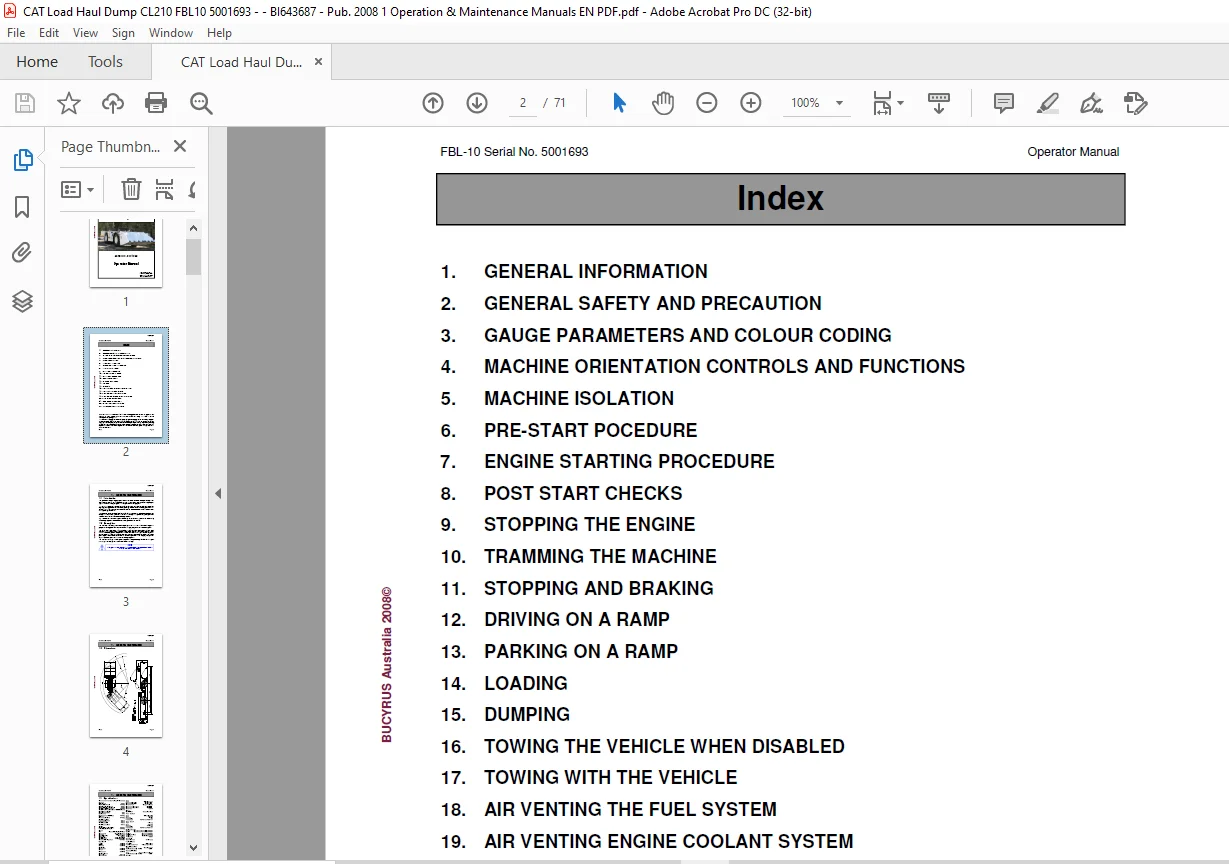

TABLE OF CONTENTS:

CAT FBL-10 LHD Utility Vehicle Operator Manual SN 5001693 – PDF DOWNLOAD

FBL-10 Operator Manual - Front Page.pdf................ 1
Section 1 General Information.......................... 3
Section 2 General Safety & Precautions................. 8
Section 3 Gauge Parameters & Colour Coding.............11
Section 4 Machine Orientation, Functions & Controls....14
Section 5 Machine Isolation............................30
Section 6 Pre-Start Procedure..........................37
Section 7 Engine Starting Procedure....................46
Section 8 Post Start Checks............................48
Section 9 Stopping the Engine..........................51
Section 10 Tramming the Machine........................52
Section 11 Stopping & Braking..........................53
Section 12 Driving on a Ramp...........................54
Section 13 Parking on a Ramp...........................55
Section 14 Loading.....................................56
Section 15 Dumping.....................................58
Section 16 Towing the Vehicle when Disabled............59
Section 17 Towing with the Vehicle.....................61
Section 18 Air Venting the Fuel System.................62
Section 19 Air Venting the Cooling System..............63
Section 20 Attaching Implements........................64
Section 21 Detaching Implements........................66
Section 22 Safety Shutdown System......................67
Section 23 Fluid Specification Table...................71
