DESCRIPTION:

CAT Roof Support 30MB3 Maintenance & Operation Manual – PDF DOWNLOAD

General

• The 30MB3 miner is a radio-controlled drum-type continuous miner with appropriate weight balance, cutting and loading power to enable the productive mining of coal and other soft mineral in seams ranging from 1,900mm up to 4, 000mm thick
• The machine is mounted on crawler tracks that provide full mobility and sharp turning radius in both bord and pillar and long wall development mining plans. The ranging cutting head mines material from the solid face using a chainless rotating drum, and a CLA-type gathering head with high speed conveyor efficiently moves mined material to a haulage system behind the miner.
• The machine’s weight and balance is designed to mine most efficiently by either sumping into the face at the top or bottom of the seam, and ripping material to the bottom or top of the seam.
• The above figure shows a general arrangement of major mechanical components. A full description of the various major sub-systems of the 30MB3 follows

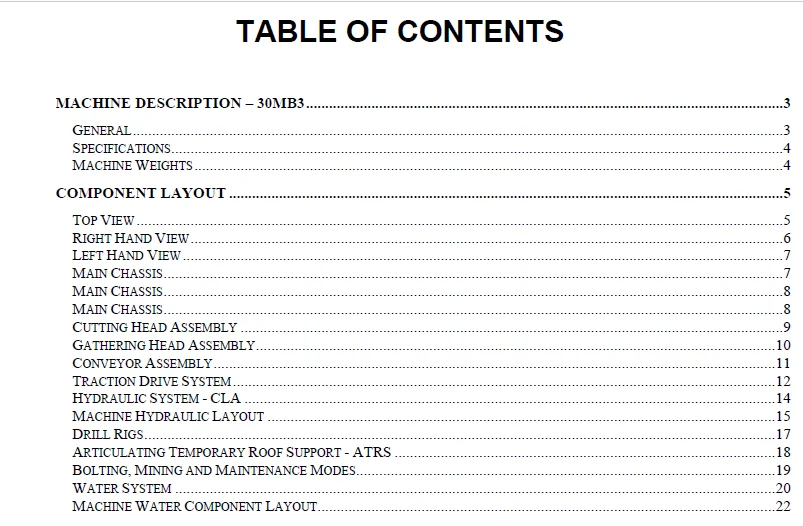

TABLE OF CONTENTS:

CAT Roof Support 30MB3 Maintenance & Operation Manual – PDF DOWNLOAD

MACHINE DESCRIPTION – 30MB33
GENERAL3
SPECIFICATIONS4
MACHINE WEIGHTS4
COMPONENT LAYOUT5
TOP VIEW 5
RIGHT HAND VIEW6
LEFT HAND VIEW7
MAIN CHASSIS7
MAIN CHASSIS8
MAIN CHASSIS8
CUTTING HEAD ASSEMBLY 9
GATHERING HEAD ASSEMBLY10
CONVEYOR ASSEMBLY11
TRACTION DRIVE SYSTEM12
HYDRAULIC SYSTEM – CLA 14

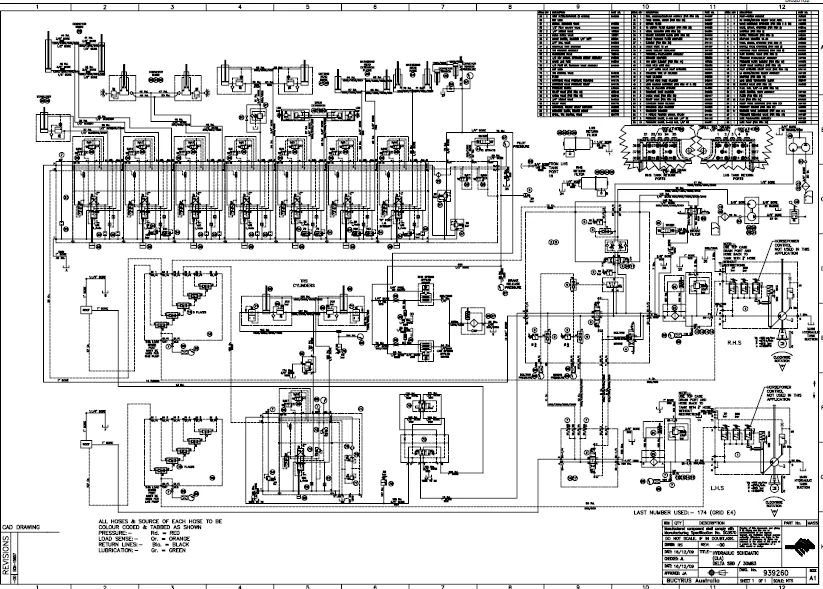

MACHINE HYDRAULIC LAYOUT 15
DRILL RIGS17
ARTICULATING TEMPORARY ROOF SUPPORT – ATRS 18
BOLTING,MINING AND MAINTENANCE MODES19
WATER SYSTEM 20
MACHINE WATER COMPONENT LAYOUT22

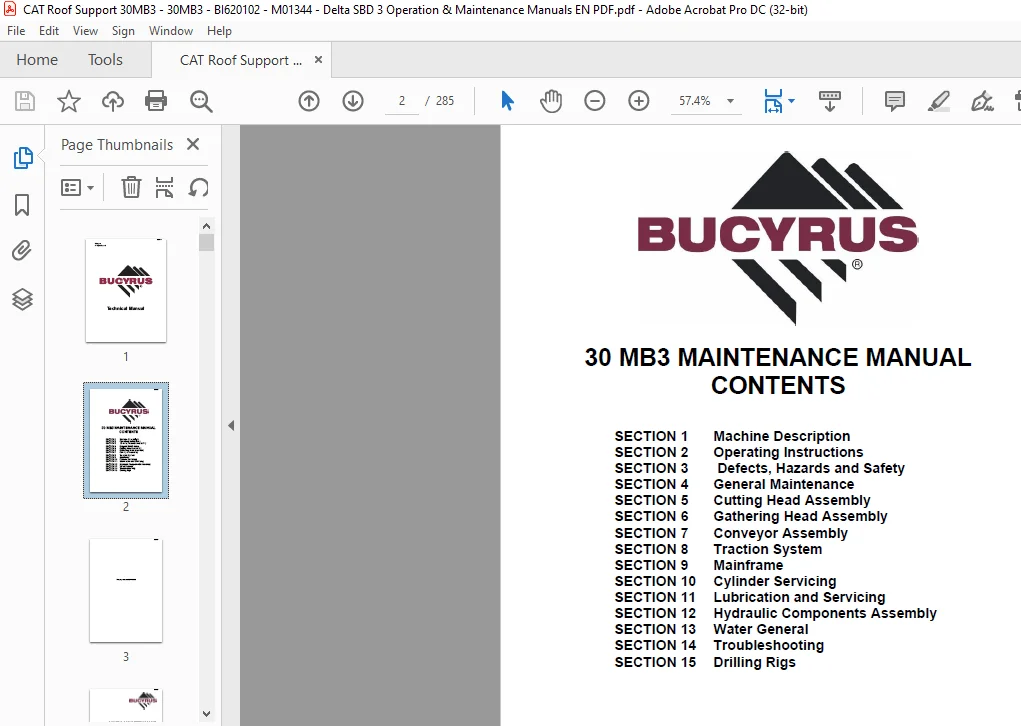

IMAGES PREVIEW OF THE MANUAL:
