CAT Roof Support Ashton Longwall Pump Station Operation & Maintenance Manual BI619134 – PDF DOWNLOAD

Description

CAT Roof Support Ashton Longwall Pump Station Operation & Maintenance Manual BI619134 – PDF DOWNLOAD

FILE DETAILS:

CAT Roof Support Ashton Longwall Pump Station Operation & Maintenance Manual BI619134 – PDF DOWNLOAD

Size: 9.35 MB
Format: PDF
Language: English
Number of Pages: 219 Pages
Part Number: BI619134

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

CAT Roof Support Ashton Longwall Pump Station Operation & Maintenance Manual BI619134 – PDF DOWNLOAD

INTRODUCTION:
1.1 GENERAL DESCRIPTION:

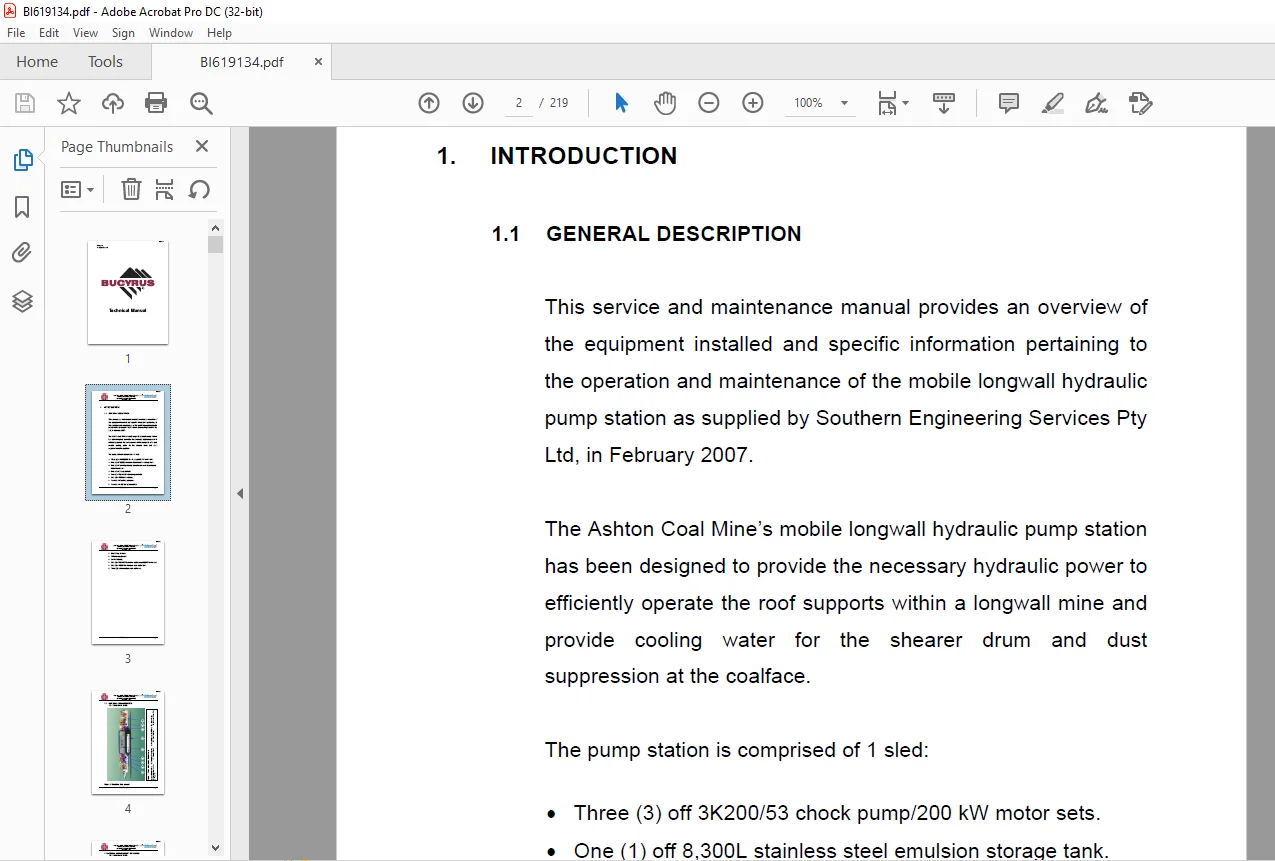

• This service and maintenance manual provides an overview of the equipment installed and specific information pertaining to the operation and maintenance of the mobile longwall hydraulic pump station as supplied by Southern Engineering Services Pty Ltd, in February 2007.
• The Ashton Coal Mine’s mobile longwall hydraulic pump station has been designed to provide the necessary hydraulic power to efficiently operate the roof supports within a longwall mine and provide cooling water for the shearer drum and dust suppression at the coalface.

The pump station is comprised of 1 sled:
• Three (3) off 3K200/53 chock pump/200 kW motor sets.
• One (1) off 8,300L stainless steel emulsion storage tank.
• One (1) off centrifugal pump emulsion pressure boost pump
/22 kW motor set
• One (1) off pump platform.
• Four (4) off protection bumper guard rails
• One (1) off 50 ton tow frame.
• Four (4) off levelling cylinders.
• Four (4) off 400 Bar accumulators

TABLE OF CONTENTS:

CAT Roof Support Ashton Longwall Pump Station Operation & Maintenance Manual BI619134 – PDF DOWNLOAD

1. INTRODUCTION

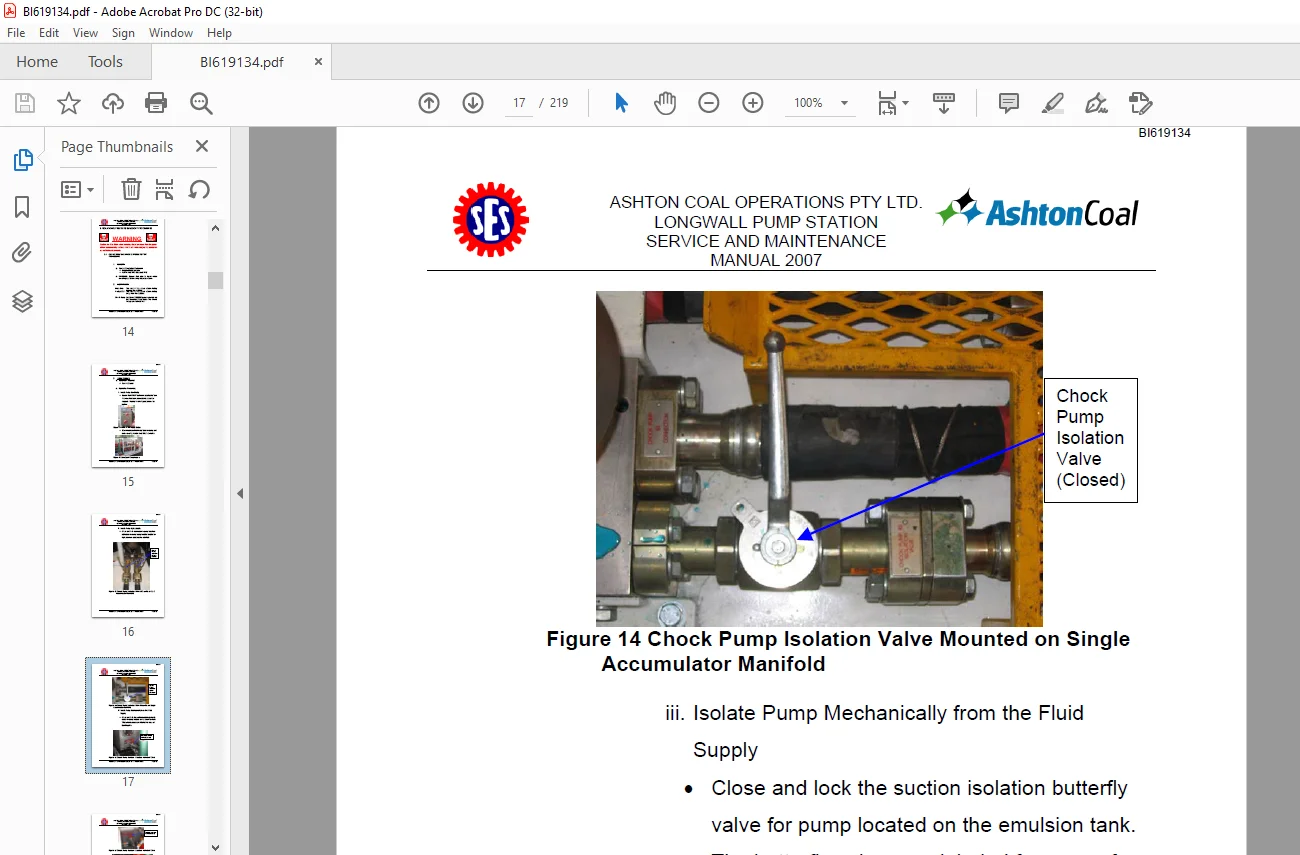

2. ISOLATION & PRESSURE BLEED OFF PROCEDURES

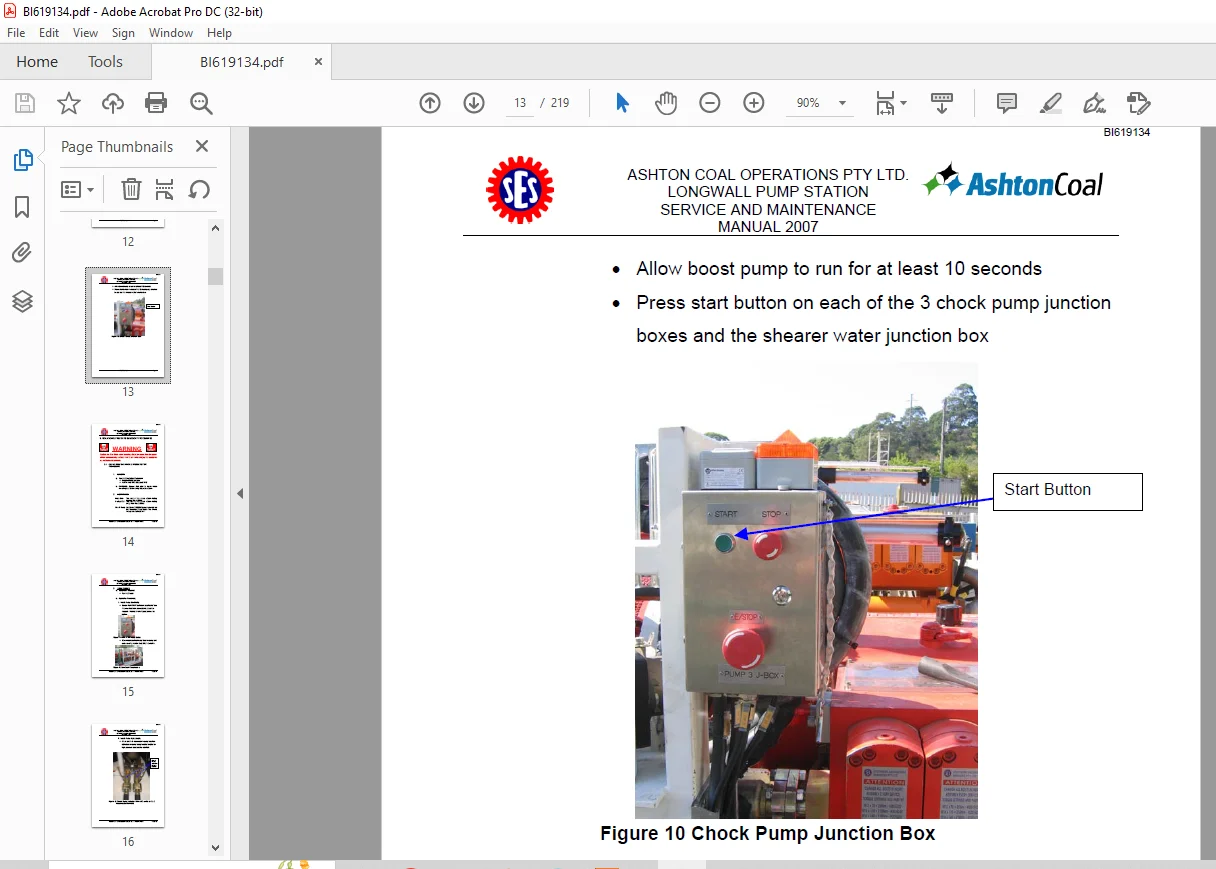

3. EMULSION CHOCK PUMP
4 EMULSION STORAGE TANK
5. EMULSION BOOST PUMP
6. PUMP STATION MONITORING SYSTEM
7. FILTRATION SYSTEM
8. Mineral Oil Control System
9. CRAWLER TRACKS ASSEMBLY
10. SHEARER WATER PUMP
11. MISCELLANEOUS ITEMS
12. INSPECTION REQUIREMENTS
