35B Rotary Blasthole Drill Controls and Indicators

NOTE: Actual Decals and Control Labels In the Operator Area may vary slightly from Illustrations. However, use and operation remain as described In the following pages.

1. Auxiliary Hydraulic Pressure Gauge: Indicates the operating pressure of the open loop (auxiliary) hydraulic system.

2. Rotary Hydraulic Pressure Gauge: Indicates the hydraulic pressure to the rotary drive.

3. Main Air Pressure Gauge: Indicates compressor discharge pressure.

4. Comp 011 Lamp: Lights when air compressor loses oil pressure.

5. Pulldown Hydraulic Pressure Gauge: Indicates hydraulic pressure to the pulldown motor.

6. Comp Air/Oil Temperature Gauge: Indicates compressor air/oil temperature. (Discharge Temperature)

7. On/Off Switch: Electrical switch that enables the starter, alternator, gauge, heater fan and lighting circuits.

8. Glow/Off/Start Switch: Three-position switch that controls power to the glow plugs and starter.

9. Voltmeter: Indicates charge status of the engine electrical system. 10. Temperature Gauge: Indicates temperature of engine coolant.

11. OIi Pressure Gauge: Indicates engine oil pressure.

12. Heater Fan Switch: Controls cab heater fan.

13. Auxlllary Lights Switch: Controls auxiliary (running) lights.

14. Drlll Lights: Controls the headlights and mast lights used when drilling at night.

15. Mast Control: Controls the jacks that raise and lower the mast.

16. Left Rear Jack Control: Used to extend and retract left rear jack.

17. Front Jacks Control: Used to extend and retract front jacks.

18. Right Rear Jack Control: Used to extend and retract right rear jack.

19. Dust Collector Blower/Water Injection Pump Control: Engages dust collector blower in one position, water injection pump in other position, depending upon which type dust suppression is preferred.

20. Winch Control: Controls operation of the winch. CONTROLS ( ( i I ( BI615890 () OPERATOR AREA-

21. Deck Wrench Control: Controls the deck wrench used during breakout to clamp the drill pipe (prevent it from turning).

22. Breakout (Out/In) Control: Used to position the breakout wrench for use (Swing Cylinder).

23. Breakout (Release/Engage) Control: Controls operation of the breakout wrench (Clamp & Rotate Cylinders).

24. Pipe Rack Control: Used to position the pipe rack to set or remove a piece of pipe (Swing cylinder).

25. Center Gulde Control: Positions or retracts the center guide.

26. Engine Throttle: Controls engine speed. Stops engine when in full rearward position.

27. Tram/Drill Selector: Determines the operating mode of Items 30 and 31 to tram or drill. When in center position, all brakes (tram & pulldown) are locked.

28. Bit Air Control: Linear control that controls the on/off position of main air valve.

29. Pulldown Adj. Control: Regulates the amount of hydraulic pressure available for pulldown.

30. Left Track/Rotation Control: Controls operation of the left track when the rig is operated in the tram mode and rotation of the drill pipe in the drill mode. Pushing the control forward causes the left track to advance or the drill pipe to turn counterclockwise. Pulling the control toward the operator has the opposite result. Drill pipe rotation speed or track speed is determined by the amount the control is moved.

31. Pulldown/Rlght Track Control: Controls operation of the right track when the rig is operated in the tram mode and operation of the pulldown in the drill mode. Pushing the control forward causes the right track to advance or the pulldown to raise. Pulling the control toward the operator has the opposite result. Speed of the operation is determined by the amount the control is moved.

32. Breakout Reverse Control: Reverses the direction of rotation of the breakout wrench (Item 23).

33. Level: Two-way level that permits leveling the rig without leaving the cab to check the mast.

34. Mast Base Lock: Used to secure the mast in the up position.

35. Pipe Posltloner: Controls operation of pipe positioner used to support lower portion of pipe while changing or adding pipe in angle drilling.

36. Pipe Rack Rotate: Controls rotation of carousel pipe rack to align top drive with any pipe in the carousel.

37. Pipe Rack Index Pin: Operates pin used to index and lock carousel pipe rack into position for loading or unloading of drill pipe. CONTROLS 3-3 BI615890 3-4 OPERATOR-AREA

38. Dust Collector Timer On/Off: Controls electric pulse timer for dust collector should be on when dust collector is running, should be off when collector not in use.

39. Diesel Engine Tachometer: (Optional) Displays engine speed in revolutions/minute.

40. Water Injection Flow Control: Regulates amount of water injected into air stream for dust control. Turning clockwise increases water flow, turning counter-clockwise decreases water flow

. 41. Heater Water Valve: Controls flow of hot water through cab heater coils.

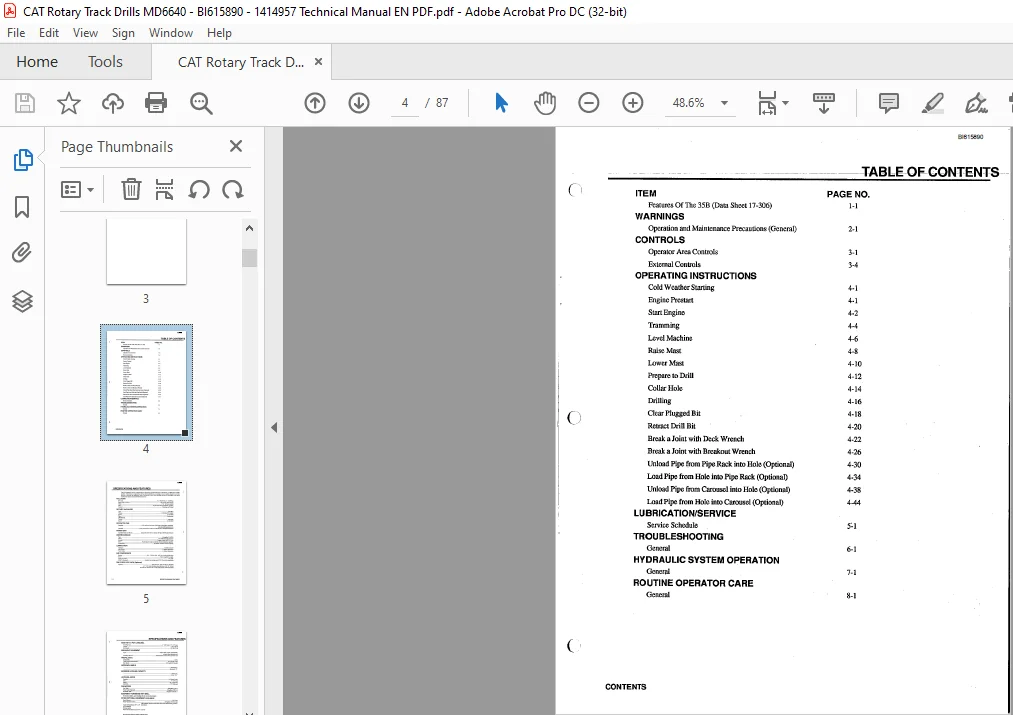

TABLE OF CONTENTS:

Cat Rotary Track Drill 358 ROTARY BLABTHDLE DRILL OPERATOR MANUAL – PDF DOWNLOAD

ITEM
Features Of The 35B (Data Sheet 17-306)
WARNINGS
Operation and Maintenance Precautions (General)
CONTROLS
Operator Area Controls
External Controls
OPERATING INSTRUCTIONS
Cold Weather Starting
Engine Prestart
Start Engine
Tramming
Level Machine
Raise Mast
Lower Mast
Prepare to Drill
Collar Hole
Drilling
Clear Plugged Bit
Retract Drill Bit
Break a Joint with Deck Wrench
Break a Joint with Breakout Wrench
Unload Pipe from Pipe Rack into Hole (Optional)
Load Pipe from Hole into Pipe Rack (Optional)
Unload Pipe from Carousel into Hole (Optional)
Load Pipe from Hole into Carousel (Optional)
LUBRICATION/SERVICE
Service Schedule
TROUBLESHOOTING
General
HYDRAULIC SYSTEM OPERATION
Gener;tl
ROUTINE OPERATOR CARE
S~ECIFICATIONS-AND-f=EATURES
The 35B Blasthole Drill is recommended for operating with bit load force of 35,000 lbs (15,890 kg) in a stable
position It has factory-set protection devices to limit pulldown accordingly Do not readjust, bypass or override
devices to increase the pulldown limits Periodically check these limiting devices in accordance with good
maintenance practice and published ins1fuctions
PULLDOWN
BitLoad O to 35,000 lbs (0- 15,890kg)
Speed (Up or Down) 133 F P M (40 5 m/min)
Chain ! 3/4″ (45 mm) (pitch)
Drive Hydrostatic through planetary gearbox
Control Feed rate or bit load
ROTARY MACHINERY
Type Top drive
Torque 4145 ft/lb (573 m/kPa)
Speed 0-135 RPM
Drive Hydrostatic
OPTIONAL
Torque 2850 ft/lb
Speed 0-194 RPM
OPERATOR CAB
Standard Fully-enclosed one-man with heater, tinted glass, insulation
and adjustable operators seat
Optional Fully-enclosed two-man cab with the above standard equipment
POWER UNIT
Standard Make and Model Caterpillar 3306 DITA rated@ 300 hp (216kW)@ 2100 rpm
UNDERCARRIAGE
Type Caterpillar 215 (D4)
Shoes 20″ (508mm) triple grousers
Overall Length oftrack-162″ (4 11 m)
Drive Hydrostatic through completely enclosed planetary gearbox
Adjustment Hydraulic Adjuster and recoil spring
LUBRICATION
Planetary Totally enclosed
Idler Wheel Lifetime lubrication
Track Roller Lifetime lubrication
AIR COMPRESSOR
Rating 550 – 770 cfm (260 – 363 L/s) at 100 psi (689 kPa)
Drive Direct coupled to engine
Intake Air Filter Dry type
MAST (Standard) Suitable for drilling up to 32 8′ (10 m) hole single pass
ONE PIECE PIPE RACK (Optional)
Capacity One piece 25′ pipe rack for 4″ (102 mm)
or 5″ (127 mm) drill pipe, plus one piece of 32′ 10″ (10 m)
for total hole depth fo 58′ (17 68 m)(Hydraulic Winch Standar(j)
SPECIFICATIONS & FEATURESSPECIFIGATIONS-AND-FEA”‘ll lRES
MAST WITH 5 POT CAROUSEL
Drill Pipe Size 4″ (102 mm) or 5″ (127 mm)
Length 25′ (7 62 m)
Hole depth 150′ (45 72 m)
BREAKOUT EQUIPMENT
Type impact deck wrench, hydraulically
actuated from operators cab
Auxiliary Wrench Hydraulically actuated from operators cab
PROPEL DATA
Gradeability 36 8%
Track Unit Ground Pressure 12 5 psi (86 1 kPa)
Max Speed 2 12 mph (3 22 km/hr)
APPROACH ANGLE
Forward 15 °
Rearward 22°
MAXIMUM LEVELING CAPACITY
Front 7 4°
Rear 12 5°
LEVELING JACKS
Quantity 4 (2 front, 2 rear)
Size 5″ (127 mm)
Stroke , 45″ (1143 mm)
Jack Pads 20″ (508 mm)
CAPACITIES
Fuel Tank 200 gallon (757 L)
W11ter Tank (Optional) 100 gallon (378 5 L)
Hydraulic Tank 150 gallon (567 81 L)
EQUIPMENT FURNISHED WITH DRILL
Bit breakout basket, guide bushing, bit sub and top head adapter
OTHER OPTIONAL EQUIPMENT AVAILABLE
Dust Collector Dry Type
Water Injection System 100 gallon (378 SL) tank
with hydraulic powered John Bean water pump and metering controls
Angle drill attachment 30° in 5° increments
Air conditioner
Drilling Lights
Wide Crawler stance up to 10’ 4″ (3 15 m)
Specifications subject to change without notice

CAT ROTARY TRACK DRILL 358 ROTARY BLABTHDLE DRILL OPERATOR MANUAL – PDF DOWNLOAD:

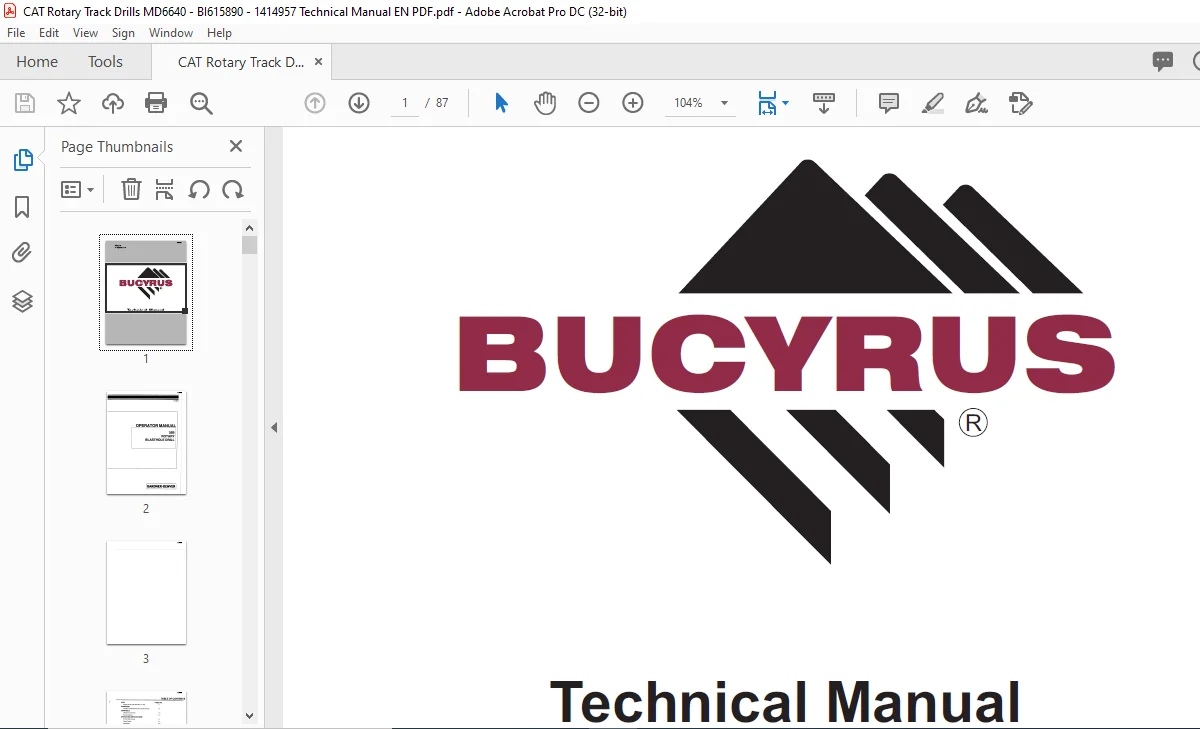

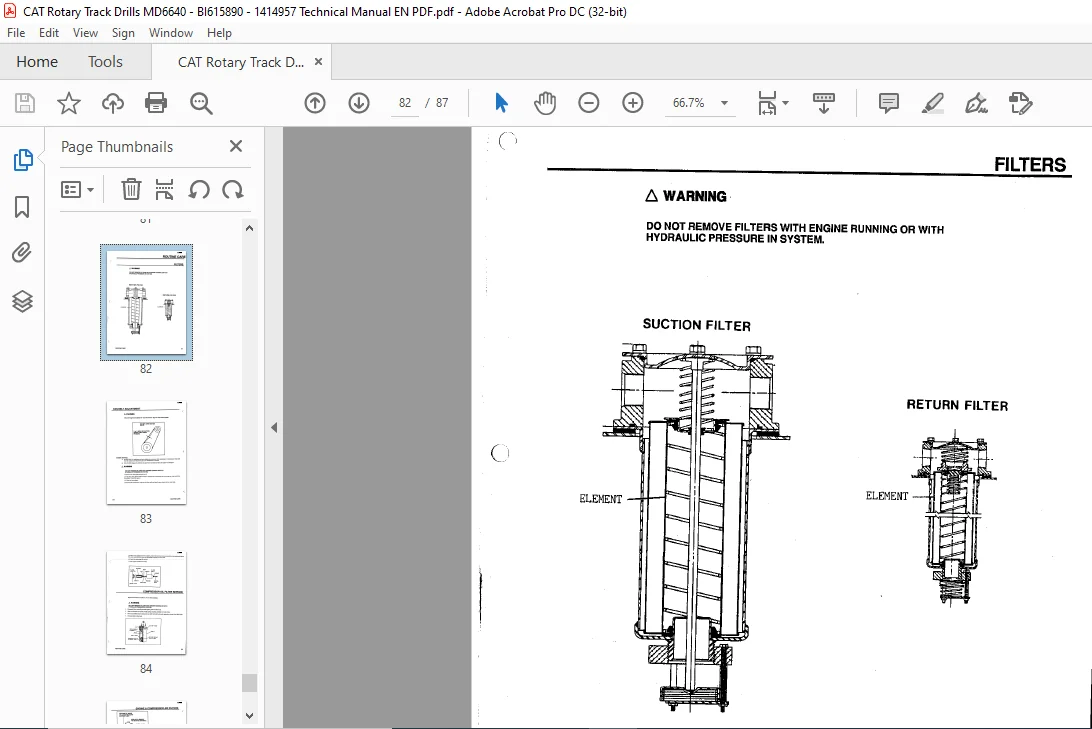

IMAGES PREVIEW OF THE MANUAL:
