Cat Rotary Track Drill QXR Generation five Parts Book Manual – PDF DOWNLOAD

Description

Cat Rotary Track Drill QXR Generation five Parts Book Manual – PDF DOWNLOAD

FILE DETAILS:

Cat Rotary Track Drill QXR Generation five Parts Book Manual – PDF DOWNLOAD

Language : English
Pages : 346
Downloadable : Yes
File Type : PDF

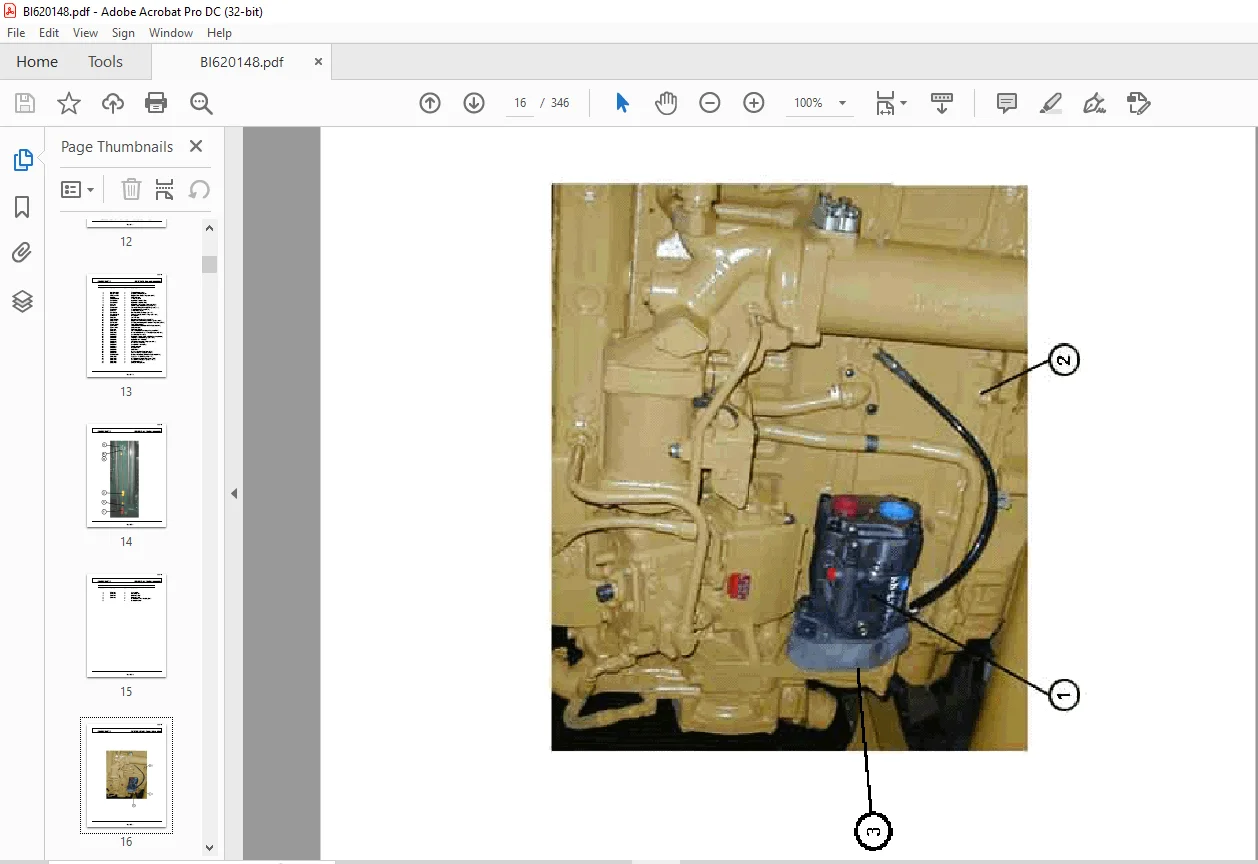

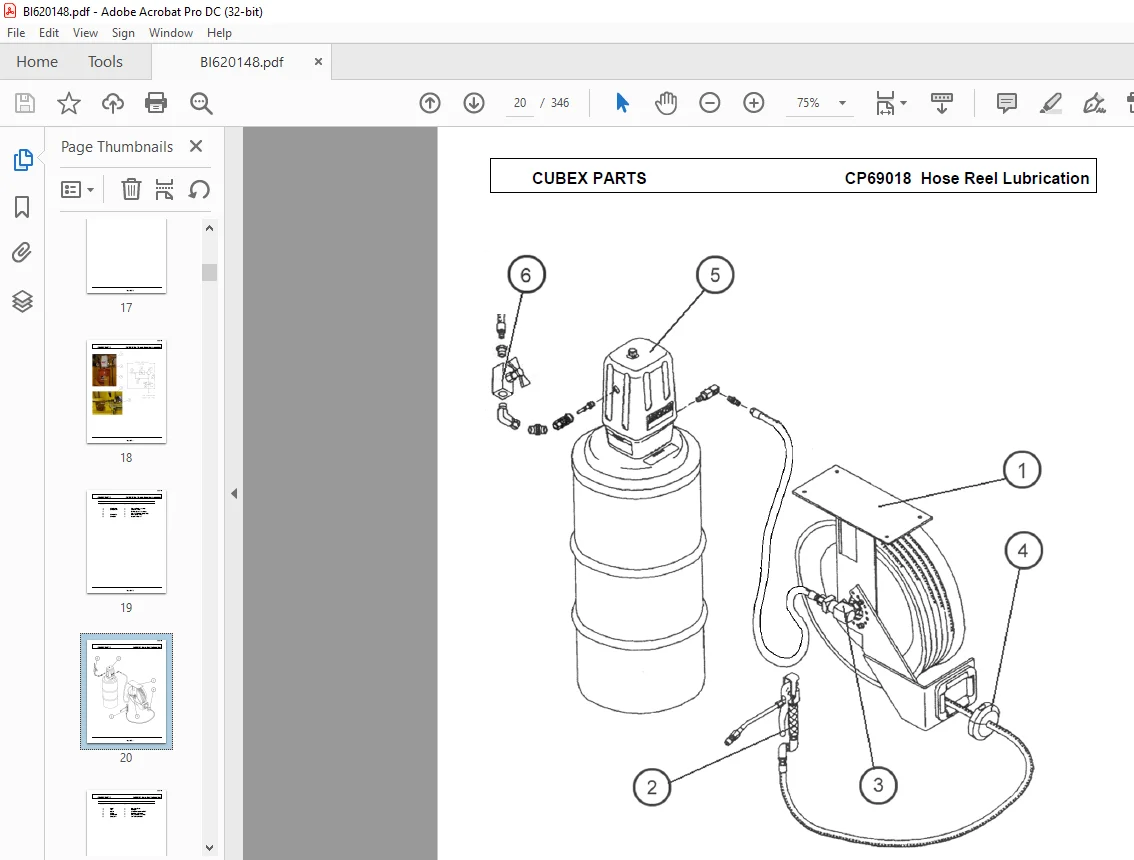

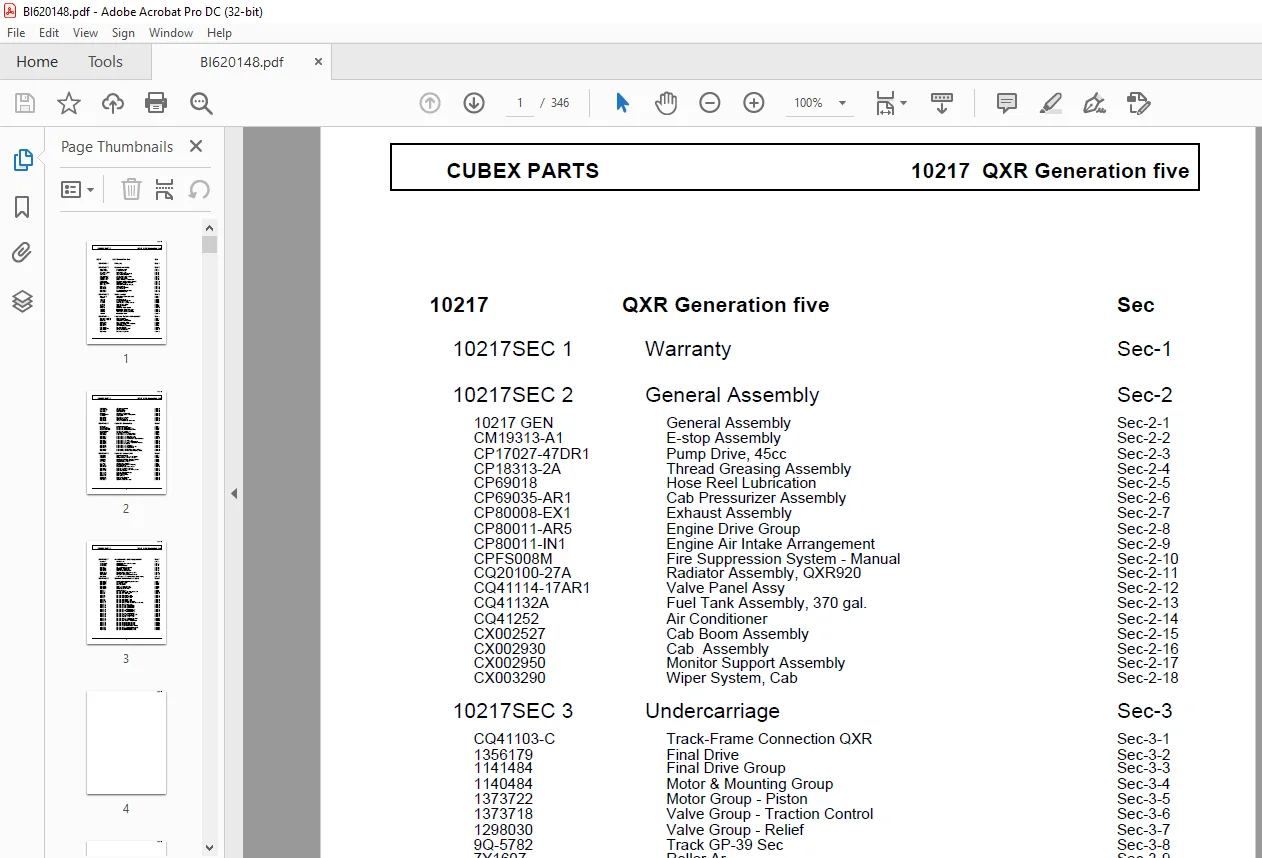

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Cat Rotary Track Drill QXR Generation five Parts Book Manual – PDF DOWNLOAD

Parts book for QXR Generation five 1
TABLE OF CONTENTS 1
10217 QXR Generation five 6
10217 QXR Generation five 7
10217SEC 1 Warranty 8
10217SEC 1 Warranty 9
10217SEC 2 General Assembly 10
10217SEC 2 General Assembly 11
10217 GEN General Assembly 12
CM19313-A1 E-stop Assembly 14
CP17027-47DR1 Pump Drive, 45cc 16
CP18313-2A Thread Greasing Assembly 18
CP69018 Hose Reel Lubrication 20
CP69035-AR1 Cab Pressurizer Assembly 22
CP80008-EX1 Exhaust Assembly 24
CP80011-AR5 Engine Drive Group 26
CP80011-IN1 Engine Air Intake Arrangement 28
CPFS008M Fire Suppression System – Manual 30
CQ20100-27A Radiator Assembly, QXR920 34
CQ41114-17AR1 Valve Panel Assy 36
CQ41132A Fuel Tank Assembly, 370 gal 38
CQ41252 Air Conditioner 40
CX002527 Cab Boom Assembly 44
CX002930 Cab Assembly 46
CX002950 Monitor Support Assembly 48
CX003290 Wiper System, Cab 50
10217SEC 3 Undercarriage 52
CQ41103-C Track-Frame Connection QXR 54
1356179 Final Drive 56
1141484 Final Drive Group 58
1140484 Motor & Mounting Group 60
1373722 Motor Group – Piston 62
1373718 Valve Group – Traction Control 66
1298030 Valve Group – Relief 68
9Q-5782 Track GP-39 Sec 70
7Y1607 Roller Ar 72
8E-5600 Roller Gp – Track Carrier 74
1156420 Idler Group – Front Right Hand 76
1156421 Idler Group – Front Left Hand 78
1156422 Track Adjuster & Recoil Group 80
1132907 Idler Group – Front 82
10217SEC 4 Feed and Rotation Components 84
10217SEC 4 Feed and Rotation Components 85
CX002531 (1OF2) Boom Assembly 86
CX002531 (2OF2) Boom Pin installation 88
CQ66403 Top Drive Mounting Plate 92
CQ66402-1 Head Assembly, Mast 94
CX000450 Mast Connection Plate Assembly 96
CX003580 Top Drive – TJBO 98
CX002717 Air swivel single passage 100
CP41029-2 Breakout Wrench 102
CP41029-200C Chain Assembly 11 Link 104
CX004345 Carousel Assembly 106
CX004080 Diverter arrangement 112
CM65106A Jib Boom Assembly 114
CP65004-SK Winch Seal Kit 116
CP17014-6 Hydraulic Motor 118
CX002906 Mast Assembly 120
CQ66107 Carrier Block Assembly 122
CP19900-AR2 Cable Chain Guide Arrangement 124
CP19900 Cable Chain 126
CX001934 Triple jaw breakout 128
CX004070 Mast Foot Assembly 132
CX005016 Jaw Assembly Arced – DIA 4 00 134
10217SEC 5 Hydraulic Schematics 136
HS-10217 Hydraulic Schematic 138
HS-CP000457 Hyd Schem, Drilling Valve 142
HS-CP47505-101 Hyd Schem, Feed/Tram Valve 144
HS-CP47505-102 Hyd Schem, Rotation/Tram Valve 146
HS-CX002540 Hyd Schem, Setup Valve 148
CQ92005-3 JIC Drill Setup Hosing 150
CX007200 QXR Housing – JIC Radiator Hyd 152
CX007202 QXR hosing – JIC hydraulic oil fill 154
CX007203 QXR hosing – JIC tramming HYD 156
CX007204 QXR hosing – JIC Tramming HYD 158
CX007207 QXR hosing – JIC mast to mast boom bulkhead 160
CX007237 QXR hosing – JIC drill to cab 162
CX007238 QXR hosing – JIC valve control panel 164
CX007239 QXR hosing – JIC drill to mast boom bulkhead 166
CX007240 QXR hosing – Carousel 168
CX007521 QXR hosing – JIC Top Drive 170
CX007522 QXR hosing – JIC Mast Bulk To Ma 172
CX007523 QXR hosing – JIC Cable Chain 174
CX007646 QXR Hosing – JIC Fuel Line, Cat C15 Eng 176
CX007914 QXR Hosing – JIC Mast Setup Hosing, TJBO 178
10217SEC 6 Hydraulic Components 180
CM47050 Centralizer Cylinder 182
CM77603 Feed Ext Cyl, 5″ Bore, 47 16″ Stroke 184
CM78809 Clamp Cylinder, 2 75 ID 2 9 Stroke 186
CM78810 Clamp Arm Cylinder 2 5 ID 6 12 Stroke 188
CM78811 Arm Cylinder, 2 5 ID 4 5 Stroke 190
CP17218 Hydraulic Return Filter 192
CP17417 Oil Fill Pump – Manual 194
CQ41109 Hydraulic Cylinder-Cab Tilt/Swing 196
CX001596 Divertor Cylinder 198
CX001670 Hydraulic pressure filter, ARGO 200
CX002450 Cylinder – 2 50DIA x 5 31 ST 202
CX002549 Cylinder, 5 00DIA x 3 08 stroke, TJBO 204
CX041116 Cylinder Oscillation 206
CX041118 Cylinder, QXR Mast Dump 208
CX041120 Boom Lift Cylinder 210
CX047435 Mast Swing Cylinder 212
CX071313 Feed Cylinder 214
CX072533 Boom Swing Cylinder 216
CX077006 Cylinder, Breakout 218
CP000037 TJBO manifold valve assy 220
10217SEC 7 Air schematics and Componenets 222
10217SEC 7 Air schematics and Componenets 223
AS-10217 Air Schematic 224
CP18322-1A Water Pump And Drive Assembly 230
CP18322-1 Water Pump 232
CP18322-2 Water Pump Motor 236
CX000211 Grease Injection Assembly 238
CX000544 Regulator, 100-400 PSI 240
CX000545 Regulator, 200-600 PSI 242
CX000622 Air Controls Arrangement 244
CQ92014-6 Receiver Sump Tank Hosing, QXR 246
CQ92015-2 Air Accessories Hosing 248
CX000245 Fitting Kit – SST, Air Comp Controls 250
CX007201 QXR hosing – JIC manual grease pump hosing 252
10217SEC 8 Electical schematics and parts 254
10217SEC 8 Electical schematics and parts 255
EGA 10217 Electrical General Arrangement 10217 256
CX002835 Cab Control Panel 258
CX002836 Cab Junction Box 262
CX002837 Pendant Station 264
CX002838 Mast Valve Junction Box 266
CX002839 Mast Sensor Junction Box 268
CX002840 Remote Control Panel 270
10217S1 Electrical Legend 274
10217S2 Ele Sch Battery and aulixiary heater 276
10217S3 Ele Sch cab control panel 278
10217S4 Ele Sch Cab work light 280
10217S5 Ele Sch cab control panel 282
10217S6 Ele Sch Cab control panel 284
10217S7 Ele Sch cab control panel 286
10217S8 Ele Sch cab control panel 288
10217S9 Ele Sch cab control panel 290
10217S10 Ele Sch Cab display and PGM 292
10217S11 Ele Sch Emerg Stop – Remote Control Panel 294
10217S12 Ele Sch Engine connection 296
10217S13 Ele Sch Remote control panel 298
10217S14 Ele Sch Remote control panel 300
10217S15 Ele Sch Remote control panel 302
10217S16 Ele sch RCP – PWM filter board 304
10217S17 Ele Sch Remote control panel 306
10217S18 Ele sch RCP – PWM filter board 308
10217S19 Ele Sch Remote control panel 310
10217S20 Ele Sch Setup Valve Control – RCP 312
10217S21 Ele Sch Remote control panel 314
10217S22 Ele Sch Chasee valves – RCP 316
10217S23 Ele Sch Pressure Transducer – RCP 318
10217S24 Ele Sch Remote control panel 320
10217S25 Ele Sch RCP to mast interconnect 322
10217S26 Ele Sch Mast valve junction box 324
10217S27 Ele Sch Mast valve junction box 326
10217S28 Ele Sch Mast valve junction box 328
10217S29 Ele Sch Carousel Functions – MVJB 330
10217S30 Ele Sch MVJB to MSJB interconnect 332
10217S31 Ele Sch Mast sensor junction box 334
10217S32 Ele Sch Mast sensor junction box 336
NUMERICAL INDEX 339
