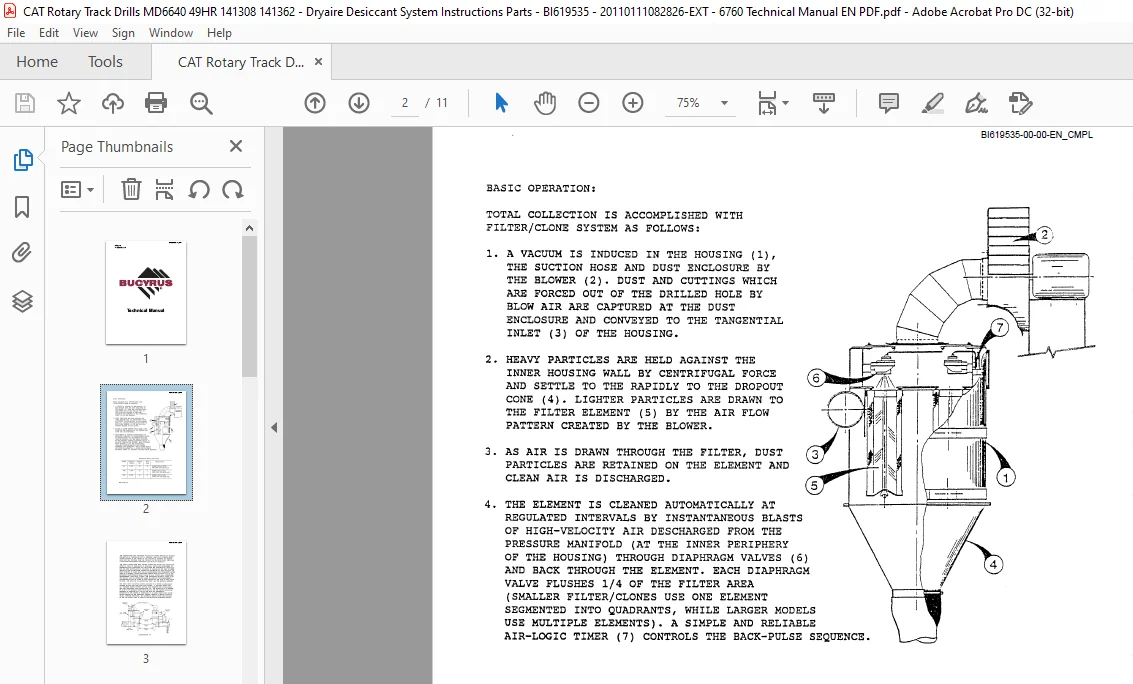

BASIC OPERATION:

TOTAL COLLECTION IS ACCOMPLISHED WITH FILTER/CLONE SYSTEM AS FOLLOWS:

1.  A VACUUM IS INDUCED IN THE HOUSING (1), THE SUCTION HOSE AND DUST ENCLOSURE BY THE BLOWER (2). DUST AND CUTTINGS WHICH ARE FORCED OUT OF THE DRILLED HOLE BY BLOW AIR ARE CAPTURED AT THE DUST ENCLOSURE AND CONVEYED TO THE TANGENTIAL INLET (3) OF THE HOUSING.
2.  HEAVY P~.RTICLES ARE HELD AGAINST THE INNER HOUSING WALL BY CENTRIFUGAL FORCE AND SETTLE TO THE RAPIDLY TO THE DROPOUT CONE (4). LIGHTER PARTICLES ARE DRAWN TO THE FILTER ELEMENT (5) BY THE AIR FLOW PATTERN CREATED BY THE BLOWER.
3. AS AIR IS DRAWN THROUGH THE FILTER, DUST PARTICLES ARE RETAINED ON THE ELEMENT AND CLEAN AIR IS DISCHARGED.
4. THE ELEMENT IS CLEANED AUTOMATICALLY AT REGULATED INTERVALS BY INSTANTANEOUS BLASTS OF HIGH-VELOCITY AIR DESCHARGED FROM THE PRESSURE MANIFOLD (AT THE INNER PERIPHERY OF THE HOUSING) THROUGH DIAPHRAGM VALVES (6) AND BACK THROUGH THE ELEMENT. EACH DIAPHRAGM VALVE FLUSHES 1/4 OF THE FILTER AREA (SMALLER FILTER/CLONES USE ONE ELEMENT SEGMENTED INTO QUADRANTS, WHILE LARGER MODELS I   USE MULTIPLE ELEMENTS). A SIMPLE AND RELIABLE AIR-LOGIC TIMER (7) CONTROLS THE BACK-PULSE SEQUENCE. TIPTON

FILE DETAILS:

CAT Rotary Track Drills MD6640 49HR Dryaire Desiccant System Instructions Parts Technical Manual – PDF DOWNLOAD

Language : English
Pages :11
Downloadable : Yes
File Type : PDF
Size:1.00 MB

CAT ROTARY TRACK DRILLS MD6640 49HR DRYAIRE DESICCANT SYSTEM INSTRUCTIONS PARTS TECHNICAL MANUAL – PDF:

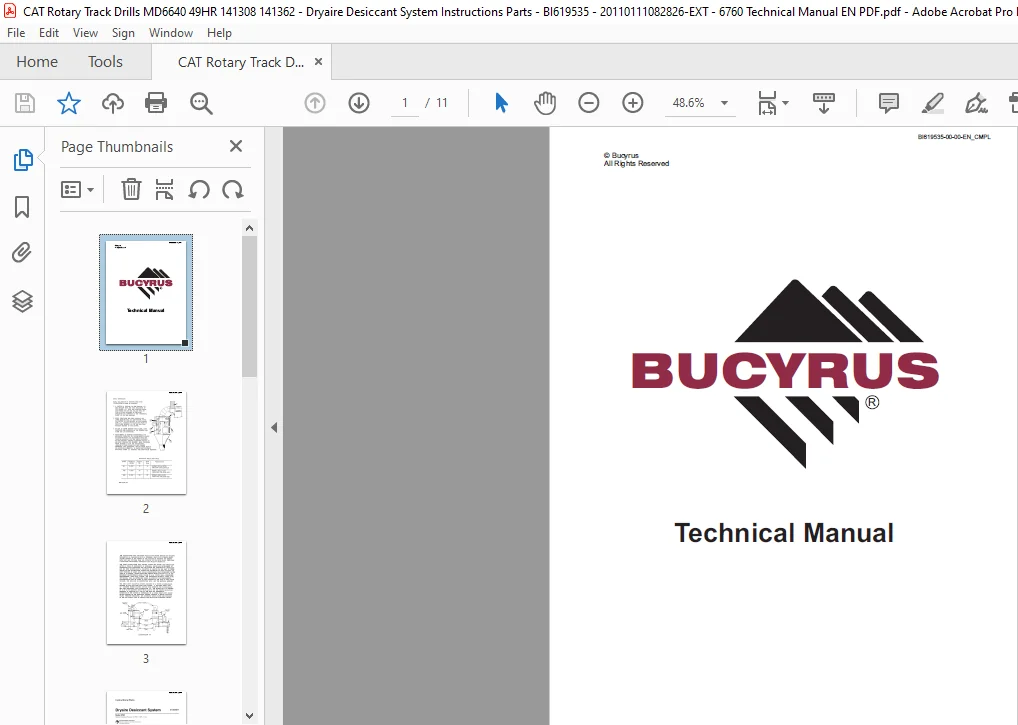

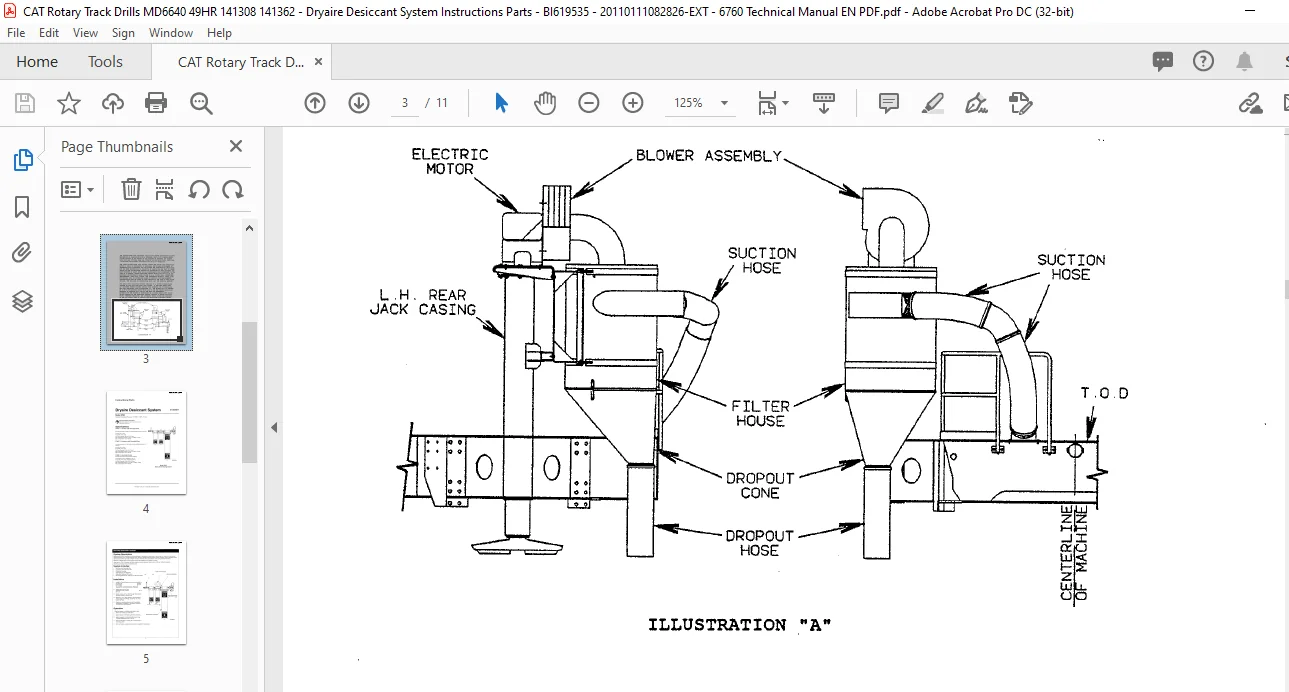

IMAGES PREVIEW OF THE MANUAL:
