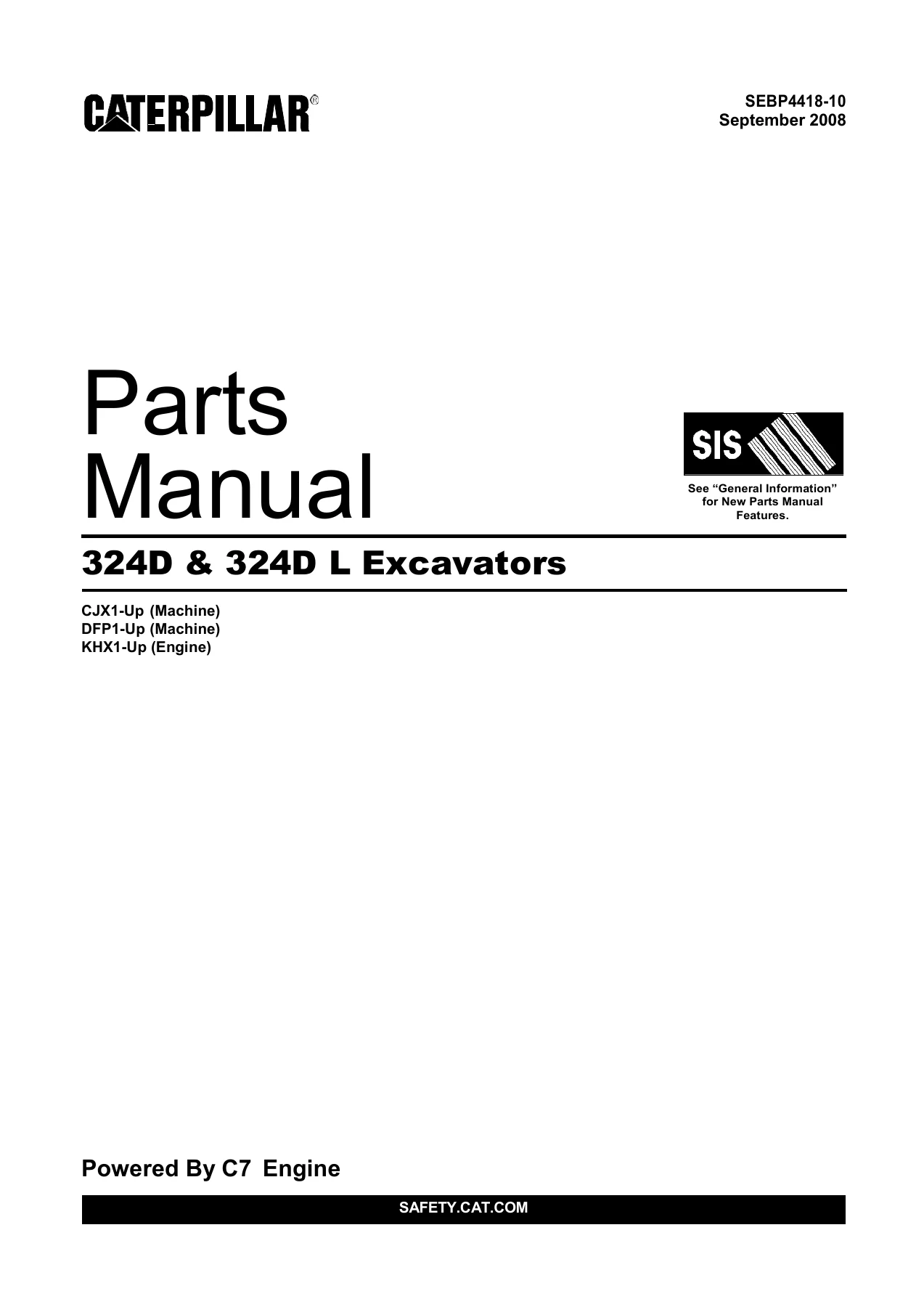

Caterpillar 324D & 324D L Excavators Parts Manual – SEBP4418-10

This is the complete Caterpillar parts manual for the 324D and 324D L Excavators, published under document number SEBP4418-10 in September 2008. The manual provides a full parts breakdown for every major assembly and system on these machines, with exploded-view illustrations, reference numbers, part numbers, descriptions, and quantities for each component. Whether you are ordering a replacement part, identifying a component, or rebuilding an assembly, this Caterpillar 324D parts manual gives you the exact information you need.

File Details

• Manual Type: Parts Manual
• Brand: Caterpillar
• Models Covered: 324D & 324D L Excavators
• Serial Numbers: CJX1-Up, DFP1-Up
• Document Number: SEBP4418-10
• Publication Date: September 2008
• Language: English
• File Format: PDF
• Page Count: 1675 pages

IMAGES PREVIEW

Chapters Covered

• General Information – Machine identification using Product Identification Numbers (PIN), ordering parts, parts manual organization, table of contents, maintenance parts index, index, part number index, captions, non-serviced parts, parts list reference numbers, indented part names, illustration reference letters, abbreviations and symbols
• Chassis AR – Complete chassis arrangement for 324D and 324D L Excavators
• Conversion AR-Machine – Machine conversion arrangements including AccuGrade Ready
• General AR – General arrangements for 240-3961 and 240-3962
• Special AR – Special arrangements for China market and track shoe configurations
• Engine AR, Engine AR-Complete, Engine AR-Core – Complete engine arrangements and core engine assemblies
• Installation AR-Engine – Engine installation components and mounting
• Basic Engine – Belt tensioner, bracket, camshaft, carrier seal, cover groups, crankshaft, cylinder block, cylinder head, damper and pulley, fan drive, fasteners, flywheel, front gear, front housing, flywheel housing, lifter valve, lifting, mounting, oil pan, piston and rod, plugs, pulley, rocker arm, crankshaft seal, valve mechanism
• Lubrication System – Oil line adapter, breather, engine oil filter, fumes disposal, oil level gauge (dipstick), engine oil lines, engine oil drain lines, turbocharger oil lines, mounting lines, engine oil pump
• Cooling System – Engine oil cooler, high ambient temperature cooling, suction fan, water lines, water pump, radiator and hydraulic oil cooler
• Air Inlet and Exhaust System – Air cleaner arrangements, air cleaner, air inlet cover, air inlet elbow, air lines, muffler drain lines, exhaust manifold, muffler, turbocharger
• Fuel System – Water separator and fuel filter, fuel injector, fuel lines, injector hydraulic pump lines, refueling pump and motor, unit injector hydraulic pump, fuel transfer pump, fuel injection pump, fuel priming pump, fuel priming and filter, fuel priming and water separator, refueling pump, fuel pressure regulator, fuel tank and mounting, fuel tank, fuel bypass valve, fuel shutoff valve
• Electrical and Starting System – Alarm, travel alarm, alternator, battery and wiring, cold weather battery and wiring, junction block, camera and mounting, camera and wiring, camera, communication control and mounting, engine electronic control, machine control, unprogrammed control, electronics communication, electronics machine, electronics monitor, wiring harness fasteners, grade control satellite, communication installation, security installation, bracket kit, flood lamps, chassis lighting, flood lighting, grade control mounting, circuit breaker panel and mounting, circuit breaker panel, switch panel, connector plug, satellite receiver, grade sensor, engine sensor, pressure sensor, speed sensor, temperature sensor, starting aid, ether starting aid, cold weather starting, electric starting motor, disconnect switch, magnetic switch, position switch, pressure switch, push button switch, refueling switch, rotary switch, start switch, toggle switch, wiper switch, ether starting valve, auxiliary start receptacle wiring, boom float wiring, cab wiring, camera wiring, chassis wiring, combined flow wiring, communication wiring, console wiring, converter wiring, engine wiring, fan wiring, fine swing wiring, fuel system wiring, grade control wiring, hammer wiring, platform wiring, quick coupler wiring, coupler wiring
• Power Train – Final drive, final drive without motor, power train arrangement, sprocket
• Frame and Body – Storage box and mounting, storage box, bumper, counterweight and mounting, counterweight, sound suppression covers, access doors, fender and cover, upper frame, swing gear and bearing, bottom guard, swivel guard, handrail, hood and guard, hood, engine hood, sound suppression sheets, steps, vandalism guard storage, enclosure support
• Undercarriage – Hydraulic track adjustment, undercarriage frame, track guide guard, travel motor guard, front idler and bearing, front idler, track links, track and carrier rollers, track carrier roller, single flange track roller, track adjuster and recoil, track arrangements, track groups
• Hydraulic System – Accumulator, pump actuator, oil filter base, auxiliary control, coupler control, pump coupling, boom cylinder and lines, bucket cylinder and lines, stick cylinder and lines, boom cylinder and seal, bucket cylinder and seal, stick cylinder and seal, hydraulic cylinder, bucket cylinder, stick cylinder, swing drive, swing and final drive fasteners, pilot filter and valve, hydraulic filter, oil filter, hydraulic fitting, sight gauge, cylinder guard, hydraulic hose, hydraulic arrangement, auxiliary hydraulic lines, boom lines, boom cylinder lines, boom drain lines, bucket cylinder lines, control lines, coupler lines, front lines, hydraulic oil cooler lines, pilot lines, pump lines, return lines, stick lines, stick cylinder lines, travel motor lines, control manifold, swing motor and mounting, travel motor and mounting, swing motor, travel motor, main control valve mounting, control valve plug, main hydraulic pump and mounting, main hydraulic pump, hydraulic screen, control valve spool, control valve spool groups, swivel, hydraulic tank and filter, hydraulic tank and mounting, hydraulic tank, heavy lift valve and lines, control valve and mounting, alternate pattern control valve, check and relief valve, load control valve, swing valve, check valve, control valve, coupler valve, flow control and relief valve, load control valve, main control valve, manual valve, pilot valve, pilot relief valve, pressure reducing valve, priority valve, relief valve, selector valve, shuttle valve, solenoid valve, solenoid and manifold valve, swing cushion valve, travel counterbalance valve
• Implements – Boom arrangements (1 piece long, 1 piece short), boom, reach boom, long reach front, grease lines, linkage arrangements, bucket linkage, transport lock, stick arrangements, hoe stick
• Work Tools – Bucket adjusters, bucket and adjuster groups, excavation buckets, ditch cleaning buckets, general purpose buckets, heavy duty buckets, heavy duty power buckets, heavy duty rock buckets, utility buckets, cutting edges, bucket pins, side bar protectors, sidecutters, long tips, penetration plus tips, leveling edge tips
• Operator Station – Seat adjusters, air conditioner and mounting, air conditioner, antenna and mounting, armrests, mirror bracket, mounting bracket, cab, camera and mirror, evaporator coil, refrigerant compressor, condenser and mounting, refrigerant condenser, operator console, joystick control and mounting, handle control, heat and air conditioning control, hydraulic pedal control, joystick control, cab cover, storage cover, monitor display, cab door and mounting, cab door, cab air duct, floor mat, floor mat group, upper front window frame, overhead guard, vandalism guard, front window guard, overhead guard, vandalism guard, roof hatch, seat headrest, cab heater and mounting, cab heater, electric horn, air conditioner housing, radio installation, seat suspension kit, air and temp control lever, air conditioner lines, heater lines, literature, rear view mirror, mirror, rear view mirror, operator monitor and mounting, operator monitor, antenna mounting, monitor mounting, platform mounting, radio mounting, operator arrangement, auxiliary pedal, operator platform, communication radio, sun screen, seat and mounting, seat belt, seat, seat suspension, seat support, seat suspension group, cab visor, protection visor, window washer, front window, cab window, door window, rear window, window wiper and washer, window wiper, window wiper group
• Service Equipment and Supplies – Film group, plate and film group

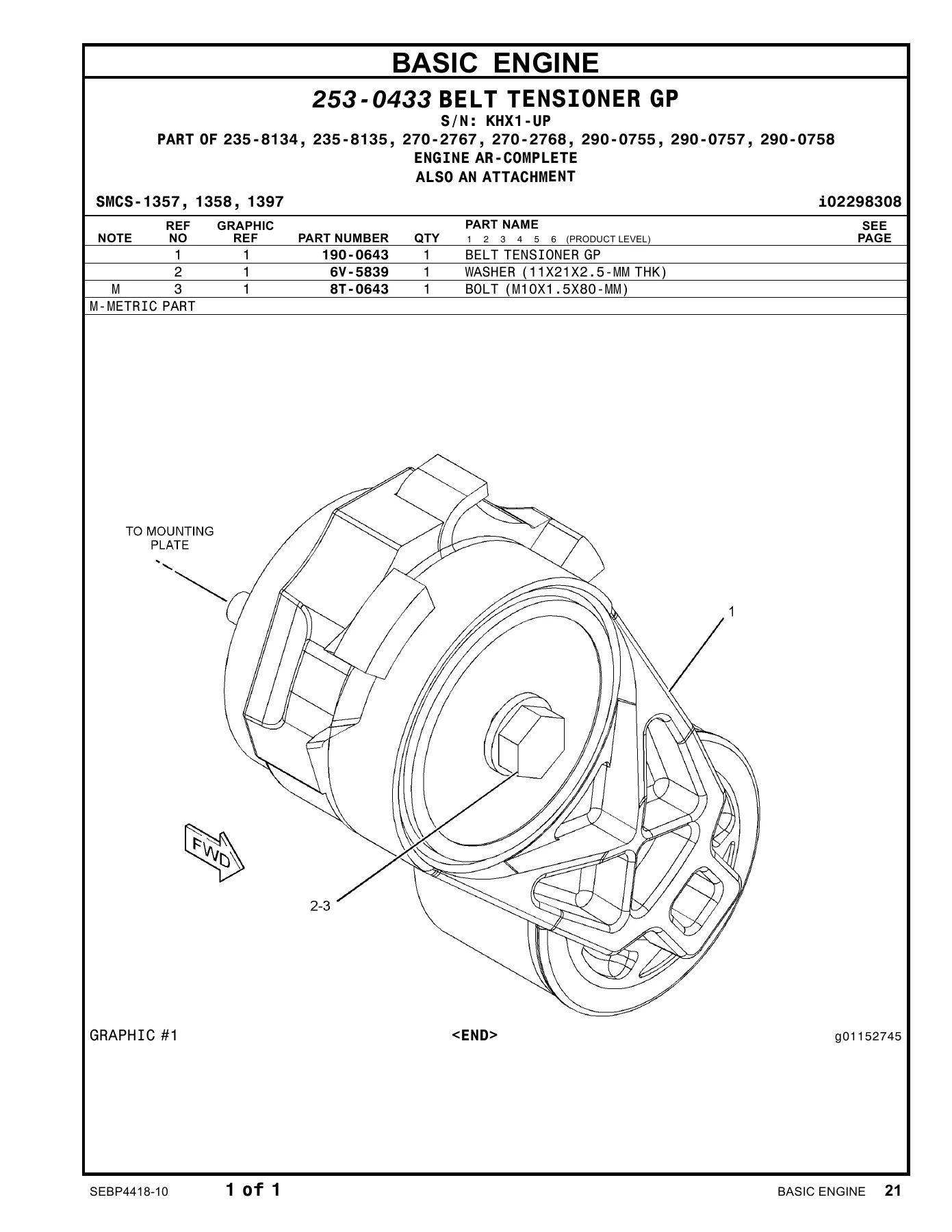

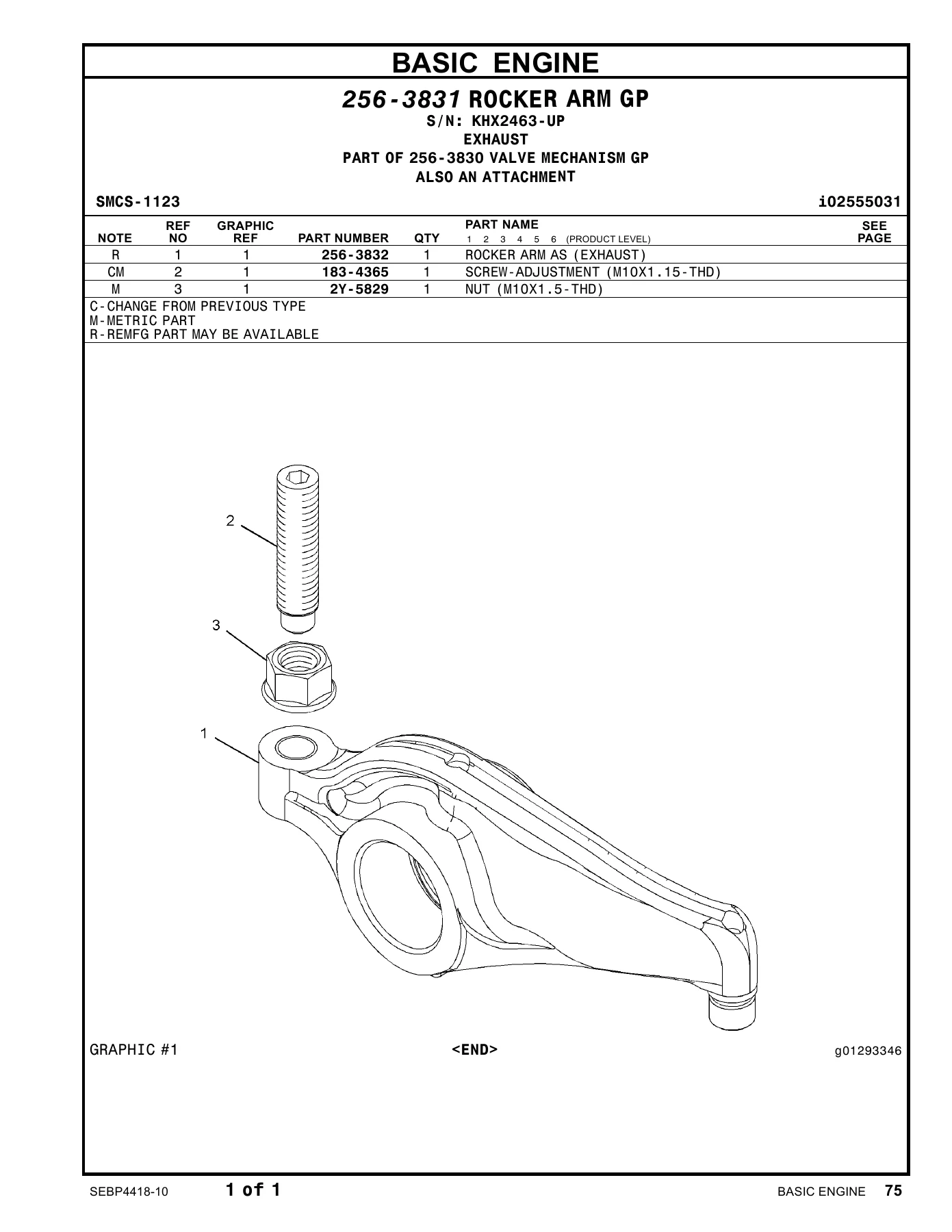

This Caterpillar 324D and 324D L Excavators Parts Manual is organized to make part identification as direct as possible. Each information element begins with a caption that identifies the part number, part name, and the specific machine serial number or PIN range it applies to. The accompanying exploded-view illustration uses reference numbers that correspond to the parts list, where you will find the part number, description, and quantity required. Indented part names show which components are included within a larger assembly, and non-serviced parts are shown in italic type where they serve only as a link to a lower-level serviceable consist list.

Because this is a parts manual, it does not include repair procedures, torque specifications, or diagnostic steps. Its purpose is precise parts identification for the 324D and 324D L Excavators. The manual covers serial number ranges CJX1-Up and DFP1-Up, and the captions throughout the document indicate where part numbers change by serial number break, so you can match components correctly to your specific machine. The Maintenance Parts Index near the front of the manual provides quick access to frequently used maintenance part numbers, while the Part Number Index at the back lists every part number in numerical order with its corresponding page.

For anyone responsible for keeping a 324D or 324D L Excavator running, having the correct parts manual means the difference between ordering the right component the first time and dealing with returns, delays, and incorrect fitment. This PDF gives you the complete parts breakdown for the engine, fuel system, electrical and starting system, power train, frame and body, undercarriage, hydraulic system, implements, work tools, and operator station. Every assembly is documented with the reference numbers and part numbers needed to identify exactly what you need.

This is a digital PDF manual delivered instantly after purchase. There is no shipping, no waiting for a physical book, and no restrictions on how many devices you can use it on. You can print the pages you need for the shop, keep the full manual on a laptop or tablet, and search through the document to find part numbers quickly. The file is ready to download as soon as your payment is complete.

Whether you are a professional technician, a fleet manager, or an owner-operator performing your own maintenance, this Caterpillar 324D & 324D L Excavators Parts Manual SEBP4418-10 provides the parts information you need to keep your machine working. Get instant access to the complete parts catalog and make your next repair or parts order with confidence.
