Caterpillar 3406C Marine Auxiliary Generator Set Parts Manual SEBP3957-46 PDF Download

Description

File Details

• Manual Type: Parts Manual
• Brand: Caterpillar (Cat)
• Model: 3406C Marine Auxiliary Generator Set
• Document Number: SEBP3957-46
• Publication Date: 2019
• Language: English
• Page Count: 1015
• File Format: PDF

Chapters Covered

This Caterpillar 3406C Marine Auxiliary Generator Set Parts Manual SEBP3957-46 covers every major component and system of the 3406C marine auxiliary generator set, organized for quick part number lookup and accurate ordering. The contents are divided into the following sections:

• General Information, Repair Alternatives, Supplemental Coolant Additives, Maintenance Parts, and Index
• Engine Arrangement and General Arrangement
• Basic Engine — Camshaft Group, Coupling Group (Generator), Cylinder Block Covers, Flywheel Housing Covers, Front Housing Covers, Valve Mechanism Covers, Crankshaft Assembly, Crankshaft Group, Cylinder Block Assembly, Cylinder Block Group, Cylinder Head Group, Damper & Pulley Group, Accessory Drive, Auxiliary Drive, Fan Drive, Pump Drive, Front Housing Fasteners, Flywheel Group, Front Gear Group, Belt Guard, Damper Guard, Flywheel Housing, Front Housing, Crankshaft Bearing Kit, Cylinder Head Gasket Kit, Engine Cylinder Repair Kit, Engine Gasket Kit, Engine Overhaul Kit, Engine Repair Kit, Front Cover Gasket Kit, Engine Lifting Group, Alternator Mounting, Bracket Mounting, Hydraulic Pump Drive Mounting, Oil Pan, Piston & Rod Group, Auxiliary Drive Pulley, Rocker Arm Group, Crankshaft Seal, Stub Shaft, Engine Support (Front & Rear), Valve Mechanism Group
• Lubrication System — Oil Filter Base, Crankcase Breather, Mounting, Engine Oil Filter & Lines, Engine Oil Filter Group, Connector Fittings, Fumes Disposal Group, Oil Level Gauge (Dipstick), Hose Assembly, Oil System Gasket Kit, Engine Oil Lines, Turbocharger Oil Lines, Engine Oil Pump, Sump Pump, Engine Oil Lines Shield
• Cooling System — Expansion Tank Connection, Coolant Conditioner Group, Engine Oil Cooler, Coolant Drain, Blower Fan, Radiator Fasteners, Coolant Level Gauge, Sea Water Heat Exchanger, Housing & Regulator Group, Water Pump Kit, Aftercooler Water Lines, Water Lines, Heat Exchanger Mounting, Radiator Mounting, Auxiliary Sea Water Pump, Auxiliary Water Pump, Water Pump, Radiator Group, Coolant Level Switch, Expansion Tank Group
• Air Inlet and Exhaust System — Air Cleaner Adapter, Water Aftercooler, Air Cleaner Group, Rain Cap, Turbocharger Cartridge, Turbocharger Drain Cover, Exhaust Elbow, Exhaust Flange, Aftercooler Gasket Kit, Turbocharger Gasket Kit, Air Lines, Exhaust Manifold, Muffler, Spark Arrestor Muffler, Exhaust Pipe, Heat Shield, Air Shutoff, Turbocharger Group, Water-Cooled Turbocharger
• Fuel System — Governor Actuator, Fuel Ratio Control, Governor Control, Fuel Transfer Cover, Fuel Drain, Governor Drive, Governor & Fuel Pump Drive, Tachometer Drive, Fuel Injection Pump Fasteners, Governor Fasteners, Fuel Filter, Governor Group, Governor Drive Housing, Fuel Injector, Fuel System Gasket Kit, Flexible Fuel Lines, Fuel Lines, Fuel Filter Lines, Fuel Injection Lines, Fuel Ratio Control Lines, Unit Injector Nozzle, Fuel Transfer Pump & Mounting, Fuel Injection Pump, Fuel Priming Pump, Fuel Transfer Pump, Governor & Fuel Injection Pump, Governor Drive & Fuel Injection Pump, Water Separator, Fuel Lines Shield, Manual Shutoff, Mechanical Shutoff, Torque Control Group
• Electrical and Starting System — Sensor Adapter, Charging Alternator, Battery Charger, Battery Group, Extension Terminal Box, Junction Box, Bus Bar Assembly, Circuit Breaker Group, Electrical Conduit, Electrical Connection, Alarm Contactor, Electronic Governor Control, Manual Voltage Control, Extension Box Cover, Circuit Breaker Cover, Diode Group, Circuit Breaker Fasteners, Extension Box Fasteners, Wiring Harness Fasteners, Panel Harness, Power Harness, Sensor Harness, Wiring Harness, Jacket Water Heater, Air Motor Lubricator, Mounting Groups, Contactor Mounting, Circuit Breaker Mounting, Jacket Water Heater Mounting, Neutral Bus Bar Assembly, Relay Group, Speed Sensor, Temperature Sensor, Electrical Shutoff, Air Starting Silencer, Shutoff Solenoid, Ether Starting Aid, Air Starting Motor, Electric Starting Motor, Terminal Strip, Battery Support, Auxiliary Switch, Temperature Switch, Toggle Switch, Governor Switch, Liquid Level Switch, Pressure Switch, Remote Starting Switch, Start Switch, Temperature Switch, Rotary Switch, Thermocouple, Current Transformer, Transformer Assembly, Current Transformer Group, Air Starting Solenoid Valve, Air Starting Valve Group, Generator Wiring, Panel Wiring
• Enclosures, Guards and Bases — Engine & Generator Base Group
• Generators — Generator Leads Connection, Terminal Strip Connection, Generator Arrangement, Generator Group, Space Heater, Insulator, Generator Repair Kit, Marine Generator Parts Kit, Space Heater Kit, Voltage Regulator Mounting, Voltage Regulator Assembly, Voltage Regulator Group, Rotor Assembly
• Operator Station — Ammeter Group, Instrument Panel Box, EMCP Electronic Control Arrangement, EMCP Electronic Control Group, Electronic Filter Assembly, Gauge Group, Air Inlet Gauge, Engine Oil Gauge, Indicator Gauge, RFI Filter Kit, Service Meter, Module Assembly, Alarm Module, Synchronizing Module, Control Panel Mounting, Instrument Mounting, Tachometer Mounting, Control Panel, Electronic Panel, Instrument Panel, Pyrometer Group, Control Support, Electric Tachometer, Voltmeter Group
• Service Equipment and Supplies — Circuit Breaker Chart, Instrument Panel Chart, Plate & Film Chart, Film Group, Single Cylinder Liner Gasket Kit, Rear Structure Gasket Kit, Single Fuel Injector Seals Kit, Gasket Kit, Expansion Tank Gasket Kit, Central & Lower Structure Gasket Kit, Single Cylinder Head Gasket Kit

IMAGES PREVIEW

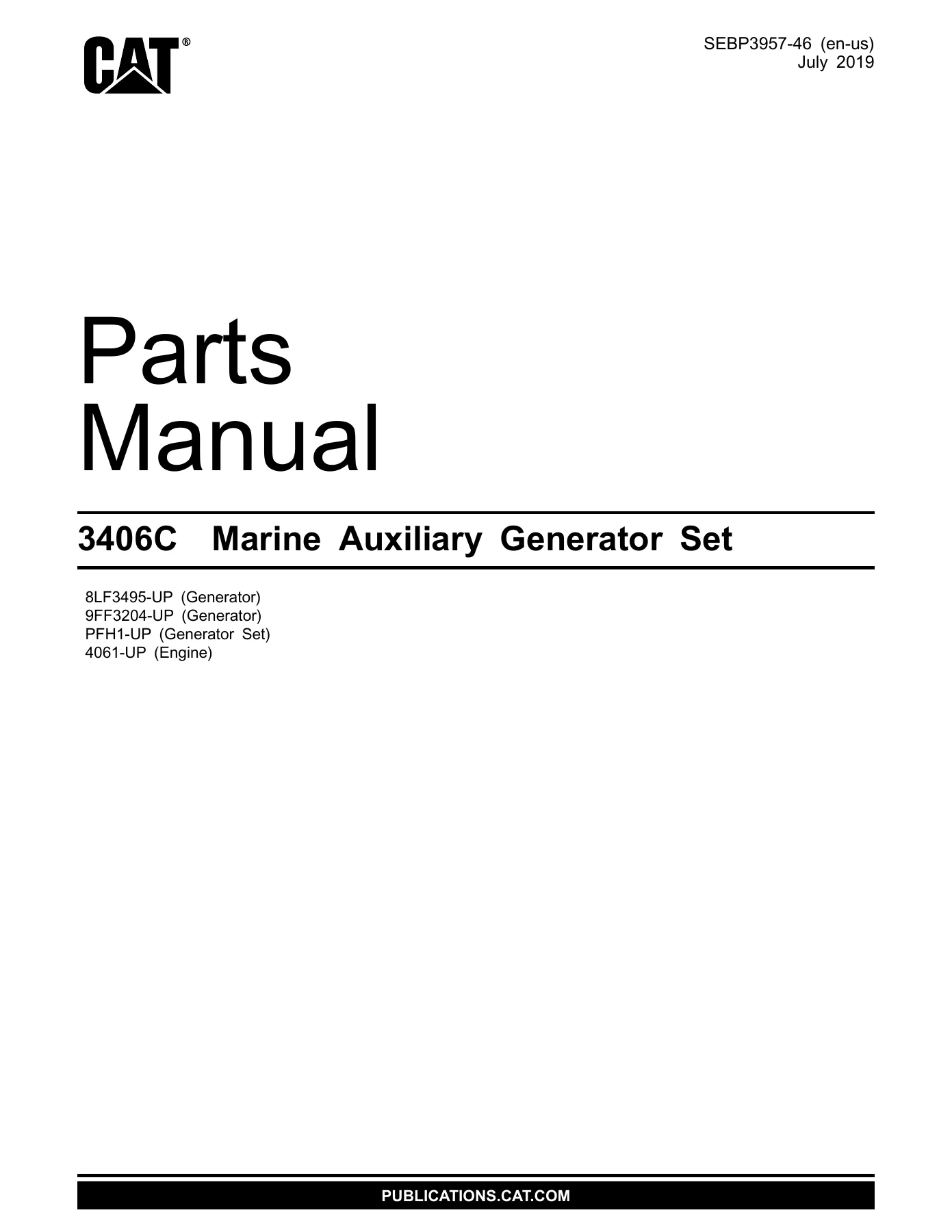

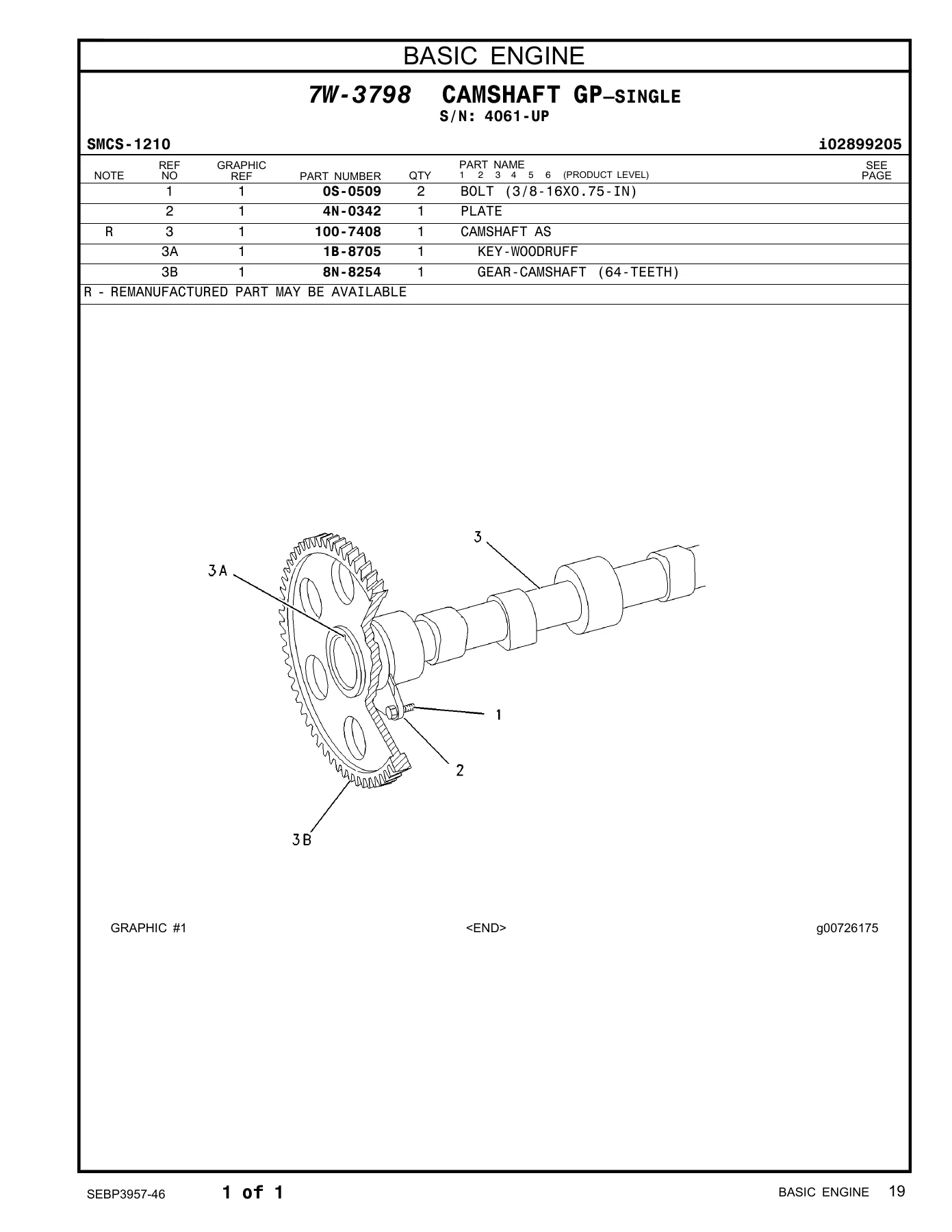

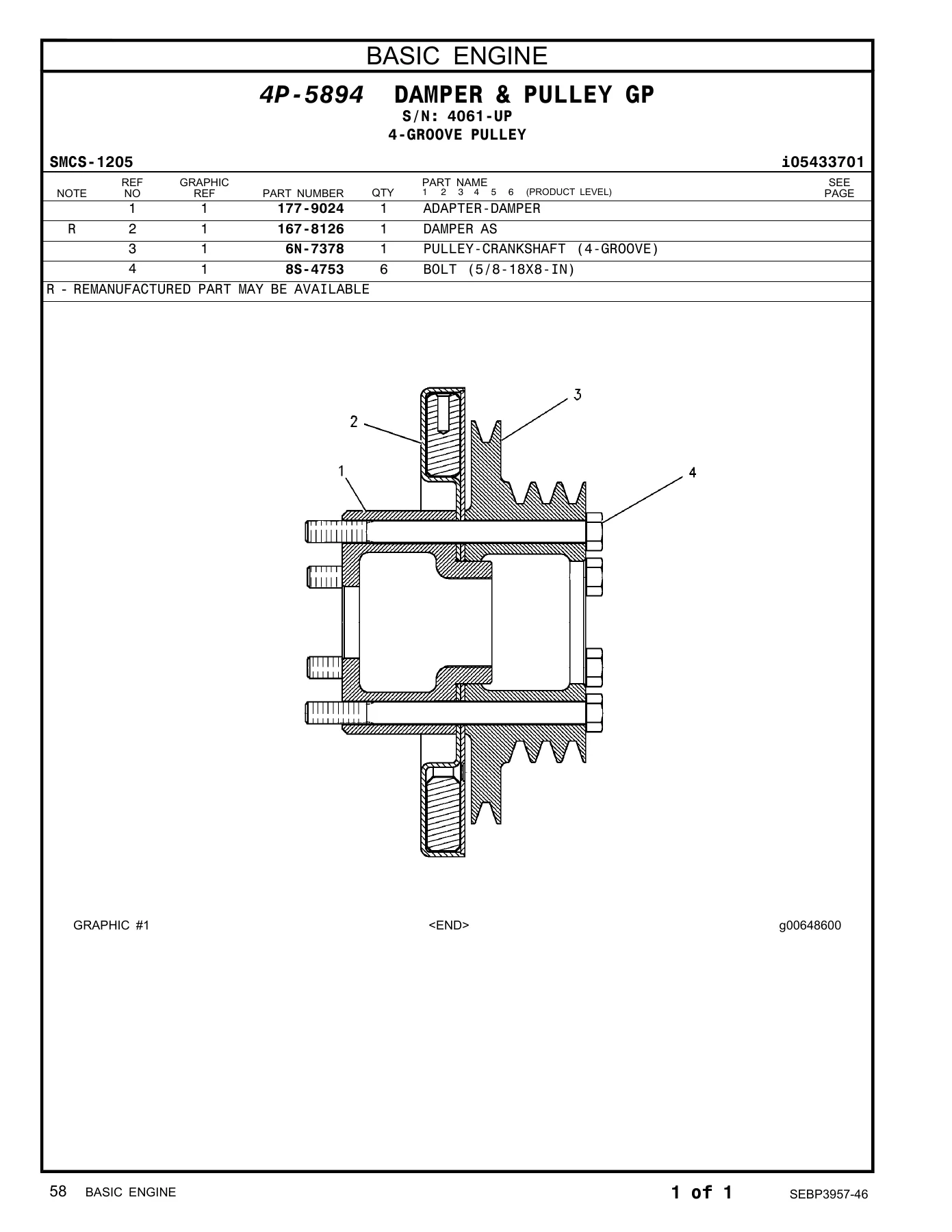

Spanning over 1,000 pages, this Caterpillar 3406C Marine Auxiliary Generator Set Parts Manual delivers the full parts breakdown for every system on the engine and its generator end. Each information element shows an exploded illustration with a corresponding parts list keyed by reference number, part number, quantity, and part name, making it straightforward to identify exactly which components belong to which assembly. The arrangement covers engine serial numbers 4061-UP, generator serial numbers 8LF3495-UP and 9FF3204-UP, and package serial numbers PFH1-UP, with specific serial number breaks noted throughout so the correct parts are ordered for the machine at hand. Whether you are replacing a single seal, rebuilding a cylinder head, or sourcing a complete turbocharger cartridge, the manual provides the part numbers and assembly relationships needed to get the right components the first time.

What This Parts Manual Does for You

Having the correct parts manual for a Caterpillar 3406C marine auxiliary generator set is the difference between ordering the right component and guessing. This manual is organized so that a technician or parts person can trace a part from the system level down to the individual component. The exploded illustrations show exactly how parts fit together, and the accompanying lists give the Caterpillar part number for every item shown, including quantities and any serial number or product level notes that determine applicability.

The manual covers the full range of components, from major assemblies like the cylinder block, crankshaft, and cylinder head down to individual bolts, washers, seals, and O-rings. It includes the generator end as well, with parts breakdowns for the rotor, stator, exciter, voltage regulator, and terminal connections. The operator station section covers the instrument panel, gauges, control modules, and sending units used with the EMCP electronic control system. Cooling system components, including the sea water heat exchanger, radiator, water pump, and aftercooler, are documented with the same level of detail.

Because this is a genuine Caterpillar parts manual with document number SEBP3957-46, the part numbers and illustrations are specific to the 3406C Marine Auxiliary Generator Set as built by Caterpillar. That specificity is important when ordering replacement parts, because marine auxiliary generator set configurations can differ from other 3406C applications in ways that affect which parts are correct for a given serial number.

Get the Right Parts the First Time

This Caterpillar 3406C Marine Auxiliary Generator Set Parts Manual SEBP3957-46 gives you the ability to identify and order the correct parts for engine maintenance, repair, and overhaul. Whether you are servicing a single unit or managing a fleet of marine generator sets, having the parts breakdown at hand reduces downtime and eliminates the risk of ordering the wrong component. The manual supports parts identification for everything from routine filter and gasket replacement to major component rebuilds, covering the engine, the generator, and the control panel.

The value of a correct parts manual is not just in the part numbers — it is in the assembly diagrams that show how components fit together, the serial number information that determines which variant applies to your specific machine, and the product level notes that indicate whether a part has been superseded or changed. This manual contains all of that, organized by system and sub-system so you can find what you need without paging through unrelated sections.

Delivered as an instant PDF download, this parts manual is available immediately after purchase with no shipping delay. It can be viewed on a computer, tablet, or smartphone, and specific pages can be printed for use in the shop. The PDF format makes it easy to search for a part number, and the full page count ensures that the entire parts breakdown for the 3406C Marine Auxiliary Generator Set is included in a single file.
