Description

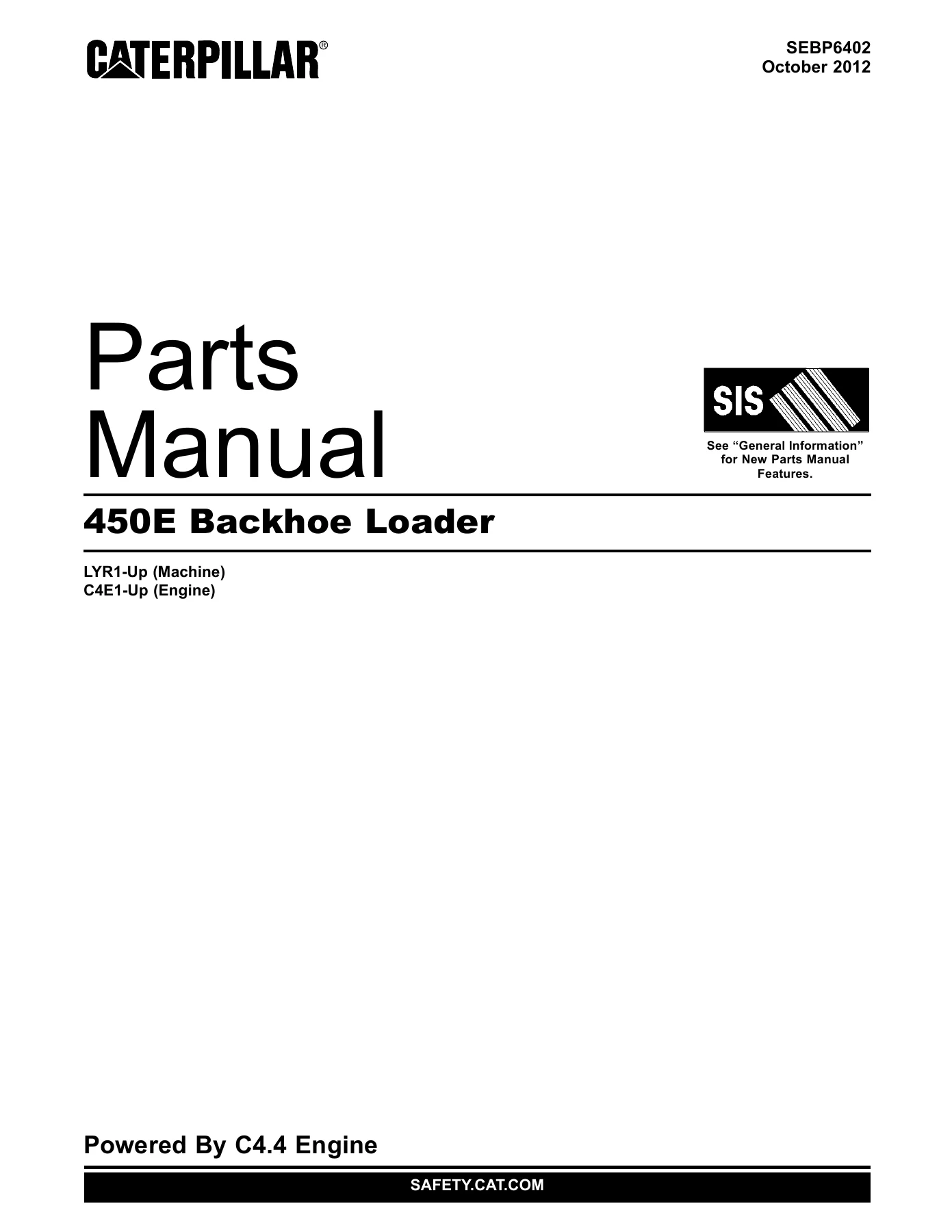

Caterpillar 450E Backhoe Loader Parts Manual (SEBP6402) is the complete illustrated parts catalog for machines from serial number LYR1-Up. This 599-page PDF is the same parts reference used to identify, verify, and order components for every major system on the 450E, from the engine and transmission through the hydraulics, backhoe, loader, cab, and operator station. Every information element is keyed to exploded-view illustrations with reference numbers that tie directly into the serviceable consist lists.

File Details

• Manual Type: Parts Manual (Parts Catalog)
• Brand: Caterpillar (CAT)
• Model: 450E Backhoe Loader
• Serial Number Range: LYR1-Up
• Document Number: SEBP6402
• Language: English
• File Format: PDF
• Page Count: 599 pages

What This Caterpillar 450E Parts Manual Covers

Chapters Covered

• General Information, Maintenance Parts, and Part Number Index
• Machine Arrangement, Chassis, Common AR, Loader AR, Backhoe AR (Standard and Extendable Stick)
• Engine Arrangement, Engine AR-Complete, Engine AR-Primary, Basic Engine
• Camshaft, Cover, Crankshaft, Cylinder Block, Cylinder Head, Drive-Fan, Flywheel, Gear-Front, Housing-Flywheel, Lifting, Mounting, Oil Pan, Piston & Rod, Plug, Pulley-Crankshaft, Rocker Arm
• Lubrication System: Breather, Filler, Gauge, Engine Oil Pump, Fluid Sampling Valve
• Cooling System: Water Connection, Engine & Hydraulic Cooler, Engine Oil Cooler, Suction Fan, Transmission Cooler Lines, Water Pump, Mounting
• Air Inlet and Exhaust System: Air Cleaner, Air Inlet Elbow, Exhaust Extension, Air Filter Indicator, Air Lines, Muffler, Turbocharger
• Fuel System: Governor Control, Primary Fuel Filter, Water Separator & Fuel Filter, Injectors, Fuel Lines, Fuel Filter Lines, Fuel Injection Pump, Fuel Tank
• Electrical and Starting System: Alternator, Battery, Communication Control, Engine Electronic Control, Communication Electronics, Machine Electronics, Glow Plugs, Engine Harness, Jacket Water Heater, Communication Installation, Flood Lamps, Warning Beacon, Fuse Panel, Relays, Position Sensor, Starting Motor, All-Wheel-Drive Switch, Differential Lock Switch, Battery Disconnect, Toggle Switch
• Wiring: Air Conditioner, Console, Control, Engine, Platform, Power Receptacle, Rear, Ride Control, Stabilizer, Transmission Control
• Power Train: Drive & Steering Axle, Rear Axle, Transmission Oil Cooler, Differential & Bevel Gear, Differential, Flexible Coupling Drive, Power Train Oil Filler, Axle Housing & Flange, Differential Kit, Axle Mounting, Transmission Mounting, Final Drive Planetary, Power Train AR
• Counter Shaft, Drive Shaft, Idler Shaft, Input Shaft, Output Shaft, Torque Converter AR
• Transmission AR-Power Shift, Transmission GP-Power Shift, Diff Lock Valve & Lines, Solenoid Valve & Mounting, Relief Valve, Solenoid Valve, Tire Valve
• Wheel & Tire AR, Wheel & Tire GP, Final Drive & Brake Wheel
• Braking System: Service Brake, Parking Brake Control, Service Brake Control, Hand Control Lever
• Steering System: Steering Knob, Steering Lines, Metering Pump, Steering Column GP
• Frame and Body: Battery Box, Counterweight, Cover, Engine Enclosure, Fender Extension, Front Fender, Rear Fender, Floorplate, Loader Frame, Swing Frame, Drive Shaft Guard, Hood & Guard, Engine Hood
• Hydraulic System: Hydraulic Accumulator, Pilot Oil Accumulator, Ride Control Accumulator, Thumb Cylinder & Lines, Boom Cylinder, Bucket Cylinder, Lift Cylinder, Multipurpose Bucket Cylinder, Stabilizer Cylinder, Stick Cylinder, Swing Cylinder, Thumb Cylinder, Tilt Cylinder, Pump Drive & Mounting, Valve Fastener, Oil Filter & Mounting, Oil Filter, Hydraulic Fittings, Hydraulic AR, Kickout & Positioner, Auxiliary Hydraulic Lines, Boom Lines, Bucket Lines, Drain Lines, Extendable Stick Lines, Lift Cylinder Lines, Pilot Lines, Pump Lines, Return & Filter Lines, Ride Control Lines, Stabilizer Lines, Stick Lines, Swing Lines, Tilt Cylinder Lines, Control Manifold & Solenoid, Control Manifold, Ride Control Manifold, Bank Valve Mounting, Cylinder Mounting, Lines Mounting, Pump Mounting, Hydraulic Pump & Mounting, Gear Pump, Piston Pump, Pump Rotating Group, Pump Drive Shaft, Hydraulic Tank & Mounting
• Pilot Valve & Lines, Valve Bank 2, Valve Bank 3, Valve Bank 7, Valve Bank 8, Bank 2 Valve, Bank 3 Valve, Bank 7 Valve, Bank 8 Valve, Control Valve, Cushion Crossover Relief Valve, Makeup Valve, Pilot Valve, Pressure Reducing Valve, Pump Control Valve, Relief Valve, Solenoid Valve
• Implements: Lift Arm, Boom AS, Boom GP, Lift Cylinder Brace, Grease Lines, Backhoe Bucket Linkage, Loader Bucket Linkage, Transport Lock, Stick Mounting, Stabilizer Pad & Guard, Stabilizer Pad, Backhoe Stabilizer, Stick AS, Extendable Stick, Hoe Stick
• Work Tools: Tip Adapter, Multipurpose Bucket AR, General Purpose Bucket AS, Hoe Bucket AS, General Purpose Bucket GP, Hoe Bucket GP, Multipurpose Bucket GP, Bulldozer AS, Multipurpose Bucket Clam AS, Cutting Edge, Fork, Pin Lock, Bucket Mounting, Bucket Stop, Thumb AR, Thumb GP
• Operator Station: Air Conditioner & Mounting, Enclosed ROPS Cab AR, Cab GP, Open ROPS Canopy AR, Open ROPS Canopy GP, Refrigerant Compressor & Mounting, Condenser & Mounting, Operator Console, Handle Control, Hydraulic Hand Control, Hydraulic Lockout Control, Hydraulic Pedal Control, Joystick Control, Steering Control, Cab Door, Floor Mat, Heater & Air Conditioner, Radio Installation, Cab Window Kit, Latch, Cab Door & Window Latch, Console Latch, Cab Liner, Heater & Air Conditioner Lines, Rear View Mirror, Window Wiper Motor, Mounting, Backhoe Control Mounting, Cab Mounting, Governor Pedal, Cab Roof, Seat Belt, Seat, Suspension Seat, Seat Suspension, Cab Trim, Cab Visor, Window Washer, Cab Window, Door Window, Window Wiper
• Service Equipment and Supplies: Transport Bracket, Film, Wheel Chock Installation, Vandalism Lock, Plate & Film, Vandalism Protection, Machine Transport
• Part Number Index (B1 through B25) with every part number and its corresponding page reference

In total the manual spans the full parts architecture of the 450E: engine, lubrication, cooling, air intake and exhaust, fuel, electrical, power train, braking, steering, frame and body, hydraulics, implements, work tools, and the operator station. Every information element is presented as a caption, an exploded-view illustration, and a serviceable consist list showing reference number, part number, quantity, and part name. This is not a general service overview; it is a page-by-page parts lookup built around the machine’s actual assemblies so you can identify the exact component fitted to a specific unit.

Built for Accurate Part Identification

The manual follows Caterpillar’s standard parts-catalog layout, and knowing how it works makes lookup faster and more reliable.

• Captions at the top of each information element give the part number, part name, and any serial-number or PIN breaks that determine which part applies to your machine.

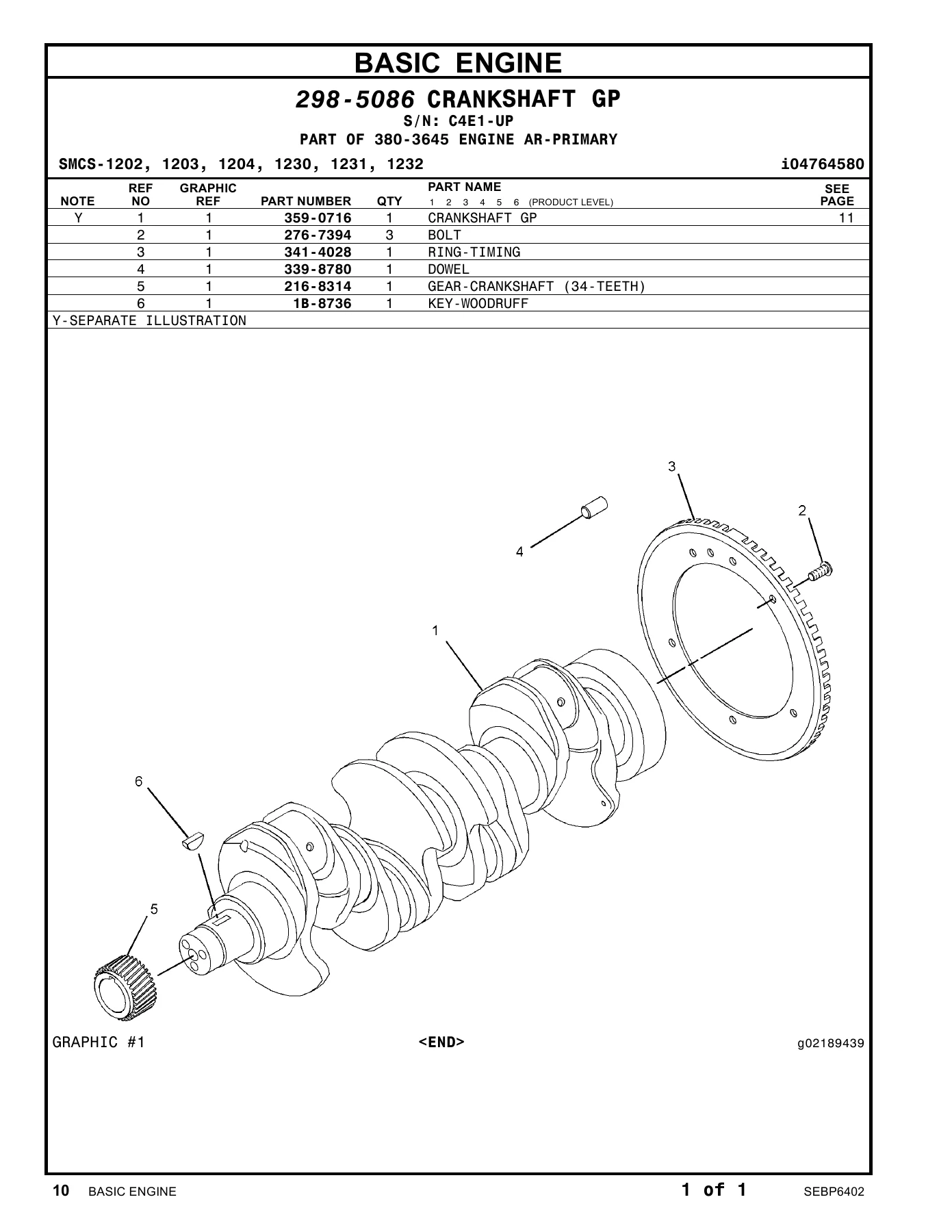

• Exploded-view illustrations show each component in its assembly position, with reference numbers that match the consist lists.
• Indented part names in the parts lists show which items are included inside a larger group or assembly.
• Non-serviced parts appear in italic type as links to a lower-level serviceable consist list and are not available as separate part numbers.
• Remanufactured components are flagged with an R in the notes field, an R at the start of the caption, or an R at the end of the caption for alternators, connecting rods, crankshafts, cylinder heads, electronic control modules, sensors, fuel injectors, fuel nozzles, fuel pumps, governors, oil pumps, pistons, short blocks, starters, turbochargers, and water pumps.

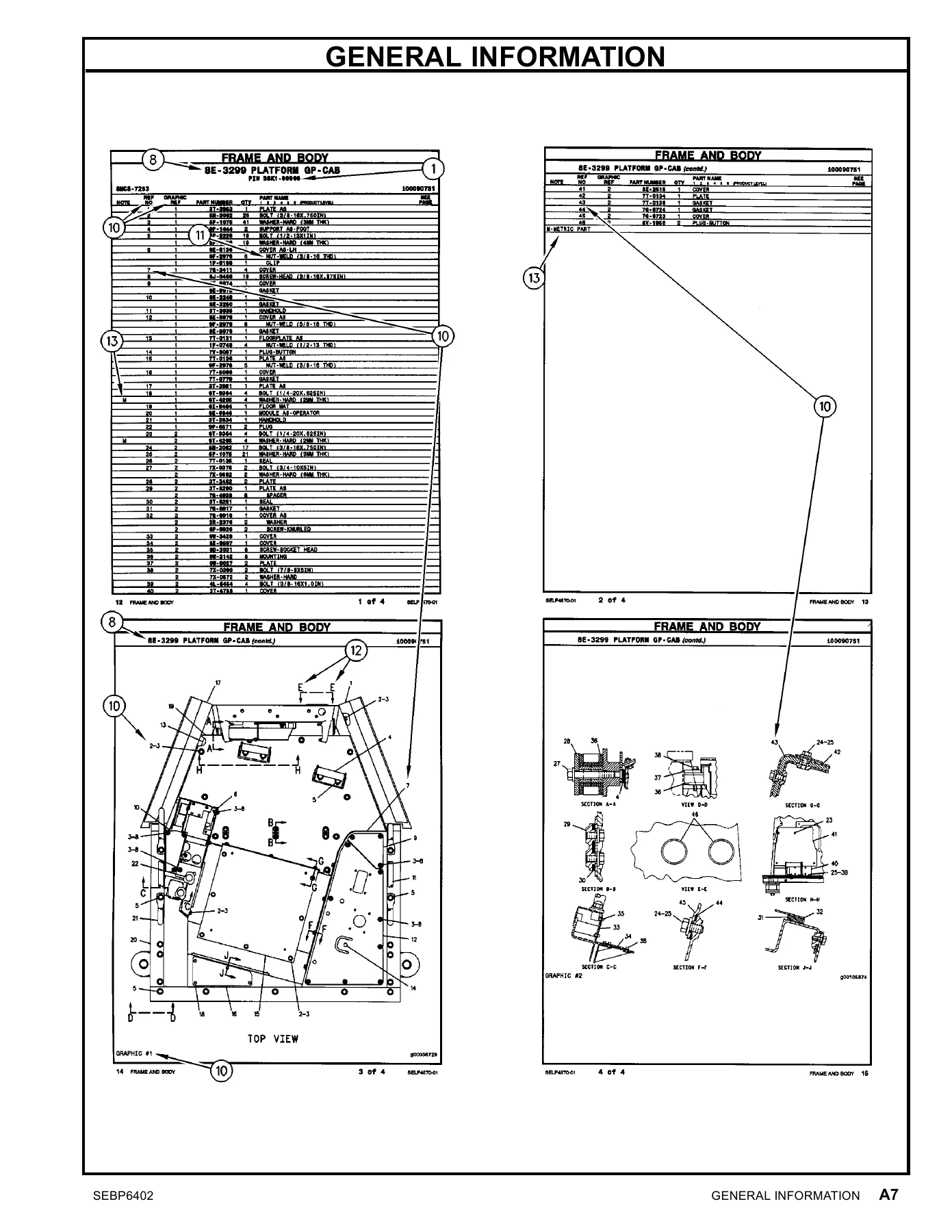

• Illustration reference letters (A, B, C, and so on) trace lines and harnesses between views and show where separated illustrations reconnect.
• Abbreviations and symbols are keyed at the front of the manual: O.D., I.D., A (not part of this group), B (use as required), C (change from previous type), D (order by the meter), E (order by the centimeter), F (not shown), G (order by the inch), M (metric part), R (remanufactured part may be available), Y (separate illustration), Z (not serviced separately).
• Part Number Index at the back of the manual lists every part number alphabetically with the page or pages where it appears.

The 450E was built in multiple configurations, including standard stick and extendable stick, open ROPS canopy and enclosed ROPS cab, pilot and mechanical controls, all-wheel drive and two-wheel steer, and autoshift and standard shift. Because of that, the manual carries separate arrangement and information elements for each variant. Cross-checking the caption’s PIN and serial breaks against your machine is the key step in picking the correct part the first time.

Machine and Serial Coverage

This parts manual is published for the Caterpillar 450E Backhoe Loader with serial number prefix LYR1-Up. The primary engine arrangement (rated 102 brake kW / 137 BHP at 2200 RPM) is referenced under engine serial prefix C4E1-Up. Components such as the engine, transmission, axles, and work tools continue to use an 8-character serial number in the parts lists, so the machine Product Identification Number should always be checked against the caption data before ordering.

Order the Right Part the First Time

Whether you are replacing a failed component, rebuilding a hydraulic cylinder, chasing a transmission fault, or simply maintaining a working 450E, the correct part number matters. Ordering the wrong part wastes time, money, and machine hours. The Caterpillar 450E Backhoe Loader Parts Manual (SEBP6402) gives you the factory illustration and parts list for every major system on the machine, so you can identify the exact component, confirm the quantity, and hand your dealer the right number.

IMAGES PREVIEW

Delivery is instant. The manual is supplied as a downloadable PDF, so there is no shipping and no waiting for a printed catalog to arrive. Open it on a laptop, tablet, or phone in the shop, or print the specific pages you need and take them to the machine. The parts index at the back makes it quick to trace any part number back to its illustration, and the exploded views let you see how a component comes apart before you start the job.

If you own, service, or repair a 450E Backhoe Loader, this SEBP6402 parts manual is the reference you will come back to every time a part needs to be identified, ordered, or replaced.
