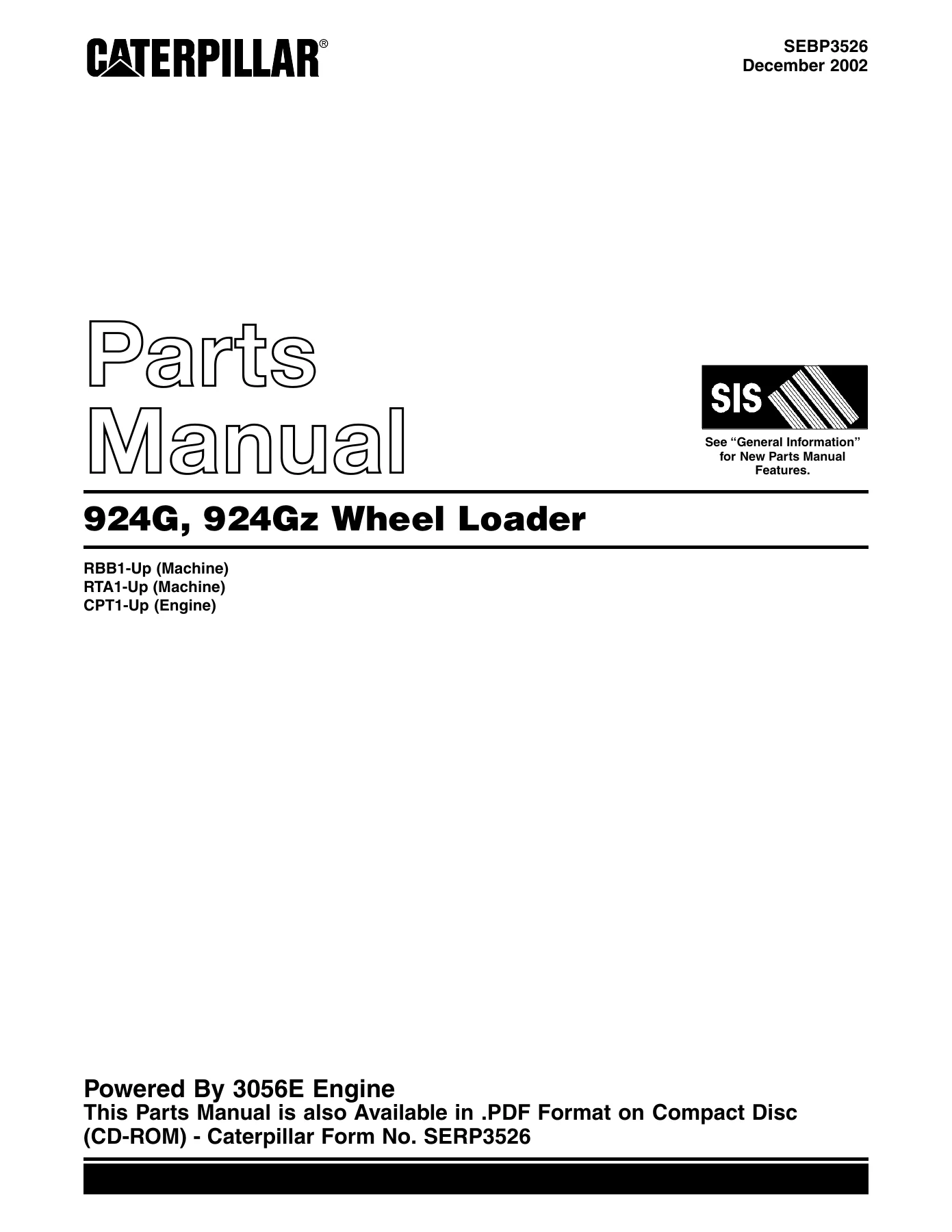

Caterpillar 924G 924Gz Wheel Loader Parts Manual SEBP3526 – PDF Download

Description

File Details

• Manual Type: Parts Manual (Parts Catalog)
• Brand: Caterpillar
• Models Covered: 924G, 924Gz Wheel Loader
• Machine Serial Numbers: RBB1-Up, RTA1-Up
• Engine Serial Number: CPT1-Up
• Document Number: SEBP3526
• Language: English (with Spanish and Portuguese nomenclature sections)
• File Format: PDF

Chapters Covered

This Caterpillar 924G 924Gz Wheel Loader Parts Manual SEBP3526 gives you the complete factory parts breakdown across every major machine system. The contents include:

• General Information
• Repair Alternatives
• Supplemental Coolant Additives
• English-Portuguese Parts Nomenclature
• Maintenance Parts
• Index
• Machine Arrangement
• Chassis AR
• Common AR
• Engine Arrangement
• Engine AR-Primary
• Installation AR-Engine
• Basic Engine
• Camshaft GP
• Cover GP-Engine
• Cover GP-Valve Mechanism
• Crankshaft GP
• Cylinder Block GP
• Cylinder Head GP
• Drain GP-Engine Oil
• Fastener GP-Cylinder Head
• Flywheel GP
• Gear GP-Front
• Housing GP-Flywheel
• Housing GP-Front
• Lifting GP-Engine
• Mounting GP-Alternator
• Mounting GP-Engine & TMSN
• Mounting GP-Fan Drive
• Pan GP-Oil
• Piston & Rod GP
• Plug GP-Cylinder Block
• Plug GP-Cylinder Head
• Plug GP-Engine
• Plug GP-Flywheel Housing
• Pulley GP-Crankshaft
• Rocker Arm GP
• Valve Mechanism GP
• Lubrication System
• Cooling System
• Air Inlet and Exhaust System
• Fuel System
• Electrical and Starting System
• Power Train
• Frame and Body
• Braking System
• Steering System
• Hydraulic System
• Implements
• Work Tools
• Operator Station
• Service Equipment and Supplies

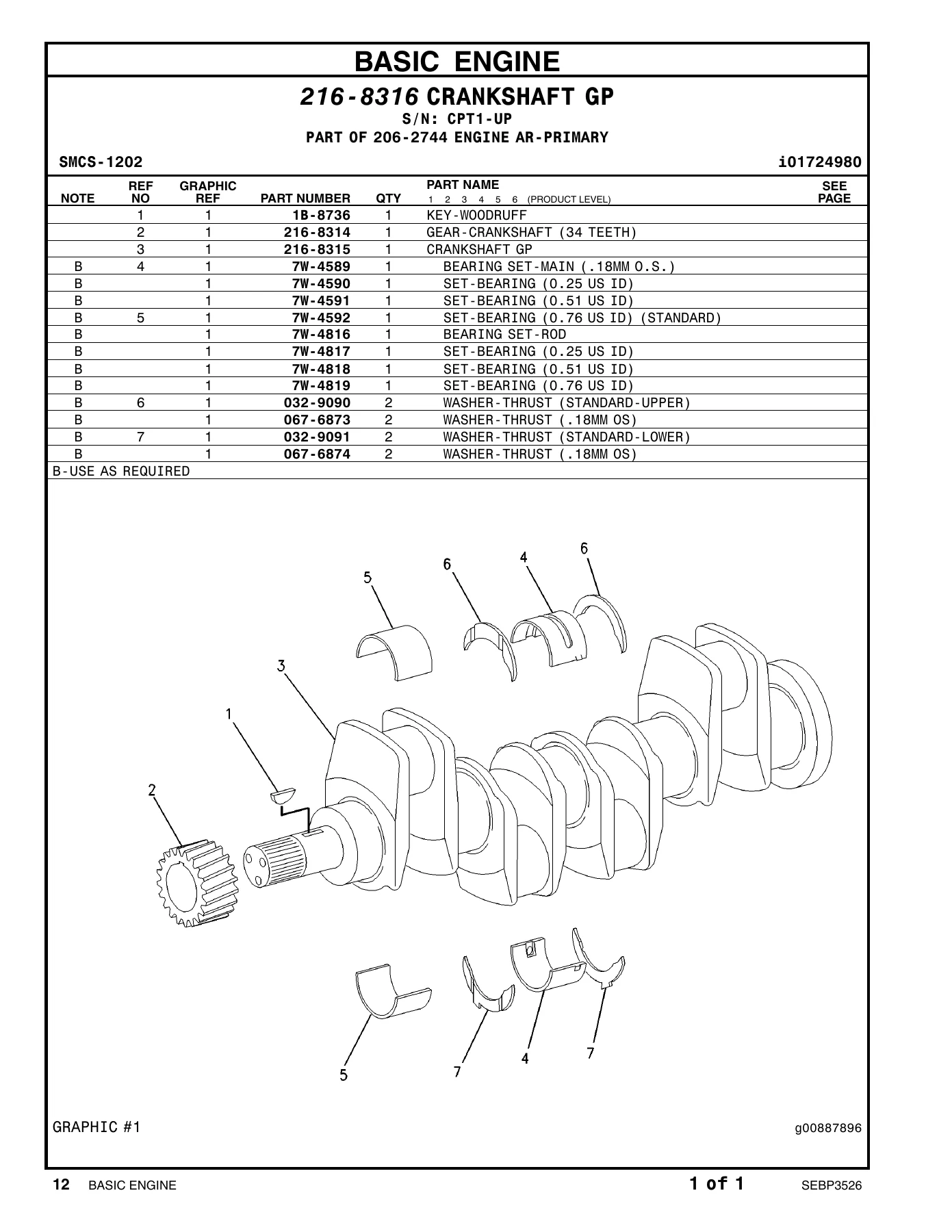

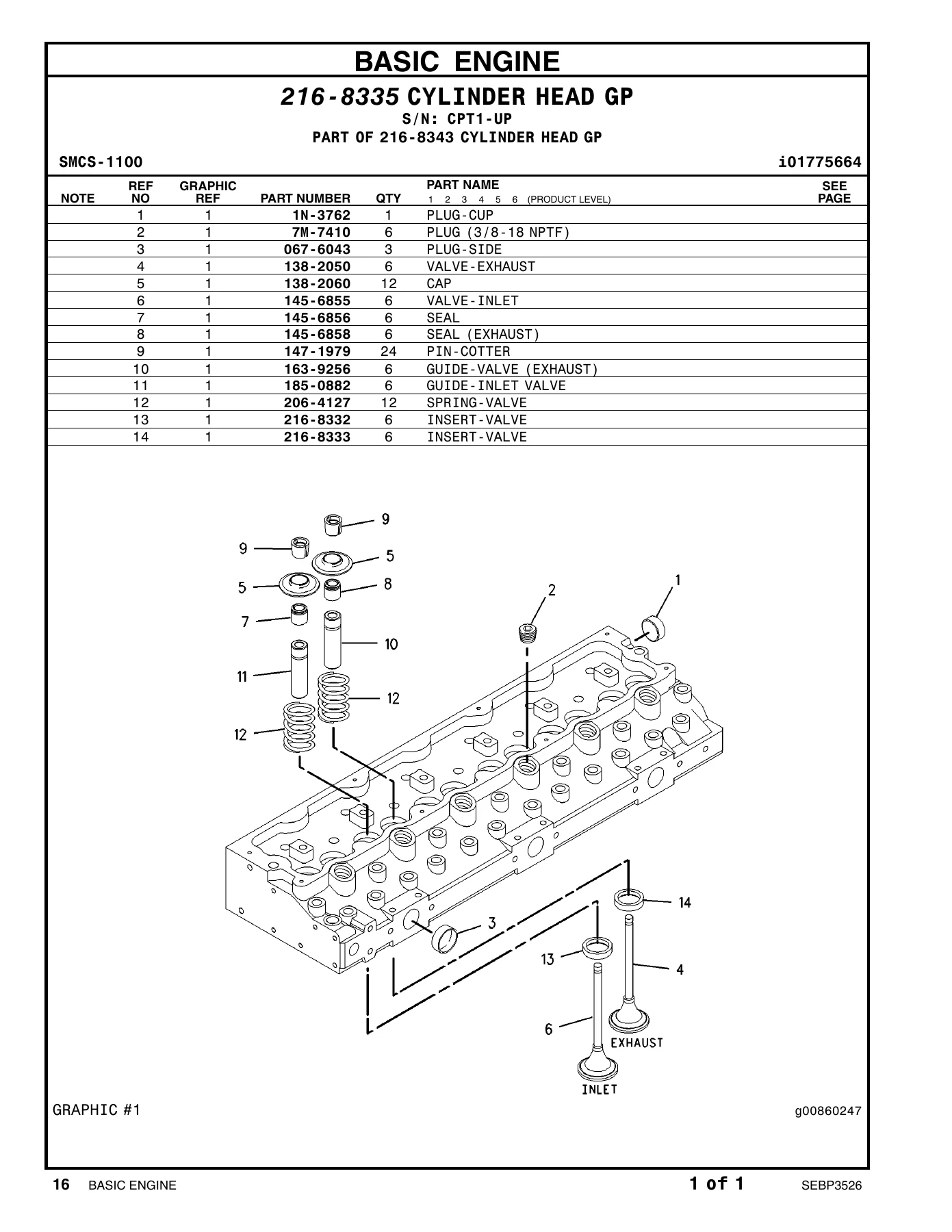

Every chapter is broken down into individual component groups with illustrated exploded views, reference numbers, part numbers, quantities, and serviceable consist lists. The 924G 924Gz Parts Manual covers engine overhaul components, fuel injection, turbocharger assemblies, transmission clutch packs, axle differentials, hydraulic pumps and valves, electrical harnesses and sensors, cab and ROPS structures, work tools, and much more. Each parts illustration is linked to a detailed parts list that includes the part number, description, and quantity required for that specific assembly. This is the same parts catalog used to identify and order replacement components for the 924G and 924Gz wheel loaders across all serial number ranges shown.

What This Parts Manual Enables You to Do

With the Caterpillar 924G 924Gz Wheel Loader Parts Manual SEBP3526, you can confidently identify and order the correct parts for any repair or rebuild. Whether you are replacing a failed hydraulic pump, rebuilding a transmission clutch pack, tracking down an electrical connector, or ordering a new bucket edge, the exploded diagrams and part number listings give you the exact information needed. The manual covers every system on the machine, from the engine and cooling system through the power train, brakes, steering, hydraulics, electrical, and operator station.

Having the correct part numbers matters. Ordering the wrong component wastes time and money, and can lead to further damage or unsafe operation. This parts manual eliminates that risk by showing you exactly how every assembly goes together, which parts are included in each group, and what the serviceable part numbers are. It also includes a maintenance parts index for quick reference to frequently replaced items like filters, belts, lamps, and seals. The part number index at the back lets you look up any part number alphabetically or numerically to find the page where it is illustrated.

IMAGES PREVIEW

This Caterpillar 924G 924Gz Parts Manual is delivered as an instant PDF download. There is no shipping, no waiting, and no physical book to keep track of. You can access it on any device, search through it digitally, and print only the pages you need for the job at hand. Whether you are a professional technician, a fleet maintenance manager, or an owner-operator maintaining your own machine, this parts catalog gives you the same information used by Caterpillar dealers worldwide to keep 924G and 924Gz wheel loaders running.
