Caterpillar C9.3 Marine Engine Specifications Manual – CP9, CA9, C93 – UENR0958-02

Description

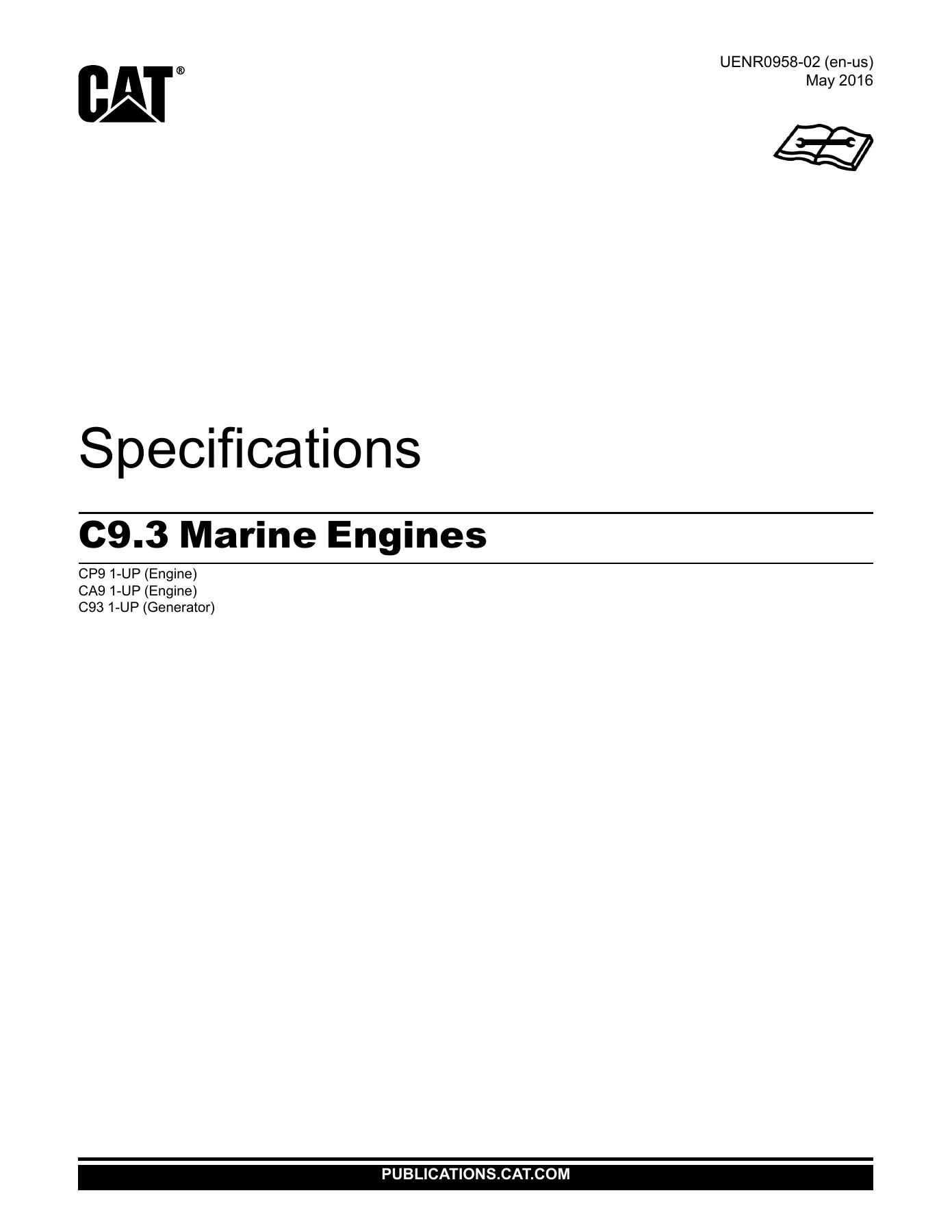

Caterpillar C9.3 Marine Engine Specifications Manual – UENR0958-02

This Caterpillar C9.3 Marine Engine Specifications manual is publication UENR0958-02, dated May 2016, covering the CP9 (Engine), CA9 (Engine), and C93 (Generator) serial number prefixes from 1-Up. If you work on Caterpillar C9.3 marine propulsion or generator-set engines, this Specifications manual is the reference that puts every factory torque value, clearance, and assembly dimension for the 9.3 L in-line six-cylinder platform directly in front of you.

File Details

• Manual type: Specifications Manual
• Brand / Model: Caterpillar C9.3 Marine Engine
• Applicable engines: CP9 1-Up, CA9 1-Up, C93 1-Up
• Language: English
• Page count: 114 pages
• File format: PDF
• Publication number: UENR0958-02 (en-us)
• Publication date: May 2016

Chapters Covered

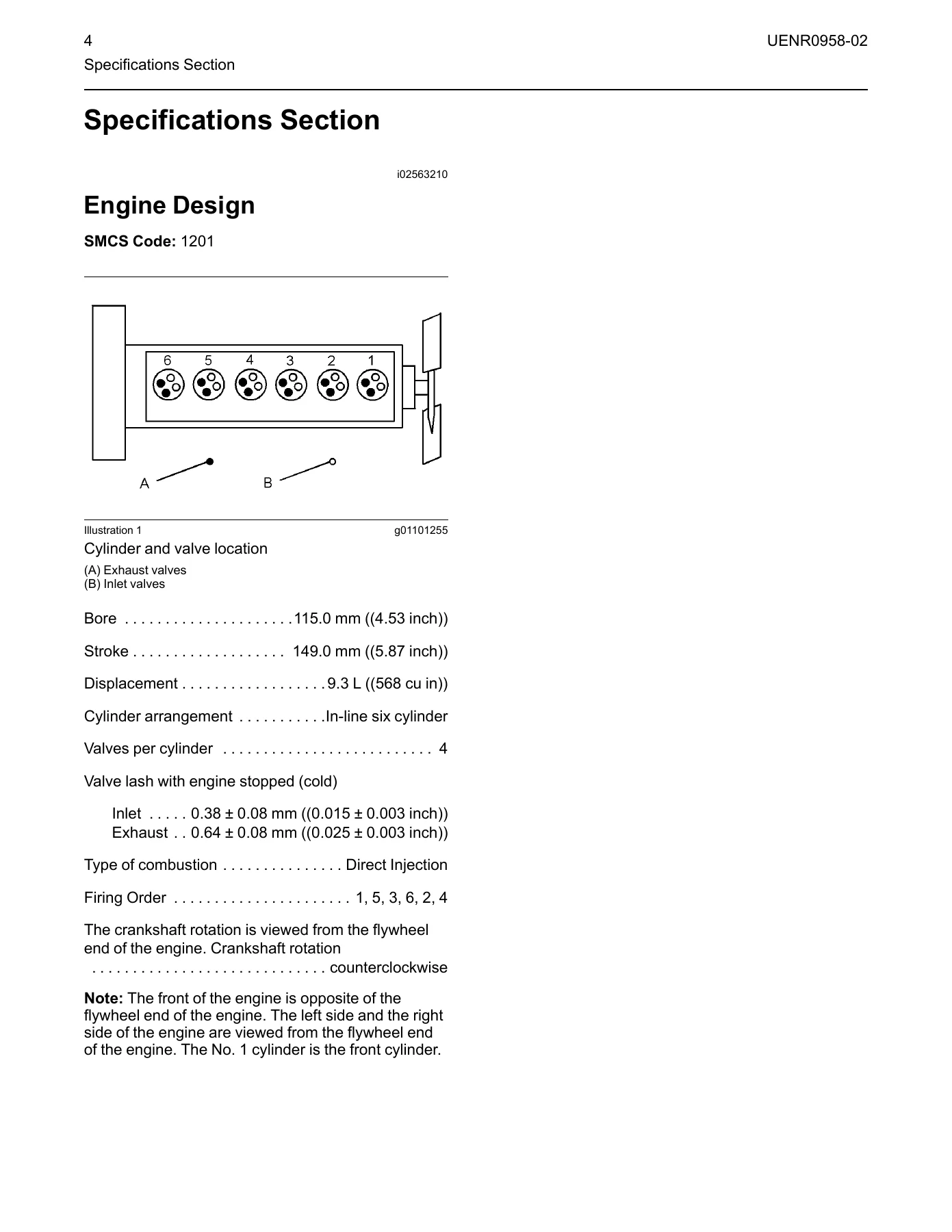

• Engine Design (bore, stroke, displacement, valve lash, firing order)
• Fuel Injection Lines, Fuel Injection Pump, Fuel Injector
• Fuel Lines, Fuel Filter Base, Fuel Priming Pump
• Electronic Unit Injector Wiring
• Valve Rocker Arms, Lifters, and Bridges
• Valve Mechanism Cover, Cylinder Head Valves, Cylinder Head
• Turbocharger, Air Cleaner, Exhaust Manifold
• Camshaft, Engine Oil Filter Base, Engine Oil Pump, Engine Oil Pan
• Water Temperature Regulator, Water Pump, Auxiliary Sea Water Pump, Heat Exchanger
• Cylinder Liner, Crankshaft, Crankshaft Seals
• Connecting Rod Bearing Journal, Main Bearing Journal, Connecting Rod
• Piston and Rings, Gear Group (Front), Flywheel, Flywheel Housing
• Crankshaft Pulley, Belt Tensioner, Fan Drive, Engine Mounting (Flexible)
• Alternator and Regulator, Alternator Mounting, Air Starting Motor
• Coolant, Fuel, Oil, and Pressure Sensor specifications (temperature, pressure, level)
• Engine Speed Sensor, Speed/Timing Sensor, Transmission Oil Sensors, Magnetic Switch

Rather than reading like a general overview, the Specifications section moves system by system through the C9.3 marine engine, pairing each Caterpillar part number with the illustration, torque value, or clearance a technician needs at that exact point in a rebuild or repair. It’s built for someone with the engine open, not someone reading cover to cover.

Why Technicians Rely on This C9.3 Specifications Manual

With this Caterpillar C9.3 Marine Engine Specifications manual you can confirm valve lash settings (0.38 ± 0.08 mm inlet, 0.64 ± 0.08 mm exhaust), verify the 115.0 mm bore and 149.0 mm stroke of the 9.3 L in-line six, and follow exact multi-step torque-and-turn procedures for the fuel injection pump, injector clamp bolts, oil pan, water pump, alternator mounting, and dozens of sensor housings. Firing order, crankshaft rotation direction, camshaft lobe lift, water pump impeller clearances, and thermostat opening temperatures are all documented with the same precision, so specifications for CP9, CA9, and C93 variants are covered side by side wherever they differ.

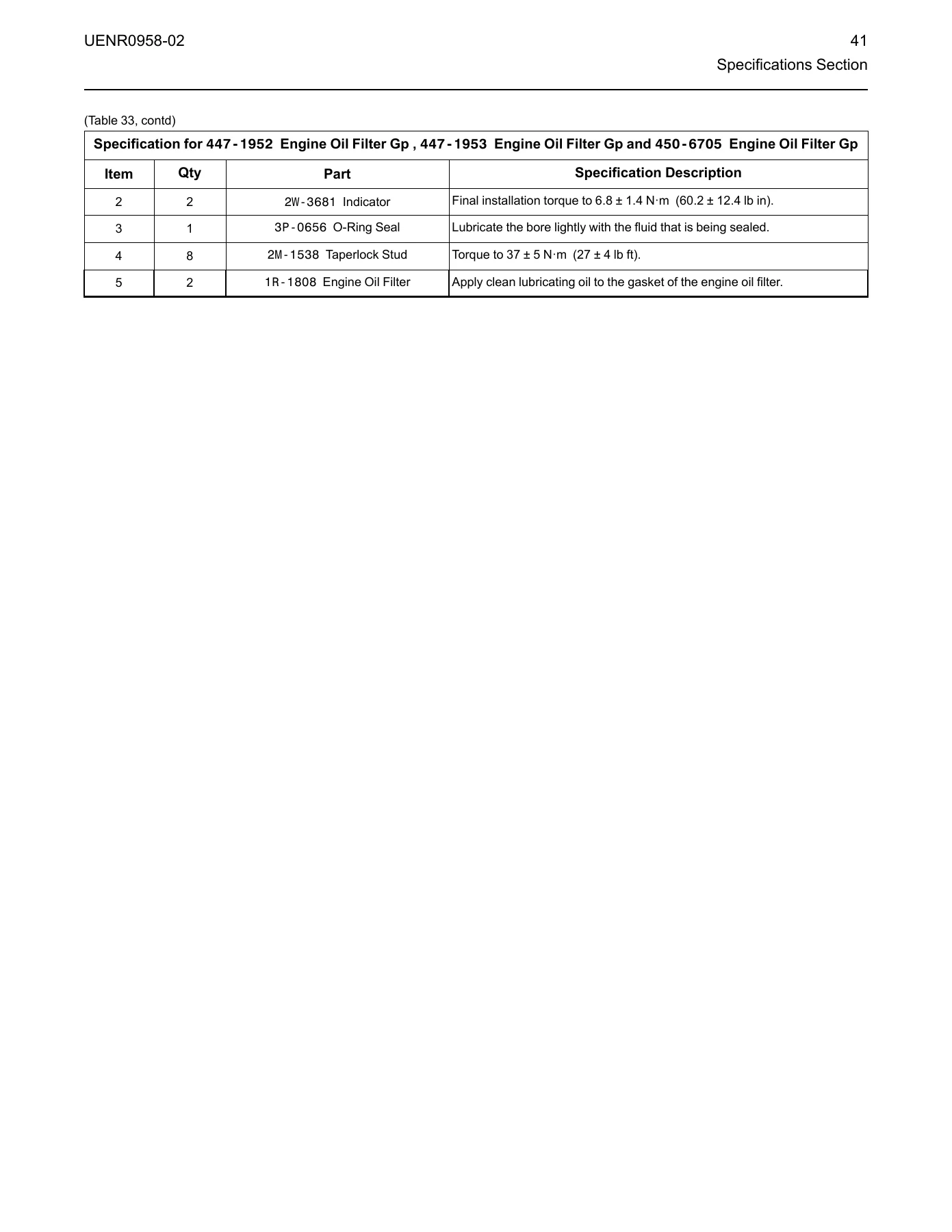

IMAGES PREVIEW

Get Your C9.3 Marine Engine Specifications Manual Instantly

Correct torque and clearance data protects the engine from over-tightened fasteners, leaking seals, and premature component wear, and this Caterpillar C9.3 Marine Engine Specifications manual gives you the exact factory figures instead of guesswork. Purchase now and receive the UENR0958-02 PDF by instant download – no shipping, no waiting. Open it on a laptop, tablet, or phone in the engine room, or print the pages you need at the bench.
