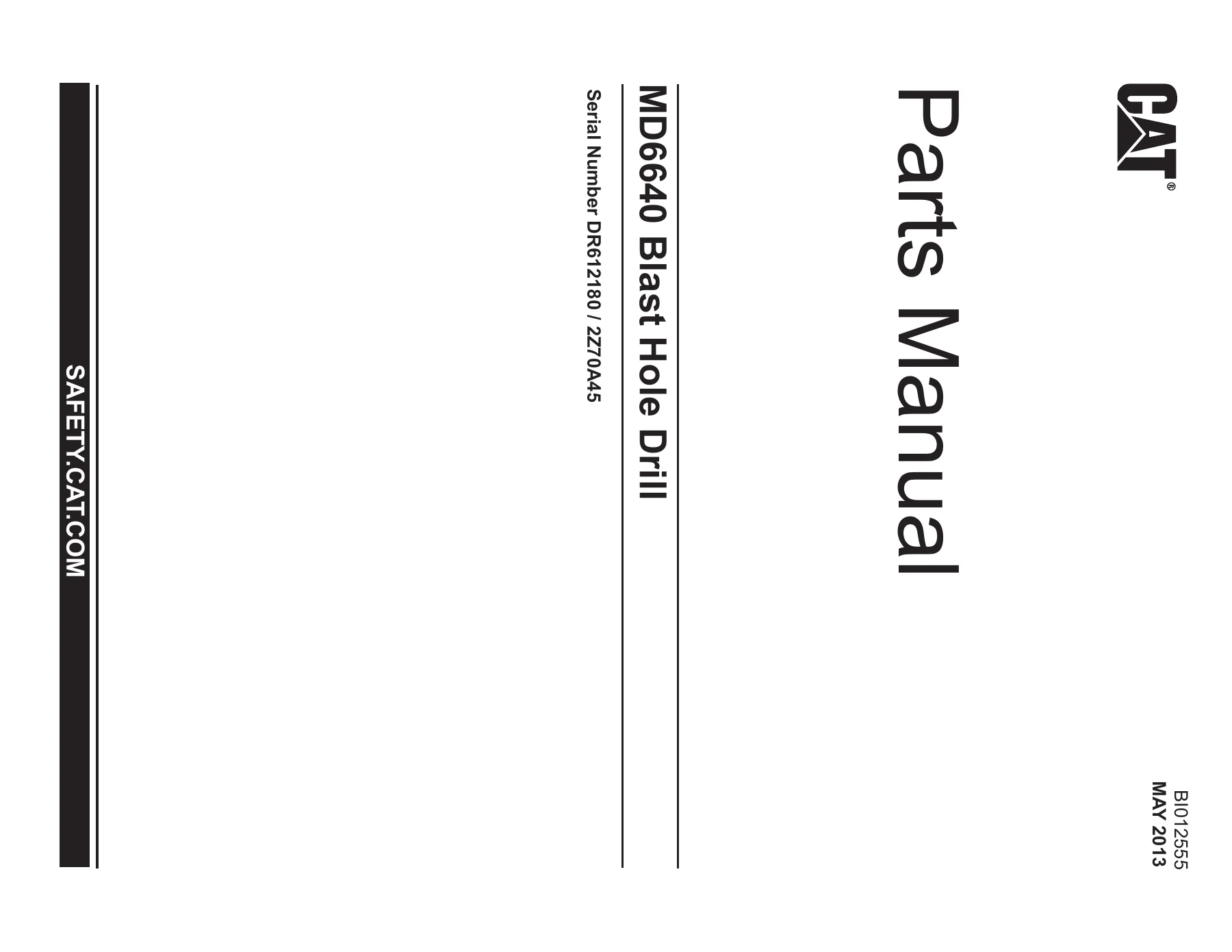

Caterpillar MD6640 Blast Hole Drill Parts Manual 2013 – Serial DR612180

Description

File Details

• Manual type: Illustrated Parts Manual (Parts Catalog)
• Brand: Caterpillar
• Model: MD6640 Blast Hole Drill
• Serial numbers covered: DR612180 / 2Z70A45
• Document number: BI012555
• Publication date: May 2013
• Language: English
• Page count: 1107 pages
• File format: PDF

Chapters Covered

The contents of this Caterpillar MD6640 Parts Manual are grouped by assembly and system, mirroring the machine’s structure so you can navigate straight from a component on the drill to its part number and exploded illustration.

• A-Frame Assembly

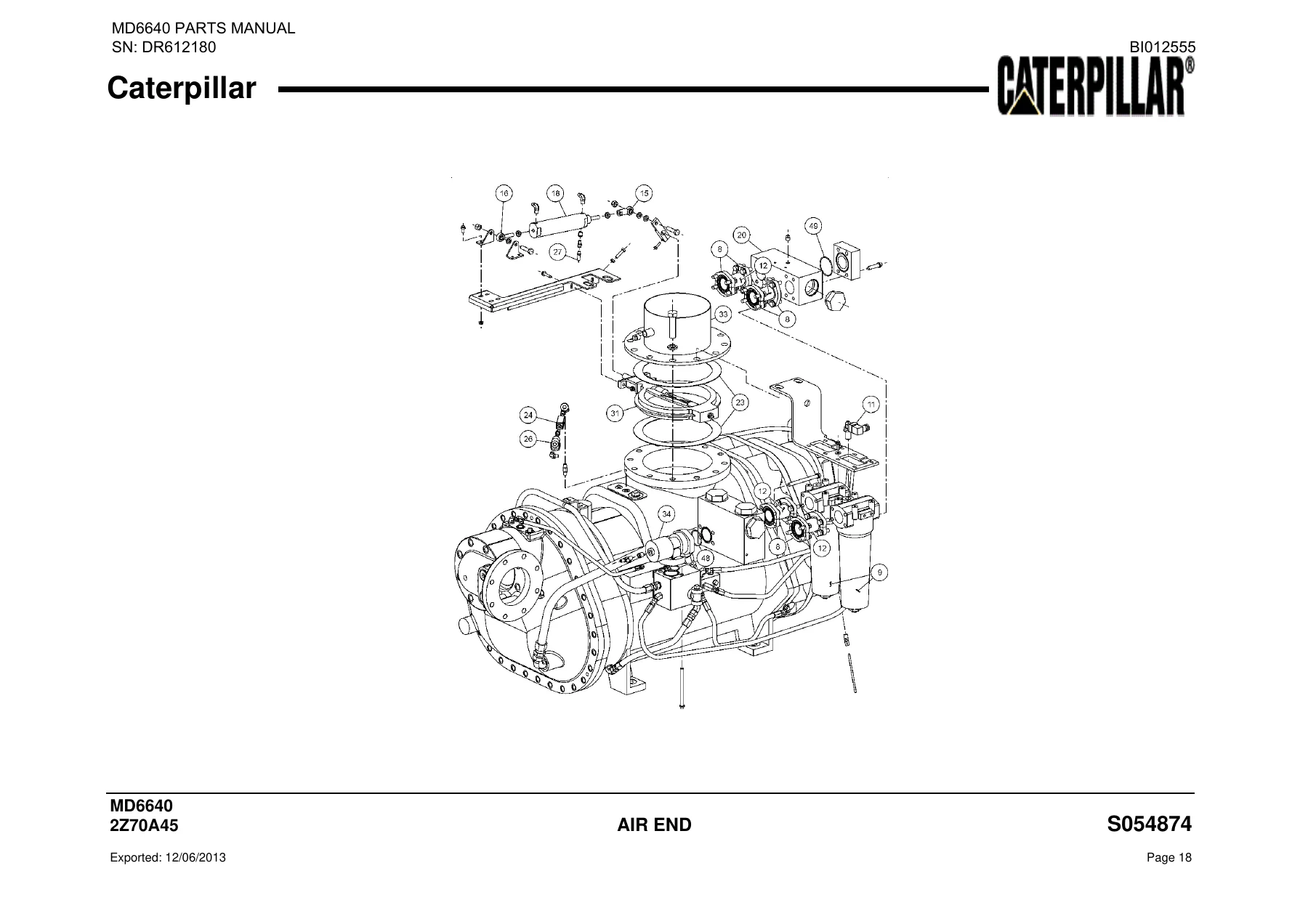

• Air Compressor & Air End
• Bit View Hatch Hydraulics
• Boarding Stair Hydraulics

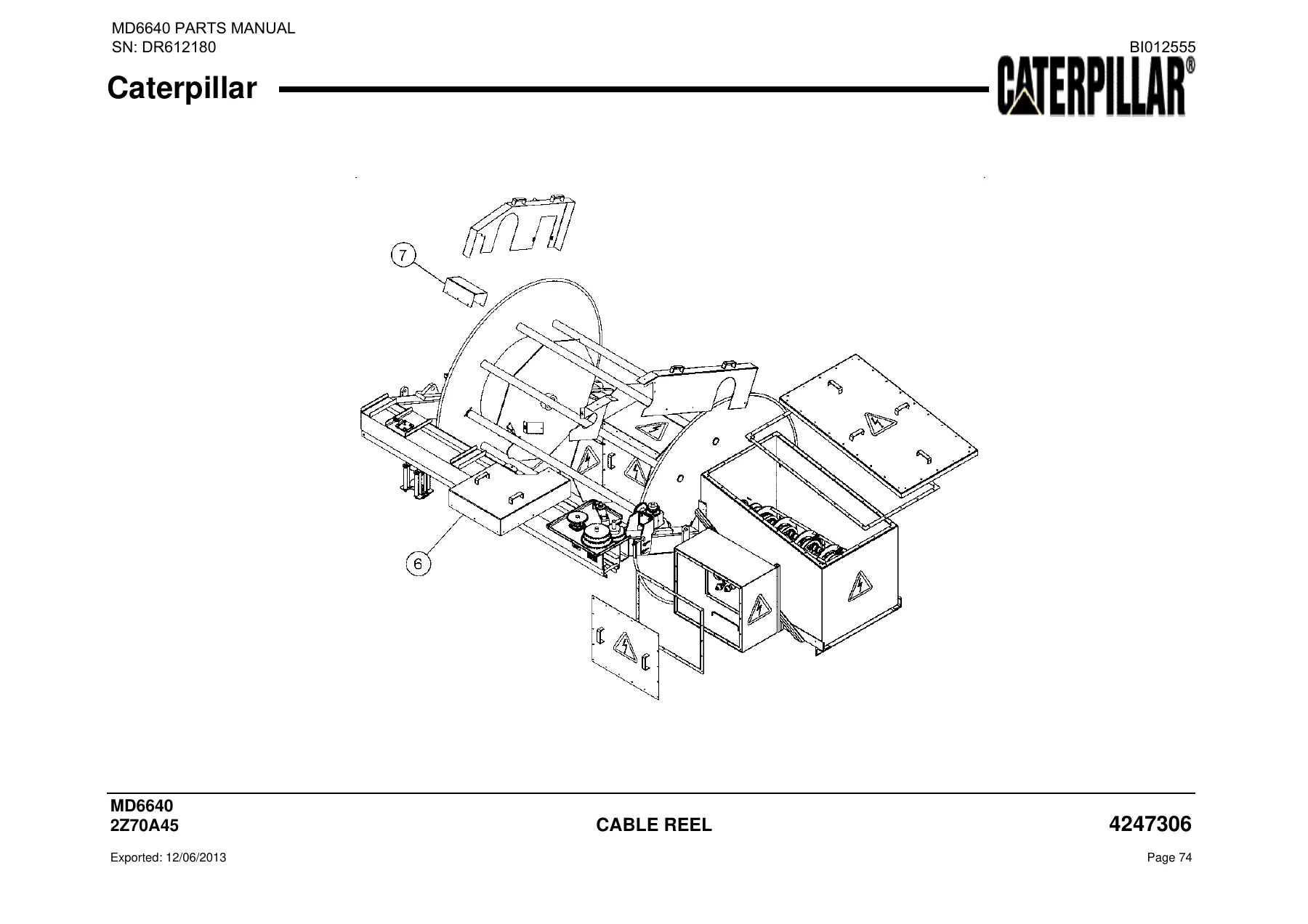

• Cable Reel
• Camera Equipment
• Central Air Conditioner with Heater
• Charge and Suction Piping
• Compressor Assembly & Compressor Remote Fill
• Console Assembly, Control Switches
• Constant Pressure Hydraulic Piping
• Control Element / Control Orifice
• Control Panel, Static DC Drive
• Cooler, Compressor
• Counterbalance Valve
• Crawler Drive Assembly
• Crawler Guards & Crawler Links
• Crawlers Grease Points
• Cylinder Block / Cylinder Seal Kit / Cylinder, Jack
• Decal Set, Portuguese
• Device, Drill Pipe Sensing
• Door Latch, Door LH, Door RH
• Drill Pipe Handling Equipment
• Emergency Stop, Horn
• Exhaust Kit
• Filter Assembly & Filter with Bypass Valve
• Floodlight, Deck Hatch & Floodlight, House
• Frame, Operator Cab
• Front Jack Grease Points
• Front Wiper, Operator Cab Assembly
• Gates, Pawls & Liners
• Gear Pump
• Glazing, OP Cab, Double Pane Assembly
• Grease Points, A-Frame
• Guide Roller, Lower & Guide Roller, Upper
• Handle Assembly
• Heat Exchanger ZHC & Heat Exchanger ZROC
• HVAC Mounting Assembly
• Hydraulic Control
• Hydraulic Cylinder (Boarding Stairs, Jack, Jaw, Mast Hoist, Pipe Rack Gate, Pipe Rack Lock, Rack Position, Slide)
• Hydraulic Piping, Racks
• Hydraulic Pump & Hydraulic Reservoir
• Injection Pump
• Injector Assemblies 1 through 5 with Manifold
• Interior, Operator Cab Assembly
• Jib Crane, Mounting
• Junction Box / Junction Boxes, Jacks
• Kit, Charge Pump Update
• Kit, Electrical, Air Compressor
• Kit, Filtration / Kit, Overhaul Seal / Kit, Relief Repair
• Kit, Plumbing, Air End / Kit, Plumbing, Cooler
• L.H. Extension
• Leveling Jacks & Leveling Jacks Piping
• Lifting Lugs
• Light Fixtures, Operator Cab
• Light Plant Receptacles
• Low Voltage Cabinet
• Lower Propel Hydraulics
• Lube Assembly, Pipe Rack
• Lube Control Hydraulics
• Lube Pump, DC Solenoid
• Lube Supply Assembly, Main Frame
• Lube, 24VDC Corner Tank
• Machinery House
• Main Control & Main Frame Assembly
• Manifold / Manifold Assembly, EHPC 6 Station
• Manifold Valve Bank
• Mast Air Piping
• Mast Brace Cylinder Hydraulics
• Mast Guide Frame & Mast Guide Rollers
• Mast Hoist Hydraulics
• Mast Hydraulic Piping and Valves
• Mast Ladders, Supports & Safety Hoops
• Mast Lock Hydraulics
• Mast Lube Supply
• Mast Supply and Return Piping
• Mast Winch & Mast, 65 FT
• Module, Power Unit
• Motor Control Group / Motor Rotary Group
• Motor Pinion & Motor, Hydraulic Propel
• Nameplates, OP Cab & Nameplates, Portuguese
• Oil Cooler
• Oil, Grease
• Operator Cab Assembly
• Paint and Decals
• Pipe Rack, Mast, L.H. & Pipe Rack, Mast, R.H.
• Pipe Thread Lubricator & Pipe Wrench
• Piping, Hydraulic Oil Cooler
• PLC Cabinet
• Plumbing, Compressor Cooler
• Power Unit Assembly
• Pressurization Unit
• Propel Brake Piping / Propel Gear Case / Propel Motors and Piping
• Pulldown Gearcase / Pulldown Input Shaft / Pulldown Shaft / Pulldown Shipper Shaft
• Pump Discharge Piping / Pump Drive / Pump Drive Assembly / Pump Mount
• Pump, Hand Brake / Pump, Oil, Compressor Assembly
• Radio Remote Propel
• Rear Axle Grease Point / Rear Jack LH Grease Point / Rear Jack RH Grease Point
• Reel Assembly, Hyd Cable / Relay Assembly / Relief Valve
• Remote Fill, Lube / Remote Fill, Wiggins
• Reservoir / Reservoir Assembly, 24VDC, Lube / Reservoir, Lube
• Roller, Lower, Assembly
• Rotary Gearcase
• Safety Sling, Lower
• Seat Assembly / Seat Assembly, Operator Cab
• Separator Assembly
• Shaft, Intermediate Rotary / Shock Coupling, Rotary
• Skylight Wiper, Operator Cab Assembly
• Stand, Leveling Jack
• Swashplate Assembly
• Tandem Propel Pump
• Tank Assembly
• Tool Wrench Assembly / Tools and Supplies
• Union, Elbow
• Upper Propel Hydraulics
• Valve Assembly / Valve Assembly, Thermostatic
• Valve Piping, Return / Valve Piping, Supply
• Valve, Flow Control / Valve, Flow Regulator
• Valve, Pressure Reducing / Valve, Sandwich / Valve, Spool / Valve, Vent
• Valve, Butterfly, Assembly / Vent Valve Assembly
• Water Injection System / Water Pump / Water Tank / Water Tank Assembly / Water Tank Gauge
• Winch, Auxiliary
• Window Shades
• Electrical Schematics (Light Plant, Miscellaneous, PLC Node 1–5, Power Distribution)
• Index (Sort By Part Number and Sort By Part Description)

This Caterpillar MD6640 Parts Manual is the full illustrated parts catalog for the MD6640 Blast Hole Drill in the DR612180 / 2Z70A45 serial range. Every assembly on the machine — from the A-frame and crawlers through the rotary head, pulldown gearcase, mast, pipe racks, hydraulic valve banks, air compressor, water injection system, operator cab, and electrical cabinets — is broken down into exploded diagrams with item callouts and corresponding part numbers. The catalog covers hydraulic manifolds and valve banks, hydraulic cylinders for the mast, jacks, pipe rack, and boarding stairs, the propel gear case and propel motors, the air end and compressor assembly, the separator assembly, the lube system, and the full electrical schematic set for the light plant, PLC nodes 1 through 5, and power distribution. A full part-number index and part-description index at the back let you search either direction: from a part number on a component, or from a description to its part number and location. This manual is a parts catalog, not a service or repair manual — it provides the illustrated parts breakdown, part numbers, quantities, and assembly structure; it does not include repair procedures, torque values, or step-by-step rebuild instructions.

Who This Caterpillar MD6640 Parts Manual Is For

This Caterpillar MD6640 Blast Hole Drill Parts Manual is written for the people who keep these drills running: maintenance planners ordering replacement parts, mechanics identifying what came off the machine and what goes back on, parts counter staff confirming the correct number before an order ships, and rebuild shops quoting a repair. Because every assembly is shown as an exploded view with numbered callouts tied to a parts list, you can positively identify a component — a hydraulic cylinder seal kit, a valve cartridge, a crawler link, a rotary gearcase bearing, a compressor cooler hose — even when the part itself is worn beyond recognition. Instead of guessing from a photo or a sketch on a notepad, you match the illustration to the assembly, read the item number, and order against the exact part number printed in the catalog. That alone eliminates the costly cycle of wrong-part orders, return shipping, and a machine sitting idle while the correct component is re-ordered. For a drill of this size, an incorrect part is not a small mistake — it is downtime on a production hole, and this catalog is what prevents it.

Why the Correct Part Number Matters on an MD6640

The MD6640 is built around multiple hydraulic circuits, a rotary head, a pulldown system, pipe handling equipment, and a compressor and water injection system that all share similar-looking components across different circuits. A flow control valve in one manifold bank may look identical to a valve in another bank but carry a different part number and a different pressure setting. A hydraulic cylinder on the mast hoist may share a seal kit with a jack cylinder, or it may not. The illustrated parts breakdown resolves those ambiguities by tying each part number to a specific assembly and a specific item on the diagram, so you order the part that belongs to the circuit you are actually repairing. The catalog also documents the kit numbers — cylinder seal kits, cartridge seal kits, valve seal kits, disc brake kits, injector repair kits, charge pump update kits, filtration kits, and overhaul seal kits — so a rebuild can be planned as a single kit purchase rather than a list of individual seals and O-rings.

How the Illustrated Parts Breakdown Is Organized

Assemblies appear in the catalog in the same order as the machine’s major groups: the A-frame and front legs, the main frame and rear jack casings, the crawlers and propel gear cases, the rotary gearcase and pulldown gearcase and shafts, the mast and mast guide rollers and mast hydraulic piping, the pipe racks and pipe handling equipment, the hydraulic valve banks and manifolds, the air compressor and air end and separator, the water injection system, the operator cab and its interior, the machinery house, and the electrical cabinets and schematics. Each assembly page carries a diagram with numbered balloons that correspond to a parts table listing item number, quantity, part number, and description, with a notes column where a part has a specific fitment, an alternate, or a customer-rep contact requirement. The part-number index and the part-description index at the back of the manual let you jump directly to the correct assembly page from either direction.
