Caterpillar NO20S Lift Trucks Operation & Maintenance Manual – PDF DOWNLOAD

Description

Caterpillar NO20S Lift Trucks Operation & Maintenance Manual – PDF DOWNLOAD

DESCRIPTION:

Caterpillar NO20S Lift Trucks Operation & Maintenance Manual – PDF DOWNLOAD

Safety instructions
Instructions for site supervisor
• Familiarise yourself with the operating instructions and its contents.
• Train the operator on the use, safety, and maintenance aspects of the truck.
• Control that the operating and maintenance instructions, and safety regulations are observed.
Occupational safety
• Keep the truck clean and in good working order. Carry out the daily and weekly maintenance checks in
accordance with the maintenance schedule and instructions to avoid faults and operational errors.
• If you notice any faults or deficiencies that may effect the safe operation of the truck, take the truck out of
operation until the faults or deficiencies have been remedied.
• Do not repair anything on the truck without permission from the site supervisor.
• In the event of a malfunction, switch off the power and notify the site supervisor.
• When using the truck, you are responsible for both your own safety and the safety of your environment.
• Immediately notify the site supervision of any accidents or injuries. In such a case, leave the truck at the place
of the accident.
• The truck can only be used for purposes corresponding with its equipment.
Truck operator
Requirements:
• At least 18 years old
• Sufficient physical (e.g. good hearing and sight) and mental abilities for operating the truck without risks
• Appropriately trained; familiar with operating, safety and maintenance instructions
• Has permission from the site supervision to operate the truck
• Knows and masters the drive and operational features of the truck

TABLE OF CONTENTS:

Caterpillar NO20S Lift Trucks Operation & Maintenance Manual – PDF DOWNLOAD

WHOMM0021-01_ORDER_PICKER.............................................. 1
WHOMM0021-02_SAFETY_INSTRUCTIONS....................................... 4
WHOMM0021-03_OPERATING_ENVIRONMENT..................................... 5
WHOMM0021-04_OPERATING_DEVICES......................................... 6
WHOMM0021-05_DRIVING_INSTRUCTIONS......................................10
WHOMM0021-06_LOAD_HANDLING.............................................12
WHOMM0021-07_BATTERIES.................................................13
WHOMM0021-08_MAINTENANCE...............................................15
WHOMM0021-09_TRANSPORTATION_AND_STORAGE................................18
WHOMM0021-10_TROUBLESHOOTING...........................................19
FBW2440820REVC_ENGLISH.................................................21
NO20S,NO20SP,NO10SPF_RO_1.78...........................................37
SEM-1C_ENGLISH.........................................................38
	INDEX..............................................................38
		LEGEND  .......................................................39
		COLOUR  CODES (Single Colours) ................................39
		1  Introduction to the ZAPI-MOS family ........................40
		2  General characteristics ....................................41
			 2.1  Technical Specification .............................41
			2.2  Control Units ........................................41
				2.2.a  Microswitches ..................................41
				2.2.b Potentiometer ...................................42
			 2.3  Safety & Protection Features ........................43
			2.4  Direction Orientation ................................43
			2.5  Operational Features .................................44
			2.6  SEM-1C chopper diagnosis .............................45
			2.7  Thermal Considerations ...............................45
			 2.8  General Instructions and Precautions   ..............46
		3  Installation  ..............................................47
			 3.1  Connection Cables ...................................47
			 3.2  Contactors ..........................................47
			 3.3  Fuses ...............................................47
			3.4  Description of SEM-1C Connectors. ....................48
			3.5  Description of Power Connections .....................49
			3.6  Mechanical Drawing & Dimensions ......................50
		4   Programming & Adjustments using Digital Console ...........51
			 4.1  Adjustments via Console .............................51
			 4.2  Description of Console & Connection .................51
			 4.3  Description of Standard Console Menu ................52
		5  SEM-1C: cabling and configuration ..........................53
			5.1  Power diagram ........................................53
			5.2  Connections ..........................................54
			5.3  Description of Programmable Functions (Options). .....55
			 5.4  Description of Parameters that may be Programmed ....57
			 5.5  Table of Adjustments ................................59
			 5.6  SEM-1C Traction Standard Wiring Diagrams ............61
			 5.7  Sequence for SEM-1C Traction Settings. ..............62
		6  SEM-1C Diagnostics .........................................63
			 6.1  Analysis of Alarms displayed on the Console .........64
			 6.2  Tester Description of the Functions .................67
			 6.3  Description of the Console SAVE Function ............69
			 6.4  Description of Console RESTORE Function. ............70
			 6.5  Description of Alarms Menu. .........................71
			 6.6  Description of Console PROGRAM VACC function. .......72
TS731002...............................................................74
TS811002...............................................................85

CATERPILLAR NO20S LIFT TRUCKS OPERATION & MAINTENANCE MANUAL – PDF DOWNLOAD:

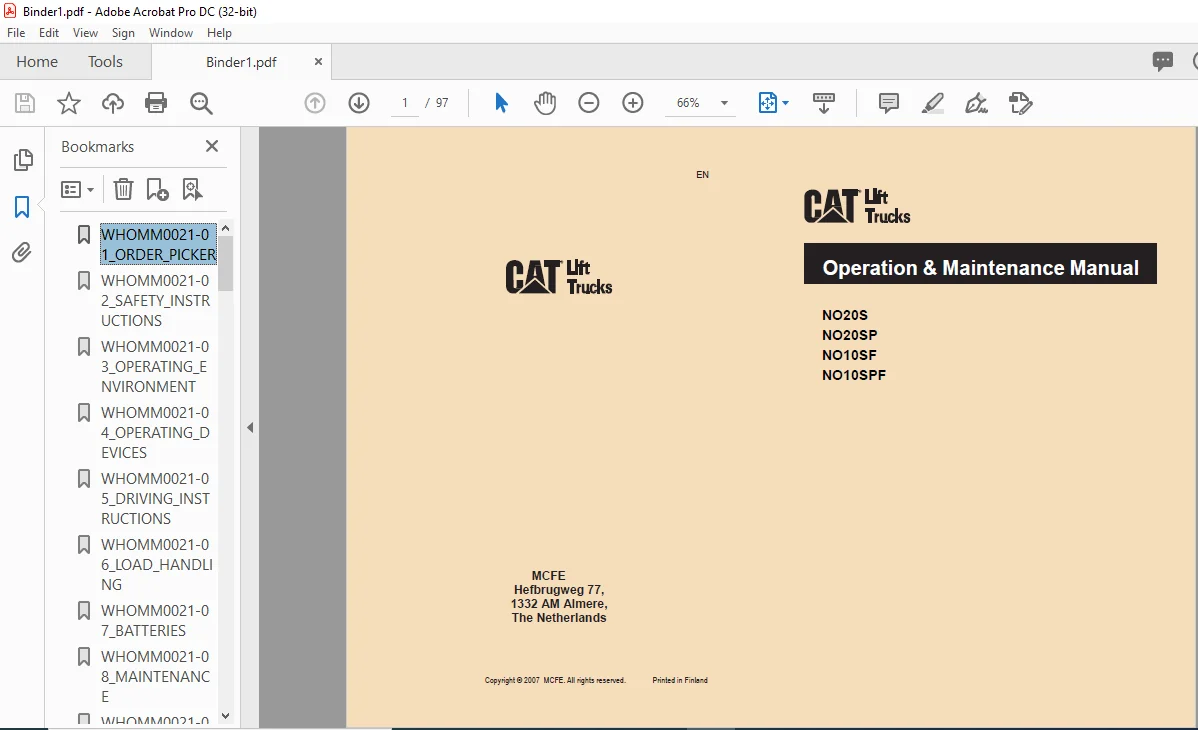

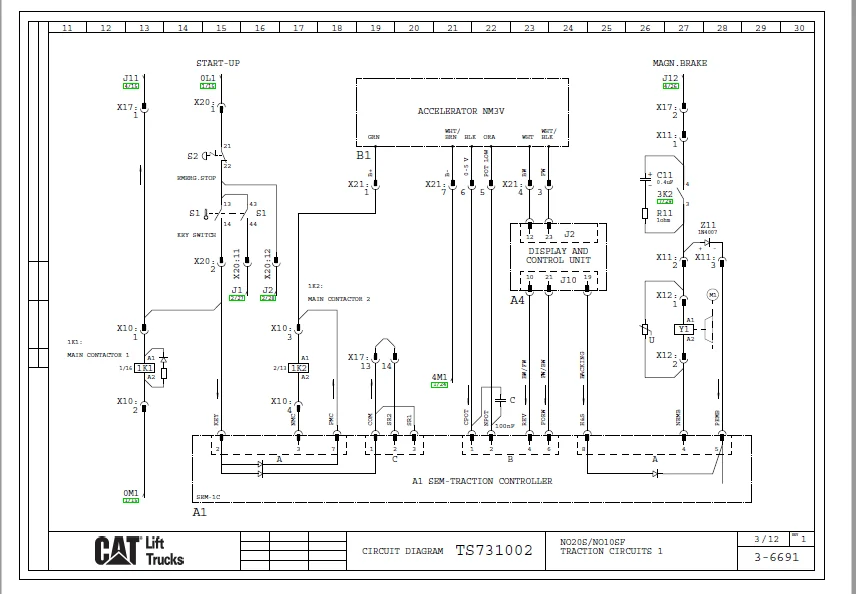

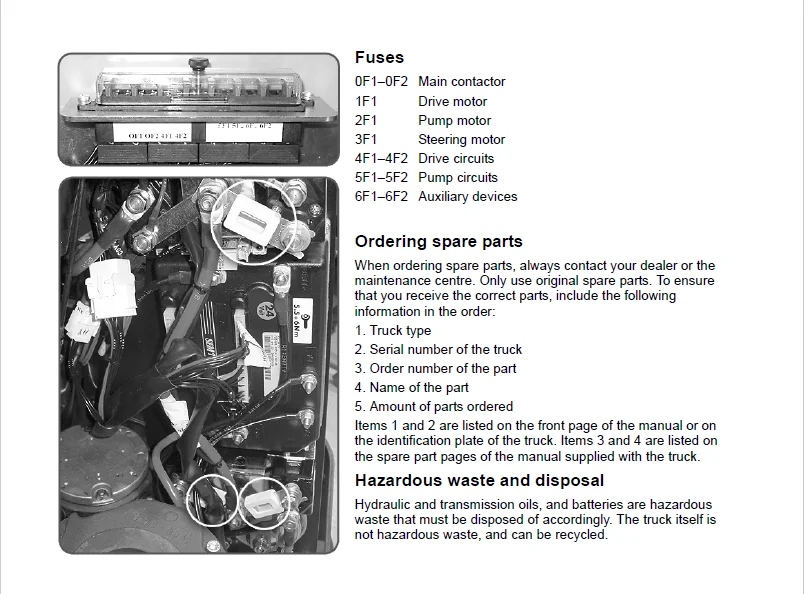

IMAGES PREVIEW OF THE MANUAL:
