Cesab P214 P216 P218 Forklift Parts Catalogue PDF Download

Description

Cesab P214 P216 P218 Parts Catalogue PDF

This Cesab P214 P216 P218 parts catalogue is the illustrated spare parts reference for the P214, P216 and P218 forklift range. Every assembly is broken down into exploded diagrams with numbered callouts, and each position is matched to a genuine part number, description and required quantity. Rather than a generic workshop manual, this is a genuine component-identification document built for ordering the exact part the first time.

If you maintain, service or rebuild a Cesab P214, P216 or P218, this catalogue removes the guesswork from part sourcing. You look up the assembly, find the item number on the drawing, and read the part number straight off the table.

File Details

• Manual type: Illustrated parts catalogue (spare parts manual)
• Brand: Cesab
• Models covered: P214, P216, P218
• Ordering number: 7588764
• Valid for machine number: 6384405
• Date: 2015-12-07
• Language: English, Swedish, German, French
• Pages: 131
• Format: PDF

Chapters Covered

The catalogue is organised by functional group, with each section carrying its own exploded view and parts table. The main groups are:

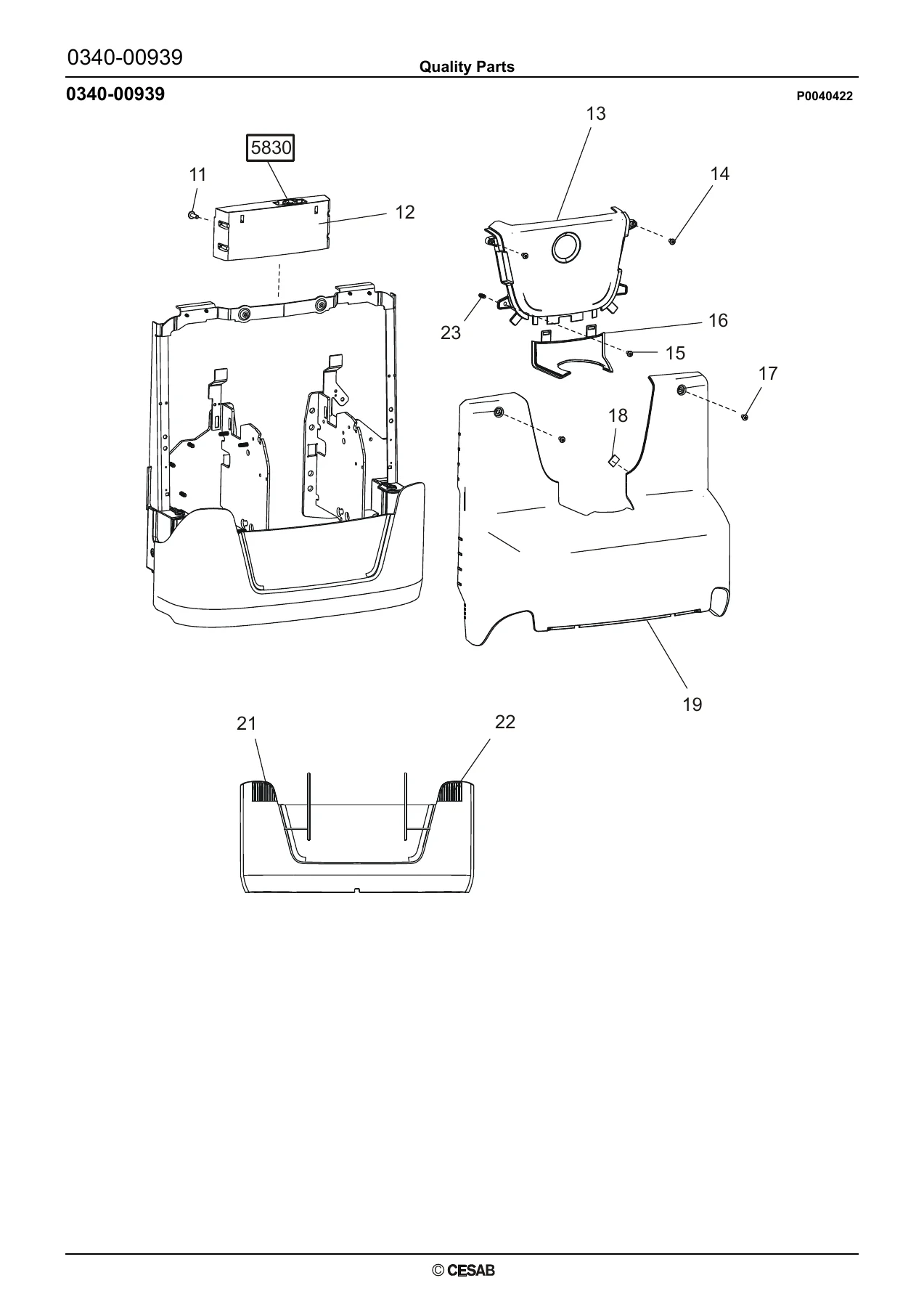

• 0000 Chassis — inspection covers, support arms and stabilizers, fork frames for low lifters, battery compartment parts (Small, Medium, Large sizes), finger/foot guards, signs, warnings and decals
• 1000 Motors — electric pump motor, electric drive motor (1.0 kW)
• 2000 Transmission / Drive gear — mechanical drive gear units
• 3000 Brake / Wheel / Caterpillar system — electrically controlled travel brakes, drive wheels, support/castor wheels, fork/support arm wheels, wheel locating points, guide rollers
• 4000 Steering system — steering arms, wheels and levers
• 5000 Electrical system — alarm signals, battery cut-out connector/contactor, driving function harnesses and fuses, transistor panel, work function harnesses and fuses, pump contactor, battery/motor cables and fuses, lift/lowering/reach movement sensors, safety probes/sensors
• 6000 Hydraulic/pneumatic system — hydraulic units, hydraulic lines for the chassis, main lift cylinders
• 9000 Options and attachments — charger attachments, extra electrical equipment, truck log device, code locking device, writing table, load guard, fire extinguisher bracket, E-bar mounts, paper clip and other add-ons

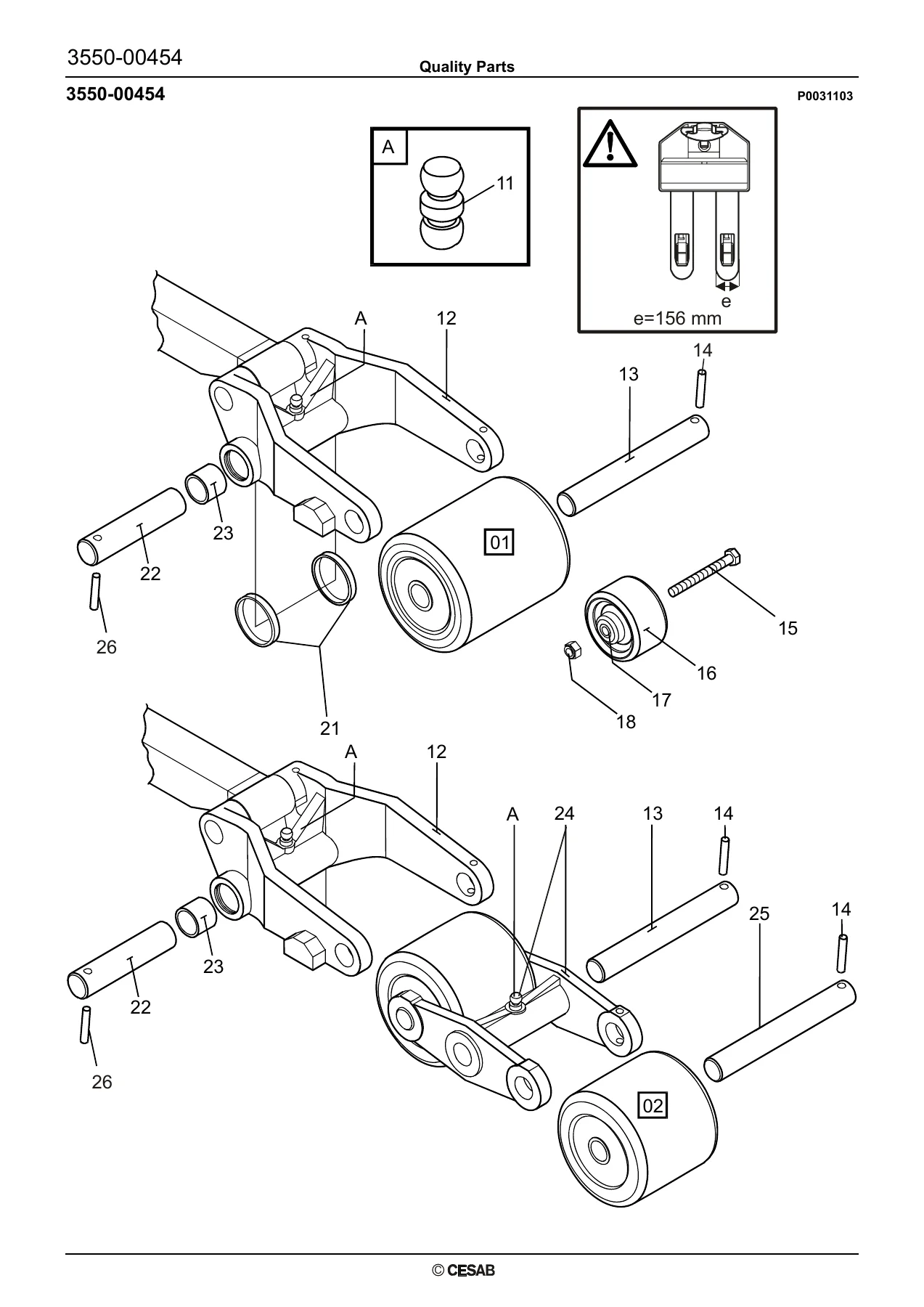

What makes a parts breakdown like this genuinely useful is that it works at two levels. At the ordering level, it tells you the precise part number for a bolt, bush, axle, wheel, seal, spring or bracket, along with how many are required per assembly — so you are not guessing thread sizes, bore diameters or pin lengths. At the repair level, the exploded views show how a sub-assembly comes apart and goes back together: the order of washers and spacers, which way a bushing sits, where a locking pin belongs, how a wheel fork or torsion tube is put together.

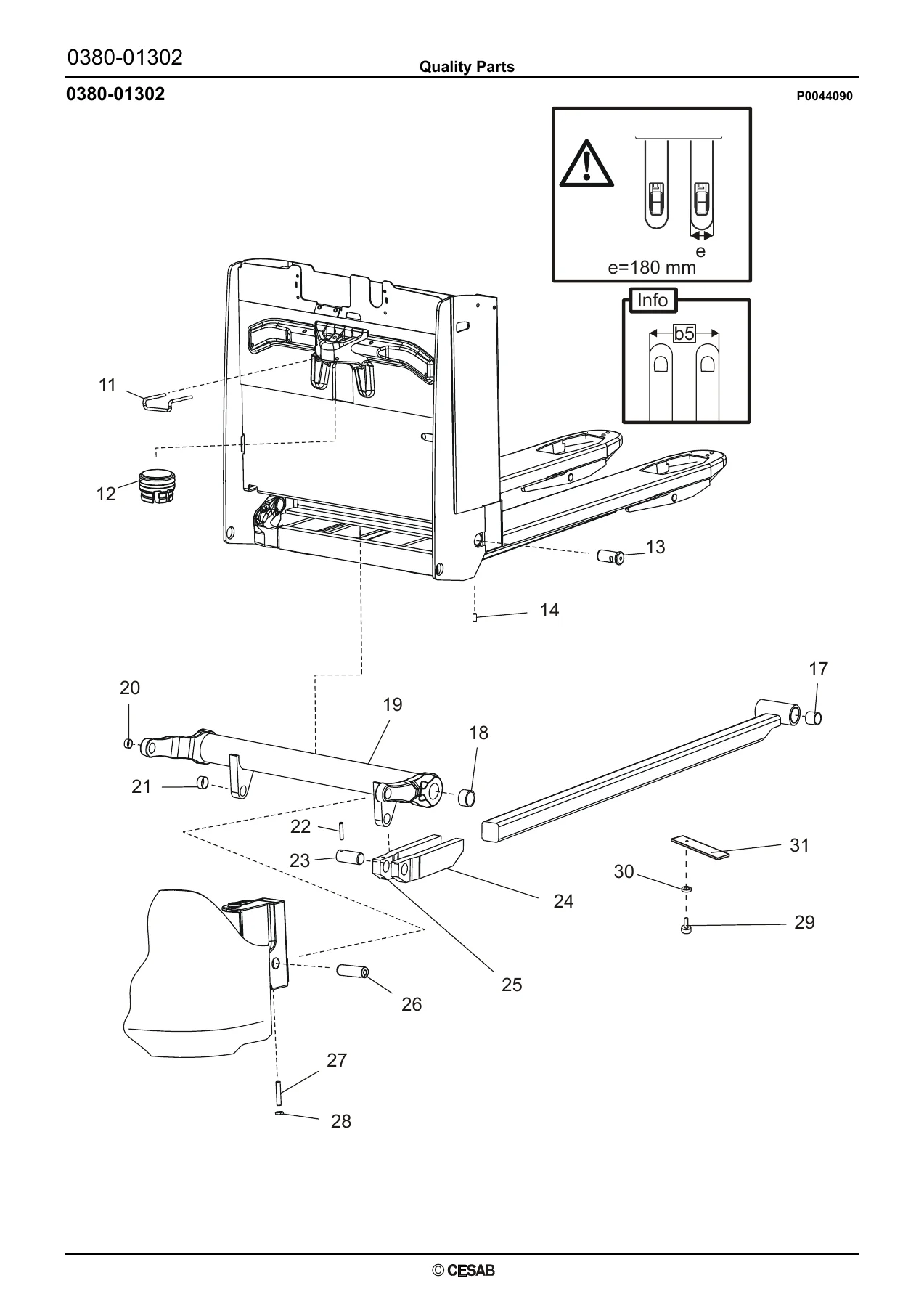

For example, the battery compartment pages cover Small, Medium and Large variants separately, each with its own cover, damper, bush and locking-pin part numbers. The fork frame section lists torsion tubes and push rods by dimension (b5 width and L length), so you can match the exact configuration on your machine instead of ordering by guesswork. Wheel sections distinguish Polyuretan, Vulkollan and PUR compounds, and note the e-dimension (e = 156 mm, e = 180 mm) where relevant.

Why This Catalogue Matters

Forklift parts are rarely interchangeable across a range without confirmation. A castor wheel, drive wheel or brake disc that looks right but is dimensioned for a different machine number will not fit, and returned parts cost time. This catalogue ties part numbers to a specific machine number range (6384405 onwards) and specific model designations, which is exactly the level of precision needed when a truck is down and you need the right component on the next order.

The exploded illustrations are also a practical guide during disassembly. Hydraulic units, pump assemblies, drive gear units and steering heads are all shown with their internal order of components — seals, stay rings, wipers, pistons, connections and plugs — so that a rebuild does not stall on a missing ring or an incorrectly seated bush.

What This Cesab Parts Catalogue Enables

• Identify and order spare parts for the P214, P216 and P218 by part number rather than by description
• Rebuild drive gear units, brake assemblies, hydraulic pumps and lift cylinders with the correct component sequence
• Match battery compartment parts to the correct Small, Medium or Large configuration
• Select the right wheel compound and size for drive, support and fork arm positions
• Trace electrical components such as contactors, transistor panels, harnesses, fuses, sensors and safety probes
• Source optional equipment parts, including chargers, load guards, extra electrical fittings and locking devices

IMAGES PREVIEW

Instant PDF Delivery

The Cesab P214 P216 P218 parts catalogue is delivered as a downloadable PDF immediately after purchase. There is no shipping, no waiting for a physical book, and no risk of a damaged parcel. Open it on a workshop laptop, tablet or phone, print the pages you need for the bench, and keep the rest on file. Because it is a digital file, you can search it, zoom into the exploded views and print individual sections as often as you like.

Whether you are a fleet maintenance technician, an independent forklift repair shop, or an owner keeping a Cesab P214, P216 or P218 in service, this parts catalogue gives you the component-level detail to order correctly and repair confidently.
