Challenger MT265B MT275B Parts Manual 2005 – Illustrated PDF Catalog

Description

Challenger MT265B MT275B Parts Manual 2005 – Illustrated PDF Catalog

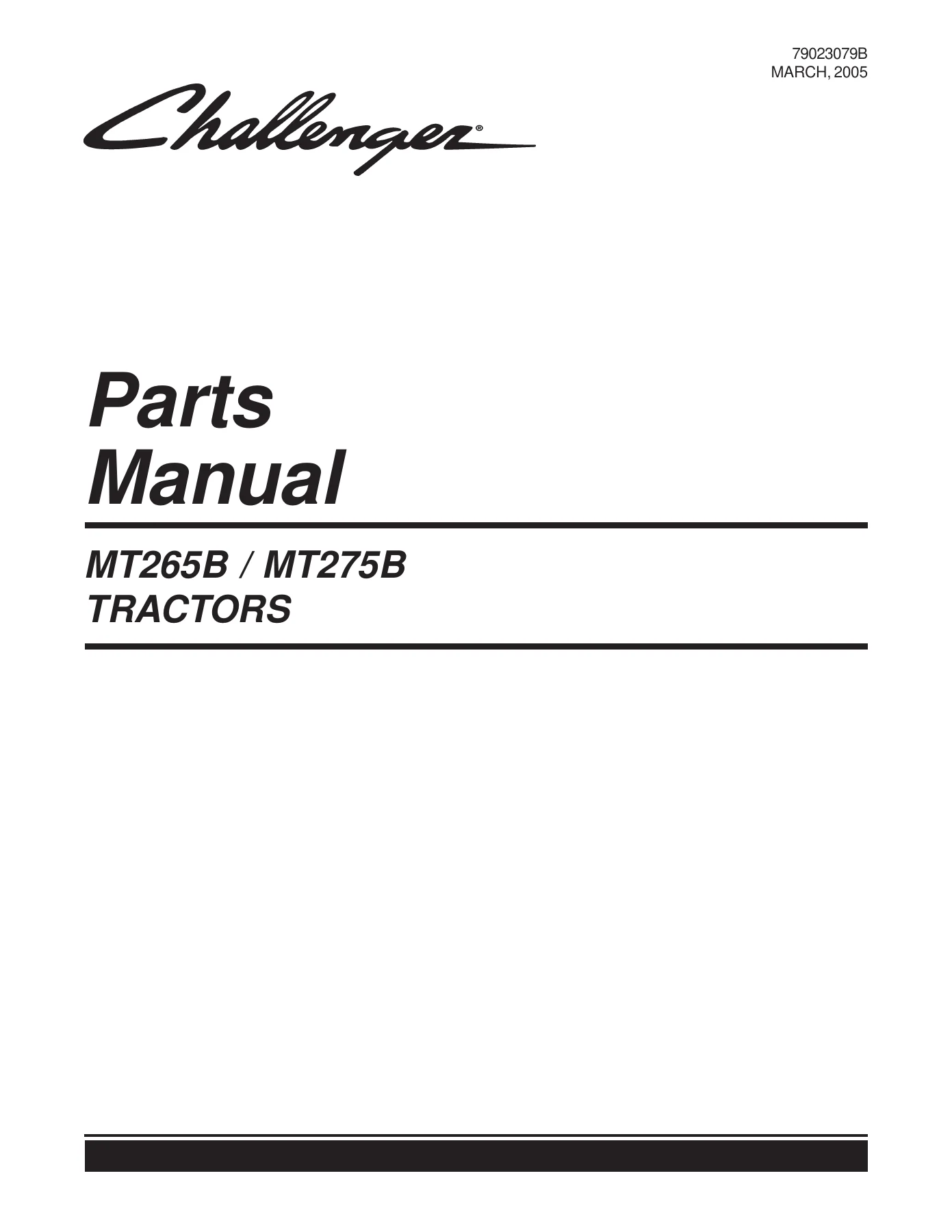

This is the complete illustrated parts manual for the MT265B and MT275B tractors, published under document number 79023079B and dated March 2005. Instead of a repair guide, this is a lookup tool: every assembly on the machine is drawn in exploded form on the left-hand page, and the matching item numbers, part numbers, quantities and descriptions are printed on the right-hand page. If you need to identify a gear, a seal, a bracket, a hose or a fastener before ordering, this is the book that tells you what it is called and what number to ask for.

File Details

• Manual type: Illustrated parts catalog / parts manual
• Brand: Challenger
• Models covered: MT265B, MT275B
• Publication number: 79023079B
• Publication date: March 2005
• Language: English
• Page count: 481 pages
• File format: PDF

Chapters and Groups Covered

• Alphabetical index and numerical index of part numbers
• Forward, ordering instructions and hardware conventions

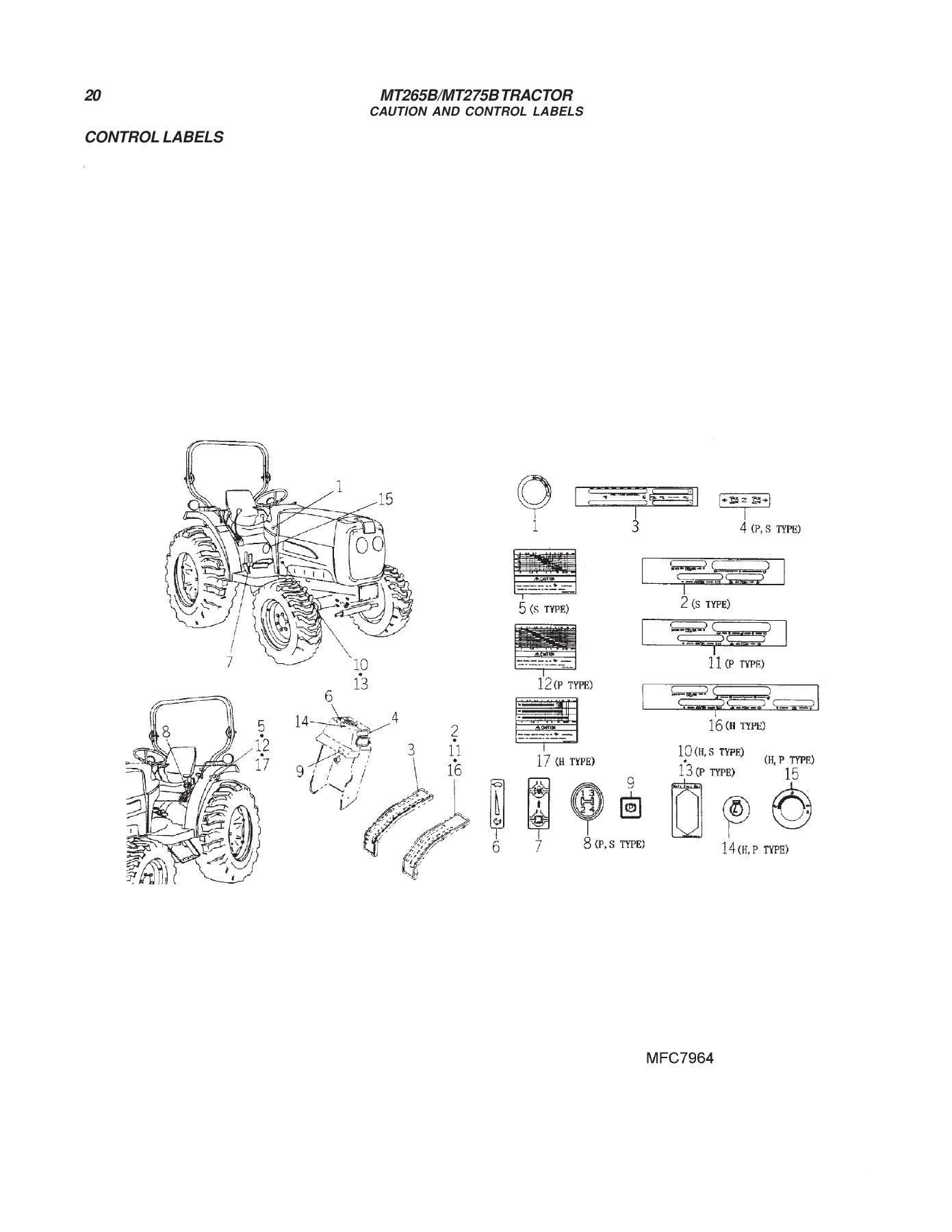

• Control labels and caution labels
• Chassis: radiator system, muffler system, air cleaner system, fuel tank system
• Accelerator system for H type and P/S type
• Main clutch system and clutch pedal system (P, S type)
• Front transmission case systems for P, H and S types
• Reverse gear systems (P type and S type)
• HST unit system (H type)
• Front PTO gear systems for P/S and H types
• Mid transmission case system
• Main gear systems for H, P and S types
• Sub gear systems for P/S and H types
• 4WD gear system and 4WD lever system
• Rear PTO gear system and mid PTO cover system
• Reverse shift fork, main shift fork, sub shift fork, 4WD shift arm and PTO shift fork systems
• Reverse lever, main lever, sub lever and PTO lever systems
• Drive pinion differential gear system and rear axle housing system
• Diff-lock systems for P/S and H types
• Brake system (P, S type) and brake pedal / parking brake systems for H and P/S types
• Steering wheel, steering column (H, P, S type) and power steering systems
• Axle bracket, front drive shaft, bevel case, front axle housing, front gear case and tie rod systems
• Cylinder case system and mechanical link systems
• Main hydraulic systems for S, H and P types
• Relief cover system and sub hydraulic systems for S, H and P types
• Joystick valve system
• 3 point link system, turnbuckle lift rod system, bevel lift rod system, top link bracket and fixed drawbar systems
• Hood, grille, side cover, fender, lever guide and seat systems
• Mount system, front floor, rear floor, HST pedal and cruise control systems
• Front, main and rear electrical systems plus instrument panel
• PTO control and 7P socket system, control system (H type)
• Rear frame system, decals, SMV set, mid PTO set, bumper hitch system
• Cut off plug assembly and remote valve set, 2R
• Engine for MT265B without cab: cylinder head, cylinder head cover, inlet manifold, exhaust manifold, cylinder block, undersize bearing, oil pan, rear plate, timing gear case, hanger, valves and rocker shaft, camshaft, piston, oversize piston, crankshaft, oil pump, water pump, cooling fan, injection nozzle and pipes, injection pump, fuel pipe, adapter, electric (1) and (2), repair parts
• Engine for MT265B with cab: same group coverage as the non-cab engine section

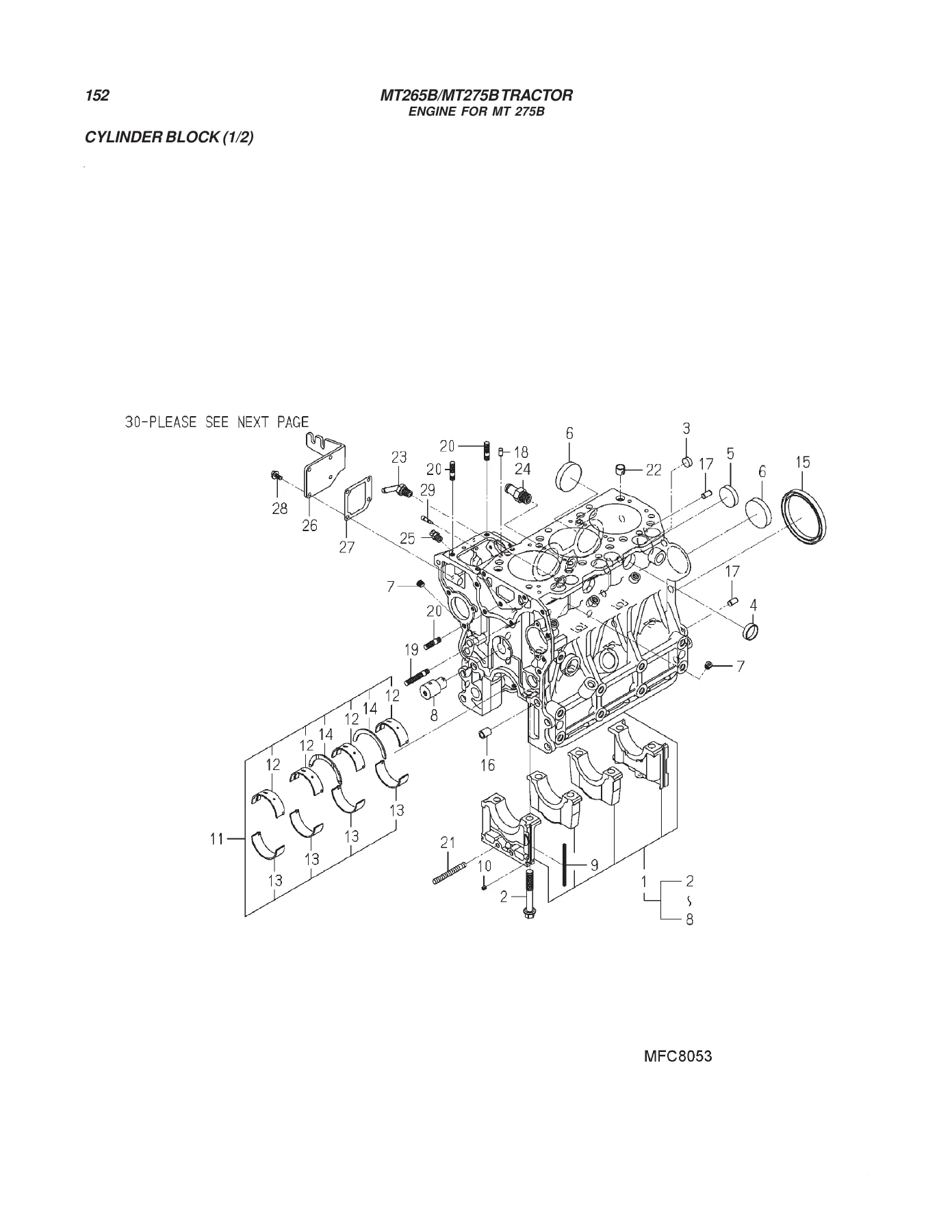

• Engine for MT275B: cylinder block (1/2 and 2/2), turbocharger, piston and connecting rod, plus all groups listed above
• Component parts listings for injection pumps, starter assemblies and alternator assemblies
• Wheels and tires: 7496701, 7496712, 7496723, 7496734 and 7496745 sets
• Accessories: tractor mounted valve without loader (7541902), NIMCO valve assembly CV112 joystick controlled, recommended dealer stock list

Reading through the groups above, the shape of the document becomes clear. It is not a narrative repair guide; it is a two-part lookup system. The alphabetical index at the front points you to a major group or assembly, the numerical index points you straight to the grid location and page where a specific part number appears, and the illustrated pages then show you exactly where that part sits in the assembly. The forward section explains that all illustrations sit on the left-hand page with text on the right, that every part carries an item number matching the item column on the text page, and that common hardware such as bolts, nuts, cotter pins and lube fittings are listed indented beneath the item they attach to. It also states plainly that indented hardware is not included unless the description says so, which is the kind of detail that prevents an incomplete order.

Variants and Serial Breakpoints

The catalog is organised around the transmission and control variants of these tractors, shown throughout as H type, P type, S type, P/S type, P/Q type and HST configurations. Several groups are split by serial number because the part changed during production, and those breakpoints are printed directly in the item rows. Examples that appear in the manual include water pump listings for MT265B engines up to serial RA138384 and from RA138385, flywheel assemblies for MT275B engines up to and from RA1350526, cylinder head cover blow-by components up to and from serial RA135204/RA135205, radiator and bracket parts up to and from the AN4156, BN4104, CN4156, DN4104, EN4156, FN4104 sequence, and reverse and PTO gear parts around the AN2711/AN2712 and AN2702/AN2703 breaks. Where a serial range is printed next to a part number, that is the range the part belongs to, and buying by that breakpoint is far safer than buying by appearance.

Why This Beats Guesswork at the Parts Counter

Parts for compact tractors are frequently superseded, and the difference between two visually identical gears or shafts is often a tooth count, a bearing size or a snap-ring groove. A description over the phone cannot resolve that. This manual resolves it because the exact assembly is drawn, the item number on the drawing is tied to a printed part number, and the quantity is stated. For anyone rebuilding a transmission, resealing a hydraulic system, replacing a PTO clutch pack, chasing an electrical fault through the harness, or simply replacing a cracked fender or worn seat suspension, the correct number is the difference between one order and three.
