Clark Michigan 75C Wheel Loader Parts Manual – PDF Download

Description

Clark Michigan 75C Wheel Loader Parts Manual – Publication 3260

This is the complete parts catalog for the Clark Michigan 75C wheel loader, published under Publication No. 3260. It covers machines built with Cummins 494A, Cummins 4243A and Detroit 495A serial number prefixes. Every major assembly is broken down with exploded illustrations, part numbers, quantities and descriptions in five languages.

File Details

• Manual Type: Parts Catalog / Parts Manual
• Brand: Clark Michigan
• Model: 75C Wheel Loader
• Publication No.: 3260
• Engine Coverage: Cummins 494A, Cummins 4243A, Detroit 495A
• Language: English (with French, German, Portuguese and Spanish translations throughout)
• Page Count: Approximately 575 pages
• File Format: PDF

Chapters Covered

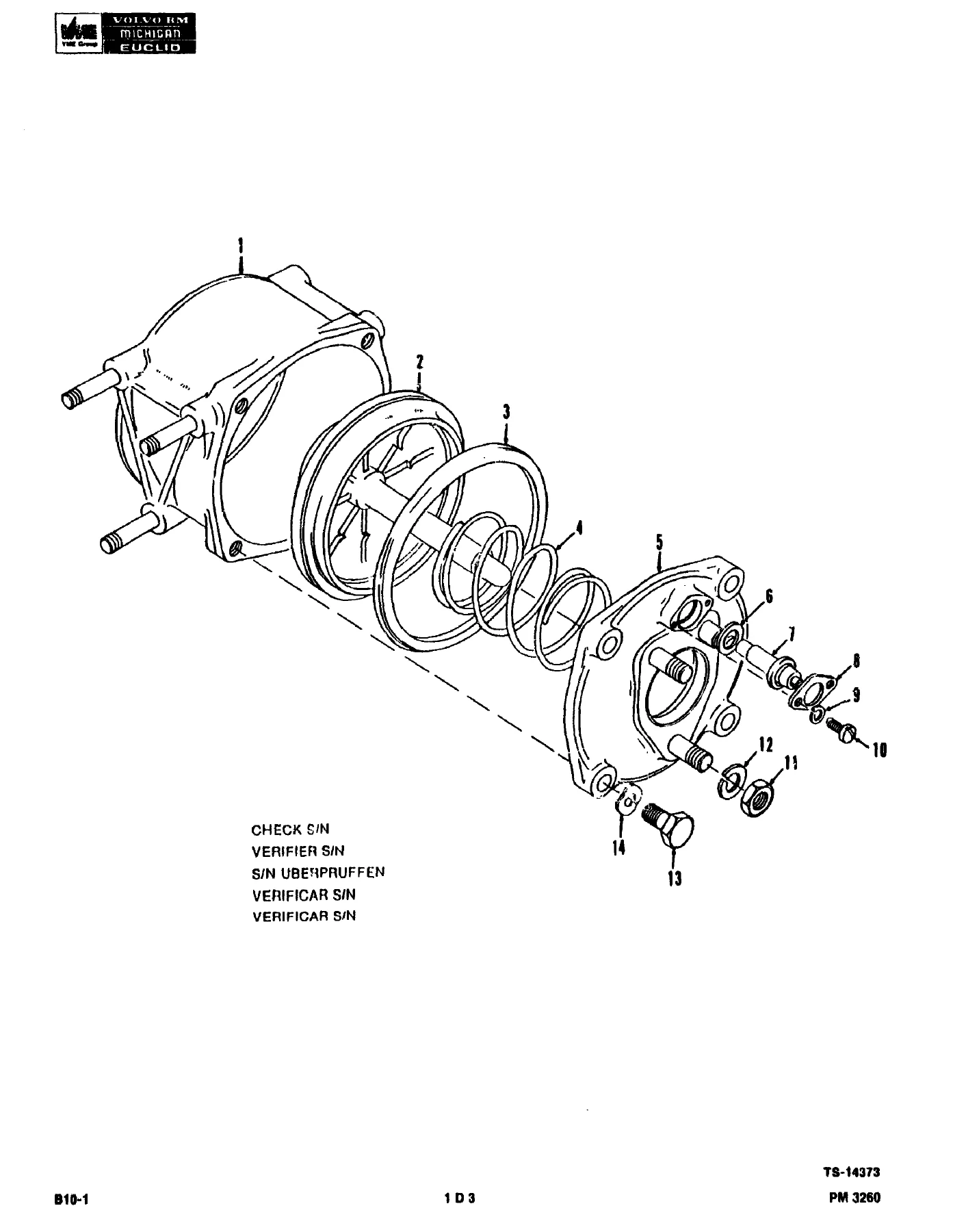

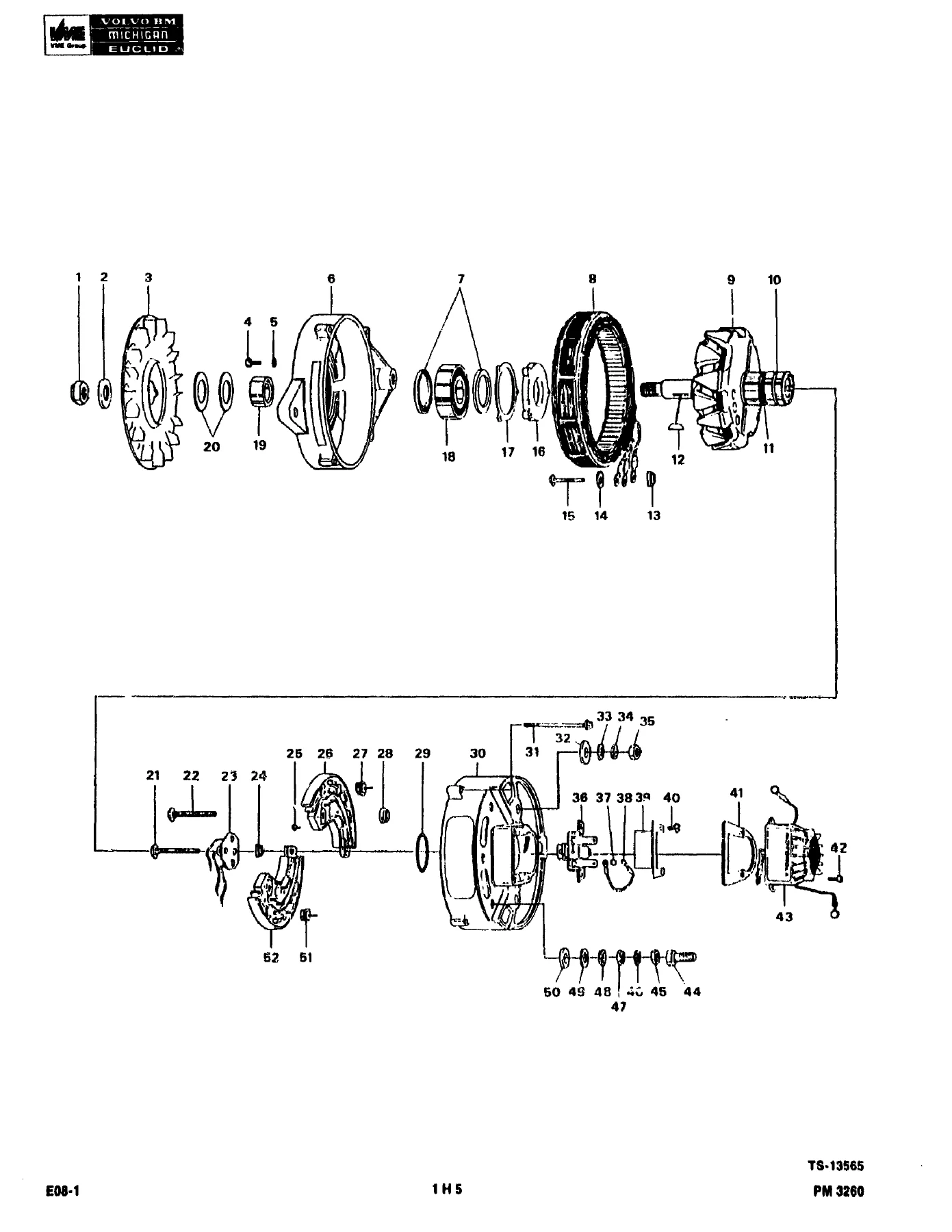

The 75C parts manual is organized by group number in alphabetical order. Each section contains exploded-view illustrations with reference numbers that cross-reference to part number tables. The top-level chapters include:

• Axle Differential Carrier Assembly, Front
• Axle Planet Carrier Assembly, Front & Rear
• Boom, Bellcrank, Pushrod & Bucket Leveler
• Brake Air Lines – Cockpit Area
• Brake Air Lines – Compressor Area (Cummins & GM)
• Brake Air Lines – Front
• Brake Power Cluster Assembly
• Bucket Assembly
• Cab Assembly – ROPS
• Converter Assembly – Cummins & GM
• Cylinder Assembly, Bucket
• Cylinder Assembly, Steering
• Drive Shaft Assembly – Transmission / Mid-Mount Bearing
• Electrical Instrument Panel
• Engine Exhaust System – Cummins
• Frame, Front & Rear
• Hydraulic System, Steering
• Hydraulic System, Transmission & Torque Converter
• Lubrication System
• Mid-Mount Bearing Assembly
• Nameplates & Decals
• Pump Assembly, Main
• Pump Assembly, Steering
• Pump Attaching Parts
• Radiator Assembly – Cummins & GM
• Radiator Connections – Cummins & GM
• Seat & Support Parts
• Sheet Metal Group
• Sound Reduction Kit
• Steering Controls
• Transmission & Clutch Cover Assembly
• Transmission Clutch Group, First & Second
• Transmission Clutch Group, Low
• Transmission Clutch Group, Reverse & Third
• Transmission Control Valve
• Transmission Controls
• Transmission Gear & Shaft Group
• Transmission Modulated Valve Assembly
• Valve Assembly, Air Brake
• Valve Assembly, Main
• Valve Assembly, Main – 3 Spool
• Valve Assembly, Main Relief
• Valve Assembly, Steering
• Valve Assembly, Transmission Lube Flow Regulating
• Valve Controls
• Wheel & Tire Data
• And numerous accessory kits (air conditioner, alcohol injector, backup alarm, canopy, counterweight, fire extinguisher, fork lift, fuel sentinel, heater, logger, pipe handler, ROPS, sound reduction, spark arrestor, tool kit, turn lights, and more)

Axle and Drive Components

The axle sections cover both the front differential carrier and the front and rear planet carrier assemblies. Exploded views show the differential case, pinion, gears, bearings, cups, cones, shims, seals and retaining hardware. The drive shaft assembly section details the spider joints, yokes, slip yoke, mid-mount bearing and attaching bolts. These sections are essential when rebuilding a differential or replacing worn axle components on the 75C wheel loader.

Boom, Bucket and Hydraulic Systems

The boom and bucket leveler section illustrates the bellcrank, pushrod, bushings, pins and seal guards that control bucket positioning. The bucket assembly section covers the bucket shell, wear plates, corner plates, cutting edge and bolt-on edge options. The hydraulic system chapters for steering and transmission include hose routings, tube assemblies, fittings, elbows, tees, valves and the main pump assembly. The main pump section provides a complete breakdown of the pump body, gears, pressure plates, seals, bearings and coupling components. The steering pump and steering valve assemblies are also detailed with exploded views and part numbers.

Transmission and Torque Converter

The transmission section is extensive, covering the clutch cover assembly, first and second clutch group, low clutch group, reverse and third clutch group, control valve, controls and the complete gear and shaft group. The torque converter assembly is also broken down with turbine shaft, stator, impeller, bearings, seals and snap rings. The transmission modulated valve assembly and the transmission lube flow regulating valve are included, making this parts manual complete for anyone rebuilding or servicing the drivetrain of a Clark Michigan 75C.

Brakes, Steering and Electrical

Brake air lines are covered for the cockpit area, compressor area (both Cummins and GM variants) and front axle. The brake power cluster assembly is shown with its internal components. Steering controls, the steering column, steering wheel and the steering valve assembly are all documented. The electrical instrument panel section shows gauges, switches, sockets, bulbs, harnesses and panel plates. Nameplates and decals are also listed with part numbers for restoration or replacement.

Cab, Sheet Metal and Operator Environment

The cab assembly section covers ROPS structure, doors, windows, weatherstrip, latches, hinges, glass, carpet, soundproofing and roof lining. The sheet metal group includes side panels, hood, fenders, grille, steps, handrails, deck plates and battery trays. Seat and support parts are detailed with cushion, armrest, suspension and seat belt components. The heater assembly, air conditioner kit and windshield washer/wipers are also included.

Accessories and Attachments

This parts manual also covers a wide range of attachments and kits: fork lift attachment, logger attachment, pipe handler assembly, grapple kit, counterweight kits (front and rear), canopy kit, protective roof kit, sand grid kit, cutting edge protector kit, tire inflator kit, rotating beacon light, turn lights, reverse alarm, backup alarm, fire extinguisher kit, alcohol injector kit, fuel sentinel by-pass kit, engine preheater kits and more. Each kit is broken down with individual part numbers and illustrations.

Why This Parts Manual Matters

When you are ordering replacement parts for a Clark Michigan 75C wheel loader, guesswork is expensive. This parts catalog gives you the exact part number for every component, from a simple O-ring to a complete axle assembly. The exploded-view illustrations show how parts fit together, and the multilingual part tables let you confirm descriptions even if English is not your first language.

Whether you are a dealer, a fleet mechanic, or an owner-operator maintaining a vintage 75C, having the correct parts manual means fewer wrong orders, less downtime and correct assembly the first time. The manual covers multiple engine and serial number ranges, so you can be confident you are looking at the right parts for your specific machine.
