Clymer Honda CBR600F Hurricane 1987-1990 Service Repair Manual

Description

File Details

• Manual type: Service, repair and maintenance manual
• Brand: Honda
• Models covered: CBR600F Hurricane (600 Hurricane), 1987-1990, including 49-state and California models
• Language: English
• Page count: 416
• File format: PDF
• Publisher: Clymer / PRIMEDIA Business Magazines & Media
• ISBN: 0-89287-572-0

Chapters Covered

• Chapter One: General Information — Manual organization, notes/cautions/warnings, safety, service hints, torque specifications, fasteners, lubricants, serial numbers and parts replacement, manufacturer’s label, emission control information labels, basic hand tools, test equipment, mechanic’s tips
• Chapter Two: Troubleshooting — Operating requirements, troubleshooting instruments, starting the engine, emergency troubleshooting, engine performance, engine noises, engine lubrication, clutch, gearshift linkage, transmission, electrical troubleshooting, test equipment, basic test procedures, electrical problems, charging system, voltage regulator/rectifier, alternator, ignition system, starting system, carburetor troubleshooting, front suspension and steering, brake problems
• Chapter Three: Periodic Lubrication, Maintenance and Tune-up — Routine safety checks, maintenance intervals, tires and wheels, battery, periodic lubrication, periodic maintenance, suspension adjustment, tune-up, ignition timing, carburetor
• Chapter Four: Engine — Engine principles, servicing engine in frame, engine removal/installation, cylinder head cover, camshafts, rocker arm assemblies, cylinder head, valves and valve components, cylinder block, pistons and piston rings, lubrication system, oil cooler, alternator rotor, starter clutch assembly, starter gear and primary drive gear, crankcase, crankshaft, connecting rods
• Chapter Five: Clutch — Clutch cover, clutch release mechanism, clutch
• Chapter Six: Transmission — Sprocket cover, neutral switch, engine sprocket, external shift mechanism, transmission gears, internal shift mechanism
• Chapter Seven: Fuel, Emission Control and Exhaust Systems — Carburetor operation, carburetor service, carburetor adjustments, throttle cable replacement, choke cable replacement, fuel tank, fuel shutoff valve, fuel filter, fuel pump, crankcase breather system, evaporative emission control system (California models), secondary air supply system (California models), exhaust system
• Chapter Eight: Electrical System — Electrical connectors, battery, charging system, alternator, voltage regulator/rectifier, ignition system, spark unit, ignition coil, pulse generator, starting system, starter relay switch, clutch diode, lighting system, switches, electrical components, fuses
• Chapter Nine: Liquid Cooling System — Cooling system inspection, coolant reservoir tank, radiator, cooling fan, thermostat, water pump, hoses
• Chapter Ten: Front Suspension and Steering — Front wheel, handlebars, front hub, steering head and stem, wheel balance, steering play, tubeless tires, front forks, tubeless tire changing, anti-dive front suspension
• Chapter Eleven: Rear Suspension — Rear wheel, rear hub, rear sprocket and coupling, drive sprocket and drive chain, rear shock absorber, Pro-link suspension system, swing arm
• Chapter Twelve: Brakes — Disc brakes, front brake pad replacement, front brake caliper, front master cylinder, rear disc brake, rear brake pad replacement, rear brake caliper, rear master cylinder, brake hose replacement, brake disc, rear brake pedal, bleeding the system
• Chapter Thirteen: Body — Side covers, seat, seat cowling, maintenance covers, lower fairing, inner cover, upper fairing, windshield, front fender, rear fenders
• Wiring Diagrams — Complete electrical schematics for 1987-1988 and 1989-1990 CBR600F models

This Clymer Honda CBR600F Hurricane 1987-1990 service repair manual gives a technician the complete factory-style procedural depth needed to maintain, diagnose and rebuild the 600 Hurricane from top to bottom. Every chapter moves from removal and disassembly through inspection, measurement, service limits and reassembly in step-by-step form, with the specifications needed to confirm each part is within tolerance before it goes back on the machine. Whether the job is a routine oil and filter change, a valve clearance adjustment, a carburetor synchronization, a clutch replacement or a full engine overhaul, the manual provides the sequence, the torque figures and the wear limits required to do it correctly rather than by guesswork.

Complete Mechanical Coverage for the CBR600F Hurricane

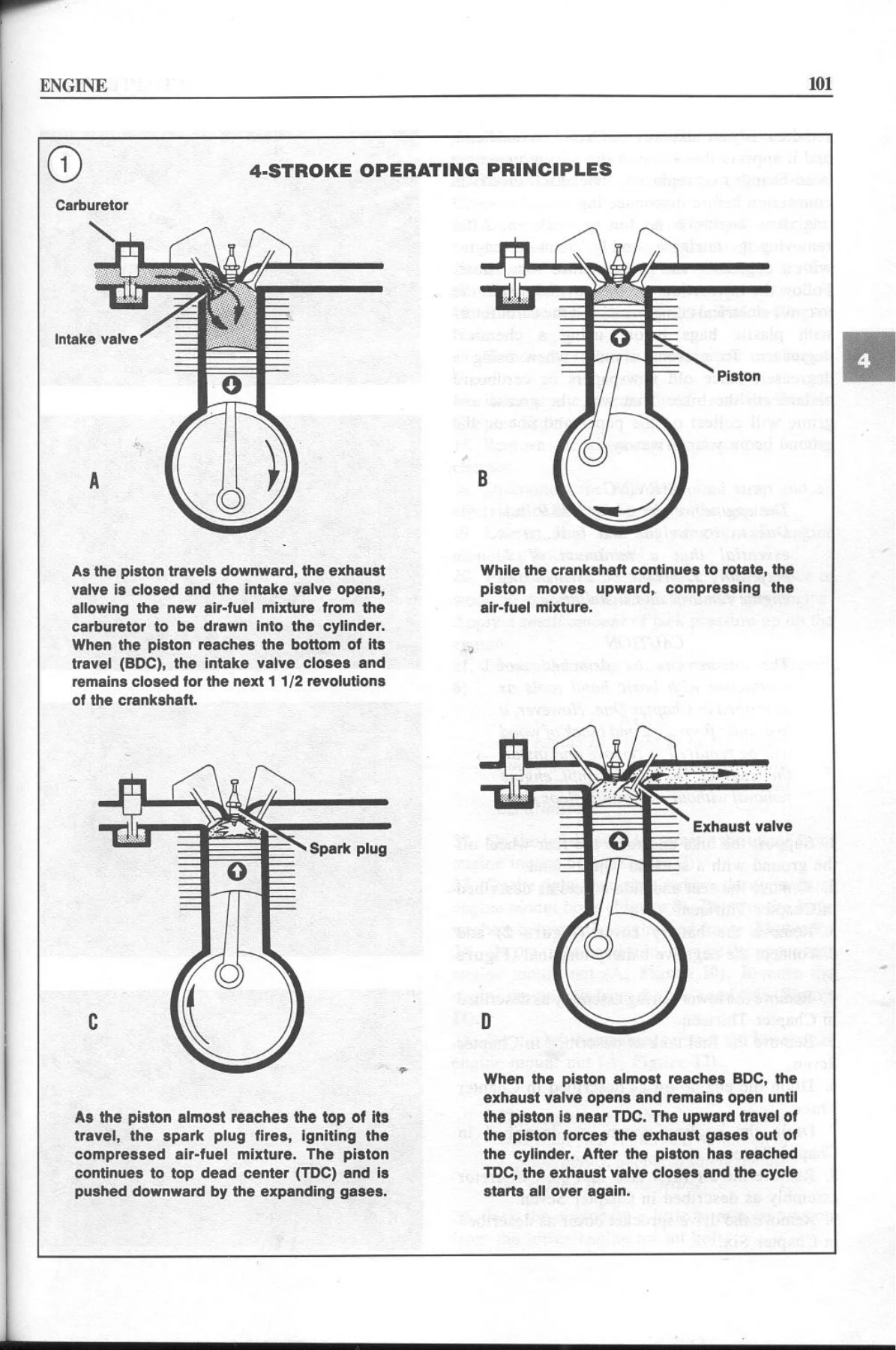

The engine chapter covers the liquid-cooled DOHC 16-valve inline four in full detail, including camshaft removal and installation with camshaft bearing clearance measurement using Plastigage, rocker arm inspection and assembly, cylinder head warpage checks, valve guide replacement with special tools, valve seat reconditioning, valve lapping, cylinder block inspection and reboring guidance, piston and piston ring service, lubrication system components, oil pump disassembly and oil pressure testing, alternator rotor removal, starter clutch assembly and starter gear service, crankcase splitting and assembly, crankshaft inspection and main bearing clearance measurement, and connecting rod bearing selection. The engine can be serviced in the frame for many procedures, but the manual also walks through complete engine removal and installation using a hydraulic floor jack with the required safety precautions noted.

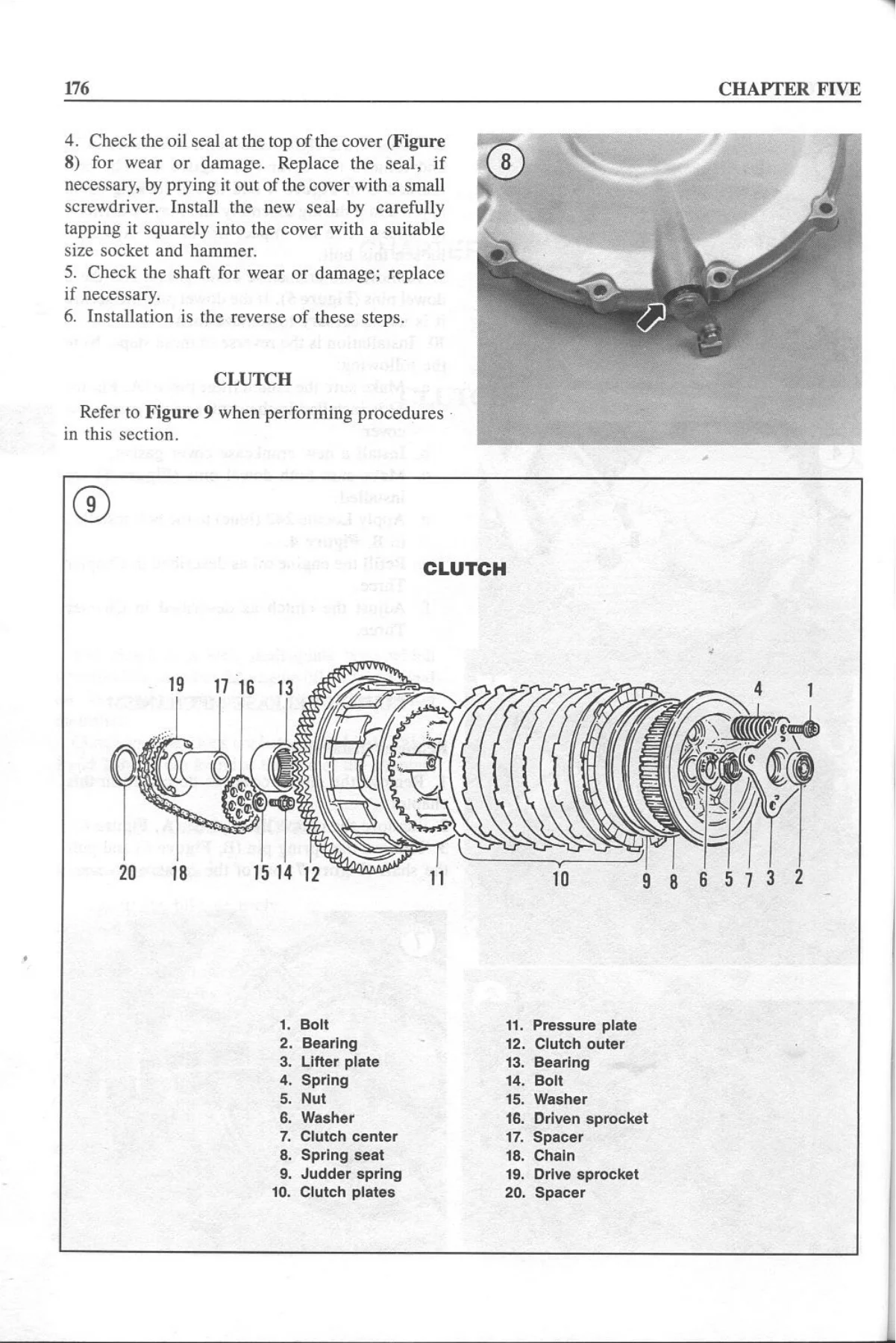

The driveline chapters break down the clutch and transmission with the same level of detail. Clutch cover removal, clutch release mechanism service, clutch disassembly and inspection of friction plates, steel plates, springs and the clutch outer are all covered, along with the oil pump sprocket and chain that live behind the clutch. The transmission chapter addresses the sprocket cover, neutral switch, engine sprocket, external shift mechanism, transmission gears, and the internal shift mechanism including shift drum and shift forks. Gearshift linkage troubleshooting and transmission troubleshooting charts help isolate difficult shifting, gear noise, or gears popping out of mesh before any teardown begins.

Fuel, emission control and exhaust coverage includes carburetor operation, carburetor service, carburetor adjustments and synchronization, throttle cable and choke cable replacement, fuel tank and fuel shutoff valve service, fuel filter replacement, fuel pump testing, the crankcase breather system, and the California-only evaporative emission control and secondary air supply systems. The exhaust system section covers removal and installation with the associated gaskets and fittings.

The electrical chapter is comprehensive, covering the battery, charging system, alternator, voltage regulator/rectifier, ignition system with spark unit, ignition coil and pulse generator testing, starting system with starter relay switch and clutch diode, lighting system, switches, electrical components and fuses. Wiring diagrams for both the 1987-1988 and 1989-1990 models are included, making circuit tracing and connector diagnostics practical. The liquid cooling system chapter covers cooling system inspection, coolant reservoir, radiator, cooling fan, thermostat, water pump and hoses, with pressure testing and coolant change procedures.

Chassis coverage spans the front suspension and steering with front wheel, handlebars, front hub, steering head and stem, wheel balance, steering play, tubeless tires, front forks and the anti-dive front suspension. The rear suspension chapter covers the rear wheel, rear hub, rear sprocket and coupling, drive sprocket and drive chain, rear shock absorber, Pro-Link suspension system and swing arm. Brakes are covered from disc brake fundamentals through front and rear brake pad replacement, caliper service, master cylinder service, brake hose replacement, brake disc inspection, rear brake pedal and system bleeding.

Specifications, Torque Values and Wear Limits

Every chapter ends with the relevant specifications and tightening torques, and the manual opens with a quick reference data section that puts the most-used general specifications, engine specifications, charging system specifications, ignition system specifications, maintenance torque specifications, electrical system tightening torques, replacement bulbs and general torque specifications within easy reach. Critical measurements such as valve clearances, compression pressure, camshaft lobe height, valve stem-to-guide clearance, piston-to-cylinder clearance, ring end gap, connecting rod bearing oil clearance, crankshaft runout, brake disc thickness and runout, and fork spring free length are all listed with wear limits so a technician can make a clear replace-or-reuse decision.

The manual also includes a decimal and metric equivalents table, engine and frame serial number ranges by model year, tire specifications, recommended lubricants, engine oil capacity, front fork oil capacity and air pressure, antifreeze protection and capacity, rear shock adjustment positions, and tune-up specifications. Routine maintenance intervals are laid out in a factory-recommended service schedule covering the initial 600-mile service and the recurring mileage and time-based services.

Who This Manual Is For

This Clymer Honda CBR600F Hurricane 1987-1990 service repair manual suits the home mechanic who wants to perform preventive maintenance and tune-ups, the experienced DIY owner tackling clutch, brake, suspension or engine work, and anyone who needs a reliable reference for specifications and procedures on a CBR600F that is no longer covered by dealer service departments. The step-by-step format, exploded views and photographs make the procedures accessible without prior factory training, while the measurement and clearance data keep the work accurate.

Get the Complete Clymer Honda CBR600F Hurricane 1987-1990 Service Repair Manual
