Columbia ParCar Payloader BC2 BC3 BC4 Burden Carrier Parts Manual 2015

Description

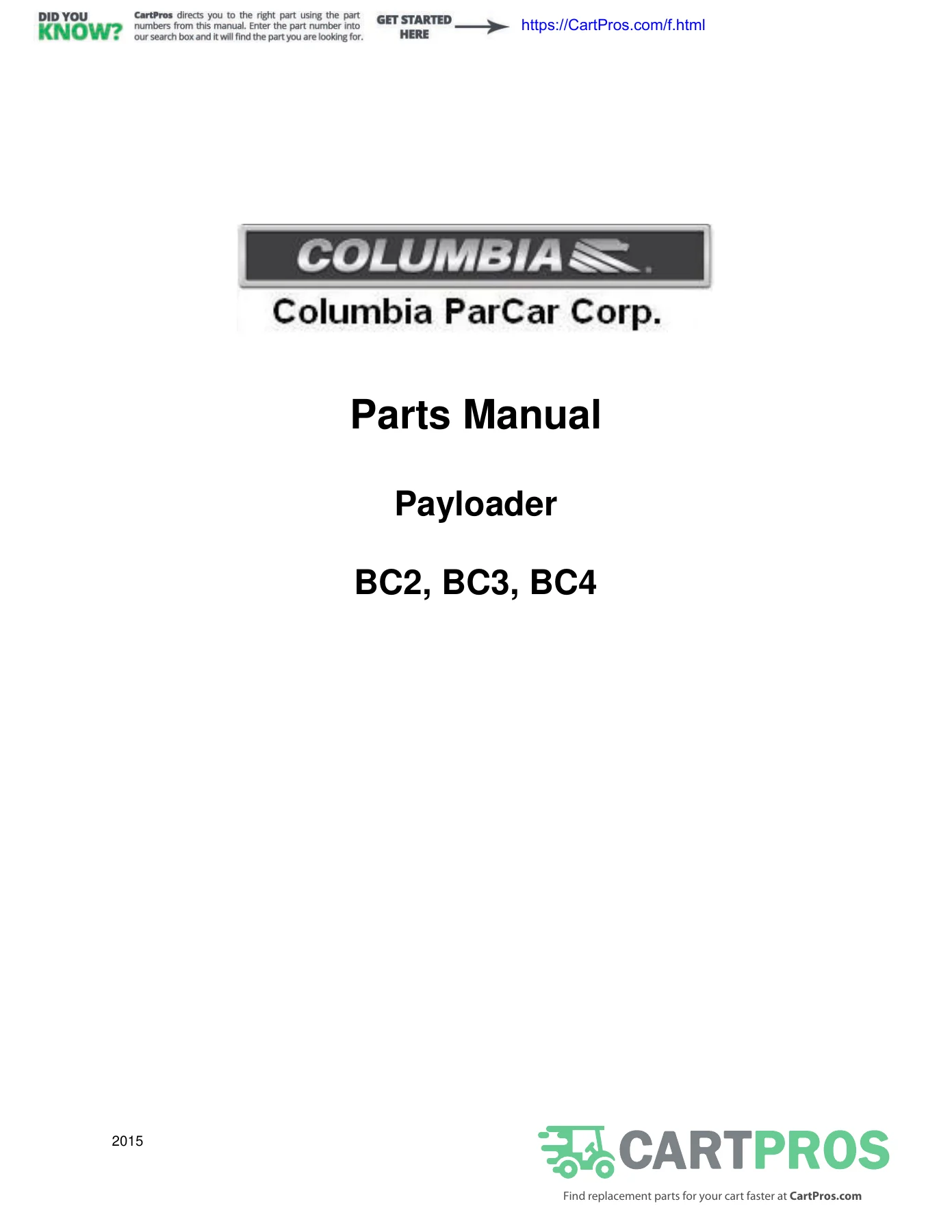

Columbia ParCar Payloader BC2 BC3 BC4 Parts Manual – 2015 Edition

This is the complete parts catalog for the 2015 Columbia ParCar Payloader line of burden carriers, covering the BC2, BC3, BC4, BC-L, BC4SC and BC-S models. Whether you are maintaining an existing fleet or restoring a single machine, having the correct part numbers on hand is the difference between a quick repair and weeks of guesswork. This Columbia ParCar Payloader parts manual gives you the exploded-view illustrations, itemized tables, CPC part numbers, seat part numbers and quantities you need to identify and order exactly what fits your vehicle.

File Details

• Manual type: Illustrated Parts Manual
• Brand: Columbia ParCar Corp.
• Models covered: Payloader BC2, BC3, BC4, BC-L, BC4SC, BC-S
• Publication year: 2015
• Language: English
• Page count: 158 pages
• File format: PDF

Chapters Covered

The manual is divided into seven major sections, each addressing a specific system or assembly group on the Columbia ParCar Payloader. Every section contains exploded-view illustrations with numbered callouts keyed to itemized parts tables.

• Section 1 – Accelerator and Brake Linkage: Pedal accelerator assembly and harness, brake pedal assembly, master cylinder and brake lines, conversion kit for adding front hydraulic brakes, parking brake for IMAG 20.1 axle (BC-L), parking brake for NKL axle, and master cylinder with proportioning valve (if equipped).

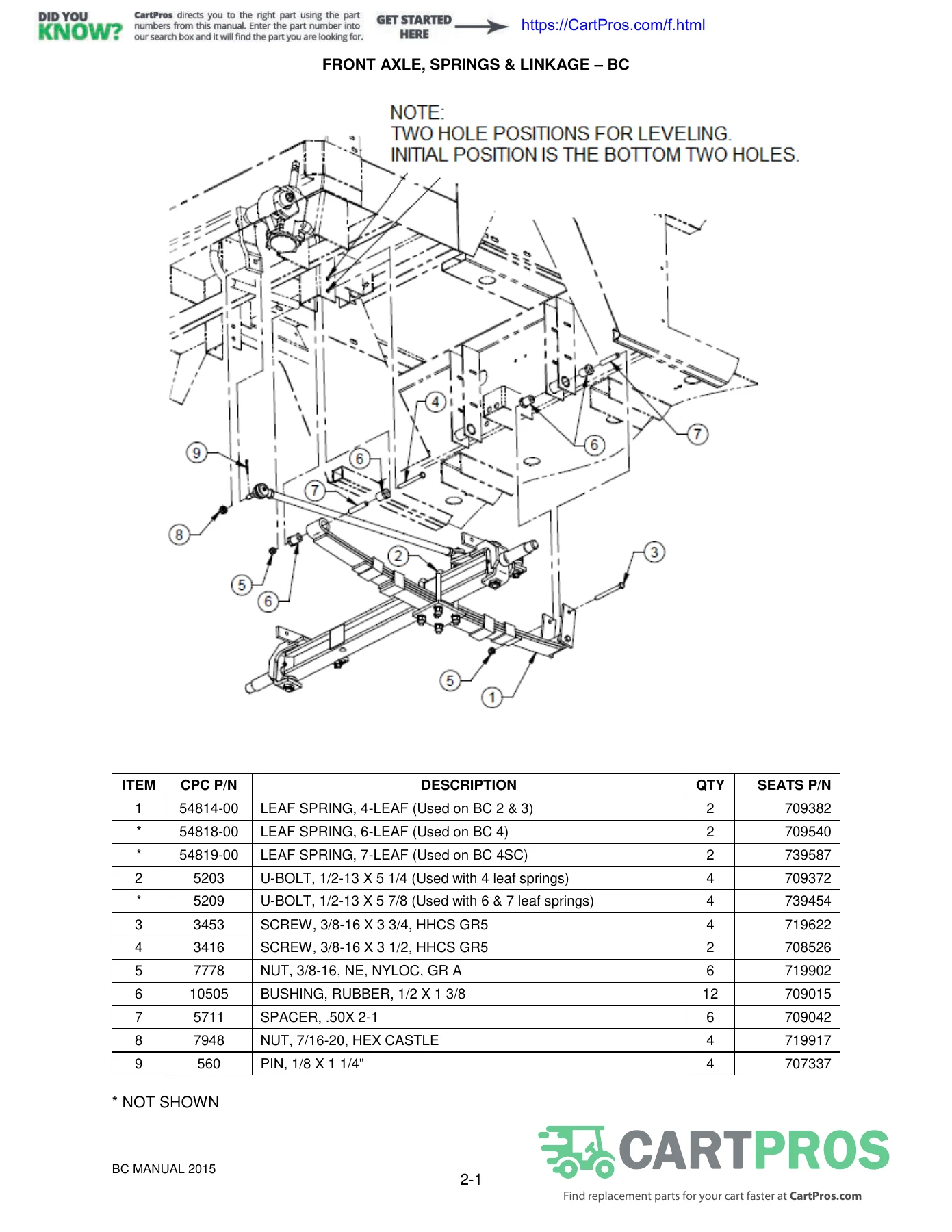

• Section 2 – Steering, Front Suspension and Wheels: Front axle with and without brakes (BC2/3/4 configurations before and after January 2015), leaf springs, shackles, U-bolts, kingpin assemblies, spindles, tie rod assemblies, drag link, steering wheel and gearbox, wheels and tire assemblies.

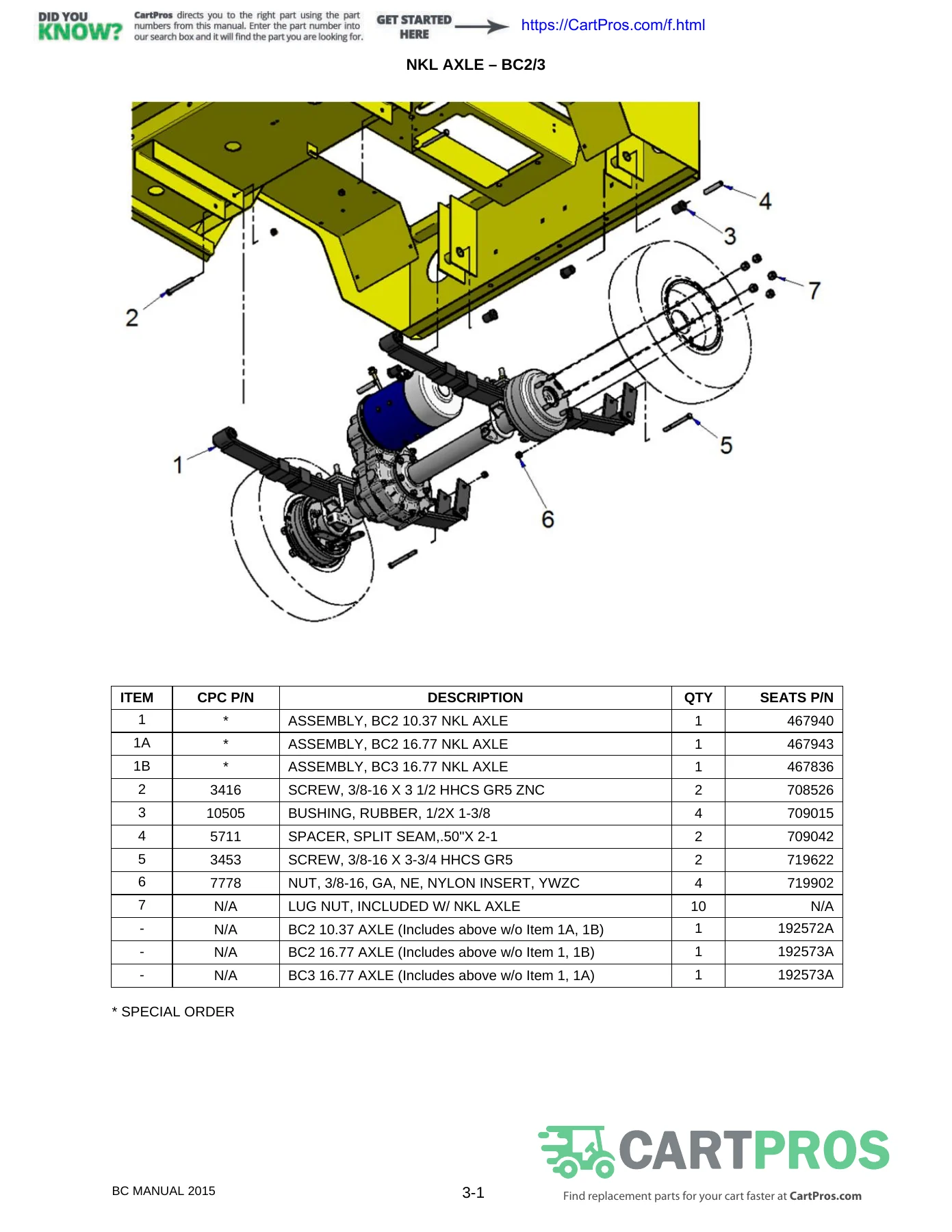

• Section 3 – Rear Axle, Brakes and Suspension: NKL axle assemblies for BC2 and BC3 (10.37 and 16.77 ratios), NKL axle detail breakdown, NKL hydraulic brakes, rear axle assemblies for BC4 and BC4SC, Ford 8-inch axle center assemblies (3.55 and 4.63 ratios), chain housing components, sprockets, brake calipers and rotors.
• Section 4 – Seats, Decks and Dash: Seats, deck and charger mounting, Delta Q charger with remote LED, second seat for BC-L series, seat belts, dash panel, turn signal, floor-mounted horn switch, adjustable seats with risers, reflectors, label sets and supplemental decals.
• Section 5 – Electrical Systems: Main wire harness and schematic, accessory wiring diagram and schematic, SEP EX motor for BC2, motor for BC3 and BC4, battery hardware, heater harness and schematic, trailer brake controller, hand brake interlock switch, work light, 48V charger with reel, trailer brake harness, dump box controls, DC/DC converter schematic, Ace+ chassis mounting and 12V outlet.
• Section 6 – Options: Battery watering system, cab and door assemblies, door hardware, cab dome light, heater, hitches (including combination hitch receiver and front towing receiver), interior and exterior mirrors, single side mirror, strobe lights, windshield wiper, inner rear fender kit, steel folding sides in 13-inch and 18-inch heights for short bed, long bed and second seat configurations, second seat extended folding side rail, 63-inch suntop (thermoformed and steel white), suntop windshield, suntop strobe light, cab with overhead rack, suntop with overhead rack, bulkhead, 12-volt outlet, accelerator pedal guard, dump box, dump box bulkhead, operator roof (black powder coated), operator roof with rack for BC-L, full-length roof for BC-L, full-length roof with rack for BC-L, roof panel amber strobe and tool rack.
• Section 7 – AC Components: 10.37 axle with 5KW AC motor for BC2, 16.77 axle with 5KW AC motor for BC3, 20:1 IMGTV axle with 5KW and 8KW AC motors for BC4, 275A and 450A Sevcon controls, Sevcon AC harness, Sevcon AC panel and Sevcon AC mounting.

Each section is built around illustrated exploded views that show every component in its assembled position. The accompanying tables list the item number, CPC part number, description, quantity required and corresponding seat part number. This structure lets you visually confirm a part’s location before you order, reducing the chance of receiving an incorrect component. Whether you are replacing a single brake caliper, rebuilding a front axle, sourcing a new seat or upgrading to AC drive, the relevant diagram and part number are here.

The electrical section deserves particular attention for anyone troubleshooting or modifying a Payloader. The main wire harness schematic and accessory wiring diagram map out the circuits for the entire vehicle, including the direction switch, power switch, seat switch, charger interlock, controller, contactor, fuses, horn, lights and turn signals. For AC-equipped vehicles, Section 7 provides the Sevcon controller panel layout, harness routing and motor mounting details. This is the information you need to trace a fault, add an accessory or verify a repair.

What This Manual Enables You to Do

With this Columbia ParCar Payloader BC2 BC3 BC4 parts manual, you can:

• Identify the exact part number for any component on your burden carrier by matching the illustration to your machine.
• Confirm quantities required so you order the right number of fasteners, bushings, seals and hardware.
• Verify part compatibility across BC2, BC3, BC4, BC-L, BC4SC and BC-S models, including mid-2015 front axle changes.
• Reference brake line routings, hydraulic hose part numbers, master cylinder options and proportioning valve configurations.
• Source electrical components – switches, controllers, contactors, fuses, harnesses and motors – for both DC and AC drive systems.
• Order options and accessories such as cabs, doors, hitches, folding sides, roofs and strobe lights with correct part numbers.
• Rebuild or replace axle assemblies, differentials, sprockets, chains and brake components with confidence.

Why It Matters

Columbia ParCar vehicles use specific part numbering that does not always cross-reference easily to aftermarket equivalents. Ordering a part by description alone often leads to the wrong component – a brake caliper that fits one side but not the other, a spring pack with the wrong leaf count, or a harness connector that does not match your controller. This manual eliminates that risk by showing you the exact assembly and giving you the CPC part number that corresponds to your vehicle’s configuration. For fleet operators, having this level of detail in one document means less downtime, fewer returns and more accurate maintenance planning.

IMAGES PREVIEW

Instant PDF Delivery

This Columbia ParCar Payloader BC2 BC3 BC4 Parts Manual is delivered as an instant PDF download after purchase. There is no shipping, no waiting for a physical book and no restriction on where you view it. Open it on a shop computer, tablet or phone, print the pages you need for the job and keep the rest on file. The PDF format lets you zoom into detailed exploded views, search for part numbers and share specific pages with your parts supplier or service team. Whether you are maintaining one Payloader or a fleet of burden carriers, this manual puts the complete parts catalog at your fingertips.
