Cummins QSB3.9-30, QSB4.5-30, QSB5.9-30 Industrial Engine Operation and Maintenance Manual

Description

Cummins QSB3.9-30, QSB4.5-30, and QSB5.9-30 Industrial Engine Operation and Maintenance Manual

This Cummins QSB3.9-30, QSB4.5-30, and QSB5.9-30 Industrial Operation and Maintenance Manual is the manufacturer’s own guide for correctly running and maintaining these industrial diesel engines. It walks through engine identification, daily operating procedures, the full scheduled maintenance program, and the specifications needed to keep any of these three engine variants performing correctly over their working life.

• Manual type: Operation and Maintenance Manual
• Brand / Models: Cummins QSB3.9-30, QSB4.5-30, QSB5.9-30 Industrial series engines
• Language: English
• Page count: 285 pages
• File format: PDF

Chapters Covered

• Introduction — general safety instructions, symbols, and how to use the manual
• Engine and System Identification — dataplate location, Cummins engine nomenclature, fuel injection pump dataplate
• Industrial Features
• Operating Instructions — starting, warm-up, operating checks, shutdown, cold-weather starting
• Maintenance Guidelines — maintenance schedule overview, oil drain intervals, special tool requirements, maintenance record form
• Maintenance Procedures at Daily Intervals — air intake piping inspection, coolant and oil level checks, drive belt check, fuel-water separator draining
• Maintenance Procedures at 250 Hours or 3 Months — air cleaner restriction, charge air cooler and piping, fuel injection pump mounting hardware
• Maintenance Procedures at 500 Hours or 6 Months — coolant antifreeze check, fuel filter replacement, lubricating oil and filter change
• Maintenance Procedures at 1000 Hours or 1 Year — cooling fan belt tensioner, drive belts, belt-driven fan hub, overhead set adjustment
• Maintenance Procedures at 2000 Hours or 2 Years — air compressor discharge line, cooling system drain/flush/fill, vibration damper checks
• Adjustment, Repair, and Replacement procedures

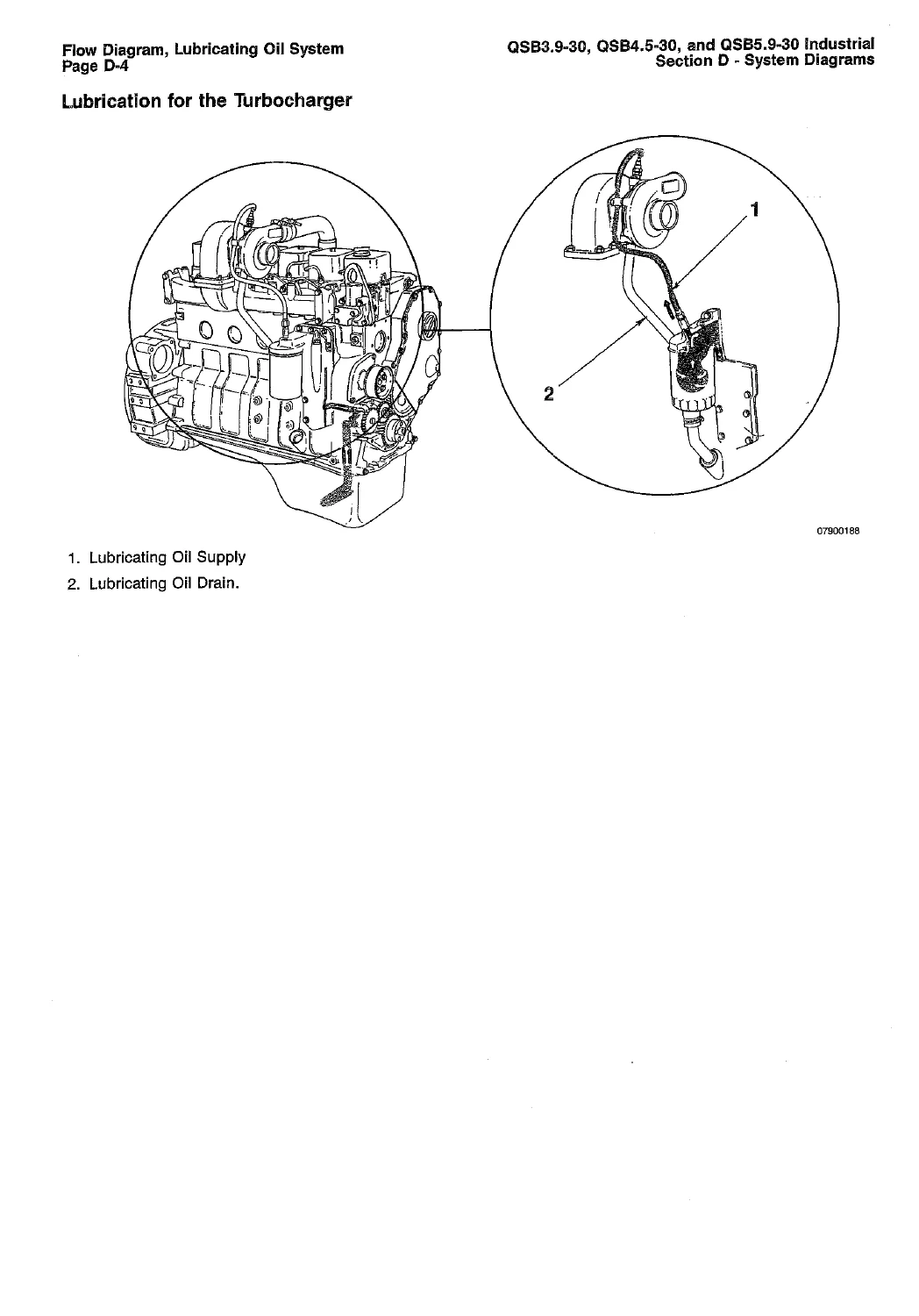

• System Diagrams — lubricating oil flow diagrams including turbocharger lubrication routing
• Service Literature and Component Manufacturers listings
• Service Assistance
• Troubleshooting Symptoms
• Maintenance Specifications — general engine, fuel system, lubricating oil system, cooling system, air intake and exhaust system, electrical system, filter part numbers, fuel and coolant recommendations, drive belt tension chart, engine component torque values, capscrew torque tables, and sealants
• Warranty information
• Index

Taken together, these chapters give a technician everything needed to keep a QSB3.9-30, QSB4.5-30, or QSB5.9-30 industrial engine on its correct maintenance cycle, from a daily walk-around check to a 2000-hour teardown-level service, without guessing at torque values, capacities, or intervals.

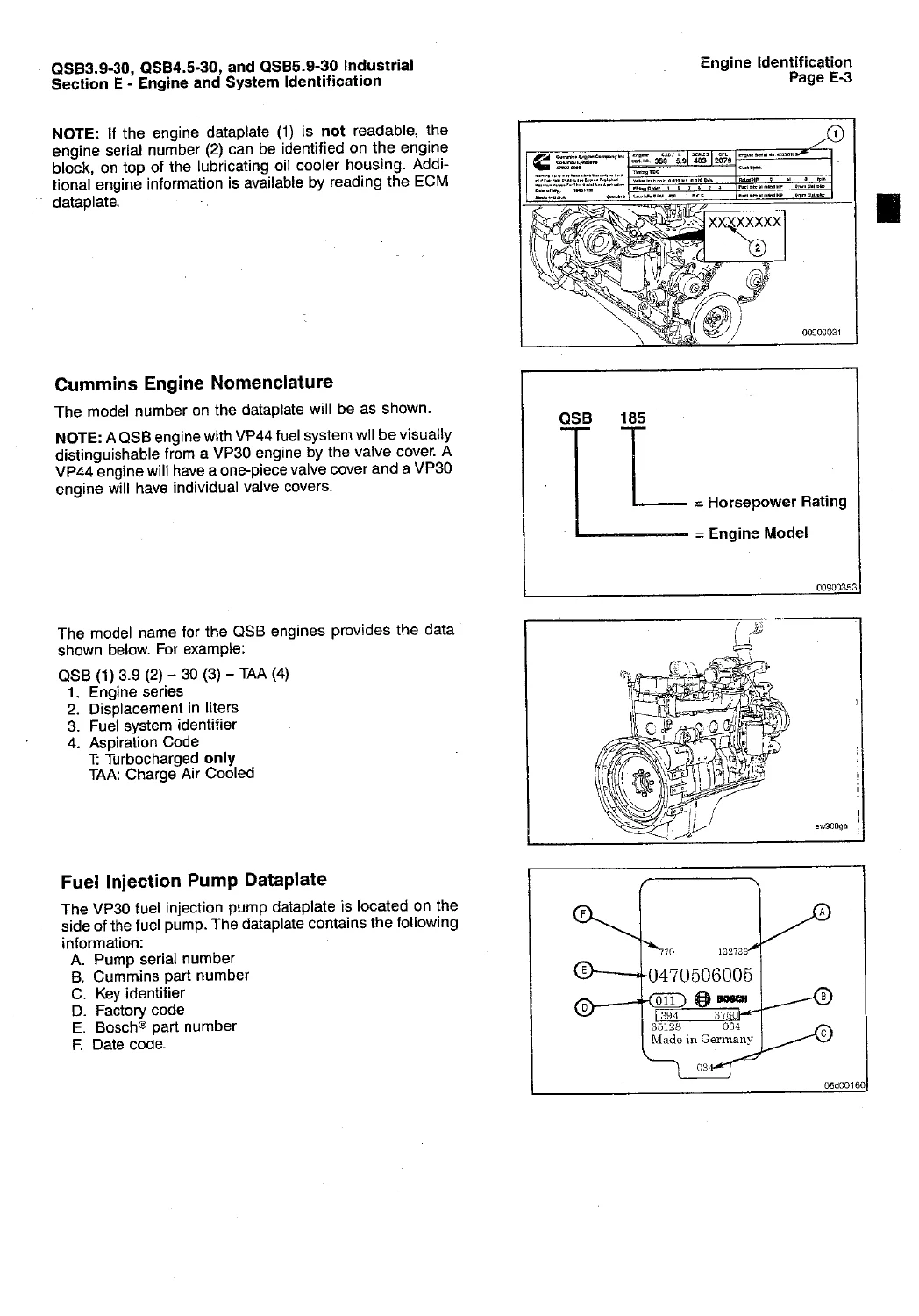

Engine Identification

The manual explains how to read the engine dataplate and locate the engine serial number on the block, and breaks down Cummins engine model-number nomenclature — engine series, displacement in liters, fuel system identifier, and aspiration code (T: Turbocharged only, TAA: Charge Air Cooled) — along with the Bosch VP30 fuel injection pump dataplate layout.

Key Specifications

• Bore and Stroke: QSB3.9-30 and QSB5.9-30: 102 mm [4.02 in] x 120 mm [4.72 in]; QSB4.5-30: 102 mm [4.02 in] x 138 mm [5.42 in]
• Displacement: QSB3.9-30: 3.9 liters [238 C.I.D.]; QSB4.5-30: 4.5 liters [276 C.I.D.]; QSB5.9-30: 5.9 liters [359 C.I.D.]
• Firing Order: QSB3.9-30 and QSB4.5-30: 1-3-4-2; QSB5.9-30: 1-5-3-6-2-4
• Crankshaft Rotation: Clockwise, viewed from the front of the engine
• Valve Clearance: Intake 0.25 mm [0.010 in]; Exhaust 0.51 mm [0.020 in]
• Oil Pressure at Rated Speed (minimum): 207 kPa [30 psi]; Regulated Pressure: 449 kPa [65 psi]
• Coolant Capacity: QSB3.9-30/QSB4.5-30 (engine only): 7.9 liters [8.4 qt]; QSB5.9-30 (engine only): 9.8 liters [10.4 qt]
• Thermostat Range: 82°C to 93°C [180°F to 199°F]
• Lubricating Oil Filter Part Numbers: QSB3.9-30/QSB4.5-30: Cummins 3934429 / Fleetguard LF3805; QSB5.9-30: Cummins 3934430 / Fleetguard LF3806
• Fuel Filter Part Number: Cummins 3931498 / Fleetguard FS19816 (spin-on, all three engines)
• Drive Belt Tension, Capscrew Torque (Metric and U.S. Customary), and full Engine Component Torque Values are all tabulated in Section V
