Dana Spicer Axle 980 FENDT 900 Vario Gen6 Service Manual – PDF DOWNLOAD

Description

Dana Spicer Axle 980 FENDT 900 Vario 930  933 936  939 942 Gen6 Service Manual – PDF DOWNLOAD

FILE DETAILS:

Dana Spicer Axle 980 FENDT 900 Vario 930  933 936  939 942 Gen6 Service Manual – PDF DOWNLOAD

Language :English
Pages :155
Downloadable : Yes
File Type : PDF

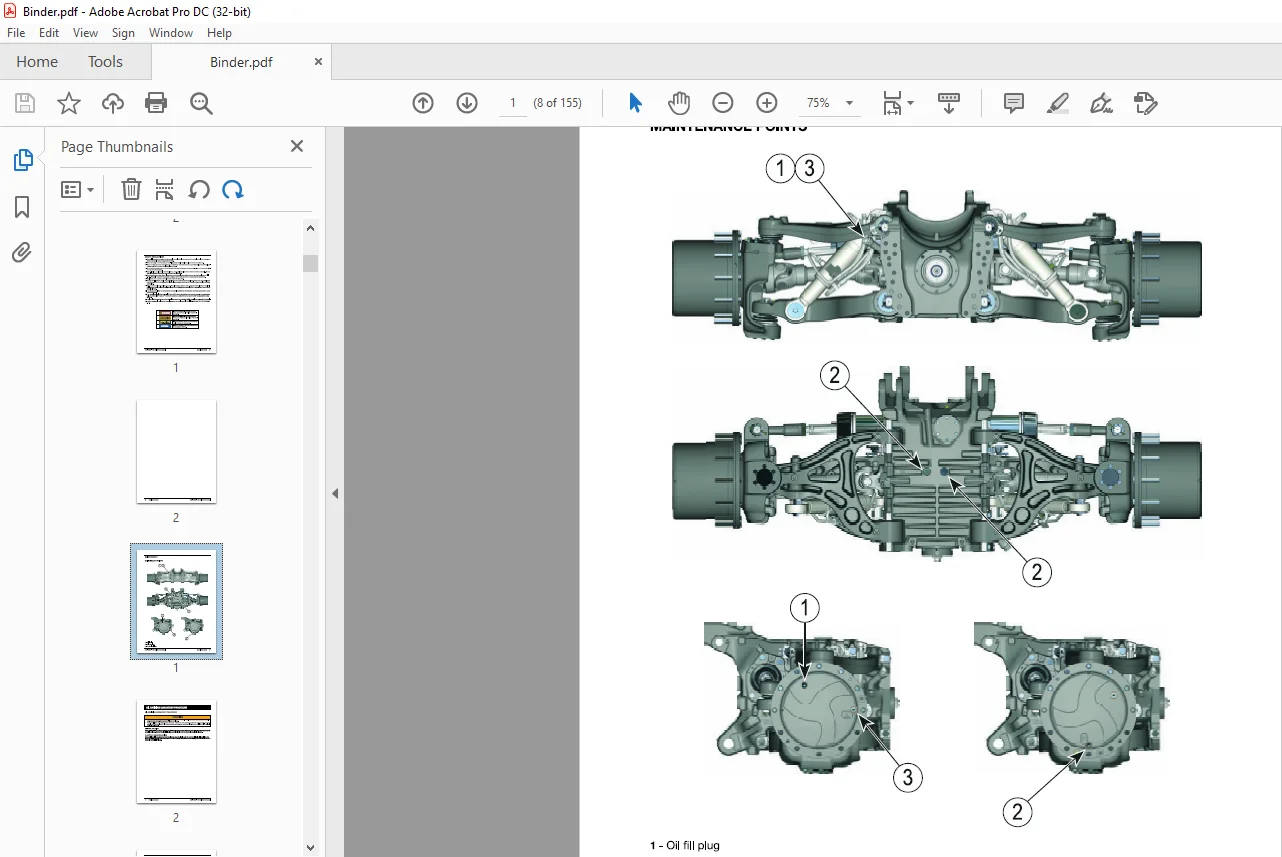

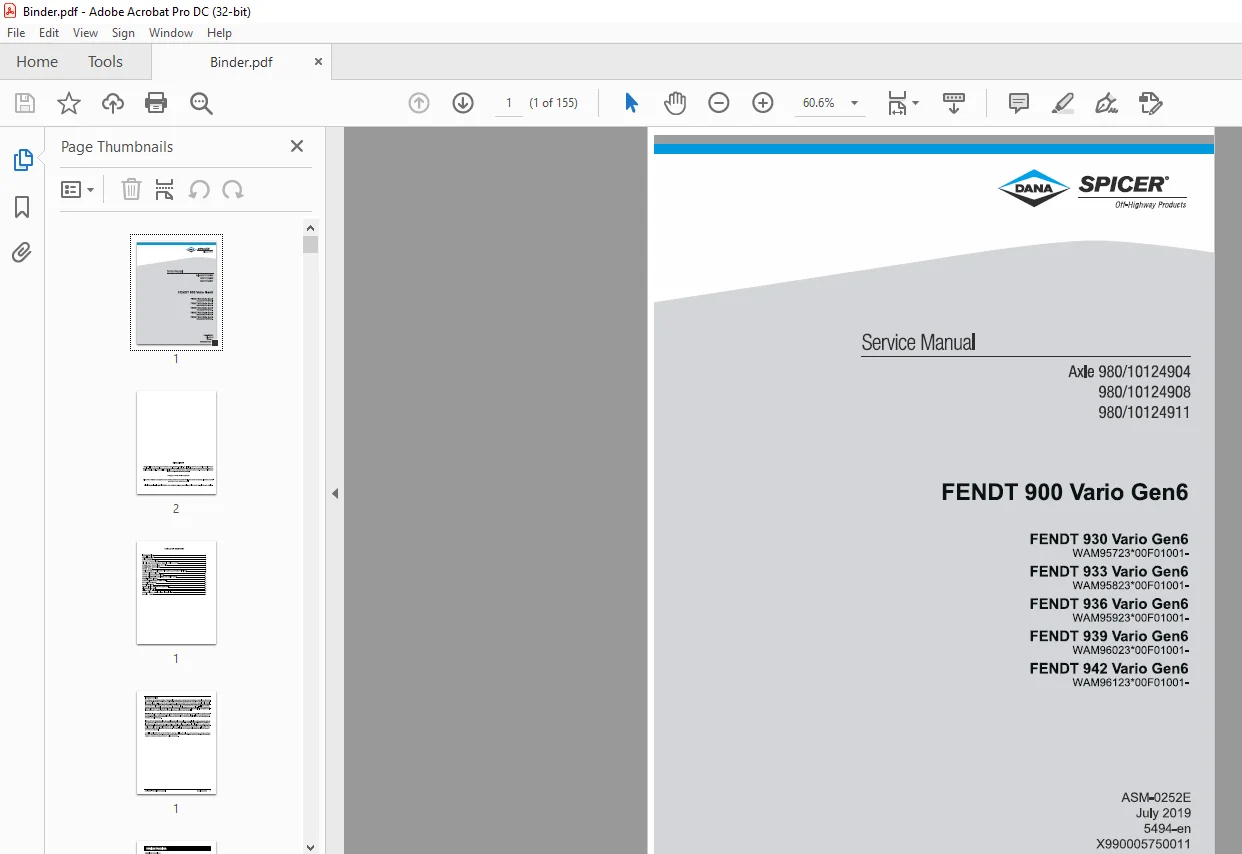

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Dana Spicer Axle 980 FENDT 900 Vario 930  933 936  939 942 Gen6 Service Manual – PDF DOWNLOAD

Service Manual
SPICER®
Off-Highway Products
Axle 980/10124904
980/10124908
980/10124911
FENDT 900 Vario Gen6
FENDT 930 Vario Gen6
WAM95723*00F01001-
FEN DT 933 Vario Gen6
WAM95823*00F01001-
FEN DT 936 Vario Gen6
WAM95923*00F01001-
FEN DT 939 Vario Gen6
WAM96023*00F01001-
FEN DT 942 Vario Gen6
WAM96123*00F01001-

INTRODUCTION

The efficiency and continued operation of mechanical units depend on constant, correct maintenance and also on efficient repair work, should there be a break-down or malfunction. The instructions contained in this manual have been based on a complete overhaul of the unit. However, it is up to the mechanic to decide whether or not it is necessary to assemble only individual components, when partial repair work is needed. The manual provides a quick and sure guide which, with the use of photographs and diagrams illustrating the various phases of the operations, allows accurate work to be performed.All the information needed for correct disassembly, checks and assembly of each individual component is set out below. In order to remove the differential unit from the vehicle, the manuals provided by the vehicle manufacturer should be consulted. In describing the following operations it is presumed that the unit has already been removed from the vehicle.

IMPORTANT:

In order to facilitate work and protect both working surfaces and operators, it is advisable to use proper equipment such as: trestles or supporting benches, plastic or copper hammers, appropriate levers, pullers and specific spanners or wrenches. Before going on to disassemble the parts and drain the oil, it is best to thoroughly clean the unit, removing any encrusted or accumulated grease.

INTRODUCTORY REMARKS:

All the disassembled mechanical units should be thoroughly cleaned with appropriate products and restored or replaced if damage, wear, cracking or seizing have occurred. In particular, thoroughly check the condition of all moving parts (bearings, gears, ring gear and pinion, shafts) and sealing parts (o-rings, oil shields) which are subject to major stress and wear. In any case, it is advisable to replace the seals every time a component is overhauled or repaired. During assembly, the sealing rings must be lubricated on the sealing edge. In the case of the ring gear and pinion, replacement of one component requires the replacement of the other one. During assembly, the prescribed pre-loading, backlash and torque of parts must be maintained.

SPECIFIC EQUIPMENT AND SPARE PARTS:

The drawings of all specific tools required for maintenance and repair work can be found at the end of this manual ; spare parts may be ordered either from the vehicle manufacturer or directly from the Service Centers or Authorized Distributors of Dana Holding Corporation. ASM-

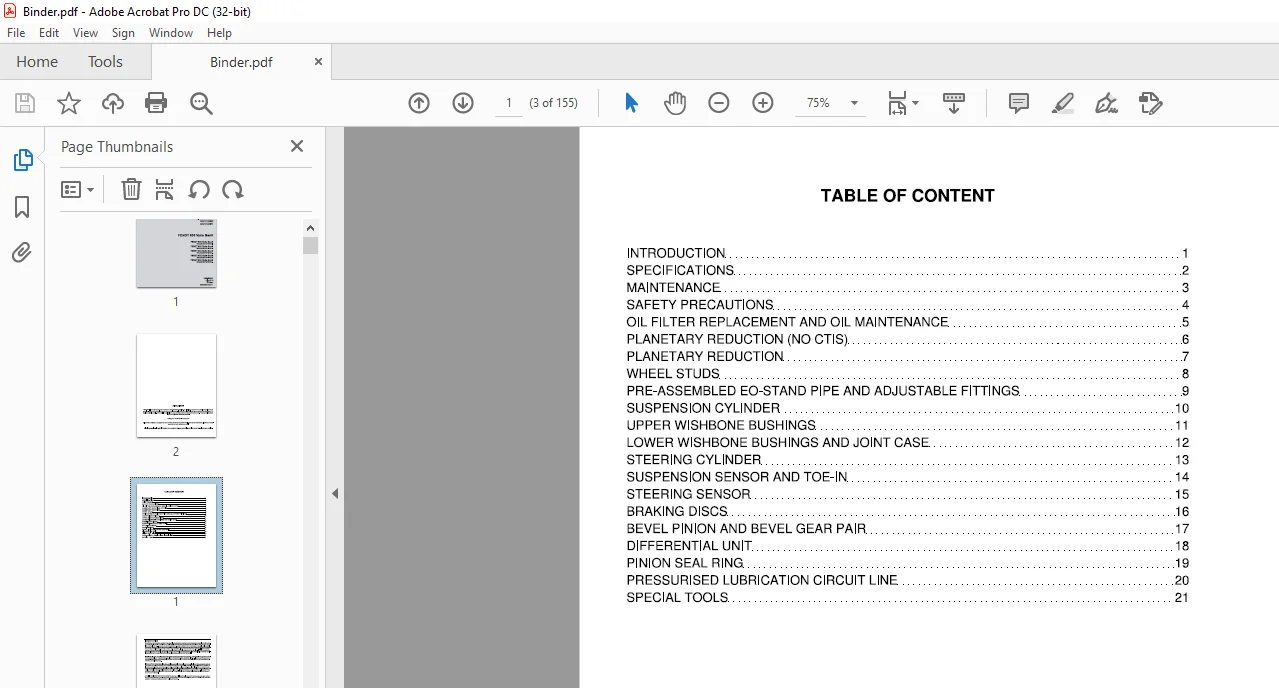

TABLE OF CONTENTS:

Dana Spicer Axle 980 FENDT 900 Vario 930  933 936  939 942 Gen6 Service Manual – PDF DOWNLOAD

Service Manual
SPICER®
Off-Highway Products
Axle 980/10124904
980/10124908
980/10124911
FENDT 900 Vario Gen6
FENDT 930 Vario Gen6
WAM95723*00F01001-
FEN DT 933 Vario Gen6
WAM95823*00F01001-
FEN DT 936 Vario Gen6
WAM95923*00F01001-
FEN DT 939 Vario Gen6
WAM96023*00F01001-
FEN DT 942 Vario Gen6
WAM96123*00F01001-

INTRODUCTION
SPECIFICATIONS
MAINTENANCE
SAFETY PRECAUTIONS
OIL FILTER REPLACEMENT AND OIL
MAINTENANCE PLANETARY REDUCTION (NO CTIS)
PLANETARY REDUCTION
WHEEL STUDS
PRE-ASSEMBLED EO-STAND PIPE
AND ADJUSTABLE FITTINGS SUSPENSION CYLINDER
UPPER WISHBONE BUSHINGS
LOWER WISHBONE BUSHINGS AND JOINT CASE
STEERING CYLINDER
SUSPENSION SENSOR AND TOE-IN
STEERING SENSOR
BRAKING DISCS
BEVEL PINION AND BEVEL GEAR PAIR
DIFFERENTIAL UNIT
PINION SEAL RING
PRESSURISED
LUBRICATION CIRCUIT LINE SPECIAL TOOLS

S.M 15/2/2025
