Detroit Diesel Series 50 Engine Operator’s Guide – DDEC IV Operation and Maintenance Manual
Original price was: $32.95.$19.95Current price is: $19.95.
Official Detroit Diesel Series 50 Engine Operator’s Guide covering DDEC IV electronic controls, preventive maintenance schedules, fluid specifications, diagnostic flash codes, and operating procedures.
Description
The Detroit Diesel Series 50 Engine Operator’s Guide – DDEC IV Operation and Maintenance Manual provides factory-authorized operational instructions, preventive maintenance schedules, diagnostic procedures, and system specifications for Detroit Diesel Series 50 heavy-duty four-cylinder diesel engines. Designed for operators, fleet maintenance superintendents, and certified service technicians, this comprehensive operator’s guide covers Series 50 engines deployed across on-highway trucks, urban transit buses, motor coaches, construction and industrial equipment, agricultural machinery, fire fighting apparatus, emergency vehicles, and stationary prime or standby generator sets.
Document & Publication Details
| Manual Type | Engine Operator’s Guide |
| Brand | Detroit Diesel Corporation (DDC) |
| Engine Model | Series 50 (with DDEC IV Electronic Controls) |
| Model Numbers Covered | 6047GK27, 6047GK28, 6047MK1E, Series 50 Bus, and application-specific variants |
| Publication Form Number | 6SE550 0401 |
| Revision Date | Rev. 01/04 (January 2004) |
| Language | English |
| Page Count | 174 pages |
| File Format | High-Resolution Portable Document Format (PDF) |
DDEC IV Electronic Control Management & Diagnostics
The Detroit Diesel Series 50 Engine Operator’s Guide provides exhaustive documentation on the operation and management of the DDEC IV engine-mounted Electronic Control Module (ECM). The Series 50 diesel engine utilizes sophisticated internal electronics to govern engine horsepower, torque curves, variable idle speeds, and electronic fuel injection timing without mechanical governors, control racks, or mechanical throttle linkages. The guide details the integrated electronic foot pedal assembly (EFPA), the stepped 30-second power-down and automatic engine shutdown protection sequences, the Stop Engine Override (SEO) protocols, and the optional 1-to-100 minute idle shutdown timer designed to conserve fuel and facilitate turbocharger bearing cool-down.
A critical section of this manual is dedicated to troubleshooting and diagnostics. Operators and mechanics gain direct insight into the Check Engine Light (CEL) and Stop Engine Light (SEL) warning indicators, instructions for connecting the J 38500 Diagnostic Data Reader (DDR), and a complete listing of active and inactive diagnostic flash codes spanning Flash Code 11 through Flash Code 89. Coverage includes sensor fault detection for variable speed governors, oil pressure, oil temperature, coolant level, coolant temperature, fuel restriction, boost pressure, EGR flow, throttle plate positioning, crankcase pressure, and J1939/J1587 electronic data links.
Comprehensive Preventive Maintenance & Fluid Engineering
Strict adherence to factory maintenance intervals is paramount for preserving emissions compliance and preventing severe mechanical wear. This guide supplies application-specific preventive maintenance matrices covering on-highway line haul, urban transit stop-and-go duty cycles, stationary industrial operations, emergency services, and power generation installations. Step-by-step procedures guide technicians through critical maintenance tasks, including:
- Engine Lubrication System: Dipstick verification procedures, crankcase capacity ratings (19 quarts to LOW mark, 22 quarts to FULL mark without filters, 29 quarts total system capacity with full-flow filters charged), API CI-4 heavy-duty engine oil requirements for cooled EGR engines, cold-weather multi-viscosity selection, and spin-on oil filter replacement using Kent-Moore tool J 29917.
- Fuel Management & Filtration: ASTM D 975 fuel quality guidelines, microbe contamination handling, servicing spin-on primary and secondary fuel filter canisters, and complete element replacement workflows for Davco Fuel Pro 382/382E fuel processor assemblies using wrench tool 232002.
- Restarting Fuel Systems After Runout: Definite mechanical priming steps for spin-on systems and Fuel Pro systems using manual primer pump J 5956, eliminating improper starter motor cranking or dangerous ether usage.
- Cooling System Chemistry & SCA Testing: Specifications for ethylene glycol (IEG) and propylene glycol (IPG) fully formulated coolants meeting TMC RP-329 and RP-330 standards, Power Cool Plus Extended Life OAT coolants, Power Trac 3-Way Coolant Test Strip procedures for monitoring nitrite concentrations (900 to 3200 PPM), drop-out prevention, inhibitor flushing, and spin-on coolant filter canister service.
- Mechanical Drive Belts & Valve Lash: Belt tension values across standard V-belts, 2-groove PowerBand belts, and 12-rib Poly-V belts running 50 DN alternators, utilizing tension gauges J 23586-B, J 23600-B, or J 41251. Factory valve lash and injector height measurement standards are provided for initial 60,000-mile or 1,500-hour service checks.
- Turbocharger & Charge-Air Systems: Visual inspection guidelines for wastegated turbochargers, air-to-air charge coolers, checking wastegate actuator rod operation at 30 psi regulated shop air, and dry-type air cleaner restriction monitoring capped at 20 inches of water (5.0 kPa).
- Engine Preservation & Storage: Detailed protocols for temporary (30 days or less) and extended storage (over 30 days), including Tectyl 930A preservative oil application, fuel system preservation with No. 1 diesel or pure kerosene, opening sealing, and reactivation procedures.
Chapters Covered
- Introduction – Operating scope, useful emission life standards, non-genuine and rebuilt component quality alerts
- Caution Summary – Safety protocols for engine operation, preventive maintenance, electrical shock, pressurized cooling, flammable fuels, and compressed air
- Engine Model and Serial Number Designation – Left-side cylinder block laser etching locations, option labels, and rocker cover certification plates
- Operating Instructions for a First Time Start – Pre-start cooling, lubrication, and fuel checks; electric and air starter procedures; warm-up; inspection; shutdown cool-down; emergency jump starting
- DDEC IV System – Electronic Control Module architecture, engine protection features, stepped shutdown, idle shutdown timer, cruise control operation, DDR data extraction, and complete Flash Code listing (Codes 11 to 89)
- DDEC IV Engine Driving Tips – Limiting speed governor throttle dynamics, gear shifting splits, progressive braking, and high idle management
- Engine Brake System – Jacobs Vehicle Systems retarder controls, Low/High and Low/Med/High cylinder actuation, anti-lock brake system (ABS) interface, and steep grade control speeds
- Engine Systems – Architecture of fuel, lubrication, air intake, cooling, electrical, exhaust, and cooled Exhaust Gas Recirculation (EGR) systems
- Maintenance – Detailed maintenance interval tables across on-highway, city transit coach, construction/industrial, emergency vehicle, and generator drive applications
- Preventive Maintenance Intervals (Items 1 to 27) – Lubricating oil, fuel tanks, flexible hoses, cooling system, turbocharger, battery, tachometer drive, belts, air compressor, filters, water pump, alternator, mounts, fan hub, thermostats, breathers, tune-up, and vibration damper
- How-To Section – Practical servicing instructions for selecting oil, replacing spin-on filters, servicing Fuel Pro 382E processors, selecting coolants, testing SCAs, flushing radiators, and checking dry-type air cleaners
- Basic Troubleshooting – Diagnosing objectionable exhaust smoke (black, gray, blue, white), hard starting or no-crank conditions, abnormal engine running, high oil consumption, low oil pressure, and abnormal coolant temperatures
- Engine Storage – Short-term and extended storage preparations, preservative oils, opening seals, and complete procedures for returning stored engines to active service
- Series 50 Service Publications & Customer Assistance – Service reference manual directory, customer support hotlines, and NAFTA/international regional office directories
- Limited Warranty Terms – Warranty coverage terms, period charts, and limitations for on-highway, urban bus, motor home, construction, industrial, agricultural, and generator set applications
- Specifications – Genuine Detroit Diesel replacement part numbers for fuel filters, full-flow oil filters, Power Cool additives, cleaner chemicals, and test kits

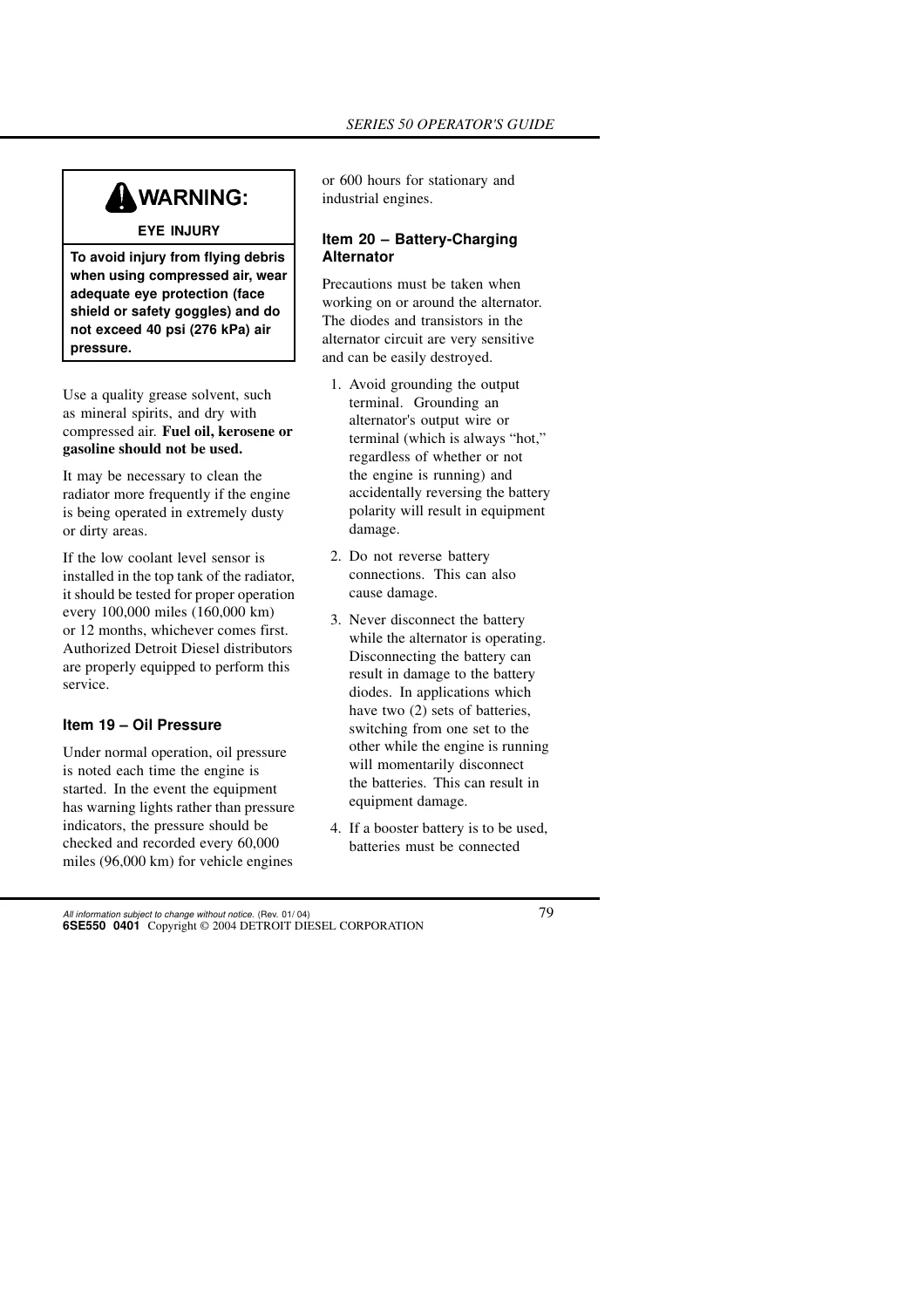

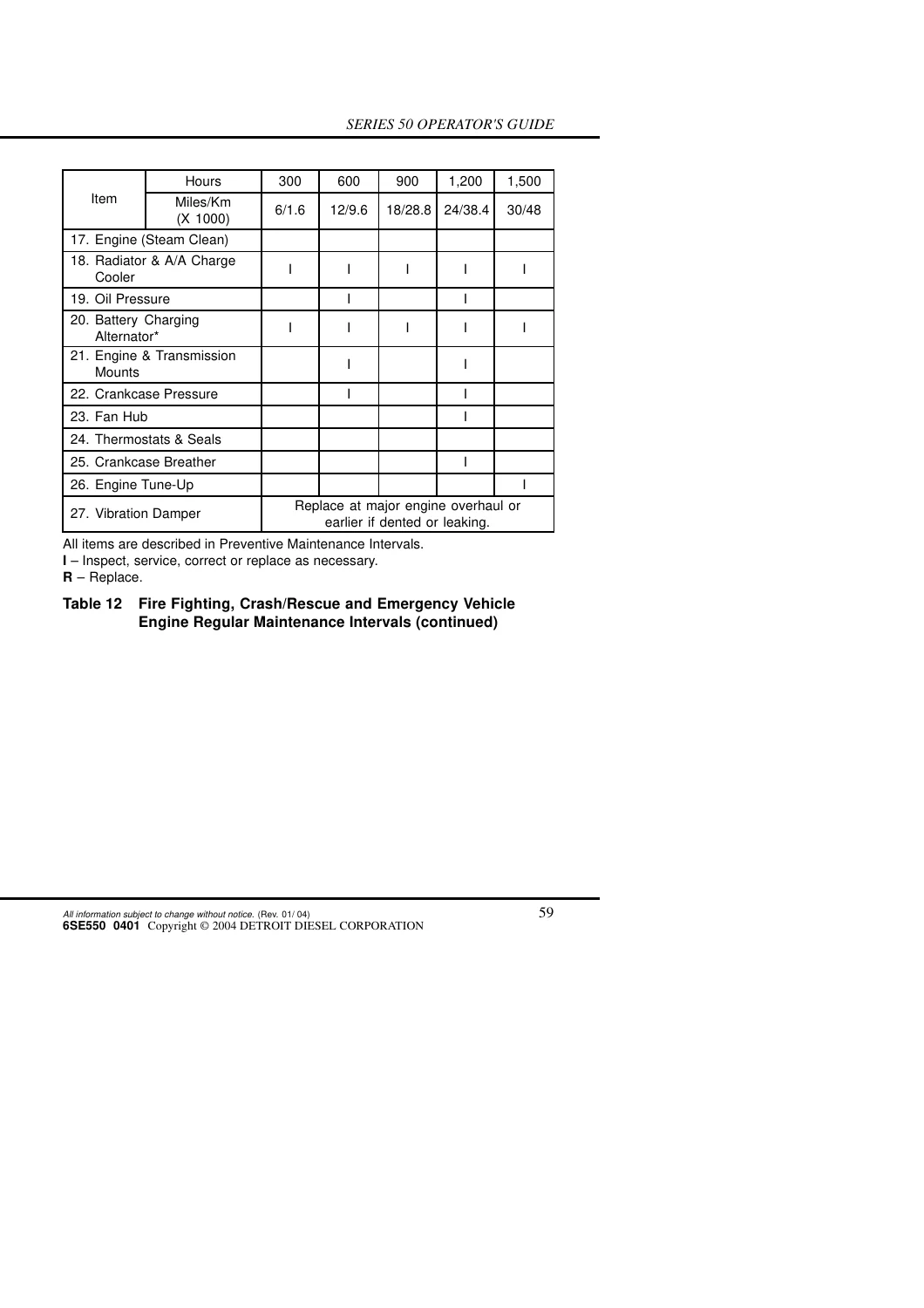

IMAGES PREVIEW
By compiling these comprehensive chapters into a single technical reference, the Detroit Diesel Series 50 Engine Operator’s Guide provides heavy vehicle operators, stationary technicians, and repair facilities with the factual operational knowledge needed to maximize engine reliability, prevent premature component failure, and resolve electronic or mechanical anomalies rapidly.
Take Control of Your Detroit Diesel Maintenance Today
Operating and maintaining modern electronically governed diesel equipment requires accurate, manufacturer-specified technical data. The Detroit Diesel Series 50 Engine Operator’s Guide – DDEC IV Operation and Maintenance Manual equips you with precise fluid capacities, exact torque checks, diagnostic light troubleshooting charts, and detailed preventive maintenance procedures directly from the original manufacturer. Whether managing a fleet of transit coaches or maintaining a solitary industrial generator, having the correct operational specifications ensures maximum equipment uptime and prevents costly diagnostic errors. This publication is delivered as an instant PDF download immediately following payment—eliminating shipping wait times and giving you immediate digital access on your workshop computer, tablet, or mobile device, with full high-resolution printing capability for your workbench.
