Deutz-Fahr Agrotron K 90 K 100 K 110 K 120 Workshop Manual PDF

Description

Deutz-Fahr Agrotron K 90 K 100 K 110 K 120 Workshop Manual PDF

The Deutz-Fahr Agrotron K 90 K 100 K 110 K 120 Workshop Manual PDF is a comprehensive 700-page technical reference designed for repair technicians working on the Agrotron K series tractors. It integrates detailed mechanical and hydraulic system descriptions, removal and refitting procedures, electronic commissioning and calibration instructions, fault-code diagnosis, component checks, and extensive electrical wiring information. This manual serves as a complete guide for the AGROTRON K 90, AGROTRON K 100, AGROTRON K 110, and AGROTRON K 120.

File Details

• Manual type: Workshop Manual
• Brand: Deutz-Fahr
• Models: AGROTRON K 90, AGROTRON K 100, AGROTRON K 110, AGROTRON K 120
• Language: English
• Page count: 700 pages
• File format: PDF

Built for Diagnosis, Repair and Adjustment Work

The manual explains how the tractor is structured and gives repair technicians the information needed to approach faults and workshop operations systematically. Its introductory material covers safe working practices, removal and refitting precautions, lifting instructions, symbols used in procedures, standard tightening torques, fitting and plug torque data, approved threadlockers, adhesives, sealants and lubricants, and unit conversions. Procedure pages identify special precautions, fluid draining or filling points, component weights and tightening requirements where applicable.

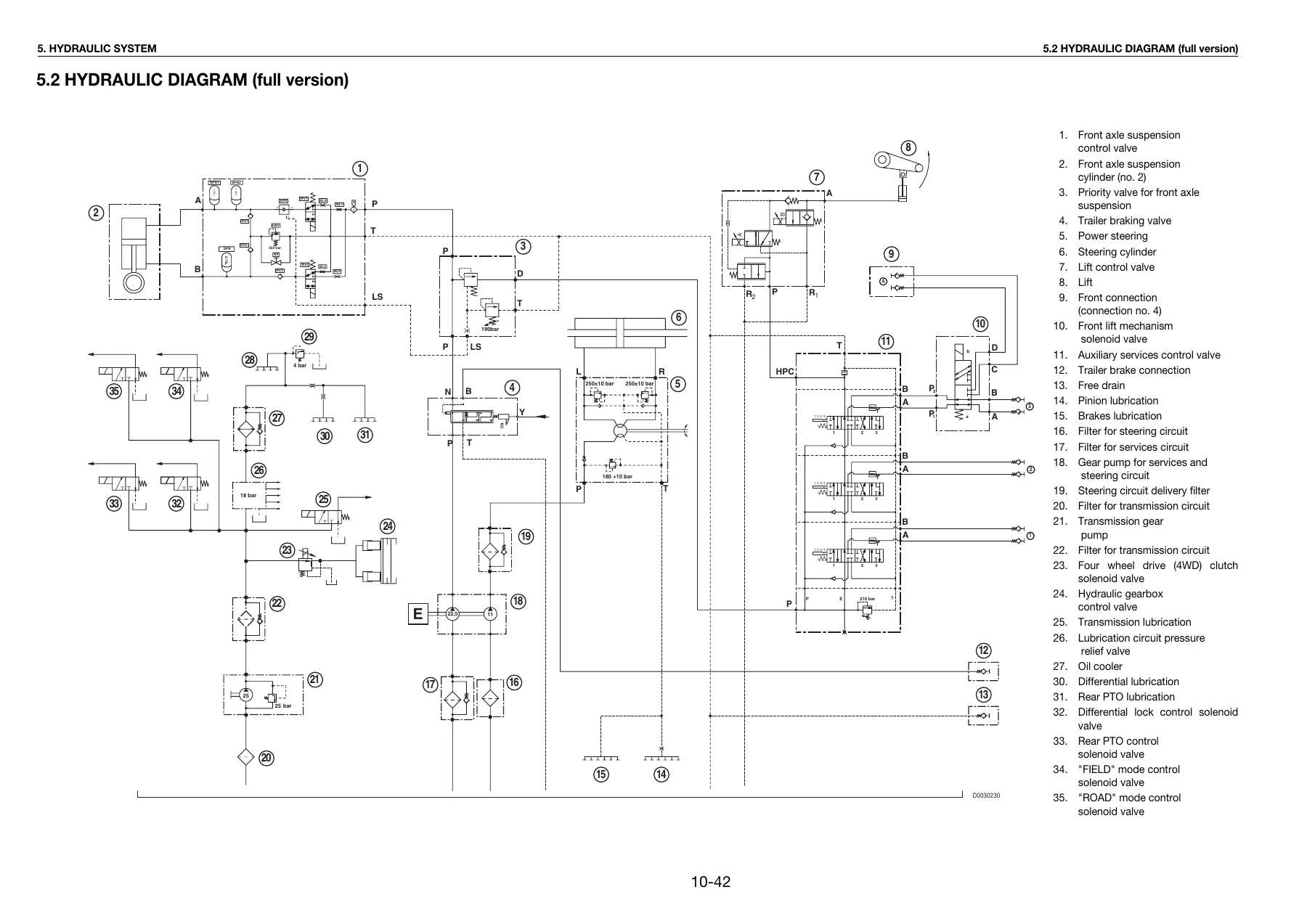

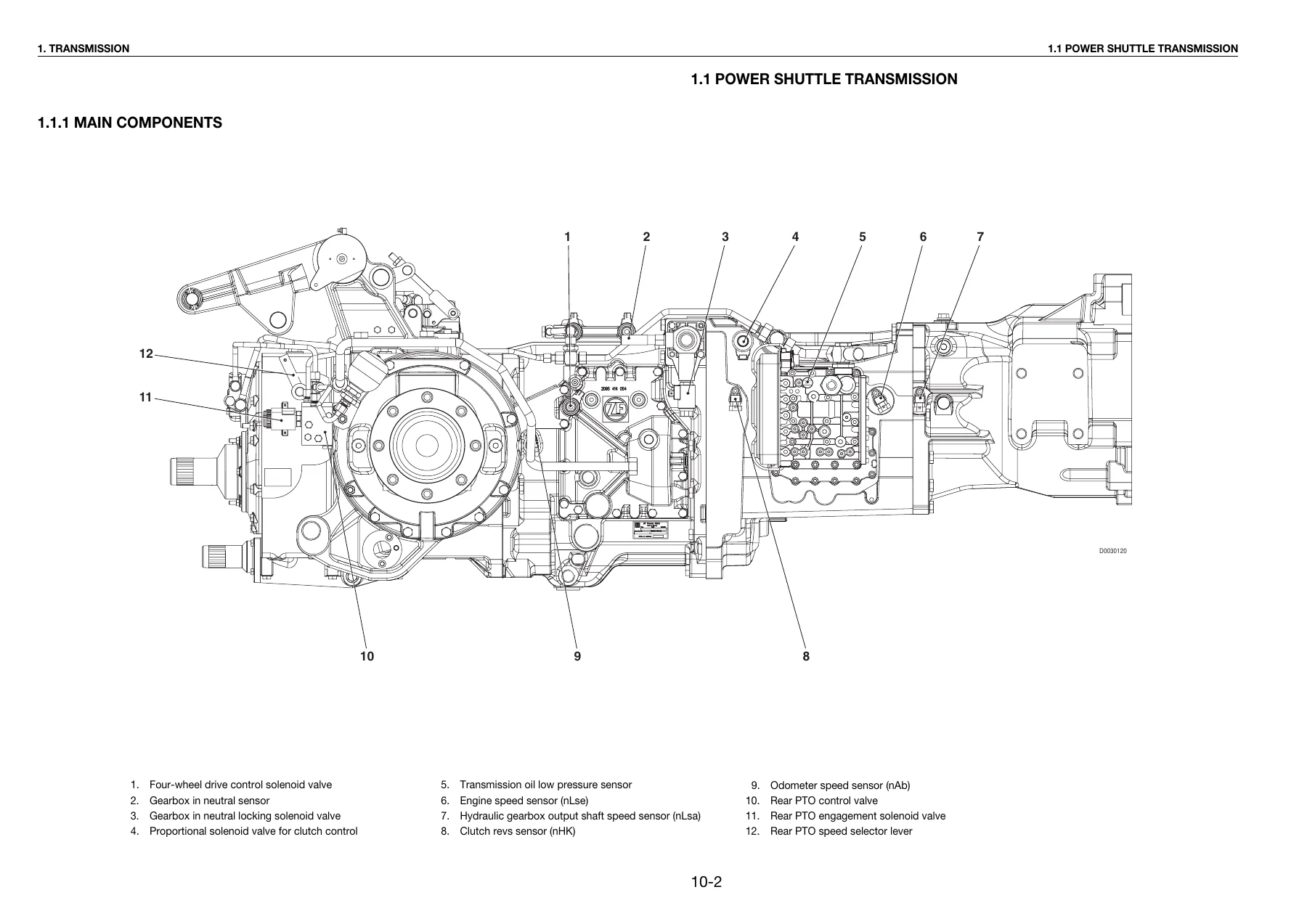

Mechanical and hydraulic coverage includes the Power Shuttle transmission operating principles, transmission hydraulic circuits, gearbox and clutch control, rear axle, rear PTO, service and trailer braking, hydraulic front axle suspension, front axle data, power steering and the tractor hydraulic system. Hydraulic diagrams show both standard and full system configurations, with component identification for pumps, valves, filters, steering, lift, suspension, trailer braking, differential lock and PTO control circuits. This makes the Deutz-Fahr Agrotron K workshop manual useful not only for disassembly tasks, but also for tracing how a system is intended to operate before measurements or adjustments are made.

Electronic Diagnostics and Commissioning

A major part of the Deutz-Fahr Agrotron K 90 K 100 K 110 K 120 Workshop Manual PDF is devoted to electronic diagnosis and commissioning. It describes the All Round Tester, SERDIA 2000 Level III and EDS EST45 diagnostic systems, how they connect to the tractor, and how the electronic control units communicate through CANBUS. Coverage includes the engine control unit, HLHP control unit, transmission control unit and Infocenter, together with diagnostic sockets, monitored signals and control-system functions.

Commissioning procedures address replacement or renewal of electronic control units and the configuration or calibration steps that follow. The manual includes procedures for engine ECU data handling, engine operating-hour setting, accelerator pedal and hand-throttle calibration, transmission model configuration, wheel and wheel-circumference settings, clutch-pedal and main-clutch calibration, FIELD/ROAD sensor calibration, HLHP initialization, front PTO and ASM configuration, steering-angle calibration, radar configuration, lift-position calibration, front axle suspension configuration and Infocenter language settings. Alarm sections then provide code-based troubleshooting information for the HLHP, engine and transmission control units and CANBUS, including descriptions and checks for many detected faults.

Removal, Refitting and External Component Service

Section 30 is a practical workshop section centered on tractor components that can be serviced without dismantling the principal frame and cab assemblies. It contains removal, refitting, disassembly, assembly, testing, tensioning and adjustment operations for a wide range of exterior and service-accessible parts. Examples include the hood, wheels, fenders, access steps, fuel tank, cooler and radiator package, air filter, intercooler, air-conditioning components, heater assembly, cooling fan, alternator, starter motor, compressed-air equipment, front PTO, front axle drive shaft, front support, brake master cylinders, steering valve, hydraulic pumps, exhaust components, cab and engine removal/refitting preparation.

Further procedures cover the driver’s seat, accelerator pedal potentiometer, console shrouds, control cables, parking brake, service brake, steering wheel, shuttle lever, steering-column switch unit, front console, clutch-pedal sensors, cab door cable, lift draft sensors and lift position sensor. The combination of illustrated component locations, workshop steps and adjustment information gives technicians a direct reference when carrying out common strip-and-refit work around the tractor.

Electrical and Wiring Reference

Section 40 turns the manual into a detailed electrical troubleshooting reference. It explains wiring terminology, connector handling, common wiring faults, diagnostic instruments and wire-colour codes, followed by indexes arranged by part description, component code and connector. Component technical data and ECU pinouts are supplied before system-level diagrams for starting, pre-heating, electronic engine control, lighting, diagnostics, worklights, wipers, instrument panel, radio, air conditioning, brakes, front axle suspension, transmission, ASM four-wheel drive and differential control, electronic lift, front and rear PTO, control valves and CANBUS.

The wiring section includes engine wiring for 4-cylinder and 6-cylinder configurations, transmission wiring, trailer brake wiring, front axle suspension wiring, battery and supply wiring, instrument-panel wiring, central and roof wiring, lighting circuits, wiper circuits and control-valve circuits. Connector-location information is integrated with the wiring material so a technician can move from a system diagram to the relevant component, connector and harness.

Chapters Covered

• Section 00 – General workshop information
  • Safety rules; removal/refitting precautions; lifting instructions; manual structure and use; standard tightening torques; threadlockers, sealants and lubricants; conversion factors
• Section 10 – Mechanical and hydraulic systems
  • Power Shuttle transmission; rear axle; rear PTO; braking and trailer braking; hydraulic front axle suspension; front axle; closed-centre hydraulic system; pumps, steering, auxiliary valves and lift controls
• Section 20 – Diagnosis and electronic systems
  • All Round Tester, SERDIA 2000 Level III and EDS EST45; tester connections; CANBUS and electronic control units; tractor commissioning and calibration; alarms; engine control unit test program
• Section 30 – Workshop removal, refitting and adjustment procedures
  • Body and cab-access components; cooling and air conditioning; charging and starting components; compressed-air equipment; front PTO and axle drive; steering and hydraulic pumps; exhaust; cab and engine removal/refitting; controls, pedals, brakes and lift sensors
• Section 40 – Electrical and electronic diagrams
  • Electrical-system reference indexes; component technical data and ECU pinouts; system schematics; wiring diagrams, harness layouts and connector positions

Taken as a whole, this Agrotron K 90/K 100/K 110/K 120 workshop manual supports a workflow from understanding system operation, through diagnosis and testing, to removal, refitting, calibration and final adjustment. Its diagnostic and electrical sections are especially substantial, while the mechanical sections provide both system schematics and hands-on workshop procedures.

Important Coverage Note

This manual specifically states that detailed information and instructions for the engine and transmission are contained in separate manuals. It references the DEUTZ 2012 engine manual, the ZF T7100KT gearbox manuals and the 7100 rear axle manuals. This PDF still includes transmission operating descriptions and controls, engine-management diagnostics, wiring, calibration work, and engine removal/refitting procedures, but it should not be treated as the separate internal engine or transmission overhaul manual.

Workshop Capability and Instant PDF Delivery

The Deutz-Fahr Agrotron K 90 K 100 K 110 K 120 Workshop Manual PDF gives technicians a single reference for system diagnosis, electrical fault tracing, hydraulic understanding, control-unit commissioning, sensor calibration, component removal and refitting, and many tractor adjustments across the four covered Agrotron K models. Following the stated procedures, measurements, tightening data and calibration instructions matters when a repair must be completed safely and returned to the correct operating condition.

After purchase, the manual is supplied as an instant PDF download with no physical shipping. It can be opened on compatible computers, tablets and phones, kept available in the workshop, and printed when a paper copy of a procedure, diagram or reference page is more convenient.
