Deutz TCD 2015 Engine Workshop Manual – Job Cards Repair Guide

Description

Deutz TCD 2015 Engine Workshop Manual – Job Cards Repair Guide

The Deutz TCD 2015 is a heavy-duty diesel engine found in industrial, power generation, and railway applications. Keeping it running at peak performance requires access to the right procedures at the right time. This workshop manual delivers the complete set of job cards for the TCD 2015, giving technicians and maintenance professionals the documented repair sequences needed to carry out work correctly.

This Deutz TCD 2015 workshop manual contains approximately 638 pages of job cards organized into twelve maintenance groups. Each job card provides a step-by-step procedure for a specific repair or service task, complete with tool references, torque specifications, and additional job cards required for the full job. Published in 2006 under document number 8145-001, this is the job card reference for TCD 2015 engine repair work.

File Details

• Manual Type: Workshop Manual – Job Cards
• Brand: Deutz
• Model: TCD 2015
• Language: English
• Page Count: Approximately 638 pages
• File Format: PDF
• Document Number: 8145-001
• Date: 06/2006

Chapters Covered

The TCD 2015 job cards are grouped into the following maintenance areas, each with detailed procedures for removal, installation, checking, setting, and renewal tasks:

00 General

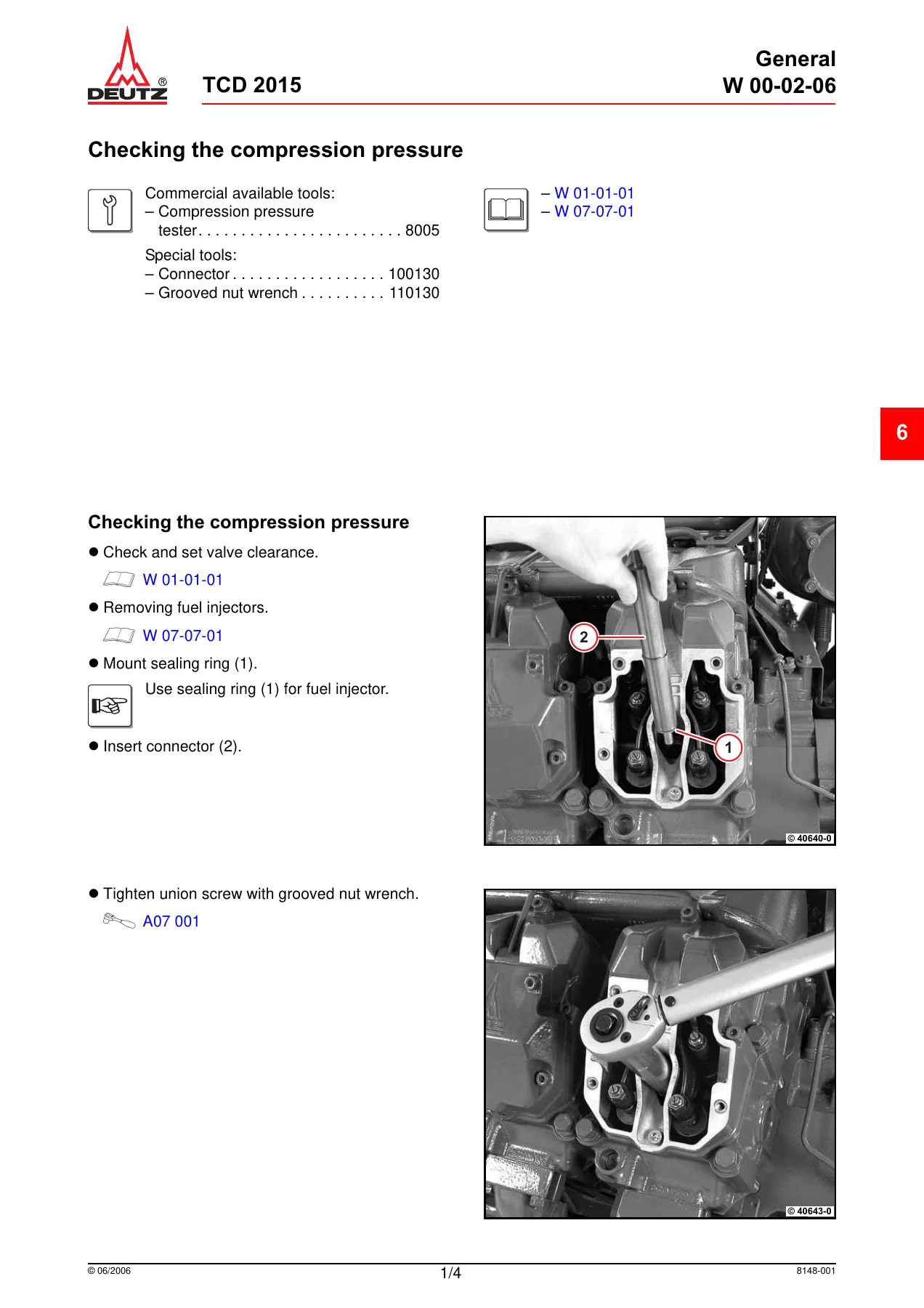

• Checking the compression pressure

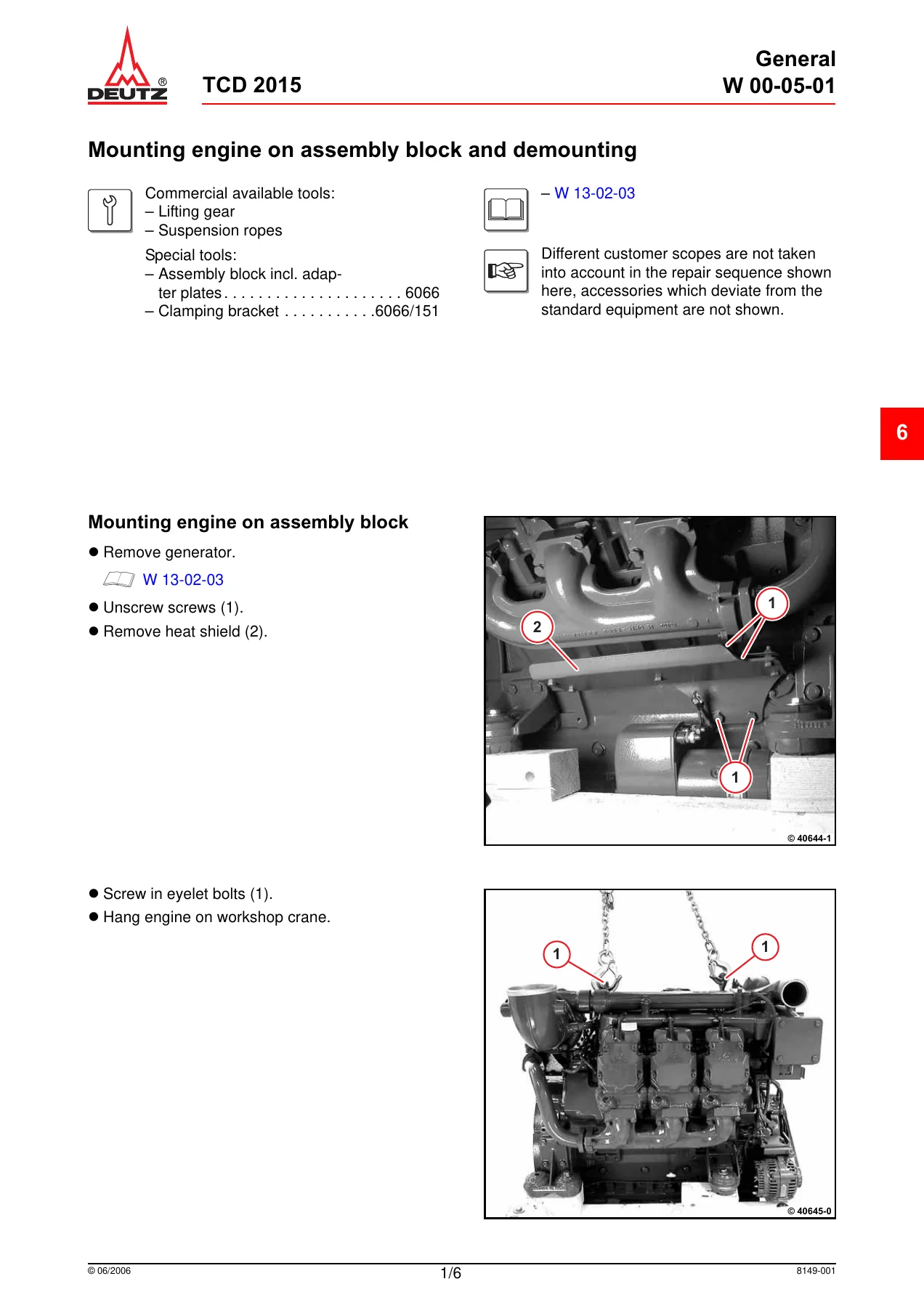

• Mounting engine on assembly block and demounting

01 Cylinder Head

• Setting valve clearance
• Removing and installing the rocker arm and rocker arm bracket
• Disassembling, assembling and checking the rocker arm and rocker arm bracket
• Removing and installing the cylinder head
• Grinding the cylinder head sealing surface
• Checking piston overhang
• Removing and installing the valves
• Checking the valves
• Checking the valve guide
• Renewing valve guide (oversize, pressed version)
• Checking the valve lag
• Replacing valve seat insert (oversize)

02 Drive System

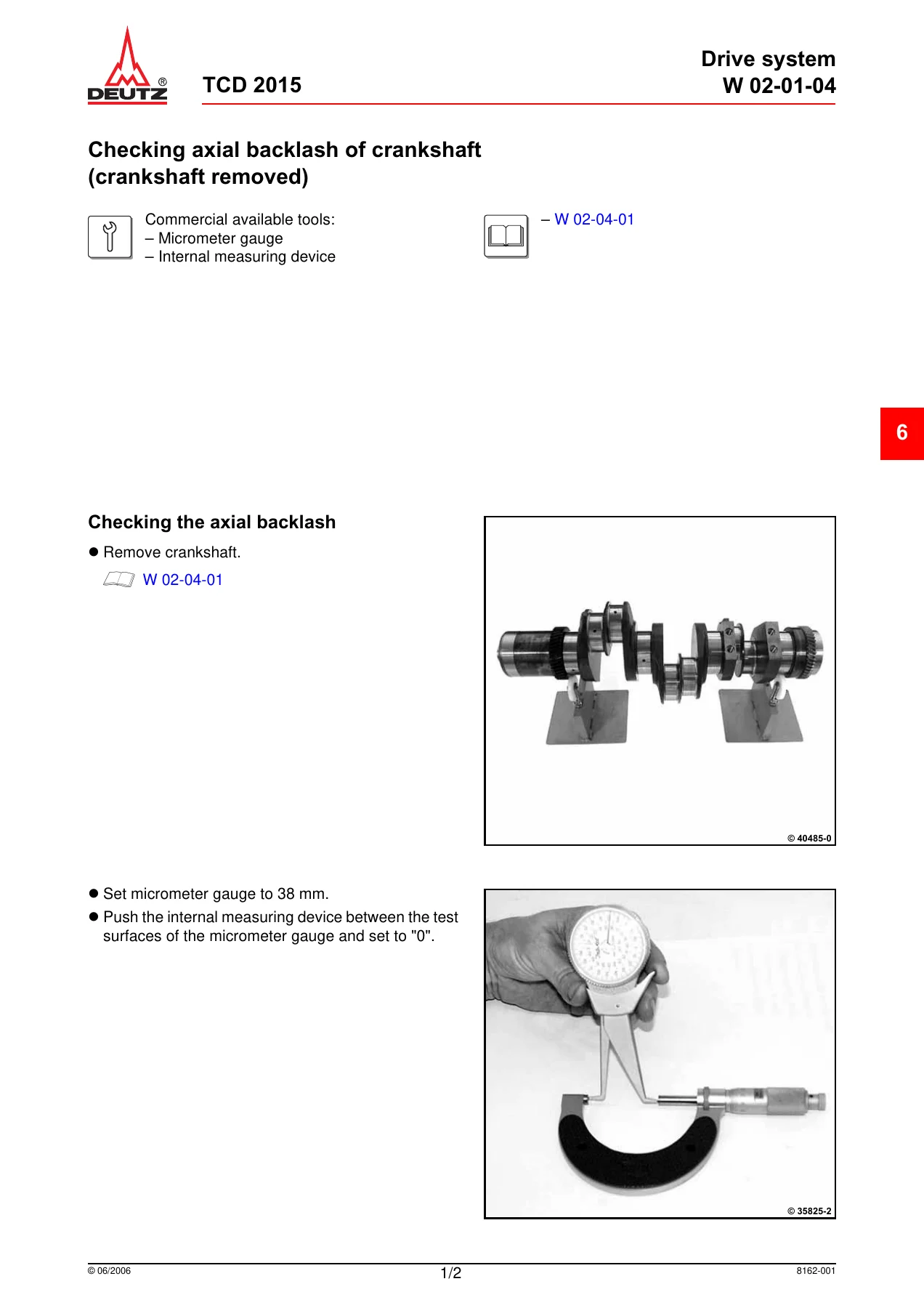

• Checking axial backlash of crankshaft (crankshaft removed and installed)
• Checking the crankshaft
• Renewing the crankshaft sealing ring (flywheel side and opposite side)
• Checking the con rod
• Removing and installing small end bush
• Removing and installing the crankshaft
• Removing and installing the piston and con rod
• Checking the piston
• Checking the piston rings and piston ring grooves
• Removing and installing the piston cooling nozzle

03 Crankcase

• Removing and installing crankcase breather (oil separator)
• Testing the cylinder liner
• Removing and installing the cylinder liner
• Checking the overhang of the cylinder liner
• Removing and installing genset support
• Dismantling and assembling genset support
• Removing and installing rear cover
• Removing and installing the connection housing
• Repairing the collar rest of the cylinder liner
• Removing and installing, testing camshaft bearing

04 Engine Control

• Removing and installing tappets, checking tappet bores
• Removing and installing the gearcase cover
• Removing and installing the camshaft
• Checking the camshaft
• Removing and installing injection pump camshaft
• Installing and removing turning gear

05 Speed Governing

• Removing and installing the impulse transmitter (crankshaft)
• Removing and installing the impulse transmitter (camshaft)

06 Exhaust System / Charging

• Removing and installing exhaust line (A-bank and B-bank)
• Removing and installing exhaust pipe (A-bank and B-bank)
• Removing and installing exhaust manifold
• Removing and installing the charge air line
• Removing and installing connecting pipe
• Removing and installing the turbocharger
• Removing and installing charge air pipe (A-bank and B-bank)

07 Fuel System

• Removing and installing flame glow plug
• Removing and installing fuel shut-off valve (flame glow plugs)
• Removing and installing fuel pipes (flame glow plugs)
• Renewing injection pipes (A-bank and B-bank)
• Removing and installing injection pumps (cylinder A1 and A2-B3)
• Checking and setting plunger lift of injection pumps
• Removing and installing the fuel injectors
• Dismantling and assembling fuel injector
• Checking and setting fuel injectors
• Removing and installing temperature transmitter
• Removing and installing fuel pipes
• Removing and installing the fuel supply pump
• Removing and installing fuel pressure holding valve

08 Lube Oil System

• Removing and installing the oil suction pipe
• Removing and installing the lubricating oil pan
• Removing and installing the oil cooler
• Removing and installing oil pressure pick-up
• Removing and installing pressurestat

09 Cooling System

• Removing and installing coolant pump
• Checking thermostat (removed state)
• Removing and installing thermostat
• Removing and installing thermostat housing
• Removing and installing temperature transmitter

12 Other Components

• Removing and installing torsional vibration damper
• Removing and installing flywheel
• Renewing toothed starter flywheel ring
• Removing and installing hydraulic pump drive

13 Electrical System

• Removing and installing the cable harness
• Removing and installing the generator (V-belt drive)
• Removing and installing the starter
• Removing and installing pressure sensor/temperature sensor (charge air)

What This Manual Delivers

The Deutz TCD 2015 job cards workshop manual is more than a collection of procedures – it is a complete repair reference for the engine. Each job card follows a logical sequence, detailing the steps required to complete a specific task, from removing the necessary components to installing them back correctly. The manual includes references to the special tools and commercial tools needed for each job, along with specifications for checking wear limits, setting clearances, and tightening fasteners.

This job cards manual covers both A-bank and B-bank procedures, as well as Railway-specific variants where applicable. For each job card, the manual also lists the additional job cards that must be carried out to complete the work – making it straightforward to plan a full repair from start to finish.

Why Choose This Deutz TCD 2015 Workshop Manual

Having the correct procedures and specifications on hand is essential when working on a TCD 2015 engine. This manual provides the documented repair sequences that help prevent costly mistakes, ensure components are installed correctly, and maintain the engine’s reliability and performance. The job cards are ideal for:

• Planning and executing engine overhauls and major repairs
• Performing routine maintenance and adjustments
• Diagnosing and repairing fuel system, cooling system, and lubrication system issues
• Checking and renewing critical components like the crankshaft, camshaft, pistons, and cylinder liners
• Setting valve clearance, injection pump plunger lift, and other critical adjustments
• Working on both standard and Railway-specific TCD 2015 engine variants
