The Volvo Penta D9 Groups 20-26 Workshop Manual 47703722 – 2020 PDF is a detailed workshop reference for D9 engines and the mechanical, fuel, lubrication, inlet/exhaust, cooling and related electrical systems covered in this volume. The manual identifies D9 applications including D9–425, D9–500, D9–575, D9–MH and D9–MG, with engine designations D9A2A, D9A2B, D9A2C, D9A2D, D9A2E and D9A2F appearing in the specifications. It combines technical data with illustrated workshop procedures, inspection criteria, troubleshooting information, test methods, special-tool references and step-by-step removal, repair and installation work.

File Details

• Manual type: Workshop Manual
• Brand / model: Volvo Penta D9
• Groups: 20-26, with related specification, safety, special-tool and alternator sections
• Document number: 47703722
• Issue: 01-2020
• Language: English
• Pages: 268
• File format: PDF

Workshop Scope and Technical Data

This D9 workshop manual begins with the information needed to identify the engine correctly and work to the specified limits. The specification section covers engine designations, cylinder configuration, bore and stroke, displacement, compression ratios, firing order, operating-speed data, engine weights, cylinder-head and cylinder-block dimensions, wet cylinder liners, pistons and rings, timing gears, valve train, crankshaft and connecting-rod data. It also includes tightening torques and tightening sequences for critical engine fasteners and assemblies.

Service data extends into the lubrication, fuel, inlet/exhaust, cooling and electrical systems. The manual provides lubricant requirements and oil-change information, oil-system capacities for applicable configurations, oil pressures and temperatures, filter arrangements and valve settings. Fuel-system pages include fuel specifications, feed pressure, injection sequence and unit-injector adjustment information. Turbocharger and charge-air data, exhaust back-pressure limits, coolant-system information, thermostat operating temperatures, coolant-pump and seawater-pump data, coolant mixture information, system voltage, batteries, alternator output and starter-motor data are also included.

Engine Repair and Overhaul Procedures

A substantial part of the Volvo Penta D9 Groups 20-26 Workshop Manual 47703722 – 2020 PDF is devoted to practical engine work. It explains how to expose the engine, fit the workshop fixture, disassemble the engine and rebuild it in a controlled sequence. Procedures cover removal and refitting of the cylinder head, camshaft, rocker bridge, unit injectors, timing gears, crankshaft, flywheel housing, oil pump, pistons, connecting rods and cylinder liners. The assembly section follows the engine back through crankshaft installation, timing-gear installation and gear-lash adjustment, cylinder-liner fitting, piston preparation and installation, piston-cooling nozzles, cylinder-head installation, camshaft timing, injector installation, valve and injector adjustment, sealing operations and complete engine reassembly.

The cylinder-liner and piston section adds inspection and replacement procedures, including liner wear measurement, liner-height checks, sealing-ring installation, piston and connecting-rod orientation and piston-ring positioning. Valve-mechanism coverage includes valve and unit-injector adjustment, valve-guide inspection and replacement, valve removal and installation, valve-stem seals, valve-seat replacement and grinding, and valve inspection. Timing and crank-mechanism sections cover camshaft wear checks, sensor distance checks, timing-gear replacement, main-bearing replacement, flywheel and ring-gear work, crankshaft seals, crankshaft inspection, connecting-rod checks and big-end bearing replacement.

Troubleshooting, Testing and Measurements

The manual includes symptom-based troubleshooting for starting problems, low power, uneven running, high fuel consumption, exhaust smoke, low oil pressure, abnormal coolant temperature and charging faults. It then expands into checks and test procedures that help confirm the cause before parts are replaced. These include compression testing, fuel-feed pressure checks, charge-air pipe inspection, turbocharger checks, charge-air pressure measurement, exhaust back-pressure testing and cooling-system pressure testing. Cylinder-head pressure testing is also described with the required tools and test conditions.

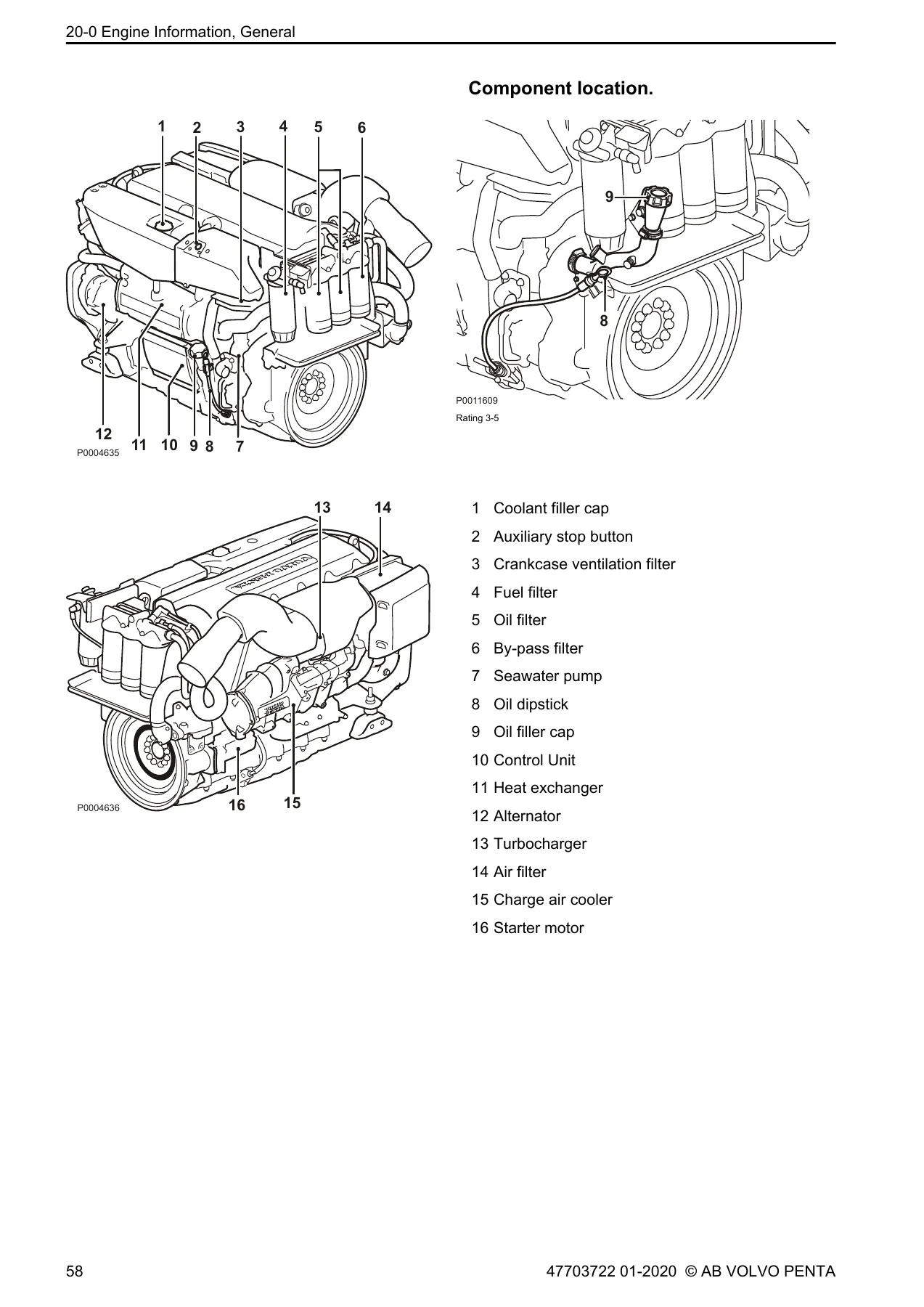

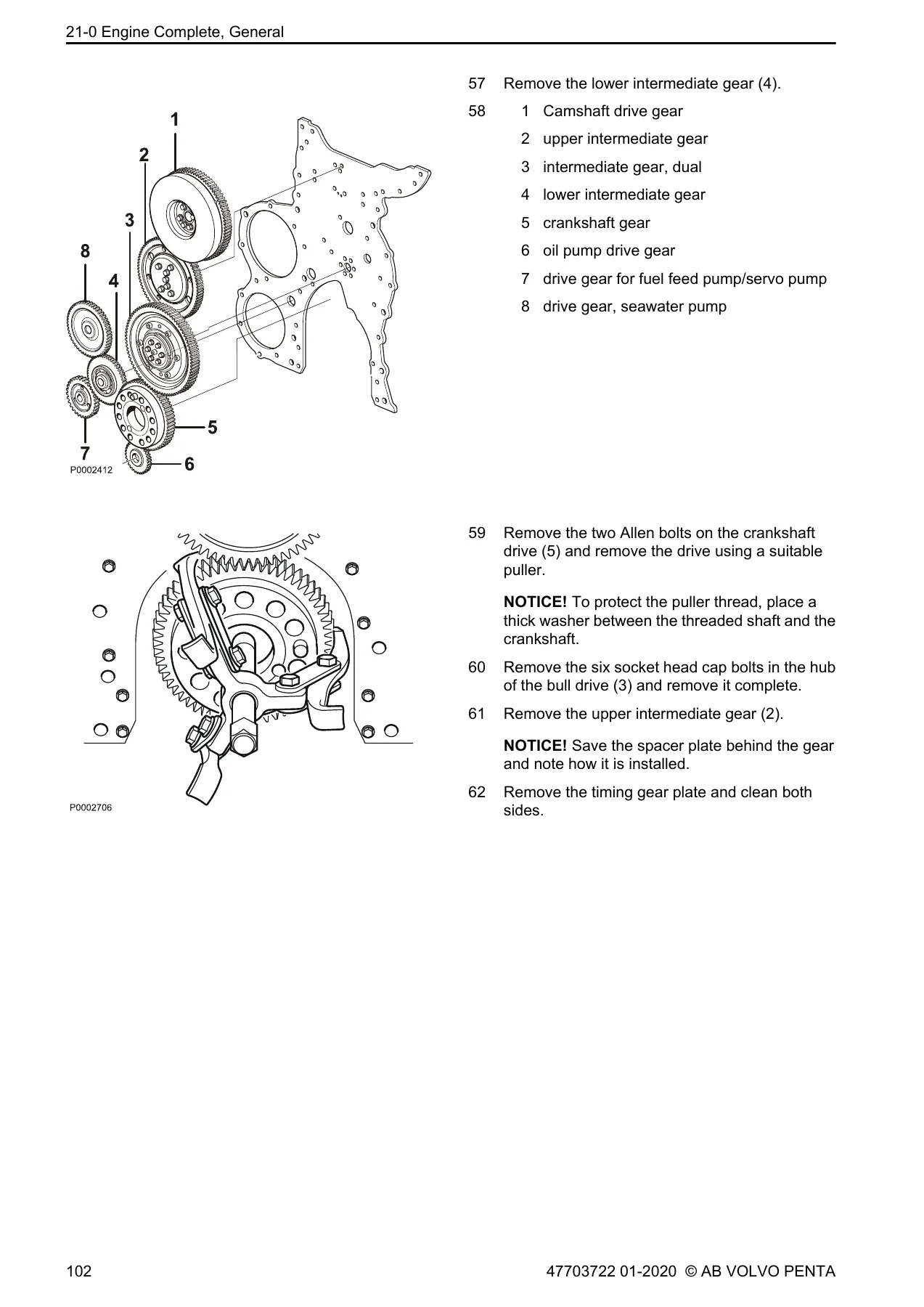

Throughout the manual, measurements and inspection limits are tied directly to workshop operations. Examples include valve clearances, liner protrusion, piston-ring gaps, camshaft and crankshaft dimensions, bearing clearances, gear lash, sensor distances and numerous component tightening values. The illustrations show component orientation, tightening sequences, tool placement and assembly details so the written procedures can be followed alongside the drawings.

Fuel, Lubrication and Electronic Control Service

Fuel-system coverage includes draining and bleeding, hand-pump service, fuel-filter replacement, feed-pump work, unit-injector replacement, injector-sleeve procedures and injector trim-code programming with the VODIA diagnostic tool. The ECM/data-set section covers control-system service tasks within this manual’s scope. Because cleanliness is critical around the unit-injector fuel passages, the procedures repeatedly identify protective sleeves, plugs and cleaning operations where contamination could damage components.

The lubrication section covers pressure-limiting, bypass, safety and piston-cooling valves, oil-pressure checks, piston-cooling pressure checks, oil-pump service and oil-cooler replacement and pressure testing. This makes the Volvo Penta D9 workshop manual useful both for a complete overhaul and for targeted diagnosis or repair of oil-pressure, cooling or component-related problems.

Turbocharger, Cooling and Seawater Systems

Inlet and exhaust sections address manifold work and turbocharger service, including checks for charge-pressure problems and the conditions that can affect turbocharger performance. Cooling-system chapters cover draining, cleaning and filling, coolant level and temperature sensors, fault tracing, pressure testing, heat exchanger service, coolant pump and thermostat procedures, charge-air cooler work and the seawater system. The seawater-pump section includes pump removal, disassembly and assembly as well as impeller replacement, making the manual particularly useful for D9 marine installations represented in the document.

Chapters Covered

• 00-0 General
  • About this Workshop Manual and repair instructions
• 03-2 Specifications, Engine
  • Engine, lubrication system, fuel system, inlet and exhaust system, cooling system
• 03-3 Specifications, Electrical
  • Electrical system
• 05-1 Safety Instructions
  • Workshop safety information and precautions
• 08-2 Special Service Tools
  • Special tools and other special equipment
• 18-0 General
  • Chemical products
• 20-0 Engine Information, General
  • Engine identification and component locations
  • Troubleshooting
  • Test and adjustments
• 20-9 Miscellaneous
  • EVC engine advice and electrical welding precautions
• 21-0 Engine Complete, General
  • Exposing the engine and fitting the fixture
  • Engine disassembly
  • Engine assembly and complete-engine reassembly

  IMAGES PREVIEW







• 21-3 Cylinder Liner, Pistons
  • Inspection and replacement
• 21-4 Valve Mechanism
  • Valves, unit injectors, guides, seats and stem seals
• 21-5 Timing Gears and Shaft
  • Camshaft, timing gears, bearings, flywheel and sensors
• 21-6 Crank Mechanism
  • Crankshaft seals, crankshaft inspection, connecting rods and bearings
• 22-0 Lubricating and Oil System, General
  • Control valves and pressure checks
• 22-1 Oil Pump and Line
  • Oil pump inspection and replacement
• 22-3 Oil Cooler
  • Oil cooler replacement and pressure testing
• 23-0 Fuel System, General
  • Fuel-system draining and bleeding
• 23-3 Fuel Feed Pump and Filter
  • Hand pump, fuel filter and feed pump
• 23-7 Injectors and Delivery Pipes
  • Unit injectors, sleeves and trim-code programming
• 23-8 Control System, ECM, Data Sets
  • Engine control system service information
• 25-0 Inlet and Exhaust System, General
  • Inlet and exhaust system service
• 25-1 Inlet and Exhaust Manifolds
  • Manifold procedures
• 25-5 Turbo and Supercharger
  • Turbocharger service
• 26-0 Cooling System, General
  • Draining, cleaning, filling, checks and fault tracing
• 26-1 Radiator, Heat Exchanger
  • Heat exchanger service
• 26-2 Coolant Pump, Thermostat
  • Coolant pump and thermostat procedures
• 26-5 Charge Air Cooler with Connections
  • Charge-air cooler service
• 26-6 Sea Water System, Sea Water Pump
  • Seawater pump service and impeller replacement
• 32-1 Alternator
  • Alternator service

Taken together, these chapters give a technician a continuous reference from identification and specifications through diagnosis, measurement, dismantling, inspection, repair, adjustment and final reassembly. The manual is especially detailed where correct sequence, cleanliness, special tools, tightening values or measurement limits are important to reliable D9 service work.

Repair with the Correct D9 Procedures at Hand

Use this Volvo Penta D9 Groups 20-26 Workshop Manual 47703722 – 2020 PDF when carrying out engine overhaul work, valve and injector adjustment, timing repairs, bearing and seal replacement, fuel-system service, turbocharger checks, lubrication-system diagnosis, cooling-system repairs or seawater-pump service. Having the specified procedures, measurements, tightening data and illustrated sequences available helps you work methodically and verify components against the values given for the D9 applications covered. The manual is supplied as an instant PDF download after payment, with no physical shipping required. Open it on a computer, tablet or phone, and print the pages you need for workshop use.
