DEUTZ TCD 6.1 L6 Industry Workshop Manual 2011 — Complete Repair & Service Guide PDF

Description

DEUTZ TCD 6.1 L6 Industry Workshop Manual — 2011 Edition

This DEUTZ TCD 6.1 L6 Workshop Manual is the complete industry repair guide for the 6-cylinder TCD 6.1 L6 diesel engine. Published by DEUTZ AG under order number 0312 3914 en and dated 04/2011, this first-edition manual covers the full range of maintenance, repair and overhaul procedures that a professional workshop or experienced operator needs to keep this industrial engine running to specification.

File Details

• Manual type: Industry Workshop Manual
• Brand: DEUTZ AG
• Engine model: TCD 6.1 L6
• Language: English
• Page count: 366
• File format: PDF
• Order number: 0312 3914 en
• Edition: 1st edition
• Date: 04/2011

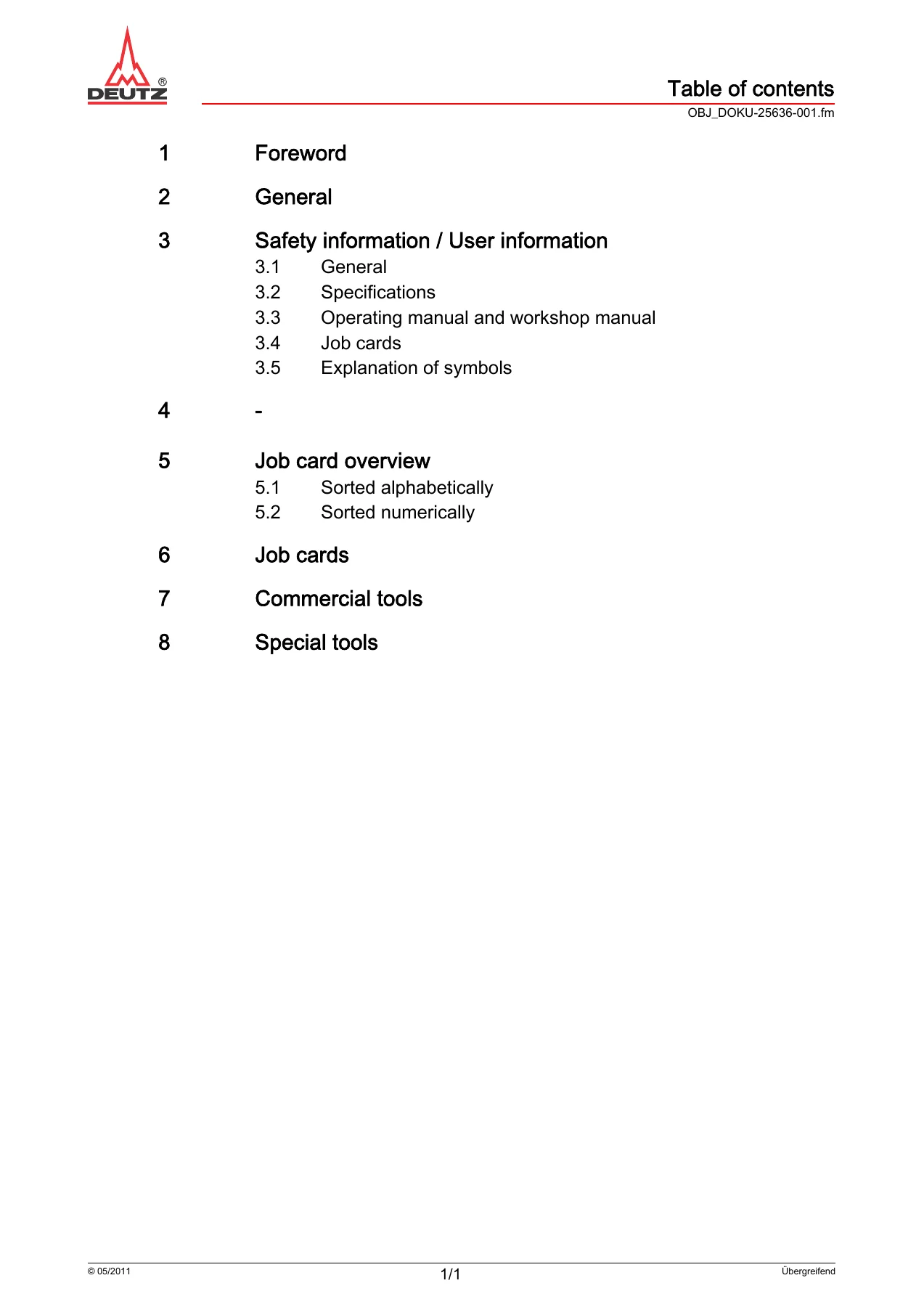

Chapters Covered

• 1 Foreword
• 2 General
• 3 Safety information / User information
• 4–5 Job card overview
• 6 Job cards
• 7 Commercial tools
• 8 Special tools

Foreword and General Information

The opening chapters set out the scope of the documentation, the manufacturer’s expectations for proper use, and the importance of using DEUTZ original parts. The General chapter explains the research and development behind DEUTZ engines, the value of scheduled maintenance, and the need to consult service representatives for operating faults and spare parts. Together these sections establish the context for the job cards that follow.

Safety Information / User Information

This chapter is essential reading before any work begins on the TCD 6.1 L6. It covers accident prevention and safety regulations, with specific warnings about the common rail fuel system operating at pressures up to approximately 2000 bar. Detailed cleanliness instructions for working on common rail systems are provided, including measures to be observed before starting work on the fuel system, during work with the fuel system open, and for the vehicle workshop area, workbench and tools. Additional information covers exhaust aftertreatment systems, including DPF (Diesel Particle Filter) and SCR (Selective Catalytic Reduction) handling procedures, plus disposal regulations for parts and operating materials.

The chapter also explains how the operation manual and workshop manual are structured, the difference between “W” and “I” job cards, the numbering system used for job cards (W 08-03-01 format), and the meaning of the symbols used throughout — Danger, Caution, Note, Tool, Auxiliary materials, References, Reference, Test and setting data, and Tightening specifications.

Job Card Overview

Two overview tables let you locate any job card quickly. The alphabetical listing organises activities from “Assembling/disassembling shaft sleeve on the crankshaft” through to “Renewing the crankshaft sealing ring (flywheel side)”, while the numerical listing presents the same job cards in W-number order. Each entry shows the activity, job card number and maintenance group. This dual-index approach is particularly useful when you know the component but not the job card number, or vice versa.

Job Cards (Chapter 6)

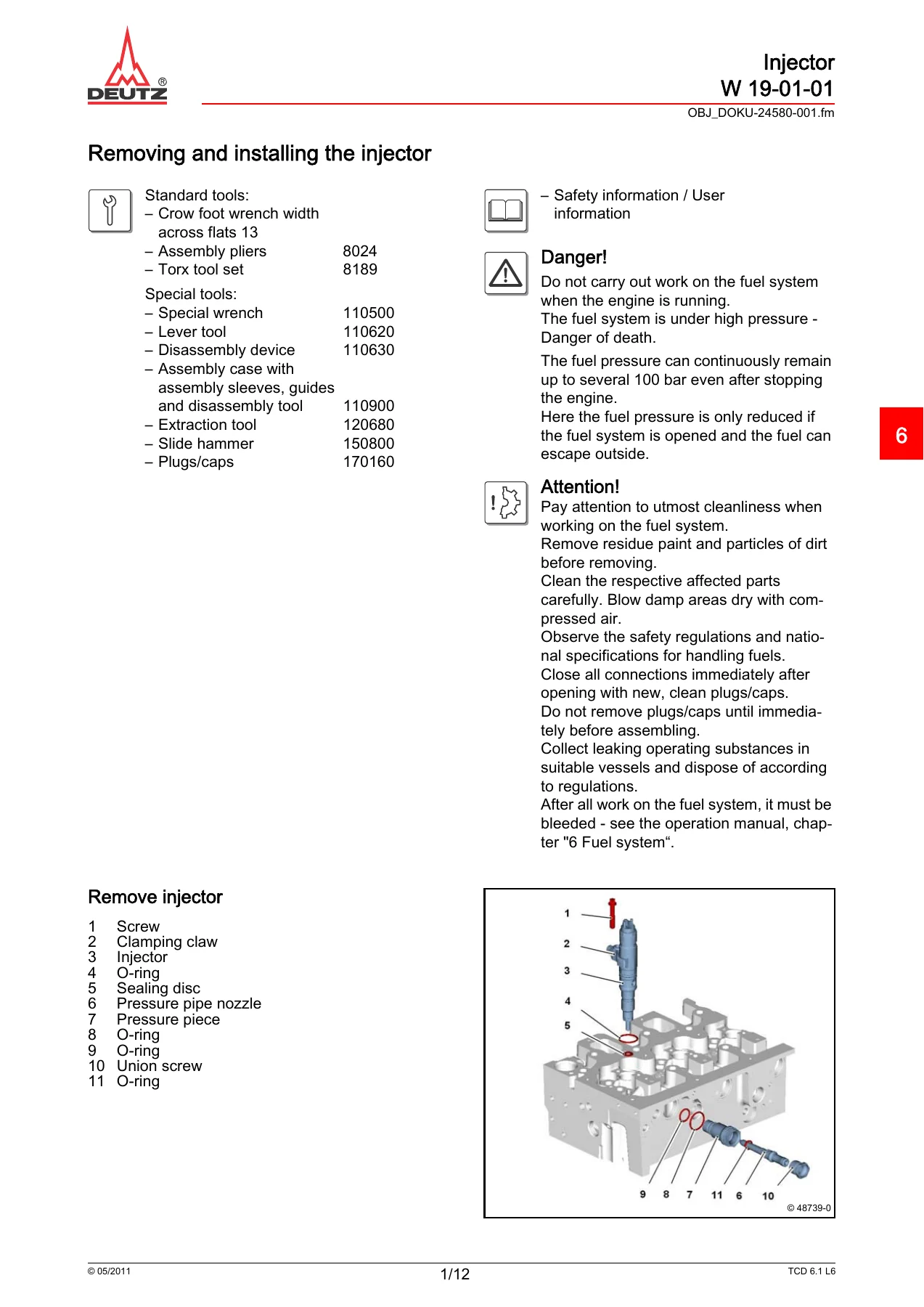

This is the core of the manual. Each job card documents a specific repair or maintenance procedure with step-by-step instructions, exploded-view graphics, tightening specifications, and a list of the standard and special tools required. Procedures covered include:

• Crankcase and front cover: Removing and installing the crankcase bleeding, breather pipe, crankshaft sealing ring, shaft sleeve, and front cover. Renewing crankshaft sealing rings on both the flywheel side and opposite side.
• Cylinder head and valve train: Removing and installing the cylinder head cover; checking and setting valve clearance using the rotation angle disc method.
• Fuel system: Removing and installing the control block, high-pressure pump (two installation positions), fuel supply pump, injectors, fuel pipes, rail, pressure sensor, and pressure limiting valve. High-pressure lines and injection pipes are covered with detailed tightening sequences.
• Lubrication system: Removing and installing the lubricating oil cooler, oil cooler housing, radiator tank, lubricating oil pan, and lubricating oil lines to and from the exhaust turbocharger.
• Cooling system: Removing and installing the coolant pump, thermostat, thermostat housing, and coolant connection lines.
• Air and exhaust: Removing and installing the charge air line, charge air manifold, air lines, exhaust line, exhaust turbocharger lubricating oil lines and oil return lines.
• Electrical equipment: Removing and installing the generator, starter, impulse transmitters for crankshaft and camshaft, and setting the gap dimension for the crankshaft impulse transmitter.

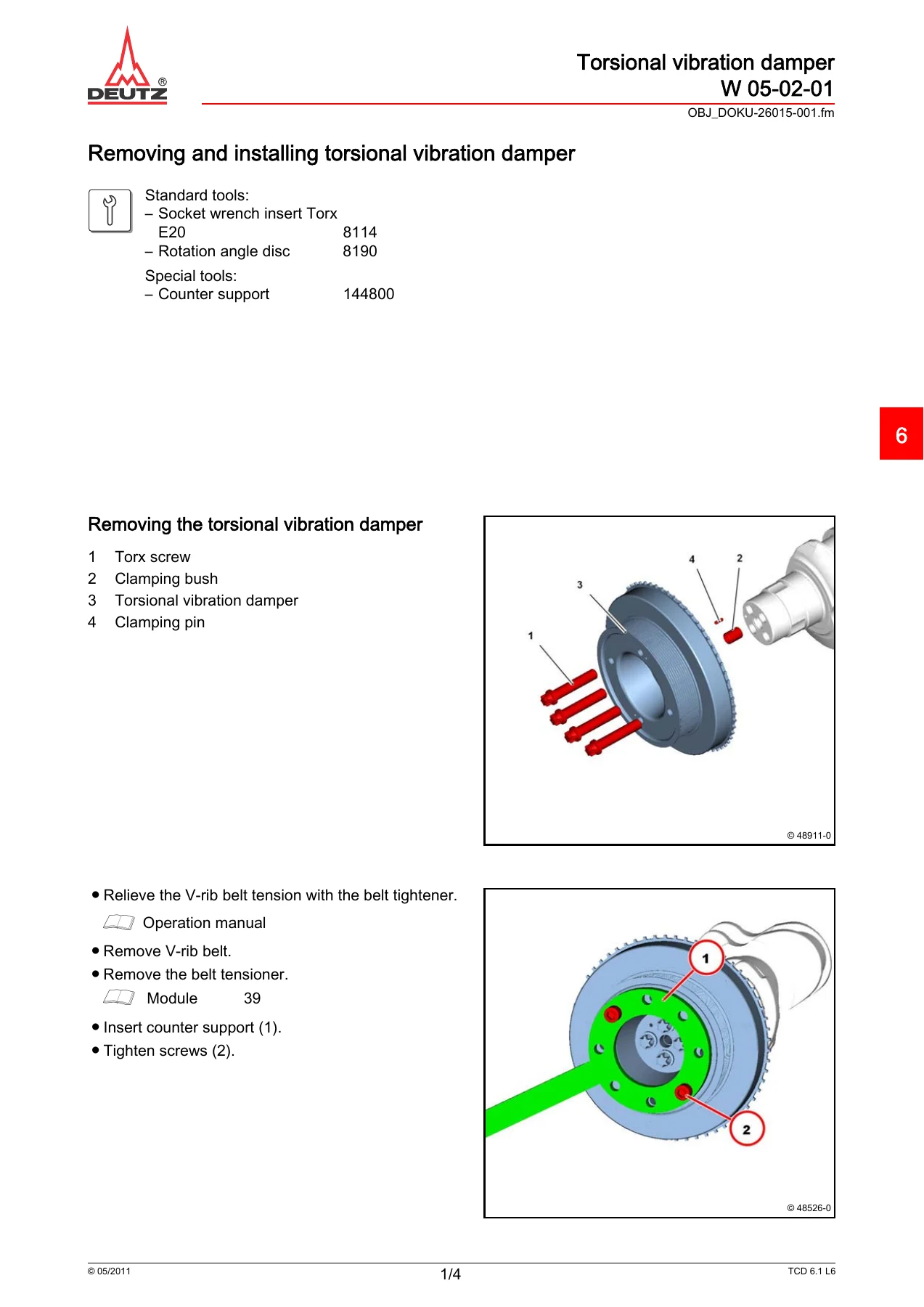

• Add-on parts: Removing and installing the console (V-rib belt, level 1), torsional vibration damper, flywheel, fan mounting and air bearing.
• Start aid: Removing, installing and disassembling the heating flange.
• Exhaust gas treatment: Removing and installing pipes (burner) and the air line from air compressor to burner.

Every job card follows the same structure: the component or assembly is shown in an exploded view, individual steps are illustrated with photographs or diagrams, and tightening torques are given with the relevant screw type and any special notes. The manual specifies a maximum variation of +/- 10% for tightening procedures according to torque using a torque wrench.

Commercial Tools and Special Tools

The final chapters list the standard tools and special tools required for the procedures in the job cards. Standard tools include hose clip pliers, spring band pliers, Torx tool sets, rotation angle discs, socket wrench inserts, assembly levers, and torque wrenches. Special tools include the turn-over gear, counter support for torsional vibration dampers, assembly tools for crankshaft sealing rings, injector removal tools, the assembly case for O-rings, and engine lifting equipment. Each tool is identified by its DEUTZ order number, making it straightforward to source the correct equipment.

Who This Workshop Manual Is For

This DEUTZ TCD 6.1 L6 workshop manual is written for trained technicians, workshop supervisors and experienced owner-operators who need to carry out repairs, maintenance and diagnostics to the manufacturer’s standards. The job card format assumes knowledge of the operating manual content, particularly the service specifications, and is intended for work that requires more effort and correspondingly qualified experts. Whether you are replacing an injector, setting valve clearance, removing the high-pressure pump, or overhauling the cooling system, the procedures here give you the sequence, the torque values and the tool requirements.

Why the Right Manual Matters

Industrial diesel engines like the DEUTZ TCD 6.1 L6 are precision machines. The common rail fuel system alone operates at pressures up to 2000 bar, and incorrect handling can lead to serious injury or expensive damage. Using the correct tightening sequences — for example, the three-stage process for the front cover or the multi-stage procedure for the flywheel — is not optional. This manual provides those sequences, along with the clearances, adjustment values and test data that keep the engine within specification. Without it, you risk over-torquing a fastener, damaging a sealing surface, or missing a critical step in a repair procedure.

IMAGES PREVIEW

Instant PDF Delivery

This DEUTZ TCD 6.1 L6 industry workshop manual is delivered as an instant PDF download. There is no shipping, no waiting, and no physical book to store. You can access it on any device — laptop, tablet or smartphone — and print the pages you need for the workshop. The PDF format makes it easy to search for a specific job card number or component, and the 366-page layout keeps the exploded views and step-by-step instructions close to hand.
