Doosan DX340LCA Excavator Parts Catalog 950106-00266ASP – Illustrated Parts List

Description

Doosan DX340LCA Excavator Parts Catalog — Document Details

• Manual type: Illustrated Parts List (Parts Catalog)
• Brand: Doosan
• Model: DX340LCA
• Model suffix: CECAP
• Document number: 950106-00266ASP
• Language: English / Spanish (bilingual)
• Page count: 642
• File format: PDF
• Edition: 2nd Edition (dated April 03, 2014 on section pages)

What This Doosan DX340LCA Parts Catalog Delivers

The Doosan DX340LCA Parts Catalog 950106-00266ASP is a comprehensive illustrated parts list built for the DX340LCA excavator with CECAP model suffix. Across 642 pages, it presents exploded-view diagrams paired with detailed part-number tables for every major system on the machine. Whether you are rebuilding an engine, replacing hydraulic components, sourcing undercarriage parts, or ordering cabin trim, this catalog provides the exact part numbers, quantities, and assembly relationships needed to identify and order the right components.

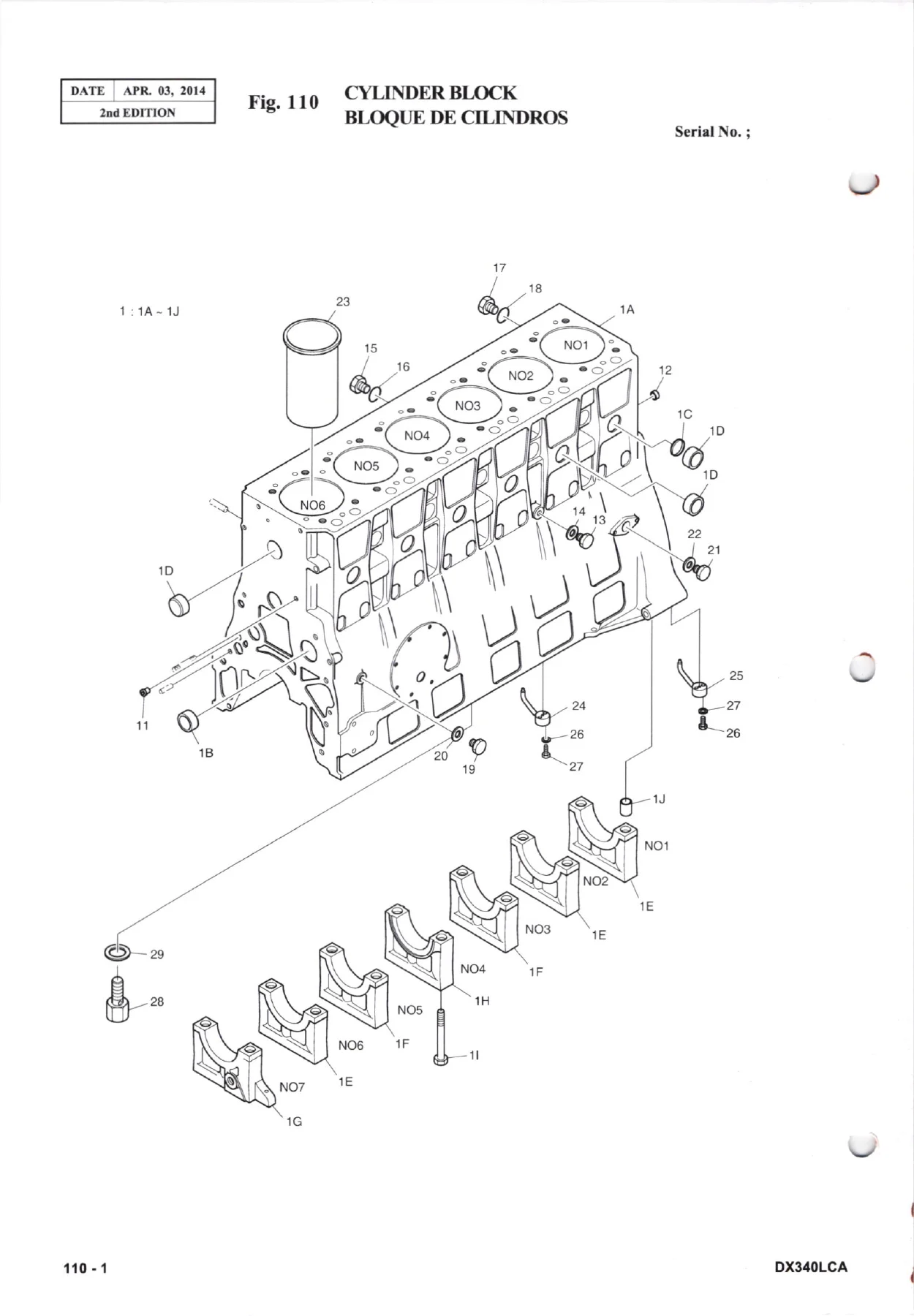

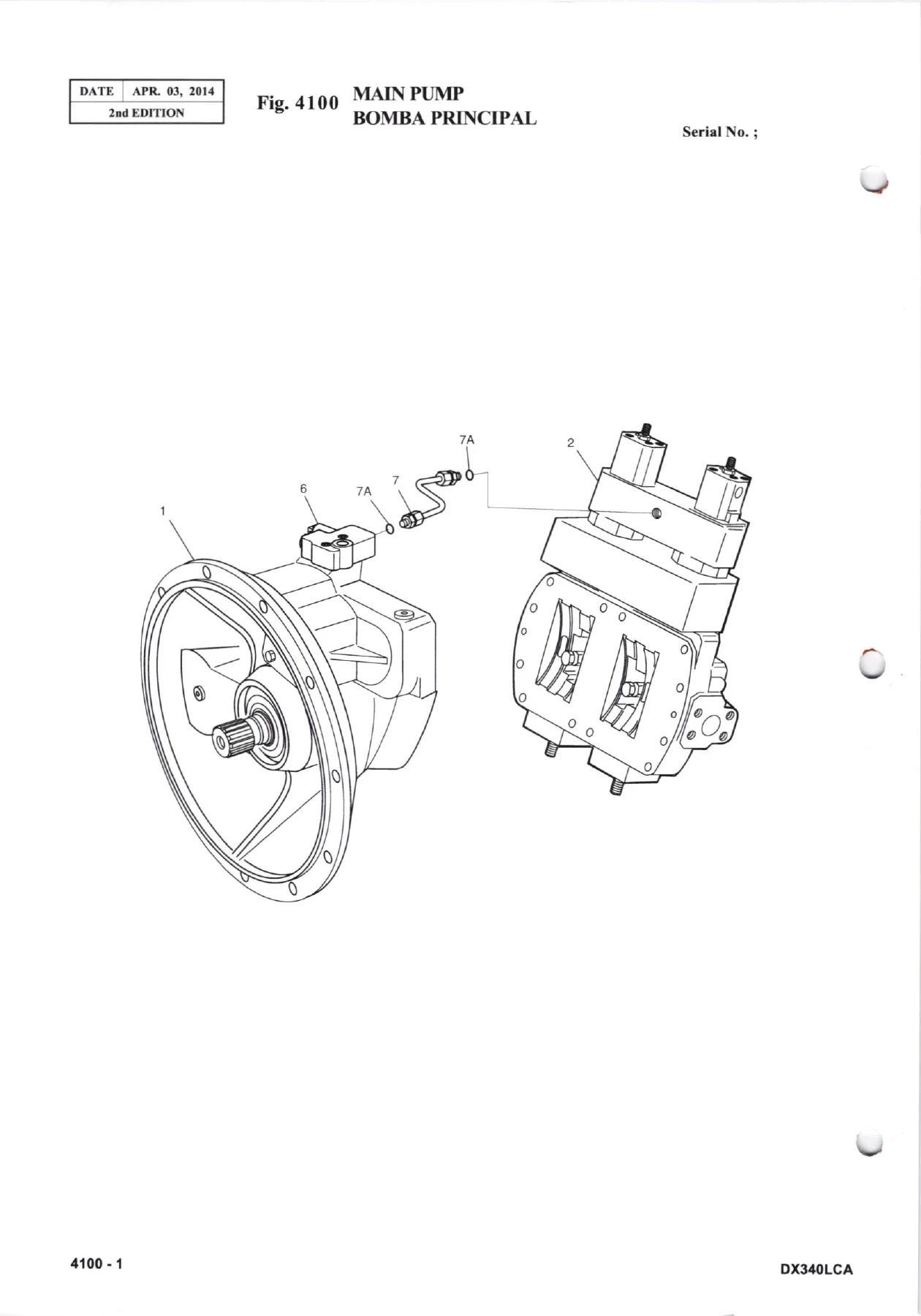

Each figure in the manual follows a consistent structure: an exploded illustration with key numbers that correspond directly to a parts table. The table provides the key number, part number, description in both English and Spanish, quantity required, service code, applicable serial number range, interchangeability information, and any replaceable part numbers. This makes the DX340LCA parts list a practical tool for anyone who needs to pinpoint a specific component without guesswork.

Chapters and Systems Covered in This DX340LCA Parts Manual

The catalog is organized into major groups, each containing multiple figures. The primary sections include:

• Engine Parts — cylinder block, timing gear case, flywheel housing, driving system, cylinder head, cylinder head cover, timing system, oil pump, oil filter, oil cooler, oil pan, cooling water pipe, water pump, cooling fan, exhaust manifold, intake manifold, turbocharger, nozzle and holder, injection pipe, injection pump and drive, fuel pipe, fuel filter, alternator mounting, starter, pressure gauge, air conditioner, engine mounting, and overhaul gasket kits (top and all)
• Body Parts — main frame, counterweight, engine mounting, radiator and mounting, muffler, CAC piping, air cleaner, engine control, pump mounting, swing device, fuel tank and piping, fuel filler pump, oil tank, oil cooler piping, main piping circuits (pump, boom, arm/bucket, swing, travel, one-way), pilot piping circuits, control stands (LH and RH), seat assembly, cabin mounting, cabin sections, handles, floor mat and plate, roof cover, foot rests, support and baffle, side doors, battery cover, engine cover, acoustic foam, under cover, lubrication piping, electric box, electric parts for cabin/control stand/engine, alternator, working lamps, electric wiring, and air conditioning components
• Track Parts — track frame, track guard, travel device, idler, track spring, upper roller, lower roller, center joint, track shoe assemblies (600G, 700G, 800G, 850G, 900G), and travel piping
• Front Parts — boom (6.5m, 6.2m, heavy duty), arm (3.2m, 2.6m, 3.95m, heavy duty), bucket (1.49m³, 1.25m³, 1.61m³, 1.83m³, 1.20m³, 1.42m³, 1.65m³, 1.79m³, 2.01m³, 2.09m³, rock bucket), boom piping, lubrication piping, arm piping (standard, one & two way, quick fit, rotating), and lock valve piping
• Hydraulic Parts — main pump assembly and rotary group, main pump control and EPPR valve, swing motor, swing reduction gear, travel motor, travel reduction gear, control valve sections 1-3, remote control valve, pedal valve, solenoid valve, boom cylinders (LH and RH), arm cylinder, bucket cylinder, gear pump, and lock valves for boom and arm
• Other Parts — tools, spare parts, name plates, decals (fuse box, pattern change, lifting capacity, machine name, serial number for export/Syria/Middle East, lubrication, boom, spec, oil level)
• Option Parts — one-way and two-way piping with filter, pilot piping for two-way and rotating configurations, floor mats, quick fit and quick clamp piping, rotating piping for boom and arm, lock valve piping and pilot piping, overload warning, swing alarm, pattern change piping, two-pump main and pilot piping, track frame full guard and track width 3m options, additional track shoe sizes, roof cover, rain shield, cabin and window guards, fogs guard, fuel filter with bowl heater, non-tropical side door and bonnet, heavy-duty under cover, heavy-duty and alternative boom/arm configurations, multiple bucket capacities with side pin or tooth options, 80A alternator, travel alarm, working lamp configurations, rotating beacon options, lower wiper, CD player, rear view camera, oil-washed air cleaner, 6.2m boom and piping, 2.09m³ bucket, double fuel filter, India counterweight and track guard, and swing alarm

How the Parts List Is Organized

The DX340LCA parts catalog uses a key-number system. Every exploded diagram carries reference numbers that match the corresponding entries in the parts table below it. The table columns include the key number, the part number, the description (in English and Spanish), the quantity used per machine, a service code, the applicable serial number range, ICA interchangeability codes, and replaceable part numbers. Service codes indicate special handling requirements: B for parts requiring work before installation, D for non-serviceable components that must be ordered as part of an assembly, K for parts included in service kits, R for quantity-varying parts like shims, S for special service parts, OP for optional parts, OS for oversized, and US for undersized. The ICA column shows interchangeability: I means a replacement can be used instead of the original but not vice versa; P means the part must not be used and the replacement should be ordered; T means replacement parts can be used as an assembly; Y means the parts are fully interchangeable.

Why the Doosan DX340LCA Parts List 950106-00266ASP Matters

Ordering the wrong part for a 34-ton excavator wastes time and money. The DX340LCA is a complex machine with thousands of components across its engine, hydraulic, undercarriage, and structural systems. This parts catalog eliminates the guesswork by providing the exact part number for each component as originally specified by the manufacturer. It is equally valuable for routine maintenance planning, major overhauls, and emergency repairs. Having the correct parts list also helps verify serial-number-specific variations, ensuring the part ordered matches the machine’s production range.
