Ducati 749s Testastretta 2000 – 2006 PDF Service Manual – PDF Download

Description

📘 COMPREHENSIVE DOCUMENT OVERVIEW

Unlock the full potential of your Ducati 749S with this comprehensive factory service manual, specifically designed for the M.Y. ’03 (Model Year 2003) and surrounding production years based on the “10-02” issue date. This is not just a basic owner’s manual; it’s an in-depth, professional-grade resource packed with 176 pages of detailed information, essential for anyone looking to perform maintenance, repairs, or a full overhaul on their motorcycle. 🔧 Whether you’re a seasoned Ducati technician or an experienced home mechanic, this manual provides the factory-approved procedures to keep your 749S in peak condition.

This digital manual is an indispensable tool, offering clear, step-by-step instructions, high-quality illustrations, and exploded diagrams for virtually every component of your Ducati 749S. A significant advantage is its multilingual presentation for key information and table headers, including Italian, English, French, German, and Spanish, making it accessible to a wider range of users. It ensures you have the correct specifications and procedures directly from Ducati.

Key features and major sections include:

• General Information: Guidance on how to use the catalog for ordering spare parts, understanding validity codes (f.m., d.m., f.m.m., d.m.m.), and interpreting country codes (GB, D, CH, J, AUS, SGP, F, E). It also includes paint codes for “Rosso Anniversary DUCATI” (473.101) and “Giallo DUCATI” (473.201).

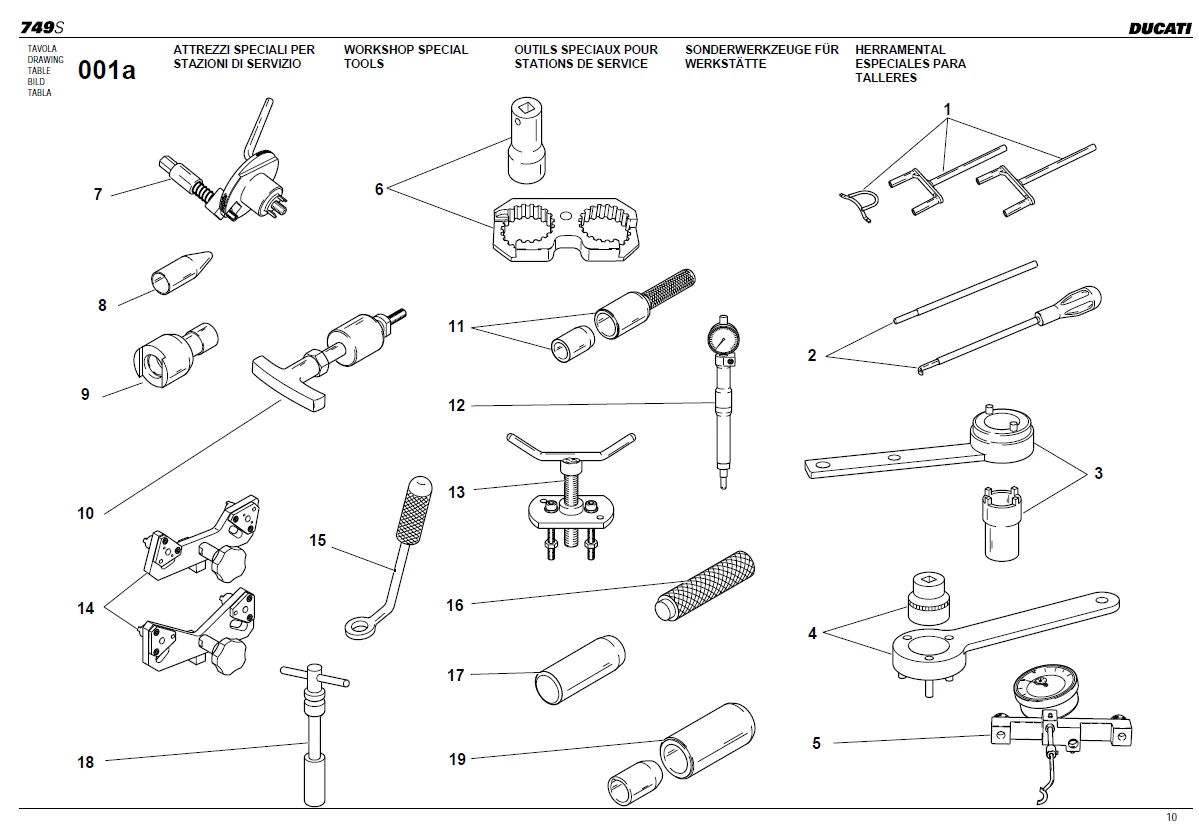

• Workshop Special Tools (TAV. 001, 001a, 001b, 001d): Detailed listings and illustrations of Ducati-specific special tools required for various service tasks, ensuring precision and safety.
• Diagnosis Tester MATHESIS (TAV. 001c): Comprehensive information on using the Mathesis diagnostic tool for troubleshooting and system checks.
• Engine Overhaul:
  • Gearchange (TAV. 002): Mechanisms and adjustments for the gear shifting system.
  • Gear-Box (TAV. 003): Complete disassembly, inspection, and reassembly of the transmission.
  • Clutch & Clutch Cover (TAV. 004, 005, 005a): Servicing the clutch assembly, including plates, springs, and housing.

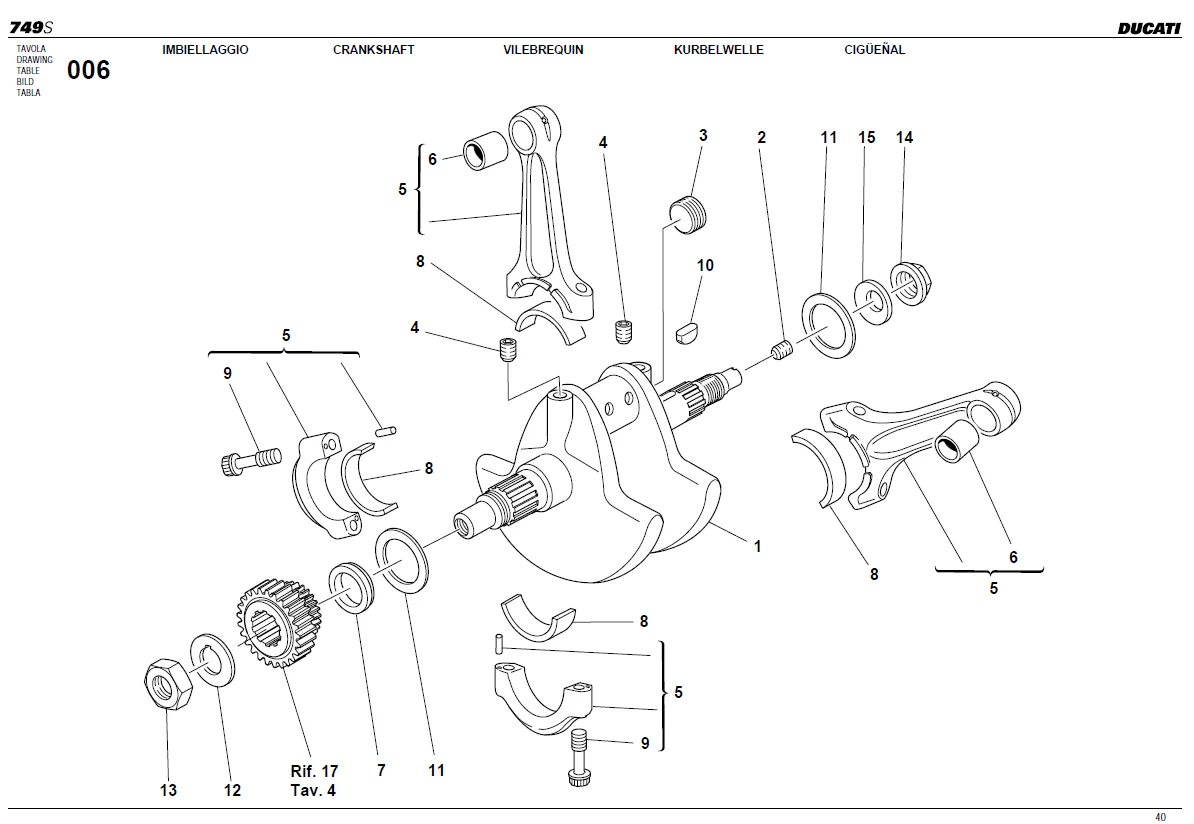

  • Crankshaft (TAV. 006): Procedures for the crankshaft and connecting rods.

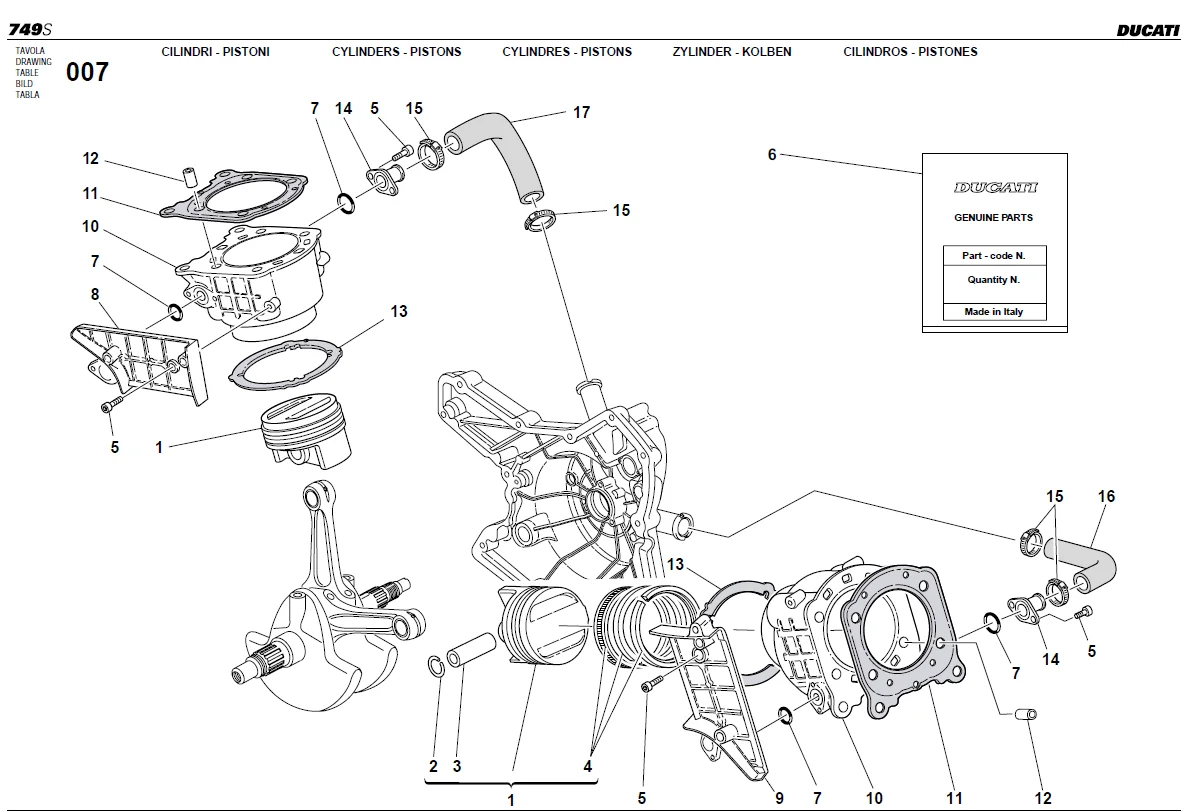

  • Cylinders – Pistons (TAV. 007): Inspection and replacement of cylinders, pistons, and piston rings.

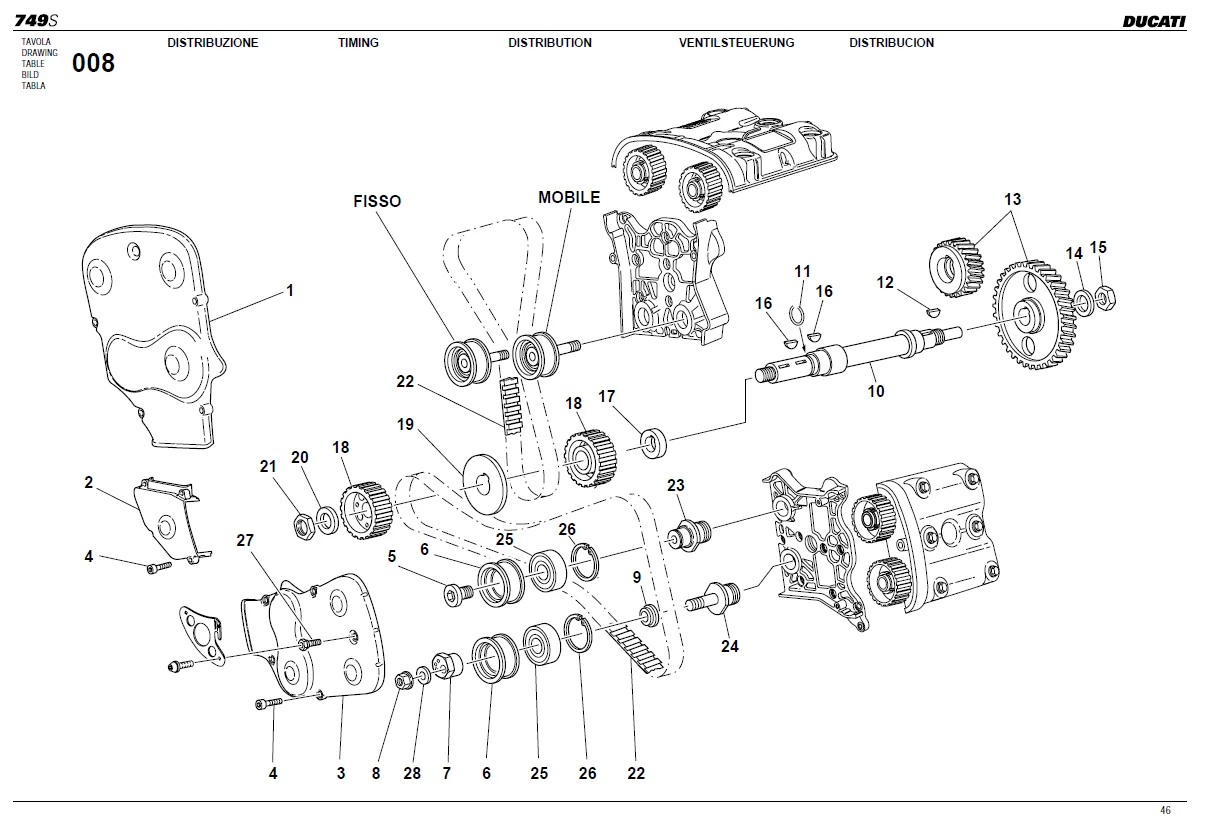

  • Timing (TAV. 008): Detailed instructions for valve timing, belts, and tensioners.
  • Filters and Oil Pump (TAV. 009): Maintenance of the oil filtration system and oil pump.
  • Half Crankcases (TAV. 010, 010a): Assembly and disassembly of the engine crankcases.
  • Water Pump – Alternator Cover (TAV. 011): Servicing the water pump and alternator components.
  • Electric Starter and Ignition (TAV. 012): Troubleshooting and repair of the starting and ignition systems.
  • Head: Timing & Valves (TAV. 013, 015): Comprehensive guide to cylinder head servicing, including valve mechanisms, camshafts, and valve adjustments.
  • Collectors and Head Covers (TAV. 014, 014a): Details on intake/exhaust manifolds and cylinder head covers.
• Chassis and Suspension:
  • Oil Cooler (TAV. 016) & Water Radiator (TAV. 030): Maintenance of the cooling systems.
  • Throttle Body (TAV. 017) & Injection System (TAV. 018a): Servicing the fuel injection components and throttle bodies.
  • Battery Box Mount (TAV. 018) & Electrical Systems: Wiring diagrams (Fronto Wiring TAV. 020a), front headlight and instrument panel (TAV. 020).
  • Frame & Associated Components (TAV. 022): Main frame, stand (TAV. 022a).
  • Suspension: Half-Handlebars & Shock-Adsorber (TAV. 021), Front Fork (TAV. 021a), Rear Suspension (TAV. 028), Rear Fork (TAV. 028a).
  • Brakes: Clutch Control (TAV. 023), Front Hydraulic Brake (TAV. 024), Rear Hydraulic Brake (TAV. 025).
  • Wheels (TAV. 026): Front and rear wheel assembly and servicing.
• Bodywork and Ancillaries:
  • Exhaust System (TAV. 019).
  • Rear Frame (biposto & monoposto options) & Rear Foot Rests (TAV. 027, 027a).
  • Number Plate Holder (TAV. 027b).
  • Air Induction – Oil Vent (TAV. 029) & Cooling Circuit (TAV. 031).
  • Fuel Tank (TAV. 032) & Fuel System (TAV. 032a).
  • Seat (TAV. 033, 033a).
  • Headlight Fairing (TAV. 034) & Fairing (TAV. 034a).

⚠️ This manual is a critical resource for ensuring your Ducati 749S is serviced correctly, maintaining its performance, safety, and value. It provides exploded views for easy parts identification, torque specifications, and clear, concise instructions for complex procedures. 📋

🔧 TECHNICAL SPECIFICATIONS & COVERAGE

• Equipment Model: Ducati 749S.
• Model Year Range: Primarily M.Y. ’03 (2003), based on “10-02” issue date and “M.Y. ’03” notations.
• Engine Specifications: Comprehensive coverage of the L-Twin Desmodromic engine, including detailed procedures for timing, pistons, cylinders, crankshaft, valve clearances, and complete engine overhaul.
• Fuel System: Detailed information on the fuel injection system, throttle bodies, fuel pump, tank, and associated components.
• Electrical System: Includes starter motor, alternator, ignition system, Mathesis diagnostic tester procedures, and wiring information (Cablaggio Anteriore).
• Transmission and Drivetrain: Full service procedures for the gearbox, clutch assembly, and final drive components.
• Chassis and Suspension: Detailed instructions for front forks (Showa), rear shock absorber, swingarm, frame, wheels, and braking systems.
• Cooling System: Covers the water radiator, oil cooler, water pump, and cooling circuit.
• Special Tools: Extensive sections (001 through 001d) dedicated to Ducati-specific workshop tools required for service and repair, including part numbers for these tools.
• Paint Codes:
  • “Rosso Anniversary DUCATI”: 473.101
  • “Giallo DUCATI”: 473.201
• Language: Key information, table headers, and parts descriptions are often provided in Italian, English, French, German, and Spanish.

📋 MANUAL SECTIONS & PROCEDURES

This service manual is meticulously organized into distinct sections, each covering specific systems and components of the Ducati 749S:

• General Information & Ordering: Understanding part codes, validity, and ordering procedures.
• Special Tools & Diagnostics: Comprehensive lists and usage of workshop special tools and the Mathesis diagnostic tester.
• Engine Service: Gearchange, gearbox, clutch, crankshaft, cylinders/pistons, timing system, oil pump, crankcases, water pump, alternator, starter, ignition, cylinder head, valves.
• Fuel & Exhaust Systems: Fuel tank, fuel system components, injection system, throttle body, exhaust system.
• Cooling System: Oil cooler, water radiator, cooling circuit.
• Chassis & Suspension: Frame, front forks, rear suspension, swingarm, wheels, handlebars, steering damper.
• Braking System: Front and rear hydraulic brakes, clutch hydraulic control.
• Electrical System: Battery mounting, front headlight, instrument panel, wiring harnesses.
• Bodywork: Fairings, seat, number plate holder.
• Assembly & Disassembly: Step-by-step instructions for removing, inspecting, and reinstalling components.
• Parts Identification: Exploded diagrams with detailed part numbers and multilingual descriptions.
• Maintenance & Adjustments: Procedures for routine maintenance and adjustments (e.g., valve timing, clutch).

❌ WHAT’S NOT INCLUDED

• Physical Printed Manual: This is a digital PDF download; no physical book will be shipped.
• Real-Time Technical Support: This manual provides information for service, but does not include live support or consultation.
• Warranty Coverage: Purchase of this manual does not imply or include any warranty for repairs performed.
