Dynapac F2500CS Tracked Paver Parts Catalogue – PDF Spare Parts Manual

Description

Dynapac F2500CS Tracked Paver Parts Catalogue

This is the full illustrated spare parts catalogue for the Dynapac F2500CS tracked paver, published under document number 4700777414 and written around machine serial JG002392 with the V5100TVE screed. It is a parts-identification book rather than a repair guide: every assembly on the machine is drawn in exploded view and every individual component is listed with its item reference, part number and quantity, so a workshop, dealer or owner can find the exact part required without guesswork.

File Details

• Manual type: Illustrated spare parts catalogue / parts list
• Brand: Dynapac
• Model: F2500CS tracked paver
• Screed: V5100TVE
• Engine: Cummins Tier 3 / Stage III
• Document number: 4700777414
• Language: English
• Page count: 597
• File format: PDF

Chapters Covered

The catalogue is grouped into the same functional families the machine is built from, and each family is split into individual assemblies with their own exploded drawing and parts table.

• Auger kits — wear part kit auger wings Ø380mm, renewal kit I and II for the auger drive
• Hopper kits — wear part kit hopper rubber, standard
• Conveyor kits — reversing roller, conveyor drive, conveyor chain single and double bars, conveyor guide plates, conveyor guide plates Hardox 400, conveyor plates Hardox 400
• Drive kits — rubber plates, track roller, drive sprocket, idler
• Service kits — 500 h, 500 h Plus TIER 3, 1000 h TIER 3 stage 2, 1000 h Plus TIER 3 stage 2, filter kit 1000 h
• Lubricants and operating substances T3

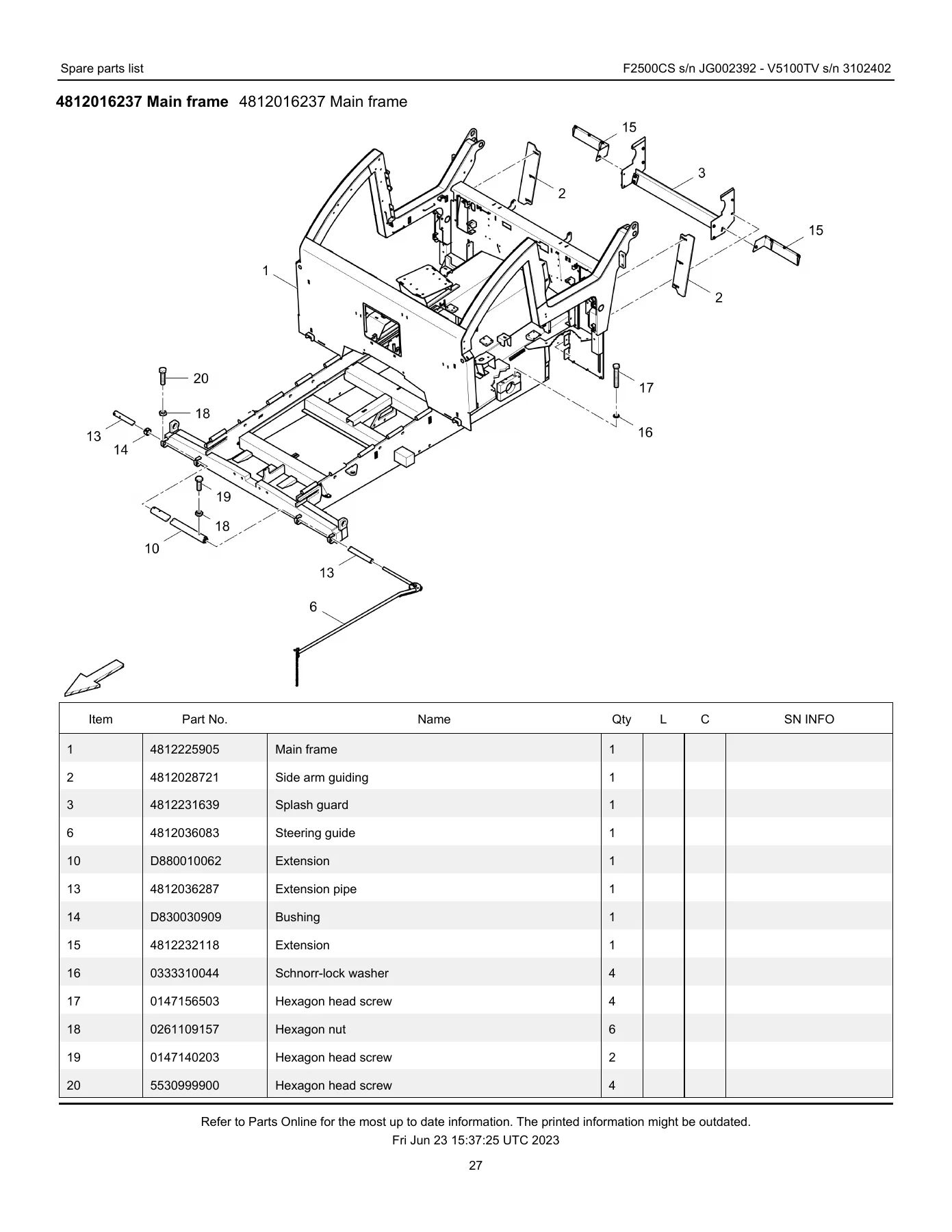

• Mechanical — main frame, side arm guiding, splash guard, steering guide, extension, side arms mechanically locked, levelling arm left and right hand, side bar guiding, mechanical locking, push roller hydraulic crosshead, pillow block, covering, bulk head, hood support, intermediate section, air guides, hopper with dump plate, hopper left and right hand, crash protection
• Roof, roof frame front and rear, GRP roof frame, roof hydraulic, hydraulic roof adjustment
• Operator board, clamping lever, telescopic pipe set, console, stop bolt
• Ascent for Varioscreed — ascent cpl., middle, left hand, right hand

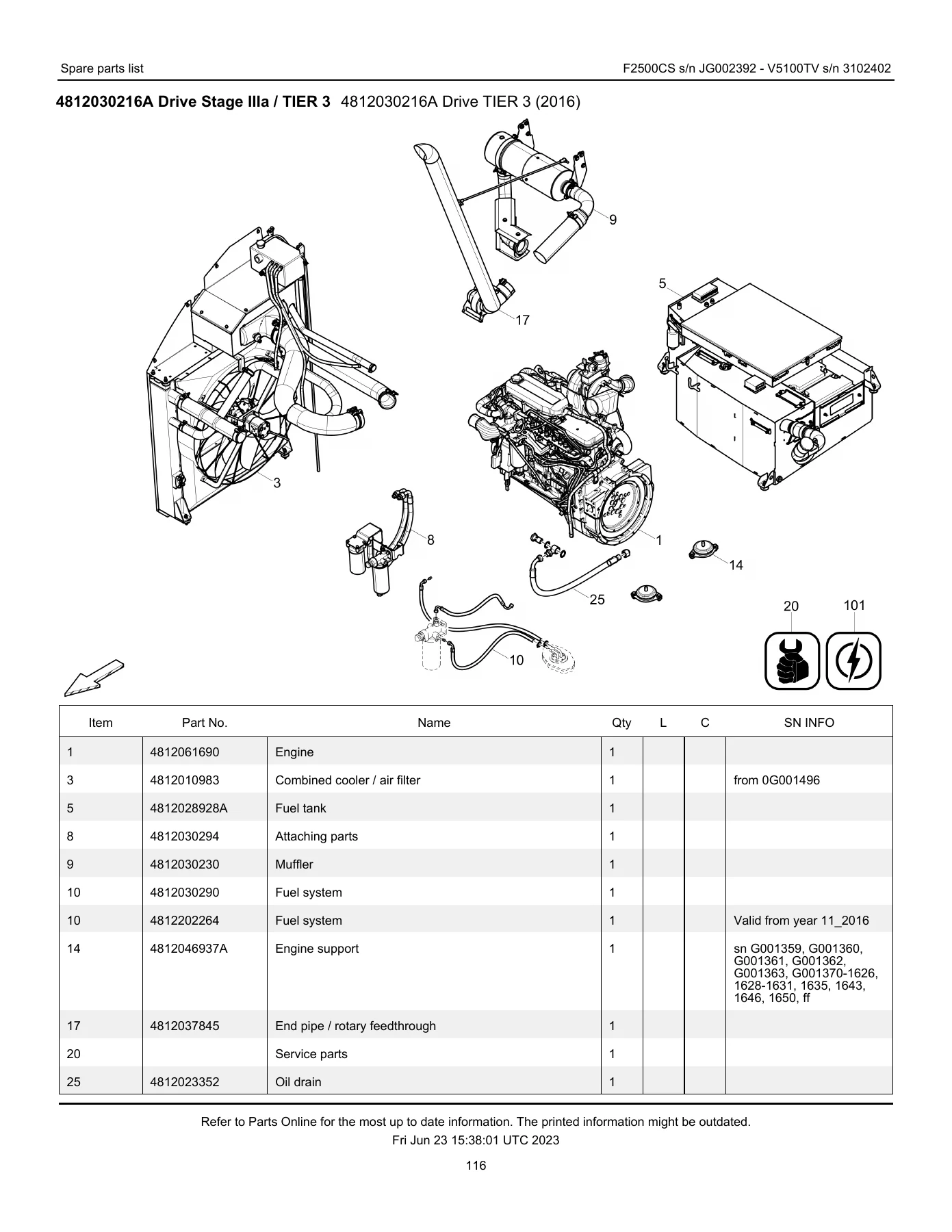

• Engine Stage IIIa / TIER 3 — drive, fuel system, engine, attaching parts, muffler, engine support, cable W12, service parts, oil drain
• Combined cooler / air filter, expansion tank, combined cooler
• Fuel tank, ground strap
• End pipe / rotary feedthrough, joint rod
• Split gear, split gear box and the pumps mounted to it

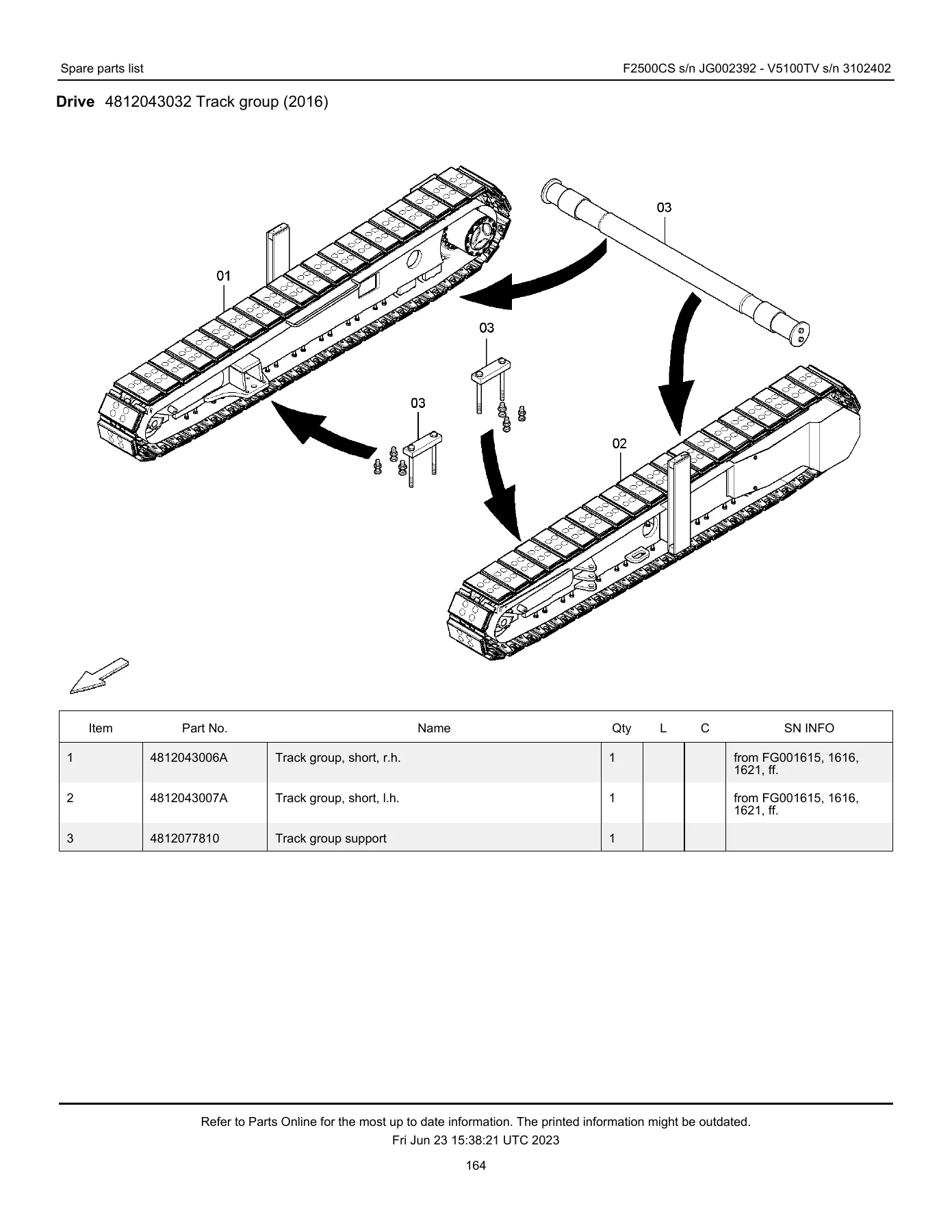

• Track group short right and left hand, pressure gauge kit, track roller small and big, track drive, drive gear box, replacement kit, track chain, track group support
• Conveyor, conveyor drive, conveyor motor, conveyor turn, conveyor limit switch cpl. and the left/right limit switch variants, chain guide
• Auger Ø380mm basic width, auger Ø380mm 5.70m, mounting parts, auger gear, auger box, outer support, auger support, material tunnels, auger shaft extensions and end supports
• Hydraulic system — hydraulic drive, hydraulic auger, hydraulic conveyor, hydraulic tamper/vibration, work hydraulic, hydraulic fan, hydraulic tank collector, hydraulic tank cpl., ganged valve support, hose package screed 616/617
• Electric system — electric, wiring, individual cables W1 to W42, operator desk, mainboard, steering unit, junction box, remote control, vandalism protection
• Options — generator set 25 KVA, universal joint protection, electric heating, control box, spot lights, GPS installation and GPS module, mechanical adjustment, indicator thickness top, maintenance lids, covers, Gloria spraying device, driver’s seats, USB technical documentation, material chute, track cleaner, spot light for auger, rotaflare lights, fire extinguisher, emulsion spray systems, first-aid kits, auxiliary weight, gravel field kit, oil drain hydraulic tank, tropical kit, doors, diesel cooler, tools and accessories, material tunnel installation kit, TruckAssist
• Levelling — Moba gradline 2+1 and 1+1, levelling system, add-on kit, altitude control, handset, inclination regulator, wire tensioner, MOBA MATIC 1+1 and 2+1, Big Ski 13 m and 9 m, trailing ski 6 m and 9 m
• Accessories — spare keys, tools and accessories
• Decals — decals tracked paver, decals tracked paver F, special colour symbols, roof-high stickers
• Special tools — ultrasonic thickness gauge, tension tester, frequency tension tester, infrared thermometer, test adapter, welding protection, Dynapac colours, dismantling tools for big and small pins, service tool BODAS, magnet tester, digital pressure gauge kit, frequency and amplitude meter
• Schematics — electric paver 4812016677_C and hydraulic paver 4812015961

What makes this Dynapac F2500CS parts catalogue genuinely useful is the way it maps the paver from the ground up. The track group pages show the tensioner, rollers, guide wheel and chain as separate line items. The conveyor and auger sections break down the drives, sprockets, chains, guide plates and material tunnels to individual part numbers. The split gear box is drawn with every shaft, spur wheel, bearing, circlip and seal separately numbered, and the pump pages that follow identify each hydraulic pump and its control module, proportional solenoid and seal kit. On the engine side the Cummins Tier 3 / Stage III installation is covered with its fuel system, attaching parts, muffler, engine support and oil drain. The hydraulic chapter then lists hoses, male connectors, test points, flanges and control blocks individually, and the electric chapter names each cable and harness (W1.1 through W42) with its plug housings, contacts and latching components. Every illustrated table carries a serial-number or “valid from” note where a design change occurred, so you can tell whether a part applies to your machine.

How the Parts Tables Are Built

Each drawing is followed by a table with the item number that appears on the exploded view, the part number, the part name, the quantity needed for that assembly, and where relevant a serial-number information column or a remark such as a validity range or an alternative part. Kit pages are handled the same way but lead with the kit part number and then list the kit contents underneath, so you can either buy the complete wear kit or order an individual component from inside it. Notes attached to individual pages point out superseded items — for example where a bulk head has been replaced by a later part number, or where a valve block is superseded from a given serial number onwards.

Ordering the Correct Part

Because the catalogue is indexed by assembly rather than by part number, the fastest route to a correct order is to identify which section of the machine you are working on, open that assembly, and read the item number off the drawing. The quantities shown are per assembly, which matters for wear items such as rubber baseplates, chain joints, conveyor bars, dowel pins and washers that are fitted in multiples. Torque figures appear on some of the assembly drawings as small callouts, but the catalogue is not a service manual — for operating, servicing and repair procedures the relevant safety and operating instructions have to be consulted, as the document itself states. Consumables and lubricants are listed with their Dynapac part numbers in the dedicated lubricants section and on the service-kit pages.

Who This Parts Catalogue Suits

It fits anyone who has to keep an F2500CS working: a workshop ordering wear parts, a fleet maintenance planner building stock lists, a dealer counter identifying a component from a drawing, or an owner who wants to know what is inside the machine before authorising a repair. Because the whole paver is covered rather than a single system, one file answers questions across the engine, the drive line, the conveyor, the auger, the hopper, the screed supply hydraulics and the electrical installation. The special tools section also identifies the diagnostic and measuring equipment the manufacturer lists for this machine, including the ultrasonic thickness gauge for wear inspection, belt tension testers, the BODAS service tool, the digital pressure gauge kit and the frequency and amplitude meter.
