Eaton Fuller RTLO-10 Transmissions TRTS0920 Troubleshooting Guide Manual – PDF DOWNLOAD

Original price was: $56.95.Current price is: $16.95.

Eaton Fuller RTLO-10 Transmissions TRTS0920 Troubleshooting Guide Manual – PDF DOWNLOAD

Buy now
Category: Tags: Vendor: Parts Doc Depot
โšก
Instant PDF Download
Available immediately
๐Ÿ’พ
Save to Your Device
Download & keep forever
๐Ÿ›ก๏ธ
Antivirus Scanned
100% virus-free
๐ŸŒ
Trusted Worldwide
175,000+ customers

Description

Eaton Fuller RTLO-10 Transmissions TRTS0920 Troubleshooting Guide Manual – PDF DOWNLOAD

DESCRIPTION:

Eaton Fuller RTLO-10 Transmissions TRTS0920 Troubleshooting Guide Manual – PDF DOWNLOAD

How to use this Troubleshooting/Operation Guide:

The purpose of this manual is to assist in the diagnosis and repair of your air system. Use this manual in conjunction with other service literature produced by Eatonยฎ, including Service Bulletins, Illustrated Parts Lists, Service Manuals, and OEM service material.
This guide provides four functions:

โ€ข Troubleshooting Guide: Designed to isolate and resolve air system problems.
โ€ข System Operation and Schematics: Designed to explain a complete air system’s operation.
โ€ข System Components: Designed to explain each component’s function and operation.
โ€ข Engineering Reference Drawings: Detailed drawings with optional parts and part numbers.

TABLE OF CONTENTS:

Eaton Fuller RTLO-10 Transmissions TRTS0920 Troubleshooting Guide Manual – PDF DOWNLOAD

General Information
How to use this Troubleshooting/Operation Guide 1
Transmission Identification 2
Component Identification 4
Lubricants and Sealants 6
Suggested Test Fixtures 7
Air System Troubleshooting
8, 9, 10, 11, 13, 15, and 18-Speed Troubleshooting 8
RTLO 10-Speed Troubleshooting 23
Combination Cylinder Troubleshooting 33
FR-1X210 Troubleshooting 51
Operation
Air Line Color Chart 64
Slave Valve Preselection System 65
7,8,9 and 10-Speed Range Air Systems 66
7L,8,9 and 10-Speed (2-Speed auxiliary) 67
RT & RTO-610,6610, 6609, and 8609 Models 69
Deep Reduction Air System
(with Dash Mounted Valve) 71
RT, RTO, & RTX xx607LL,
xx608LL, and xx615 models 72
Deep Reduction Air System
(with A-6915 Roadranger Valve) 75
RT, RTO, & RTX xx607LL,
xx608LL, and xx615 Models 76
9 and 13-Speed Air Systems
(Top 2 & Convertible) and 18-Speed (Top-2) 79
RT, RTO, & RTOO xx613 and xx813 Models 83
RTLO-xx613 Models 86
RTLO-xx713 Models 89
RTLO-xx913 Models 92
RT0-15618 and RTLO-xx618 Models 95
RTLO-xx718 Models 99
RTLO-xx918 Models 103
Combination Cylinder Air System 107
7LL/DLL/MLL, 8LL, 9MLL, and 15-Speed Models 108
Unique Air Systems 111
RT &RTO 613 and 6613 Models 112
RT & RTO 613 and 6613 Models
With A-6913 Roadranger Valve 115
RT & RTO 613 and 6613 Models 116
7608LL with A-6915 Roadranger Valve 119
7608LL Models 120
RTLO-xx610 Speed Air System 123
RTLO-xxX610 Models 125
RTL-xx710 Speed Models 129
RTL-xx710 Models 130
AT-1202 Auxillairy Transmission
(with 2 Position Shift Valve) 134
AT-1202 Auxiliary Housing (3 Position Valve) 135
System Components
A-4740 Air Filter/Regulator Assembly 137
A-5161/A-5454 Air Filter/Regulator Assembly 138
A-3546 Range Valve 139
A-5010/A-6909 Roadranger Valve 140
14651 Reduction Valve (Dash-Mounted) 141
A-5015/A-6915 Roadranger Valve 142
Two Position Selector Valve 143
A-4900/A-6913 Roadranger Valve 144
A-5013/A-6913 Roadranger Valve 145
Three Position Selector Valve 147
A-5510/A-6910 Roadranger Valve 148
Range Actuator Valve (Old Design) 150
Range Actuator Valve (Latest Design) 151
19470 Poppet-Type Slave Valve 152
A-4688 Slave Valve 153
A-5000 Slave Valve 154
Range Cylinder 155
Range Cylinder for 610, 6610, 6609 and 8609 156
Dash-Mounted Deep Reduction Cylinder 157
Deep Reduction Cylinder with Roadranger Valve 158
RTLO-xx610 Model Range Cylinder Assembly 160
RTL-xx710 Model Range Cylinder Assembly 162
Intermediate Shift Cylinder Assembly
613 and 6613, 3-Position Selector Valve 164
Intermediate Shift Cylinder Assembly
613 and 6613, A-5015 Roadranger Valve 166
Combination Cylinder Assembly 168
Splitter Cylinder Assembly 171
RTLO-xx610 Model Splitter Cylinder Assembly
(Old Design) 173
RTLO-xx610 Model Splitter Cylinder Assembly
(Latest Design) 175
RTL-xx710 Model Splitter Cylinder Assembly 177
RTLO-xx613 Model Splitter Cylinder Assembly 179
RTLO-xx713 Model Splitter Cylinder Assembly 181
RTLO-xx913 Model Splitter Cylinder Assembly 183
RTO-15618 and RTLO-xx618 Model
Splitter Cylinder Assembly 185
RTLO-xx718 Model Splitter Cylinder Assembly 187
RTLO-xx918 Model Splitter Cylinder Assembly 189
Table of Contents
Engineering Reference Drawings
Basic Air System Drawings –
6610,8609, and 6609 191
Basic Air System Drawings –
07L, 08, 08L, 09, and 10-Speed Models 192
Basic Air System Drawings –
07LL, 08LL, and 15 Speed Models 193
Basic Air System Drawings – 707LL, 7/908LL, 7/909LL,
and 7/915 Speed Models 194
Basic Air System Drawings – 11613, 14613, and 15613
Speed Models 195
Basic Air System Drawings – 6613, and 7608LL Speed
Models 196
Basic Air System Drawings –
18 Speed Models Left-Hand Drive 197
Basic Air System Drawings –
18 Speed Right-Hand Drive 198

EATON FULLER RTLO-10 TRANSMISSIONS TRTS0920 TROUBLESHOOTING GUIDE MANUAL – PDF DOWNLOAD:

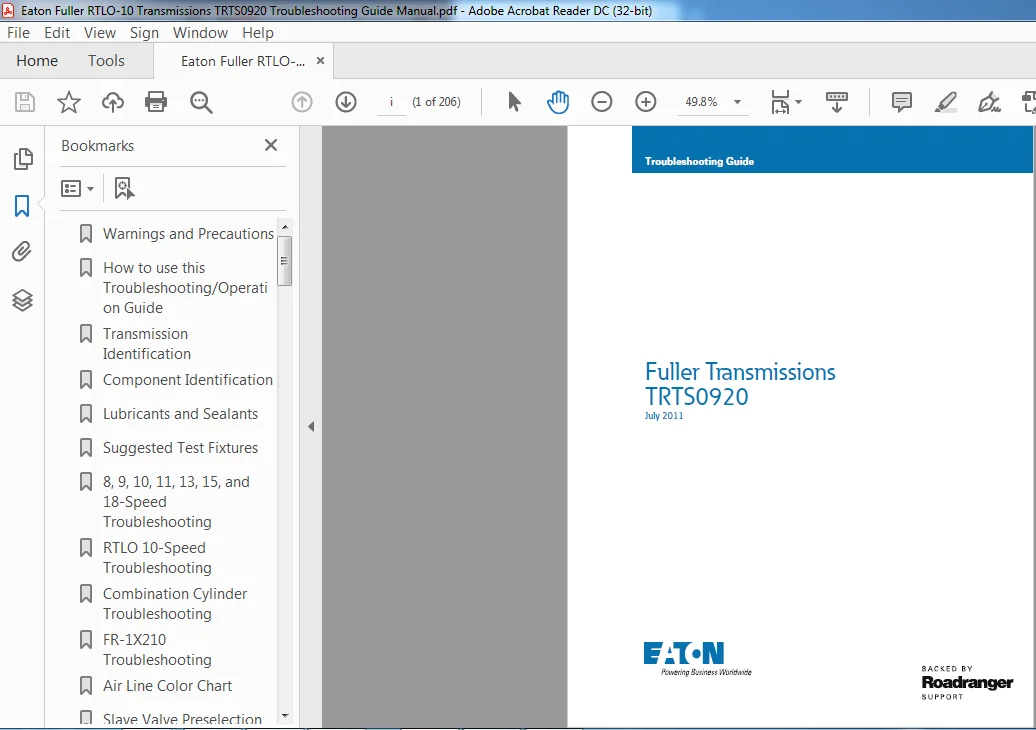

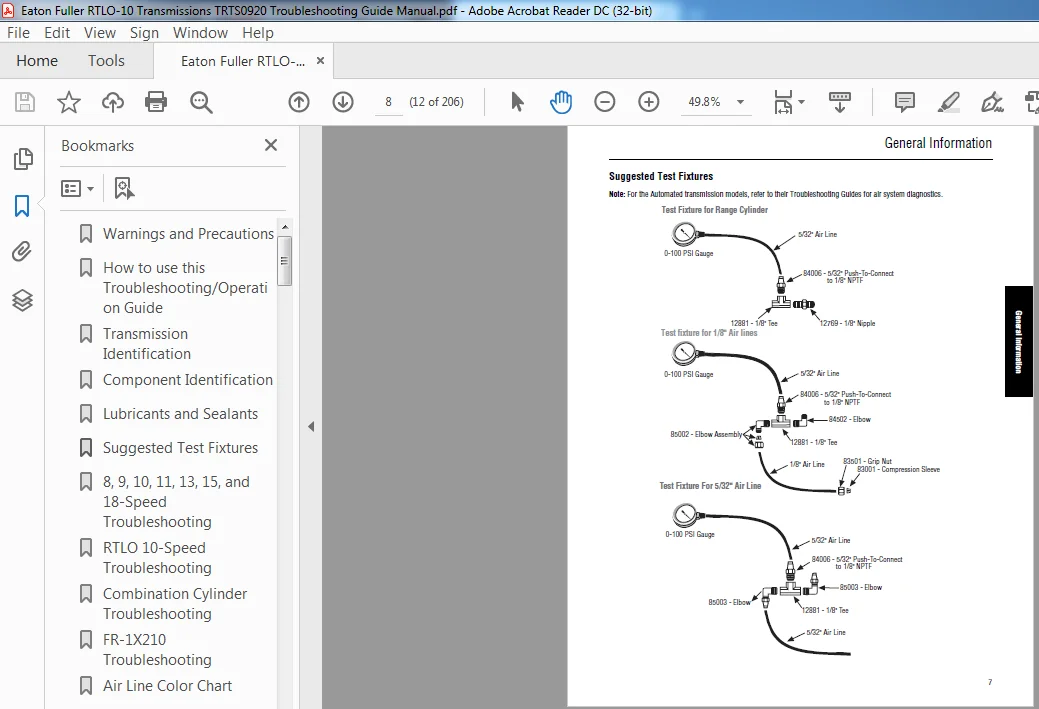

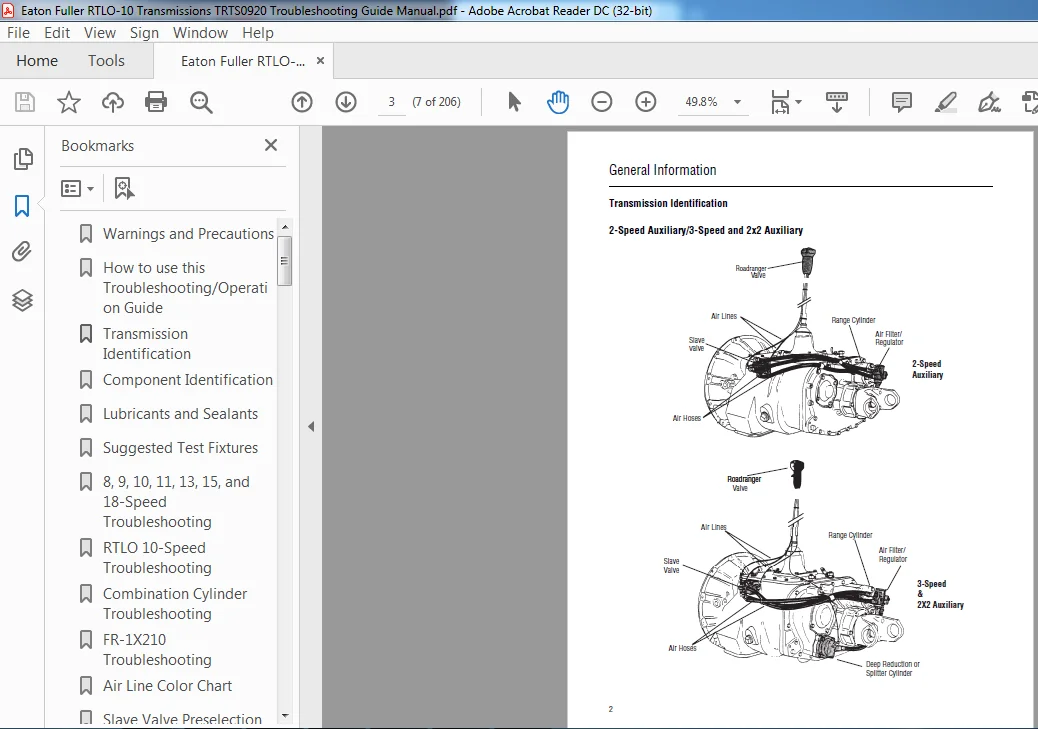

IMAGES PREVIEW OF THE MANUAL:
