Epiroc Boomer S1 D Spare Parts Catalog 8999622100-002 PDF Download
The Epiroc Boomer S1 D Spare Parts Catalog 8999622100-002 PDF Download is a detailed illustrated parts reference for the Boomer S1 D. Across 1184 PDF pages, it organizes the machine by major assemblies and modules, then breaks those assemblies down into individual components with item positions, part numbers, names, quantities and remarks. The catalog covers far more than a single drilling component: it follows the machine from service and maintenance parts through the COP 1838HD+ rock drill, BMHT2X43/25 feed, BUT 29L HD boom, front and canopy equipment, power and middle modules, rear-module systems, fire suppression and hose connections.
This Boomer S1 D parts catalog is especially useful when a technician, workshop, fleet owner or parts buyer needs to identify the correct component inside a larger assembly before ordering or planning maintenance. Many sections pair an exploded illustration with a corresponding parts table, so the relationship between the assembly position and the listed part can be checked directly in the catalog.
File Details
- Manual type: Spare parts catalog
- Brand: Epiroc
- Model: Boomer S1 D
- Document number: 8999622100-002
- Language: English
- Page count: 1184 pages
- File format: PDF
Illustrated Parts Identification for the Boomer S1 D
The catalog is arranged as an assembly-based reference rather than as a repair-procedure book. Parts pages commonly use columns for Item, Part No., Name, Qty, Remarks, Reman No. and L, while the preceding or associated illustration shows numbered component positions. This layout is valuable for distinguishing complete assemblies from the smaller parts, seals, fasteners, hoses, valves, cylinders, bearings and electrical items that belong inside them.
The Epiroc Boomer S1 D spare parts catalog also includes maintenance and pre-maintenance kits tied to engine hours, percussion hours and impact hours. Visible service-parts coverage includes configurations identified with DEUTZ TD 3.6, STAGE V; DEUTZ 914, 55KW, STAGE 3A; and DEUTZ BF4L 914, 72KW, STAGE 3A. Other catalog sections identify compressor, cabin and canopy maintenance arrangements, hydraulic filters, engine filters, belts and related service-kit contents.
Chapters Covered
- SERVICE PARTS
- PARTS & SERVICE, SET, MAINTENANCE and PM-KITS
- Engine-hour maintenance kits for DEUTZ TD 3.6, DEUTZ 914 and DEUTZ BF4L 914 configurations
- Cabin/canopy and compressor maintenance sets
- 250, 500, 1000 and 2000 hour or percussion-hour maintenance sets where listed

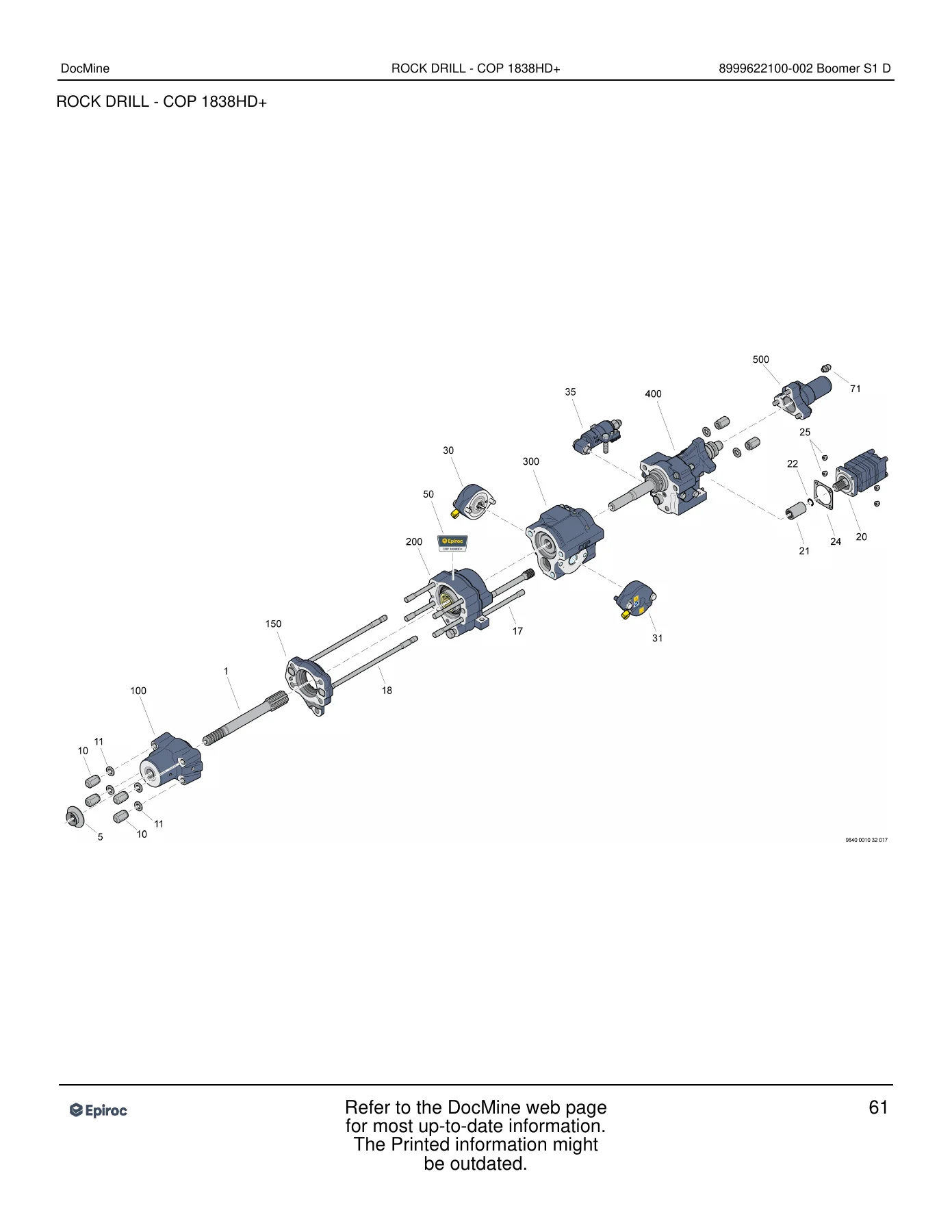

- ROCK DRILL
- ROCK DRILL – COP 1838HD+
- Front part, cover, gear housing, rotational chuck, intermediate and cylinder groups
- Front and rear seal houses, back head and accumulators
- Hydraulic motors MSQ 80 SH, MSQ 100 SH, MSQ 160 SH and MSYQ 250 SH
- Tools, pressure gauge set, charging device and overhaul fixture
- O-ring, seal, front seal, overhaul and conversion kits
- FEED MODULE
- FEED – BMHT2X43/25
- Upper and lower feed beams, drill steel supports and expanding shafts
- End piece, cradle, holder, cylinder and hydraulic-cylinder assemblies
- Pulley wheel, hose drum, hose fender, hose guides and hose holders
- Limit switches, sensor sets, hose sets, nipple sets and T/R38 bushings
- BOOM MODULE

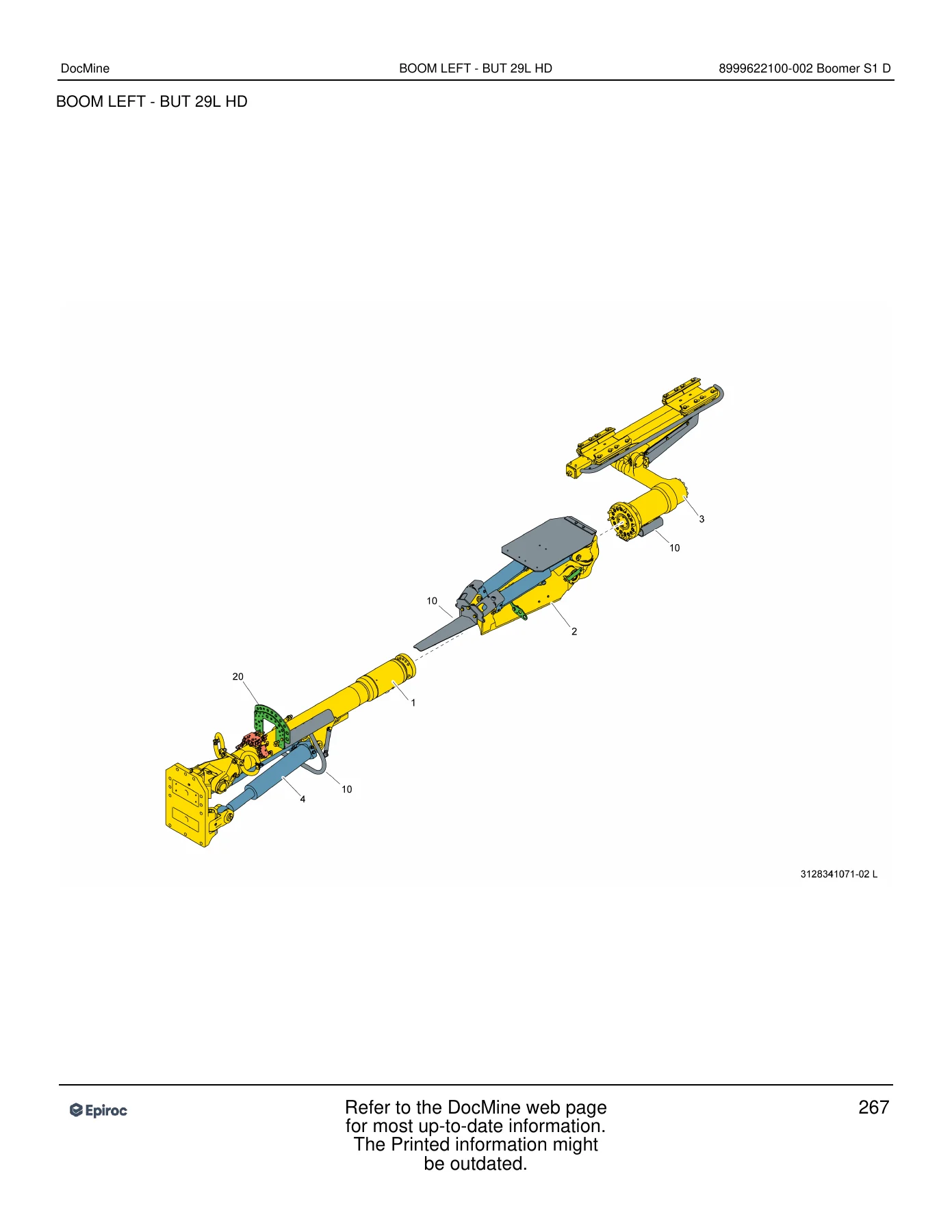

- BOOM LEFT – BUT 29L HD
- Rear boom section, boom attachment, links, shafts, boom body and telescope set
- Hydraulic cylinders, turning device and boom cylinder arrangements
- Protection roof, cylinder-protection parts and cover sets
- Hydraulic, hose and lubrication sets for the boom
- FRONT MODULE
- Front frame, counterweight, stage and front-module mudguard
- 24V electrical system and cable set
- Hydraulic system, directional valves, valve blocks and hose sets
- Boom suspension, protection-roof and telescopic-feed hydraulic sets
- Air/water system, cleaning unit, wheels, drive unit, support legs and steering cylinder
- CANOPY MODULE
- Canopy structure, platform, cab attachment and hoods
- 24V electrical system, panels, meters, switches, junction boxes and lighting
- Hydraulic system, drill panel, directional valves and hose sets
- Air/water and lubrication components
- Chair, lamp attachment, accelerator pedal and sign set
Complete PDF Bookmark Tree
Complete Bookmarks
The complete bookmarks in the “Epiroc Boomer S1 D Spare Parts Catalog 8999622100-002 PDF Download” are as follows:
+SERVICE PARTS
+PARTS & SERVICE
PARTS & SERVICE
SET,MAINTENANCE
PM-KITS
MAINTENANCE KIT – ENGINE HOURS, DEUTZ TD 3.6, STAGE V
MAINTENANCE – ENGINE HOURS, DEUTZ 914, 55KW, STAGE 3Ap. 2
PM-KITS – 500 ENGINE HOURS, DEUTZ D914, 55KW, STAGE 3A
MAINTENANCE – ENGINE HOURS, DEUTZ BF4L 914, 72KW, STAGE 3A
PM-KITS – 500 ENGINE HOURS, DEUTZ BF4L 914, 72KW, STAGE 3A
MAINTENANCE KIT – CABIN + COMPR. GAR 30p. 4
PM-KITS
PM-KITS
PM-KITSp. 6
SET,MAINTENANCE – CANOPY + COMPR. GAR 30
PM-KITS – 250 HOURS
SET,PRE-MAINTENANCE – 1000 PERCUSSION HOURSp. 8
SET,PRE-MAINTENANCE – 2000 PERCUSSION HOURS
SET,MAINTENANCE – CABIN + COMPRESSOR LE10
PM-KITSp. 10
SET,PRE-MAINTENANCE
MAINTENANCE – CANOPY + COMPRESSOR LE 5,7,10
PM-KITSp. 12
PM-KITS – 1000 PERCUSSION HRS
SET,MAINTENANCE – CABIN + COMPR. GAR 30
SET,PRE-MAINTENANCE – 500 HOURSp. 14
SET,PRE-MAINTENANCE
SET,PRE-MAINTENANCE
SET,MAINTENANCE – CANOPY + COMPR. GAR 30p. 16
SET,PRE-MAINTENANCE – 500 PERCUSSION HOURS
SET,PRE-MAINTENANCE – 1000 PERCUSSION HOURS
SET,PRE-MAINTENANCE – 2000 PERCUSSION HOURSp. 18
+ROCK DRILL
+ROCK DRILL – COP 1838HD+
ROCK DRILL – COP 1838HD+
FRONT PART COMP
COVER GROUP
COVER COMPL.
GEAR HOUSING GRp. 24
GEAR HOUSINGp. 25
GEAR HOUSING
ROT.CHUCK,COMPL
INTERM.PART GRP
INTERM. COMPL.p. 28
INTERMED. PARTp. 29
CYLINDER GROUP
CYLINDER – COMPLETE
CYLINDER,DR
SEAL HOUSE COMP – FRONTp. 32
SEAL HOUSE COMP – REARp. 33
BACK HEAD GROUP
HYDRAULIC MOTOR – MSQ 80 SH
KIT – CORRECTION KIT
HYDRAULIC MOTOR – MSQ 100 SHp. 36
HYDRAULIC MOTOR – MSQ 160 SHp. 37
HYDRAULIC MOTOR – MSYQ 250 SH
ACCUMULATOR – RIGHT
VALVE
ACCUMULATOR – LEFTp. 40
RETURN ACCUM.p. 41
RETURN ACCUM.
HOLDER SET
LABEL SET – COP 1838HD+
PROTECT CAP SETp. 44
OPTIONAL SETp. 45
TOOLS SET
PRES. GAUGE SETp. 47
FIXTURE – OVERHAUL FIXTURE ATTACHMENT/MOUNTING TABLEp. 48
CHARGIN DEVICEp. 49
CONNECT. PLATE – FOR HYDRAULIC MOTOR (O)MS(Q)
O-RING SET
SEAL KIT
SEAL KIT – FOR DAMPING PISTONp. 53
OVERHAUL KIT – COP 1838HD+ / 600 IMPACT HOURS
OVERHAUL KIT – COP 1838HD+ / 1200 IMPACT HOURSp. 55
CONVERSION KIT – COP 1838HD TO COP 1838HD+p. 56
CONVERSION KIT – TO FOUR CORNERS, STRAIGHT SPLINESp. 57
SET,SEAL – FRONT SEAL KIT
+FRONT PART COMPp. 58
+COVER GROUP
+GEAR HOUSING GRp. 59
GEAR HOUSING GRp. 24
GEAR HOUSINGp. 25
GEAR HOUSINGp. 25
ROT.CHUCK,COMPL
+INTERM.PART GRP
INTERM.PART GRP
INTERM. COMPL.p. 28
INTERMED. PARTp. 29
+CYLINDER GROUP
CYLINDER GROUP
CYLINDER – COMPLETE
CYLINDER,DR
SEAL HOUSE COMP – FRONTp. 32
SEAL HOUSE COMP – REARp. 33
+BACK HEAD GROUP
+HYDRAULIC MOTOR – MSQ 80 SHp. 60
HYDRAULIC MOTOR – MSQ 80 SH
KIT – CORRECTION KIT
+HYDRAULIC MOTOR – MSQ 100 SH
HYDRAULIC MOTOR – MSQ 100 SHp. 36
KIT – CORRECTION KIT
+HYDRAULIC MOTOR – MSQ 160 SHp. 61
HYDRAULIC MOTOR – MSQ 160 SHp. 37
KIT – CORRECTION KIT
+HYDRAULIC MOTOR – MSYQ 250 SH
HYDRAULIC MOTOR – MSYQ 250 SH
KIT – CORRECTION KIT
+ACCUMULATOR – RIGHT
+ACCUMULATOR – LEFTp. 62
ACCUMULATOR – LEFTp. 40
VALVE
+RETURN ACCUM.
RETURN ACCUM.p. 41
RETURN ACCUM.p. 41
HOLDER SET
+LABEL SET – COP 1838HD+p. 63
+PROTECT CAP SET
+OPTIONAL SET
OPTIONAL SETp. 45
TOOLS SET
PRES. GAUGE SETp. 47
FIXTURE – OVERHAUL FIXTURE ATTACHMENT/MOUNTING TABLEp. 48
CHARGIN DEVICEp. 49
CONNECT. PLATE – FOR HYDRAULIC MOTOR (O)MS(Q)
O-RING SET
SEAL KIT
SEAL KIT – FOR DAMPING PISTONp. 53
OVERHAUL KIT – COP 1838HD+ / 600 IMPACT HOURS
LABEL SET – COP 1838HD+
OVERHAUL KIT – COP 1838HD+ / 1200 IMPACT HOURSp. 55
VALVE
CONVERSION KIT – COP 1838HD TO COP 1838HD+p. 56
CONVERSION KIT – TO FOUR CORNERS, STRAIGHT SPLINESp. 57
ROT.CHUCK,COMPL
INTERM. COMPL.p. 28
INTERMED. PARTp. 29
SEAL HOUSE COMP – FRONTp. 32
SET,SEAL – FRONT SEAL KIT
+FEED MODULEp. 64
+FEED – BMHT2X43/25p. 64
FEED – BMHT2X43/25p. 64
FEED BEAM – UPPERp. 65
FEED BEAM – LOWER
DRILL STEEL SUP
DRILL STEEL SUP
DRILL STEEL SUPp. 68
EXPANDING SHAFTp. 69
LIMIT SWITCH
END PIECE SET – STANDARDp. 70
CRADLE SET – BMH(T) 2800p. 71
HOLDER SET
HOLDER SET
ATTACHMENT
CRADLEp. 74
HOLDER SET – BMHT 2000p. 75
HOLDER SET
HOLDER SET
CYLINDER SET
HYDR. CYLINDER – BMHT 1000/2000p. 78
HYDR. CYLINDERp. 79
CRADLE SET – BMH(T)2800
PULLEY WHEEL
HOSE DRUM – COMPLETE WITH BUSHINGS
HOSE FENDER SET
HOSE GUIDE SET – BMH 2000/6000 BULK HEAD
HOSE HOLDER
HOSE HOLDER
HOSE HOLDER SET
STOP SET
SPACER SET – L=216.5
NIPPLE SET – FEED CYLINDERp. 88
HOSE SETp. 89
SENSOR SET – LIMIT SWITCH
SENSOR SET – LIMIT SWITCH
LIMIT SWITCH
STOP SET
HOSE SET
SENSOR SET – CRADLE
SENSOR SET – BEAM LINEAR SENSORp. 94
BUSHING SET – T/R38, RUBBERp. 95
BUSHING SET – T38/R38, STEEL
+HOSE NIPPLE SET
HOSE NIPPLE SET
HOSE SET
CONNECT. PLATE – FOR HYDRAULIC MOTOR (O)MS(Q)
HOSE HOLDER – BMH(T)2X00 BULKHEAD
+BUSHING SET – T/R38, RUBBERp. 99
BUSHING SET – T/R38, RUBBERp. 95
+BOOM MODULE
+BOOM LEFT – BUT 29L HD
BOOM LEFT – BUT 29L HD
BOOM PART – REAR
BOOM ATTACHMENT
BOOM LINK
CYLINDER LINKp. 102
SHAFT COMPL.p. 103
EXPANDING SHAFT
EXPANDING SHAFT
EXPANDING SHAFT
BOOM BODYp. 106
TELESCOPE SETp. 107
HYDR. CYLINDER
BRG. HSG. ASSYp. 108
EXPANDING SHAFTp. 109
BOOM PART
CYLINDER BRACKEp. 110
BOOM BRACKETp. 111
EXPANDING SHAFT
EXPANDING SHAFTp. 112
COVER SETp. 113
BOOM HEAD LEFT
CYLIND.BRACKETp. 114
EXPANDING SHAFTp. 115
TURNING DEVICE – NEW TURNING DEVICE
CYLINDER SET – 45 MM AXEL TILT CYLINDERp. 117
HYDR. CYLINDER – BOOMRIDE NICROM
CHECK VALVE
HYDR. CYLINDER – BOOM CYL. REAR
OVERCENT.VALVE
CHECK VALVE
HYDR. CYLINDER
HYDR. CYLINDER – NICR 350
ASSEMBLY SET
CYL. PROT. KIT
PROTECT. PLATE
PROTECTION ROOF
CYL. PROT. KIT
PROTECTION
PROTECTION – CYLINDER PROTECTION
ASSEMBLY SET
HOSE HOLDER
HOSE HOLDER SET
BULKHEAD CONN. – PERCUSSION HOSE
BULKHEAD CONN.
HOSE FRAME SET
HOSE HOLDER
+HOSE SET
+HOSE NIPPLE SET
HOSE NIPPLE SET
HOSE NIPPLE SET – BOOM
HOSE SET
+STOP
+HYDRAULIC SET – BUT 29
HYDRAULIC SET – BUT 29
HOSE SET
HYDRAULIC SET
DOUBLE CH.VALVE
DOUBLE CH.VALVE
HOSE SET – BOOM SUSPENSION
+HOSE HOLDER – BUT 29
+COVER SETp. 140
COVER SETp. 140
COVER SETp. 141
COVER SET – FRONT
COVER SET
COVER SET
+ASSEMBLY SET – FEED HOLDER, BMHT LEFTp. 144
ASSEMBLY SET – FEED HOLDER, BMHT LEFTp. 144
HOLDERp. 145
HOLDER
+CONNECTION SET – BOLTS FOR BOOM ATTACHMENT
CONNECTION SET – BOLTS FOR BOOM ATTACHMENT
+LUBR. SYSTEM – BUT 29
LUBR. SYSTEM – BUT 29
LUBRICATION SET – REAR BOOM
LUBRICATION SET – BOOM EXTENSION
+FRONT MODULEp. 150
+FRONT FRAMEp. 150
FRONT FRAMEp. 150
COUNTERWEIGHTp. 151
STAGE
+MUDGUARD COMPL. – FRONT MODULE
MUDGUARD COMPL. – FRONT MODULE
+ELECTR.SYST.24V – FRONT MODULE
ELECTR.SYST.24V – FRONT MODULE
CABLE SET – FRONT MODULE
+HYDR. SYSTEM
HYDR. SYSTEM
DIRECTION VALVE
ASSEMBLY SET
INLET SECTION
VALVE SECTION
VALVE SECTION
VALVE SECTIONp. 162
VALVE SECTIONp. 163
VALVE SECTION
OUTLET SECTION
VALVE – LOGIK
DIRECTION VALVE – 3/2" ELVENTIL,24Vp. 166
VALVE UNITp. 167
VALVE BLOCK – PRESSURE REG. VALVEp. 168
SEQUENCE VALVEp. 169
DIRECTION VALVE
DOUBLE CH.VALVE
VALVE BLOCK
HOSE SET – BASIC HOSES,FRONT MODULEp. 172
HOSE SET – SUPPORT LEGS BOOM FRAMEp. 173
HOSE SET – VALVES , RIGHT SIDE
HOSE SET – VALVES , LEFT SIDE
+HYDRAULIC SET – FRONT MODULE
HYDRAULIC SET – FRONT MODULE
DIRECTION VALVE – 3/2" ELVENTIL,24Vp. 166
HOSE SET – FRONT MODULEp. 176
+HYDRAULIC SET – BOOM SUSPENSION
HYDRAULIC SET – BOOM SUSPENSION
DIRECTION VALVE – 3/2" ELVENTIL,24Vp. 166
HOSE SET – BOOM SUSPENSIONp. 179
+HYDRAULIC SET – PROTECTION ROOF
HYDRAULIC SET – PROTECTION ROOF
DIRECTION VALVEp. 182
+HYDRAULIC SET – TELESCOPIC FEEDp. 183
HYDRAULIC SET – TELESCOPIC FEEDp. 183
VALVE BLOCK – PRESSURE REG. VALVEp. 168
DOUBLE CH.VALVE
HOSE SET – TELESCOPIC FEEDp. 184
HOSE SETp. 185
+AIR/WATERSYSTEM – FRONT MODULE
AIR/WATERSYSTEM – FRONT MODULE
SOLENOID VALVEp. 188
HOSE SET – INTERNAL AIR HOLE BLOWING KITp. 189
+CLEANING UNITp. 190
+SET OF WHEELS – NOKIAN 9.00-20, OFFSET -25p. 191
SET OF WHEELS – NOKIAN 9.00-20, OFFSET -25p. 191
WHEEL COMPL. – OFFSET 25MMp. 192
RIM COMPL. – 7.5-20 OFFSET +25MMp. 193
TIRE SET – 9.00-R20 AG MINE TT
ASSEMBLY SET – BRICKA + M22X1.5 FLAT MUTTERp. 194
+DRIVE UNIT – FRONT MODULEp. 195
DRIVE UNIT – FRONT MODULEp. 195
DRIVE SHAFT
CROWN WHEEL KIT – COMPLETE KIT ONLY
DIFF.KIT – COMPLETE KIT ONLY
VANE KITp. 198
PLANET GEAR KITp. 199
BRAKE
CARDAN SHAFT
CARDAN SHAFT
+SUPPORT LEG KIT – NICR. HYD. CYL.
SUPPORT LEG KIT – NICR. HYD. CYL.
HYDR. CYLINDER
SUPPORT LEG – NICROMp. 204
HYDR. CYLINDERp. 205
+STEER.CYL.SET
STEER.CYL.SET
HYDR. CYLINDER – BOOM CYL. REAR
+MAN.GREASE SYST – FRONT MODULE
MAN.GREASE SYST – FRONT MODULE
HOSE REEL – 400 BAR 15M 1/4"p. 208
HOSE SET – GREASE REELp. 209
+SIGN SET – FRONT MODULE
+CANOPY MODULEp. 210
+CANOPY MODULEp. 210
CANOPY MODULEp. 210
PLATFORM COMPL. – STEEL PLATFORM COMPLETEp. 211
HYDR. CYLINDER – SKYDDSTAK
+BINDER BOXp. 212
+CAB ATTACHMENTp. 213
+HOODS COMPLET – SAMMANSTÄLLNING HÖGER+VÄNSTER
HOODS COMPLET – SAMMANSTÄLLNING HÖGER+VÄNSTER
+ELECTR.SYST.24V – CANOPY MODULE
ELECTR.SYST.24V – CANOPY MODULE
SET,ATTACHMENT
CABLE SETp. 217
FLANGE
CABLE SET – CABIN/CANOPYp. 218
PANEL – A71p. 219
HOUR METER
EMERG.PUSHBUTT.
MUSHROOM PUSHB.p. 222
MUSHROOM PUSHB. – YELLOW, 40MM DRAG,2NO,2NCp. 223
IGNITION LOCK
IGNITION LOCK
MODULE,PLINTH – A72 CANOPY
PLINTH MODULE – A74p. 226
PANELp. 227
PANEL PLATE
JOINT FITTINGp. 228
DISTRIBUTIONSET – A51:1 / A51:2p. 229
+JUNCTION BOX – A53
+CABLE SET – A53p. 231
+STAIR LIGHTING
+SPOTLIGHT SET – E109/E110
SPOTLIGHT SET – E109/E110
+EMERG.SET
EMERG.SET
JUNCTION BOX – A48p. 234
JUNCTION BOX – A48p. 235
EMERG.PUSHBUTT. – INCL 4-POL M12
+HYDR SYSTEM
HYDR SYSTEM
GUIDE UNIT
DRILL PANELp. 238
HYDRAULIC SET – DIRECTIONAL VALVESp. 239
DIRECTION VALVE – BORE VALVE DCS (KA 18)
ASSEMBLY SETp. 240
VALVE SECTIONp. 241
LEVER HOLDER
SEAL KITp. 242
VALVE SECTION – CONTROL SECTIONp. 243
VALVE SECTIONp. 244
OUTLET SECTION
VALVE BLOCK – MATNINGp. 246
PR.CONTR.VALVEp. 247
PR.CONTR.VALVEp. 248
CONTROL LEVER
LEVER JOINTp. 250
ELECTRIC SET – A20 DRILL PANEL DCSp. 251
PLINTH MODULE – X20
PLINTH MODULE – X20:1
SWITCH – KOMPLETT
LAMPPUSHBUTTONp. 254
LAMPPUSHBUTTONp. 255
EMERG.PUSHBUTT.
MUSHROOM PUSHB.p. 222
SUPPORT
FLOW DIVIDER – DELNING: 50/50, INKL LÄCKSTRYP
DOUBLE CH.VALVE
HOSE SET – CABIN / CANOPY
HOSE SET – DRILL PANELp. 258
HOSE SET – PROTECTION ROOF
+REAMER SETp. 261
REAMER SETp. 261
SWITCHp. 262
+ELECTRIC SET – BOOM SUSPENSION Y802p. 263
ELECTRIC SET – BOOM SUSPENSION Y802p. 263
+AIR/WATERSYSTEM
AIR/WATERSYSTEM
LUBRICAT.PUMP – ECL-PUMP
RESERVOIR – 5L
PRESS.RED.VALVE – 1/2", 0,2-8 BARp. 266
+CHAIR COMPL.p. 267
CHAIR COMPL.p. 267
CHAIR SWING
CHAIR
+LAMP ATTACHMENT – STD
+ACCEL. PEDALp. 270
+SIGN SET – CANOPY MODULEp. 271
SIGN SET – CANOPY MODULEp. 271
+POWER MODULE
+MECHANICS – POWER MODULE
+ELECTR.SYST.24V
ELECTR.SYST.24V
CABLE SET – A52:1p. 274
CABLE SETp. 275
+ELECTRIC MOTOR – 55KW 550/575V 50HZ
ELECTRIC MOTOR – 55KW 550/575V 50HZ
+ATTACHMENT SETp. 276
+HYDR SYSTEM – POWER MODULEp. 277
HYDR SYSTEM – POWER MODULEp. 277
VALVE BLOCK – B/RB S1,PUMP CONTROLp. 278
VALVE BLOCK – V-PUMP
SEAL KITp. 280
OIL COOLERp. 281
HYDR. RESERVOIRp. 282
HYDR. RESERVOIRp. 283
RETURN FILTER
CONNECTION SET – POWER MODULE
MECHANICS – POWER MODULE
COUPLING SET – EL. MOTOR -> PUMP
SHAFT COUPLINGp. 286
COVER SETp. 287
NIPPLE SET
NIPPLE SET – S7D DAMPER FLOW REGULATORp. 288
NIPPLE SET – HYDR. PUMPp. 289
HYDRAULIC PUMP – A10VO 100 CCp. 290
PUMP
PUMP UNITp. 292
NIPPLE SET – ROTATION FLOW REGULATOR/STDp. 293
HOSE SET – POWER MODULE
+PUMP SETp. 295
PUMP SETp. 295
COUPLING SET – EL. MOTOR -> PUMP
SHAFT COUPLINGp. 286
COVER SETp. 113
HYDRAULIC PUMP – A10VO 100 CCp. 290
PUMP
PUMP UNITp. 292
GEAR PUMPp. 296
+HYDRAULIC SET – REAMER/BIG HOLE OPTION
HYDRAULIC SET – REAMER/BIG HOLE OPTION
HOSE SET – REAMER/BIG HOLE
+EL.OIL FILLER – HYD, OIL FILLING PUMP
EL.OIL FILLER – HYD, OIL FILLING PUMP
HOSE SET – OIL FILLINGp. 300
+SIGN SET – POWER MODULEp. 301
SIGN SET – POWER MODULEp. 301
+MIDDLE MODULE
+MECHANICS – MKIII MIDDLE MODULE
MECHANICS – MKIII MIDDLE MODULE
INTERM. FRAME – MIDDLE MODULE FRAME
DRIVE UNIT – MIDDLE MODULE
DRIVE AXLE – INT. DROP BOX
CROWN WHEEL KIT
VANE KITp. 198
PLANET GEAR KITp. 199
DROP BOX
TRUNNION
ASSY,PISTON
CARDAN SHAFTp. 308
FUEL SYSTEMp. 309
SOLENOID VALVE – 24V DC, GENOMLOPP 16MM, 1/2"p. 310
LUBR. SYSTEM – MANUALLY
LUBR. VALVEp. 312
BATTERY BOXp. 313
PROTECTION – CABLE AND HOSE PROTECTION
CABLE LADDER
+HOODS COMPLET
+MUDGUARD COMPL.p. 317
+ELECTR.SYST.24V
ELECTR.SYST.24V
CABLE SET – A52
CABLE SET – MIDDLE
BATTERY MODULE – MIDDLE MODULEp. 320
FUSE KITp. 321
ELECTRIC SET – BATTERY CHARGER
+HYDR. SYSTEM – MIDDLE MODULEp. 322
HYDR. SYSTEM – MIDDLE MODULEp. 322
HYDRAULIC PUMPp. 323
FILTER COMPL.
HYDRAULIC MOTORp. 324
HYDRAULIC PUMP – CARRIER PUMPp. 325
GEAR PUMP
HOSE SET – MIDDLE MODULE
+AIR/WATERSYSTEM
AIR/WATERSYSTEM
COMPRESSOR – LE7-10UV HYDRAULIC DRIVEp. 328
HYDRAULIC MOTOR – 10CC MOTOR, CCW ROTATIONp. 329
SOLENOID VALVE – K06-24VDC
ASSEMBLY SET – HOLE BLOW KITp. 330
HOSE SET – INTERNAL AIRp. 331
ASSEMBLY SETp. 332
+SWING ARM COMPLp. 333
+COUPLING SET – MIDJETAPPAR, MIDJELÅSp. 334
COUPLING SET – MIDJETAPPAR, MIDJELÅSp. 334
+SET OF WHEELS – NOKIAN 9.00-20, OFFSET -25p. 335
SET OF WHEELS – NOKIAN 9.00-20, OFFSET -25p. 191
WHEEL COMPL. – OFFSET 25MMp. 192
RIM COMPL. – 7.5-20 OFFSET +25MMp. 193
TIRE SET – 9.00-R20 AG MINE TT
ASSEMBLY SET – BRICKA + M22X1.5 FLAT MUTTERp. 194
+DIESEL ENG.UNIT
DIESEL ENG.UNIT
DIESEL ENGINE
FAN GRID – F4L914
COUPLING COMPL. – ENGINE -> PUMPp. 338
DRAINAGE – ENGINE OILp. 339
AIR FILTER SET
AIR FILTERp. 340
THROTTLE CONTR.p. 341
EXHAUST SYSTEM – DEUTZ D914
EXHAUST SYSTEM – CATALYZER+MUFFLER
ASSEMBLY SET
COOLING SYSTEM
COOLER SUPPORT
AIR OIL COOLER
HOSE SET – COOLING SYSTEMp. 346
+SUPPORT LEG KIT – NICROMp. 347
SUPPORT LEG KIT – NICROMp. 347
HYDR. CYLINDERp. 79
+LUBR. PUMP KIT
LUBR. PUMP KIT
LUBRICAT.PUMP
EL CONTROL KIT – BOOM LUBRICATION
CABLE SET – LUBRICATION PUMP
+MAN.GREASE SYST – MIDDLE MODULEp. 352
MAN.GREASE SYST – MIDDLE MODULEp. 352
DRUM PUMPp. 353
HOSE SETp. 354
+SIGN SET – MIDDLE MODULE
+REAR MODULEp. 356
+MECHANICS – WITH STAINLESS STEEL CABLE WINDp. 356
MECHANICS – WITH STAINLESS STEEL CABLE WINDp. 356
REAR FRAME – BOLTEC Sp. 357
CABLE STEERING
PROTECTION – PROTECTION FOR VALVES
CABLE REEL KIT
CABLE REELp. 360
DRUMp. 361
HUB ASSY – RING PACK MOUNTING KIT CR DRUM
COLLECTOR KIT
COLLECTOR KIT
CASING – COLLECTOR HOUSING AISI 316
MICRO SWITCH – SR2-S0312-000p. 367
HYDRAULIC MOTOR
+HOODS COMPLETE – WITH WIND
HOODS COMPLETE – WITH WIND
+ELECTR.SYST.24V
ELECTR.SYST.24V
CABLE SET – REAR MODULE
APPAR. PANEL – A50
EL-CABINET – A50
ELECTR.CABINET
CABINET DOOR – A50
CABLE SET – A50:1p. 376
CABLE SET – A50:2p. 377
FLASHING BEACON
BRAKE LIGHT – WITH CONNECTOR AND SCREWS
+ELECTR. SYSTEM
ELECTR. SYSTEM
INSTALLATION KIT
ELECTR.CABINET
ELECTR.CABINETp. 383
FLANGE CONNECT. – A-CABINET – COLLECTOR
FAN SET – FAN SET A10:2
MAIN SWITCH – 160-200A 36KA
LIMIT SWITCH – KIT FOR DOOR LIMIT SWITCHES
PLINTH MODULE – X40 A10
PLINTH MODULE – X40:1 A10 400-1000V
+CABLE COMPLETEp. 388
CABLE COMPLETEp. 388
CABLE LUG SET – INCL. SCHACKLE+WIRE MESH HOSEp. 389
+CABLE SET – A10
CABLE SET – A10
FLANGE SET – A10
FLANGE FIT SET – 2XBUFLEX 25MM2
+PLUG CONNECTOR – MAX CABLEDIA.54MMp. 393
PLUG CONNECTOR – MAX CABLEDIA.54MMp. 393
+WIRE MESH HOSE – DIA 25-45 MM
WIRE MESH HOSE – DIA 25-45 MM
+REEL CONTROL – CABLE/HOSE, DUAL CONTROLp. 394
REEL CONTROL – CABLE/HOSE, DUAL CONTROLp. 394
CONTROL BOX – A57p. 395
+EMERG.SET
EMERG.SET
PUSH-BUTTON-BOX – A41+PILOTp. 396
MUSHROOM PUSHB. – RED 40MM TURN,2NCp. 397
PUSH BUTTON – BLACK
+HYDR. SYSTEM – REAR MODULE
HYDR. SYSTEM – REAR MODULE
DIRECTION VALVE
DIRECTION VALVE
PRESS.REL.VALVE
FLOW CONT.VALVE
HOSE SET
+AIR/WATERSYSTEM – REAR MODULE
AIR/WATERSYSTEM – REAR MODULE
STRAINER
WATER PUMP UNIT
HYDRAULIC MOTOR
WATER PUMP – UTAN ELMOTOR, 4KW
COUPLING COMPL. – Ø110MMp. 407
SOLENOID VALVEp. 188
CABLE SET – HOLE BLOWINGp. 408
HOSE SET – INTERNAL AIR FLUSH REAR MODULEp. 409
+AIR RECEIV.SET – AIR TANKp. 410
AIR RECEIV.SET – AIR TANKp. 410
+EXT. AIR CONNEC – EXT AIR INTAKE
EXT. AIR CONNEC – EXT AIR INTAKE
STRAINER
HOSE SET – EXTERNAL AIR, REAR MODULEp. 412
+HOSE REEL KIT – HOSE REEL COMPLETE
HOSE REEL KIT – HOSE REEL COMPLETE
HOSE REEL KITp. 414
HOSE REELp. 415
TORQUE UNIT KIT
SWIVELp. 416
HYDRAULIC MOTOR – VINDAp. 417
ARM,SWING,COMPLETE – HOSE REEL
CABLE STEERING
HYDRAULIC SET – REEL CONTROL VALVES
DIRECTION VALVE
PRESS.RED.VALVE
FLOW CONT.VALVE
REEL CONTROL – S249p. 420
HOSE SET – HOSE REELp. 421
CABLE SET – HOSE REEL KIT
+HOSE COMPL. – SLANG,KLÄMMA,STRUMPA,NIPPEL
HOSE COMPL. – SLANG,KLÄMMA,STRUMPA,NIPPEL
WIRE MESH HOSE – INKL. SCHACKEL
+SIGN SET – REAR MODULEp. 424
SIGN SET – REAR MODULEp. 424
+SYSTEM,MONITORING – CERTIQ 2.0
SYSTEM,MONITORING – CERTIQ 2.0
SET,ELEC – CERTIQ
+SWITCHING GEAR – 3X250A+PE+2P/380-660V70MM2
SWITCHING GEAR – 3X250A+PE+2P/380-660V70MM2
SOCKET OUTLET – 3X250A+J+2P/1000V 70MM2p. 428
+LABEL SETp. 429
+HOSE SET
+FIRE SUPPR.SYST
+FIRE EXTING.SET – ANSUL & CHECKFIRE
FIRE EXTING.SET – ANSUL & CHECKFIRE
TANK – INCL. ATTACHMENT
+HOSE LIST – FIRE SUPPRESSION HOSES
HOSE LIST – FIRE SUPPRESSION HOSES
+HOSE CONNECTION
- POWER MODULE
- Power-module mechanics and 24V electrical system
- Electric motor – 55KW 550/575V 50HZ
- Hydraulic system, valve blocks, oil cooler, reservoir and return filter
- Motor-to-pump coupling, A10VO 100 CC hydraulic pump and pump units
- Reamer/big-hole hydraulic option and hydraulic-oil filling equipment
- MIDDLE MODULE
- MKIII middle-module mechanics, frame, drive unit, axle and drop box
- Fuel, lubrication, battery, hoods, mudguards and 24V electrical system
- Hydraulic pumps, motor, filters and hose sets
- Compressor LE7-10UV hydraulic drive and internal-air/hole-blow components
- Diesel engine unit, exhaust and cooling-system parts
- REAR MODULE
- Rear frame, cable steering, cable reel and collector components
- 24V electrical system, cabinets, cable sets, beacon, brake light and main switch
- Rear hydraulic system and valve components
- Air/water system, water pump, external air, air receiver and hose-reel equipment
- Certiq 2.0 monitoring-system parts, switching gear, socket outlet and labels
- FIRE SUPPR.SYST
- FIRE EXTING.SET – ANSUL & CHECKFIRE
- Tank and fire-suppression hose list
- HOSE CONNECTION
- Hose connection parts reference
Taken together, these chapters provide a machine-wide parts map for the Boomer S1 D. Instead of searching through unrelated component sheets, the user can follow the catalog hierarchy from a major module to an assembly, then to its illustrated item positions and corresponding part-number table. That makes the document useful both for routine service-part identification and for larger assembly work where multiple related components must be checked together.
Detailed Coverage of High-Service Assemblies
The COP 1838HD+ section is particularly deep. It includes exploded breakdowns for the front part, cover group, gear housing, rotational chuck, intermediate part, cylinder group, seal housings and back head, together with hydraulic motor variants and accumulator components. The catalog also identifies support items used around the rock drill, including tool sets, pressure-gauge equipment, an overhaul fixture, a charging device and connection plates. Dedicated 600-impact-hour and 1200-impact-hour overhaul kits are listed, along with a COP 1838HD to COP 1838HD+ conversion kit and a conversion kit for four corners and straight splines.
The feed and boom sections extend that same parts-identification approach into structural and hydraulic assemblies. For the BMHT2X43/25 feed, the catalog includes feed beams, drill steel supports, cradle and holder arrangements, hydraulic cylinders, hose-routing hardware, sensor sets and bushings. For the BUT 29L HD boom, it follows the boom body and telescope components into cylinders, valves, protection parts, hose groups and lubrication equipment. These sections are useful when a fault or wear point has already been localized and the next task is determining exactly which assembly or replaceable part is shown.
The chassis-side modules are equally broad. Front, canopy, power, middle and rear sections cover mechanical structures, 24V electrical equipment, hydraulic systems, air/water systems, pumps, valves, cylinders, drive components, cables, filters, hose sets and operator-area items. Because the catalog separates these by module, users can narrow the search to the physical area of the machine instead of working from one undifferentiated master list.
Part Numbers, Quantities and Assembly Relationships
For parts purchasing and workshop preparation, the important value of this Boomer S1 D parts catalog 8999622100-002 is the connection between the exploded illustration and the tabulated part information. A drawing may identify an item by position number, while the adjacent listing gives the corresponding part number, description, quantity and remarks. Complete assemblies are also separated from their internal components in many places, which helps when deciding whether the reference is pointing to an entire unit, a service kit or an individual replacement item.
The catalog itself states that users should refer to the DocMine web page for the most up-to-date information and that printed information might be outdated. When a current supersession, availability change or final ordering decision matters, the listed number should therefore be verified against current parts information.
Identify Boomer S1 D Parts Faster
The Epiroc Boomer S1 D Spare Parts Catalog 8999622100-002 PDF Download gives you a practical reference for locating components, checking exploded assembly relationships, matching item positions to part numbers, reviewing maintenance-kit contents and preparing parts requirements across the drill, feed, boom and machine modules. Having the correct illustrated breakdown and listed part information can reduce guesswork when discussing a component with a workshop, parts supplier or maintenance team and helps keep parts planning tied to the assembly shown in the catalog.
After payment, the manual is delivered as an instant PDF download. There is no physical shipping or waiting for a printed book. You can open the PDF on a computer, tablet or phone and print the pages you need for workshop or parts-counter use.
Reviews
There are no reviews yet.
