Epiroc Minetruck MT2010 Spare Parts Catalog 8997852300 – PDF Download

Description

Epiroc Minetruck MT2010 Spare Parts Catalog 8997852300

This Epiroc Minetruck MT2010 spare parts catalog is the illustrated parts reference for the MT2010 underground mining truck, issued under document number 8997852300. It combines exploded-view illustrations with itemized parts tables covering the mainframe and powerframe, the Cummins QSL9 engine installation, driveline, axles, brakes, transmission, hydraulic systems, electrical equipment, and operator cabin. If you need to identify a component, confirm an OEM part number, or plan a repair on an MT2010, this catalog gives you the assembly context and part data to order correctly the first time.

File Details

• Manual type: Illustrated Spare Parts Catalog
• Brand: Epiroc
• Model: Minetruck MT2010 (MT2200 references appear in section headers)
• Document number: 8997852300
• Language: English
• File format: PDF
• Page count: 775 pages

Chapters Covered

The catalog follows the machine’s assembly structure, with each section presenting an exploded-view illustration and a corresponding parts table listing item numbers, part numbers, descriptions, quantities, and remarks. Major sections include:

IMAGES PREVIEW

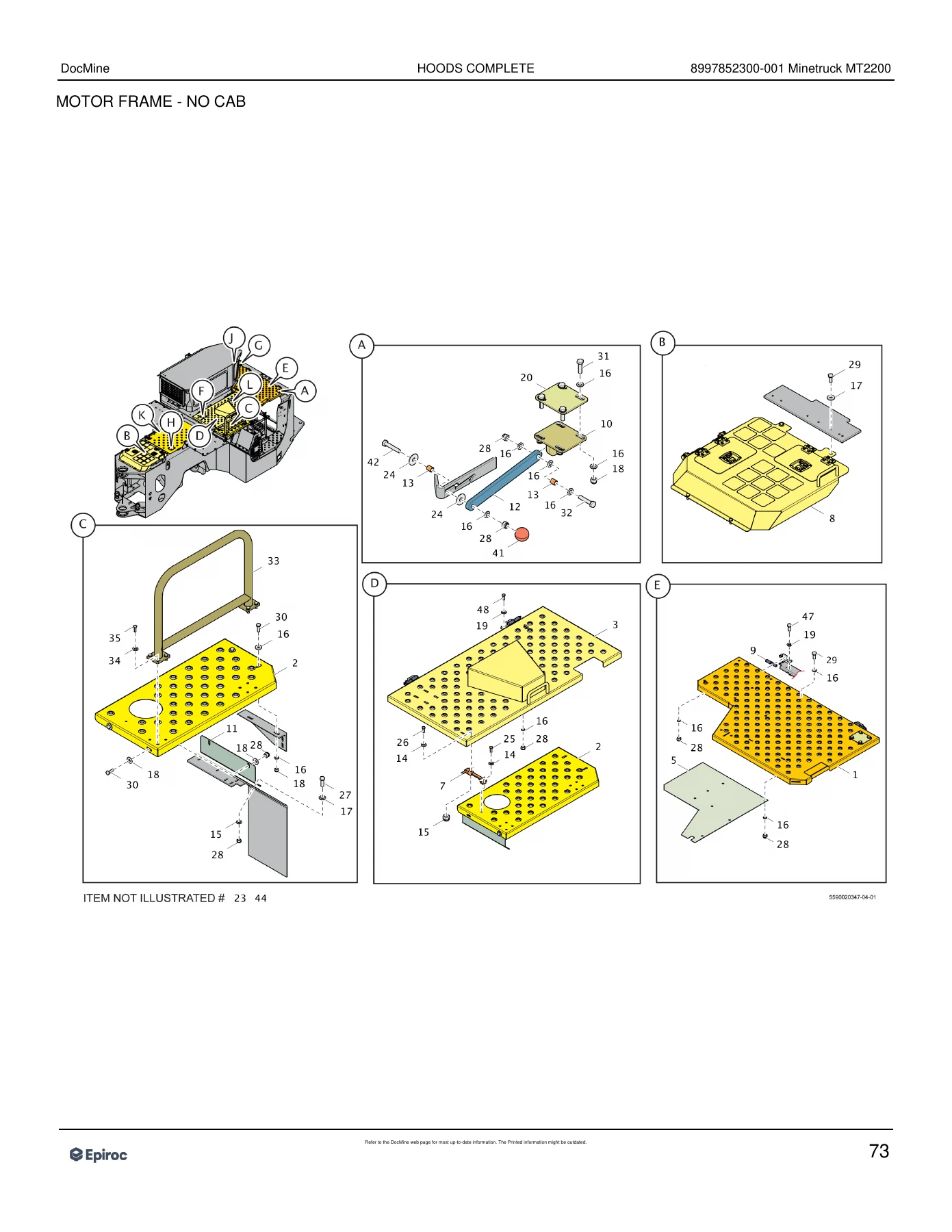

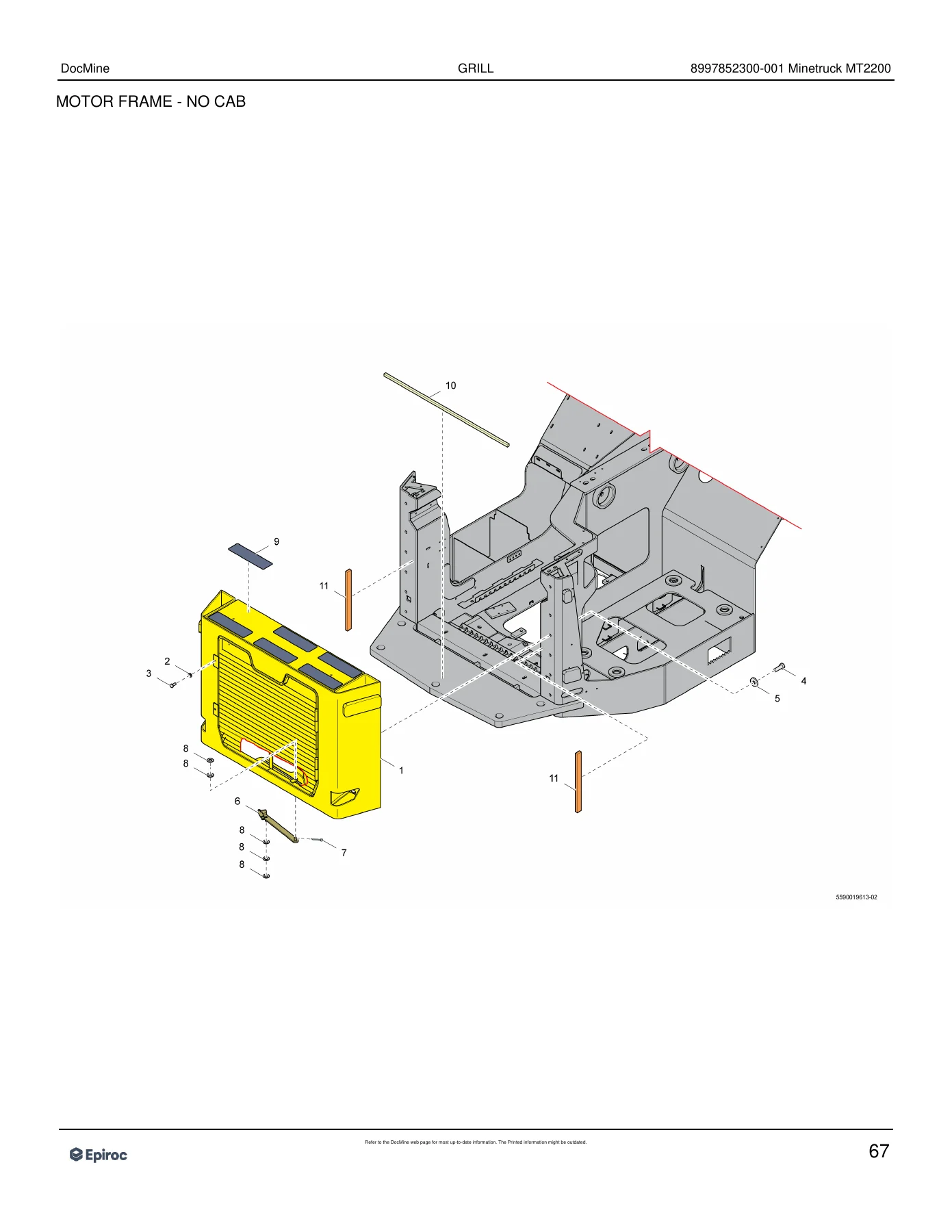

• Mainframe MT2010 – motor frame, powerframe, steering anchors, trunnion caps, grill, exhaust cover, handles, hoods, lock devices, doors, fuel tank, hydraulic oil tank, filter housings, valves, and caps
• Cabin installation – cabin with dampers, complete cabin, attachment set, interior plates, door stop, cabin door, lock device, window, silencer kit, carpet, and manual box

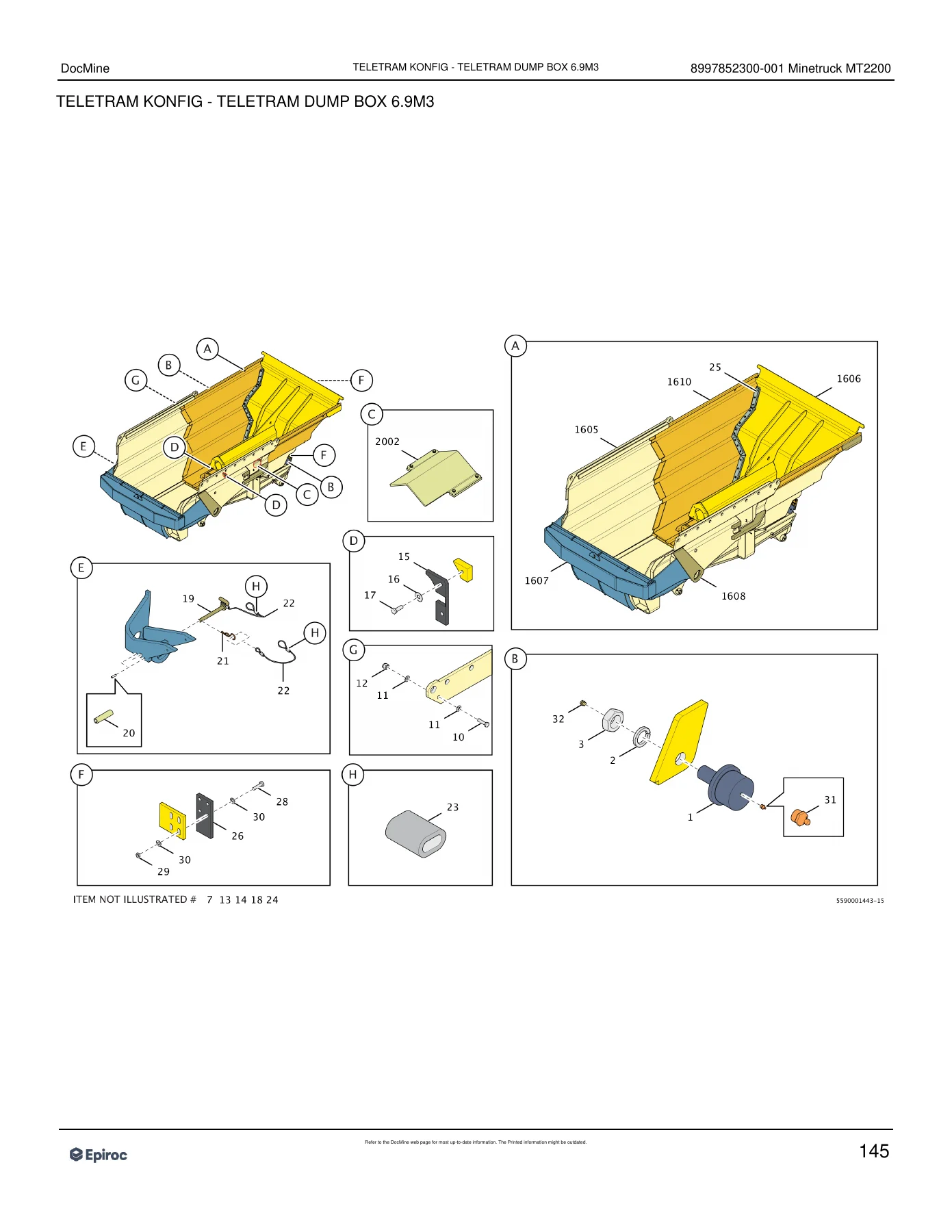

• Fender, loadframe, tie plate, teletram configuration, dump box, tailgate, and locking components
• Light set, door brake, car stereo and media player, flash light, pressurizer, and AC-complete with hose sets, evaporator, and harness
• Emergency shutdown and emergency stop box
• Driver’s seat and chair support
• Swivel installation with Timken bearing
• Driving mirror installation
• Power unit MT2010 – Cummins QSL9 325HP engine installation, engine assembly, diesel engine QSL9-C325
• Air inlet and air filter system
• Exhaust system with purifier, flexible pipe, and clamps
• Fuel system QSL9 – hose list, primary fuel filter, and fuel filter with heater
• Cooling system – hose sets and surge tank assembly
• Radiator assembly – epoxy coated, copper radiator, oil cooler, and aftercooler
• Front axle – axle installation front OSC RKTRQ 457, differential gear and carrier
• Rear axle – RKTRQ 457
• Driveline – driveline installation S50, 457, 115 inch, driveline cover
• Brake system – cab, standard and TT, hose sets, brake pressure J-block, brake pump, hand pump, solenoid valve, shuttle valve, check valve, junction block, gear pump, brake control valve, foot brake, acc charge, aux valve, pressure filter, and brake release valve
• Brake cooling – teletram
• Transmission – assembly, valve control, transmission parts, input shaft, forward shaft, 1st/3rd and 2nd/4th shaft, idler shaft, clutch, and coupling groups
• Set of wheels – left side and right side wheel completions
• Converter – CL8552 installation, converter specification, and regulating valve assembly
• Hydraulic unit MT2010 – cylinder sets for 1st stage box, steering cylinders, push plate cylinder, and tailgate cylinder
• Teletram assembly – dump system, hose sets, dump valve, pilot pressure valve, dump pilot control valve, bulkhead sets, and valve block
• Steering system – steering orbitrol standard, hose list, steering valve, divider block, gear pump, priority valve, and relief valve
• Hydraulic system – PLMG trans/conv system, electric shift system, hydraulic oil fill pump, filter sets, and hoses
• Electrical system – main FS cab, E10, E20, panel plates, relay, switch panel, display panel, accelerator pedal, cable sets, harnesses W101 through W301, CAN cables, Ethernet cables, diode lamps, fan, wiper, joystick, and lever
• Electrical equipment – alternator, generator, guard, LED light set, headlights, battery installation, Certiq, tail/brake light set
• Checkfire fire suppression system
• Automatic grease system – Lincoln lube system, divider valve, and lubrication pump
• Label set – warning and safety signs for cabin/canopy, powerframe, and loadframe/box

This Epiroc MT2010 parts catalog does more than list numbers. Each exploded-view drawing shows how components fit together, which fasteners and seals belong with each assembly, and how sub-assemblies are sequenced. That makes it useful not only for ordering parts but also for understanding how the machine is built before a repair begins.

How This Catalog Helps You

When a component fails on a Minetruck MT2010, the first obstacle is usually identification – the wrong part number costs time, money, and another teardown. This catalog eliminates that guesswork by pairing every illustration with a complete parts table. You can trace a part from the assembly drawing to its item number, find the exact part number and quantity, and cross-check remarks that flag critical details.

The coverage extends across all major systems. Engine-related sections cover the Cummins QSL9 325HP installation and the QSL9-C325 diesel engine with its sensors, fuel pump, filters, turbocharger, water pump, thermostat, injectors, and connectors. Drivetrain sections cover the front and rear axles, differential and carrier, driveline assemblies, and the transmission with its control valve, shafts, clutches, and coupling groups. Hydraulic sections cover steering, dump, brake cooling, and the electric shift system, along with all associated valves, pumps, cylinders, and hose sets.

Electrical documentation is equally thorough, spanning panel plates, relays, switch panels, display panels, harnesses W101 through W301, CAN and Ethernet cabling, sensors, lights, and the Certiq telematics installation. Fire suppression, automatic lubrication, and the full label set are also included.

Who This Is For

This Epiroc Minetruck MT2010 spare parts catalog is written for equipment owners, fleet maintenance managers, underground mining mechanics, parts interpreters, and rebuild shops working on the MT2010. It is equally useful for procurement teams who need to verify part numbers before placing an order. Because the catalog covers the machine at assembly level – not just a flat list of numbers – it supports both planned maintenance and breakdown repair.

Why a Correct Parts Catalog Matters

Mining trucks operate in harsh conditions where an incorrect part can cause secondary damage, extend downtime, or create a safety risk. Using the OEM parts catalog ensures the component matches the machine’s original specification, including thread sizes, seal types, materials, and fit. The catalog’s exploded views also help confirm that all associated hardware – washers, lock nuts, O-rings, shims, and fasteners – is ordered together, preventing a second shutdown for a missing item.

Instant PDF Delivery

This Epiroc Minetruck MT2010 spare parts catalog 8997852300 is delivered as an instant PDF download. There is no shipping, no waiting for a physical book, and no risk of a lost or damaged copy. After payment, you can open the file immediately on a computer, tablet, or smartphone, search the parts tables, and print the pages you need for the workshop floor. Whether you are working in the shop, at the face, or in the parts warehouse, the catalog is available on any device that reads PDFs.

With 775 pages of illustrated parts data covering the complete MT2010, this is a practical reference you will return to every time a component needs replacement or identification.
