Epiroc Boomer S1D Spare Parts Catalog 8999431200 – PDF Download

Description

File Details

• Manual type: Spare parts catalog
• Brand: Epiroc
• Model: Boomer S1D (Boomer S1 D-DH)
• Document number: 8999431200
• Language: Spanish and English (bilingual)
• File format: PDF
• Page count: 1017 pages

Chapters Covered

• Maintenance schedules and Kits MP for Deutz TD3.6 55KW Stage 3B, TCD 3.6 Tier 4 Final, D914 55KW Stage 3A, BF4L 914 72KW Stage 3A, TCD 2013, and TCD 2012 L06 engines
• Maintenance for Canopy and GAR30 compressor
• Kits MP at 250 H, 500 H, and 1000 H intervals
• Service kit at 1000 percussion hours
• Rock drill COP 1638HD+ and COP 1838HD assemblies
• Front part, cover group, gear housing, rotation bushing, intermediate part, cylinder group, locking housing, rear head

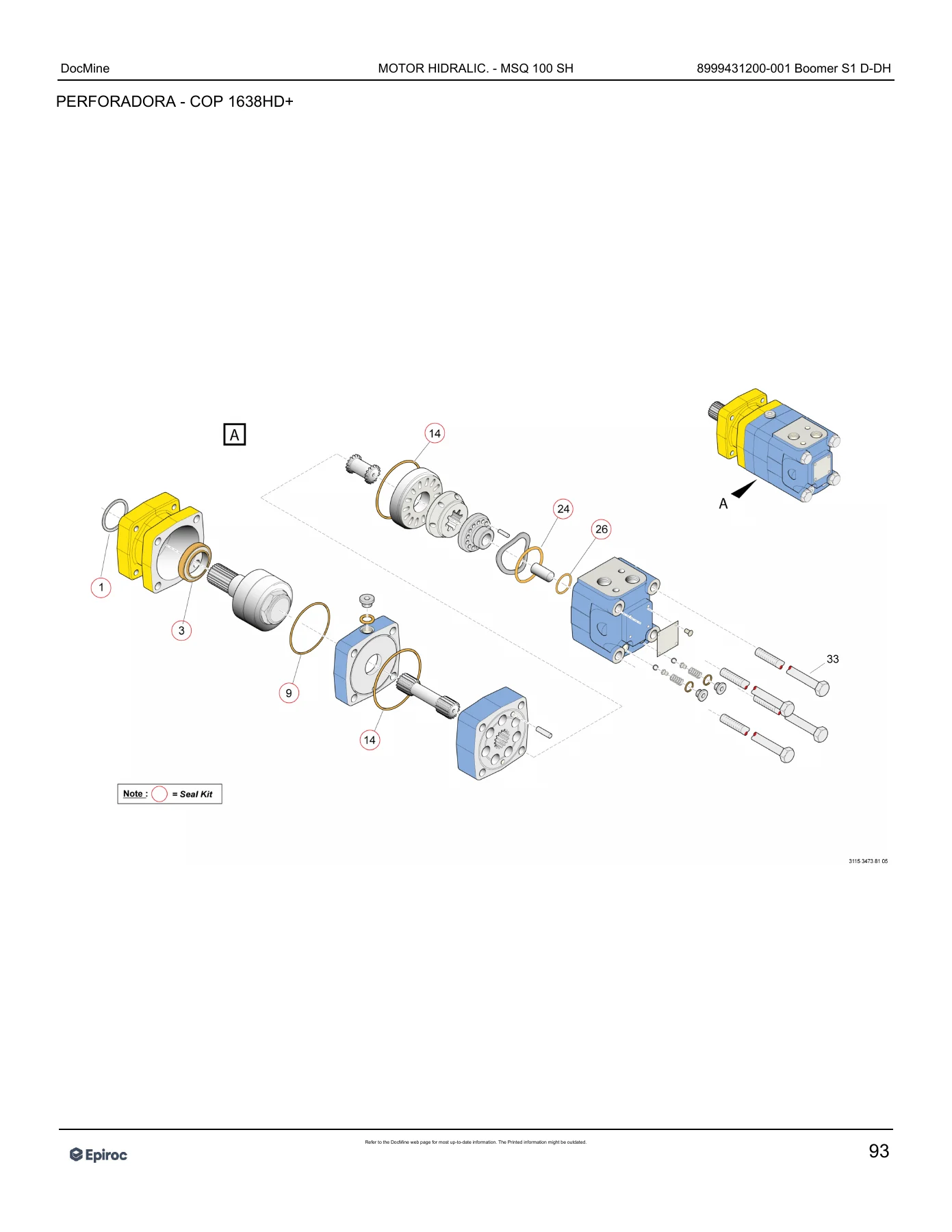

• Hydraulic motors MSQ 80 SH, MSQ 100 SH, MSQ 160 SH
• Accumulators, valves, return accumulator
• Sticker set, optional group, tool kit, manometer set
• Overhaul fixture attachment and mounting table
• Connection plates, O-ring kits, seal kits, renewal kits at 600 and 1200 impact hours
• Remodel kit from COP 1638HD to COP 1638HD+
• Feed beam slide assembly, drill guide, hydraulic cylinder, wedge set, pulley, hose reel, hose guides, sensors, stops, spacers, nozzles
• Boom assemblies, cylinders, expansion shafts, bearing housings, telescopic mechanism, rotation mechanism, cylinder guards
• Front module: electrical system 24, connection boxes, cables, wheels, fenders, frame, counterweight, platform, hydraulic systems, control valves, air/water system
• Cabin module: electrical system 24, lighting, emergency stop, connection boxes, panels, hour meter, radio, seat, air conditioning, windshield wipers, windows, door locks
• Power module: electrical system 24, fuse box, oil refill, hydraulic system, hydraulic tank, return filter, thermostats, mechanical components
• Middle module: electrical system 24, cable sets, connection boxes, fuse sets, covers, hydraulic system, hydraulic pumps, motor, filters, mechanical components, drop box, fuel system, lubrication system, battery box, fire suppression system
• Rear module: emergency stop box, electrical system 24, cover, plates, air/water system, compressor GAR30, hydraulic system, mechanical components, fuel system, water tank
• Fire suppression system with ANSUL and Checkfire components
• Hose coupling reference list
• Decal set
• Certiq system and RCS kit

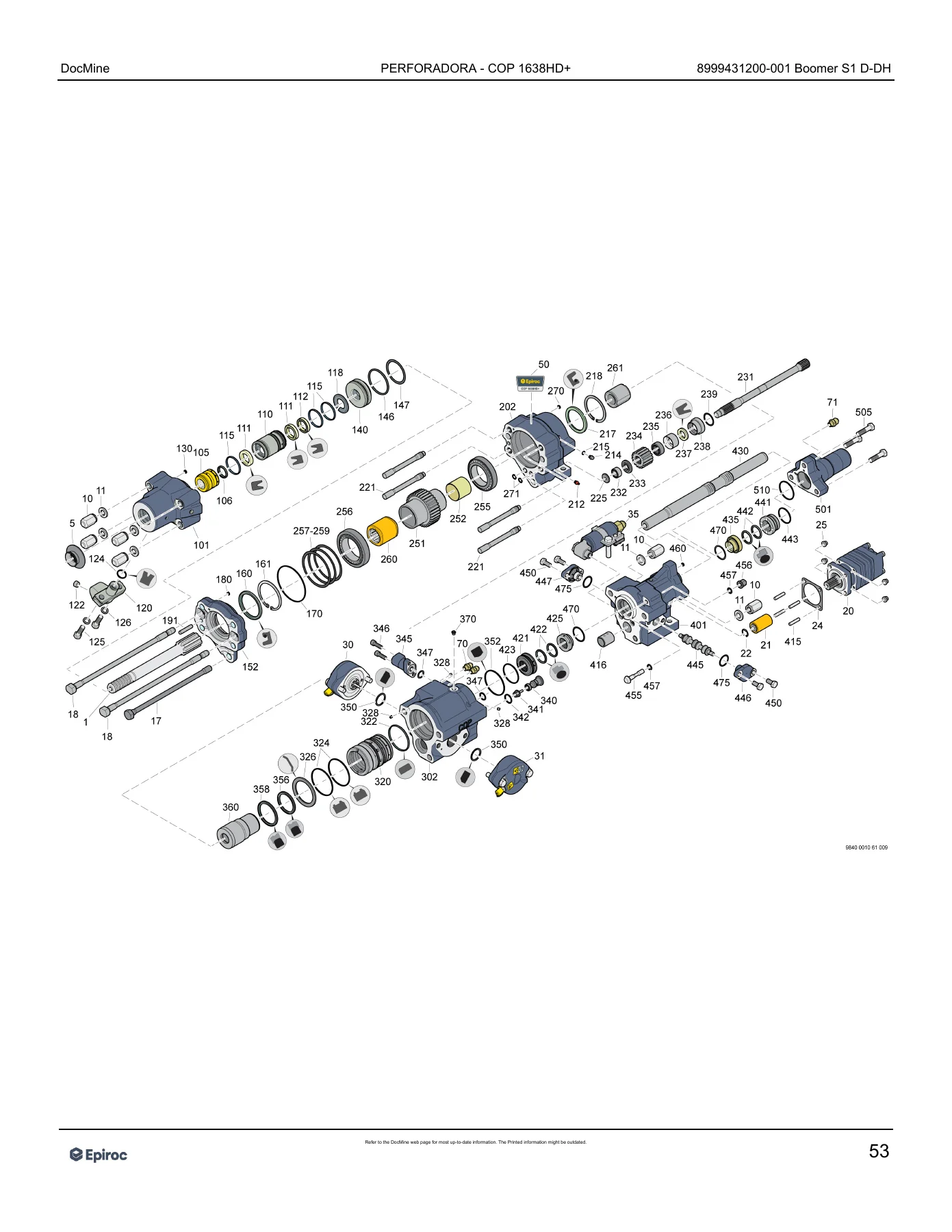

This Epiroc Boomer S1D spare parts catalog gives you the complete component breakdown for one of the most versatile underground drilling rigs in the Epiroc lineup. Every module is documented, from the front frame and cabin through the power, middle, and rear sections. The rock drill section alone spans over a hundred pages of exploded views covering the COP 1638HD+ and COP 1838HD, with every seal, bushing, gear, and housing called out by part number. The feed beam and boom assemblies are similarly detailed, giving you the exact part references for slide beams, drill guides, hydraulic cylinders, expansion shafts, and bearing housings. On the engine side, the catalog covers maintenance kits for the full range of Deutz powerplants used in the Boomer S1D, including the TD3.6, TCD 3.6 Tier 4 Final, D914, BF4L 914, and TCD 2013. Each kit is broken down by engine hour interval, so you can order exactly what the service schedule calls for at 250, 500, and 1000 hours. The hydraulic and electrical systems for every module are documented with connection plates, cable sets, valves, accumulators, and control components. Whether you are rebuilding a rock drill, replacing a hydraulic pump in the middle module, or tracking down a seal kit for the boom cylinder, this catalog provides the exploded views and part numbers to get the right component the first time.

What This Catalog Enables You to Do

With the Epiroc Boomer S1D parts catalog, you can confidently order replacement parts for every major system on the machine. The exploded diagrams show exactly how components fit together, which is invaluable when you are rebuilding a rock drill, servicing a hydraulic motor, or replacing a worn bearing in the feed beam. The part numbers are listed alongside each item in the diagrams, so you can cross-reference and order without guesswork. For maintenance planning, the Kits MP sections give you the full bill of materials for each service interval, letting you stock the filters, belts, and seals you need before the machine goes down. The module-by-module organization mirrors the way the machine is built, so you can navigate directly to the section you need, whether that is the cabin electrical system, the middle module hydraulic pumps, or the rear module air/water circuit.

Why the Right Parts Documentation Matters

Underground drilling equipment operates in some of the most demanding conditions on earth, and using the correct parts is not optional. A wrong seal in a rock drill can lead to pressure loss and premature failure. An incorrect hydraulic filter can contaminate the entire system. This catalog removes that risk by giving you the exact Epiroc part number for every component, cross-referenced to the machine’s serial number range. The maintenance kits are assembled by engine hour interval, so you know precisely which filters, belts, and fluids to replace at each service. For rebuilds and overhauls, the renewal kits at 600 and 1200 impact hours provide the complete set of wear parts for the COP 1638HD+, while the remodel kit lets you upgrade an older COP 1638HD to the HD+ specification. Having this level of documentation on hand means less downtime, fewer ordering errors, and a machine that stays productive.
